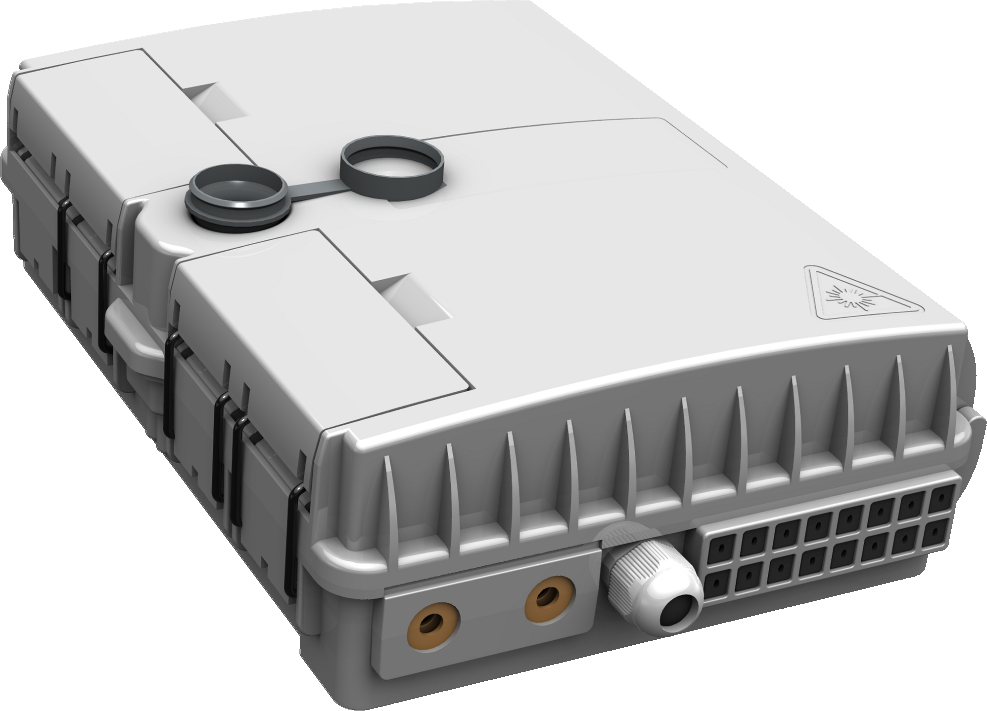

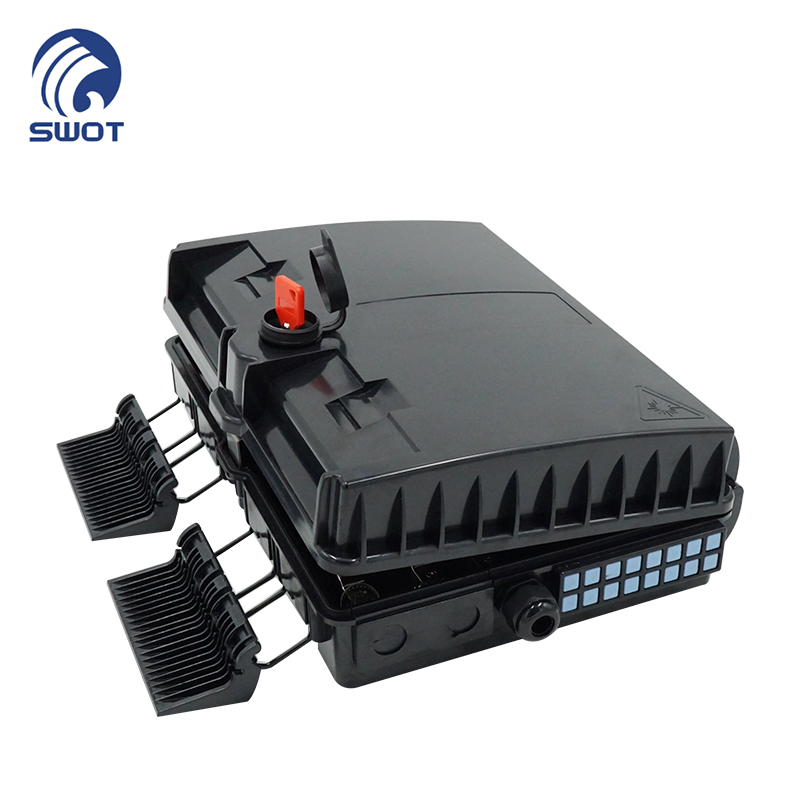

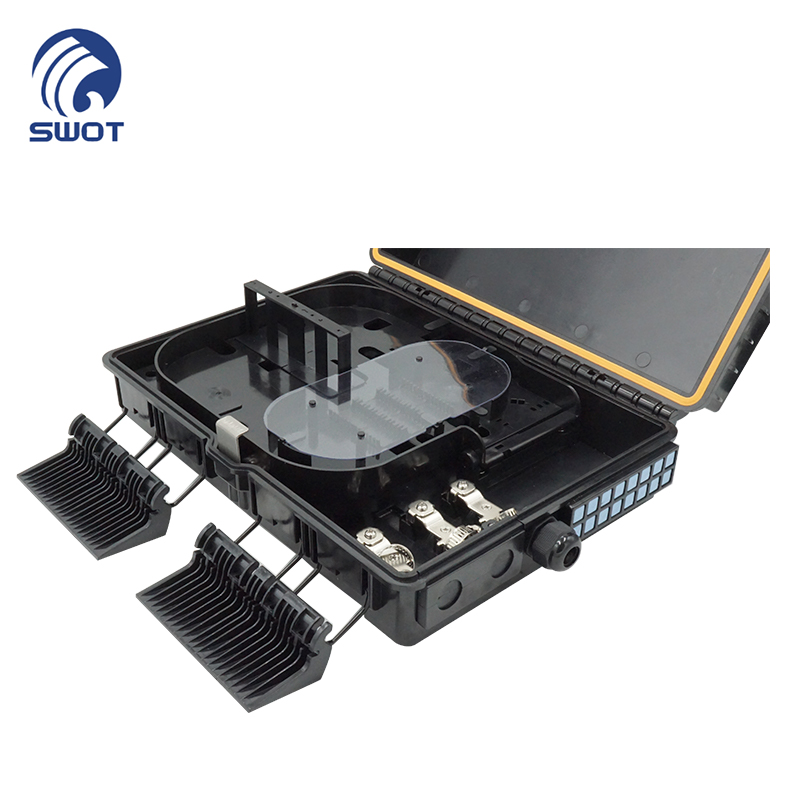

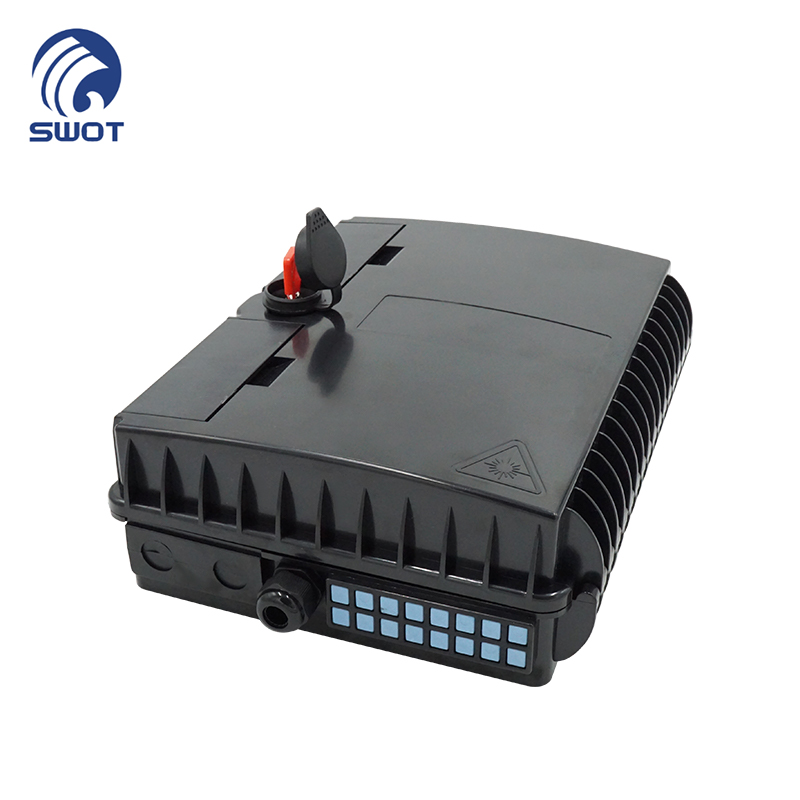

Passive Optical Points Terminal Box-FTTH FTT-H0316

1.Cable stripping

According to your drawings cable stripping will be good.

2、Cable fixing

Will stripping cable inserted into the hole good fiber optic cable, through the hose hoops and cable strengthen core placed to strengthen the core press block press tightly, and then the cable fixed with stainless steel hose hoops.

3、Optical fiber connection

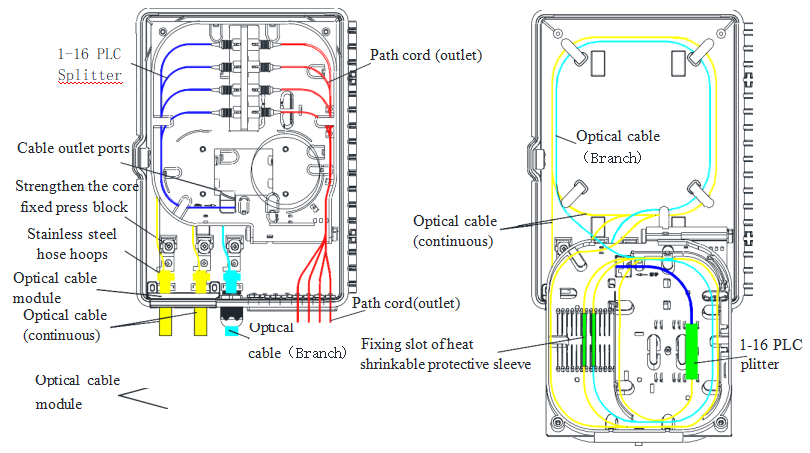

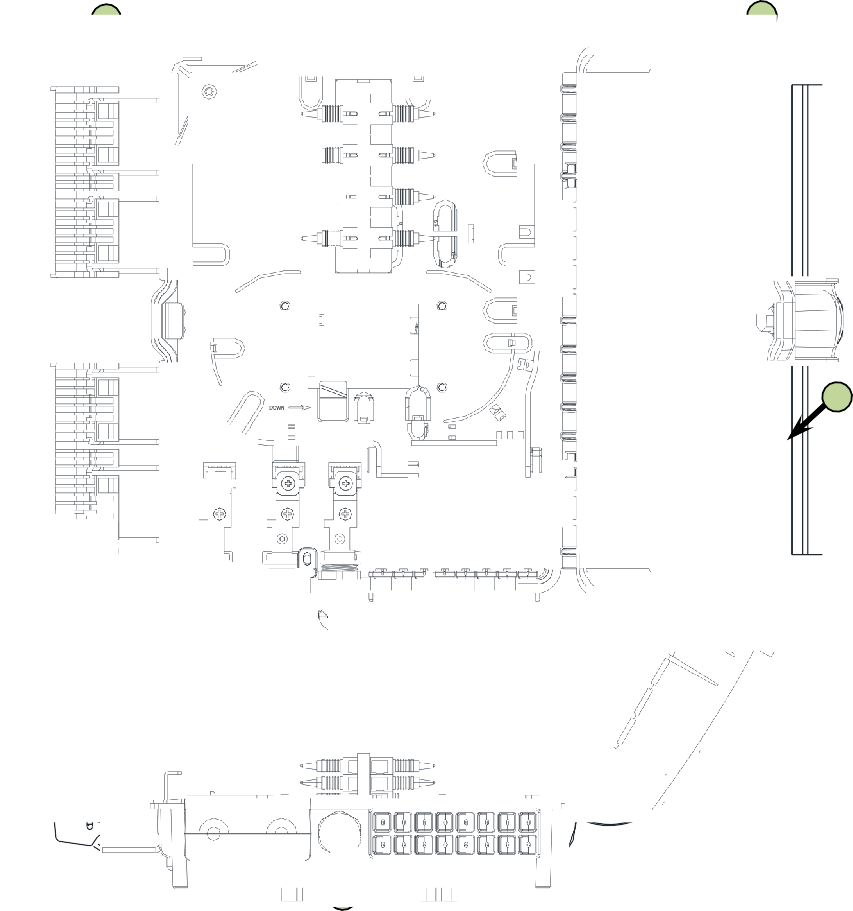

According to the picture shows to pigtail or splitter (input) welding and welding after the completion of the layout will be in accordance with pictures of optical fiber, pigtail,heat shrinkable protective sleeve and splitter is put to the corresponding position and be fixed, take fiber with protective coat and pigtail end with nylon tie fixed,the heat shrinkable protective sleeve useful rubber cover plate fixed, the splitter used double-sided tape fixed, finally cover the transparent plate.

4、Pigtail/path cord

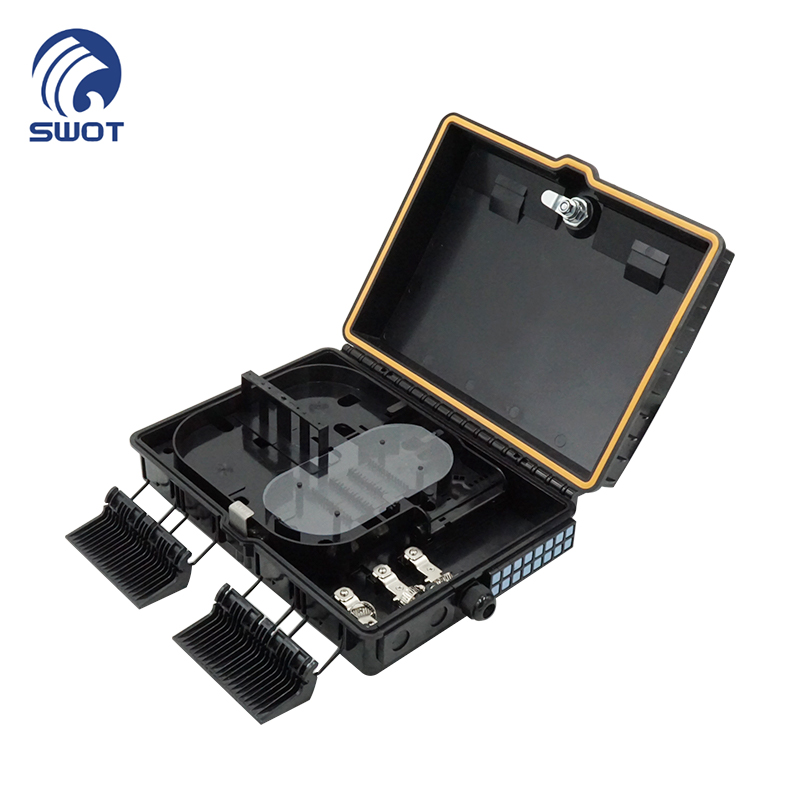

Flip in splice tray, with fixed screw will be fixed in the splice tray.

According to the picture shows will pigtail joint insert adapter, and will put the pigtail tray be fixed.

Will do the path cord or terminal box outlet joint through the fiber outlet hole, the path cord (outlet) joint insert the adapter.

5、Fiber outlet holes sealing

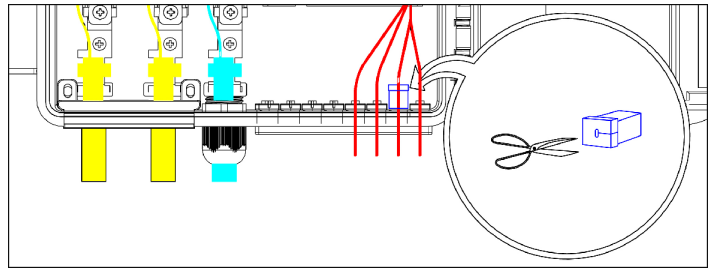

Step1.Cut the Path cord(outlet) ring，will do the path cord (outlet) package closely；

Step2. Will do the path cord(outlet) sealing ring from the corresponding pressed into the slots, to the bottom;

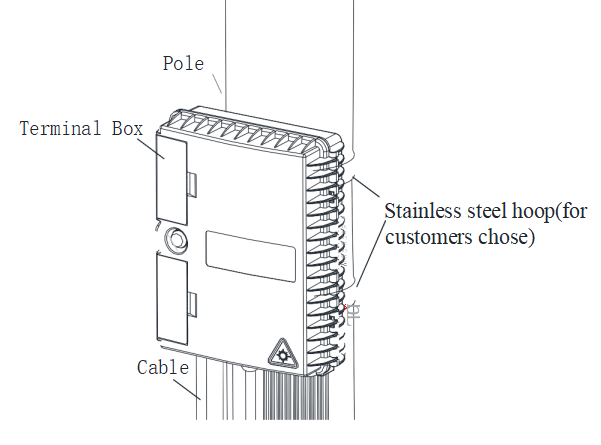

6、Installation fixing

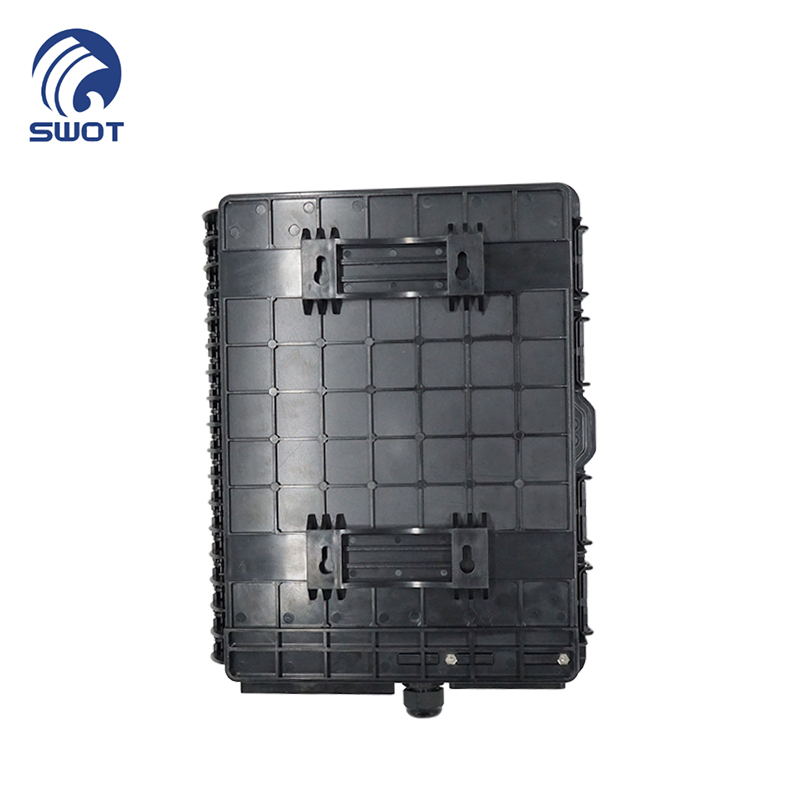

A.Wall-mounting installatin(standard configuration)

According to your drawings on the wall a crossed punch, and then will plastic expand into flush with metope;

By tapping screws twist into plastic expand, to tapping screws tail and metope 4 mm distance; Will do the base of lock hole big head the most standard of screw into, and down lock.
