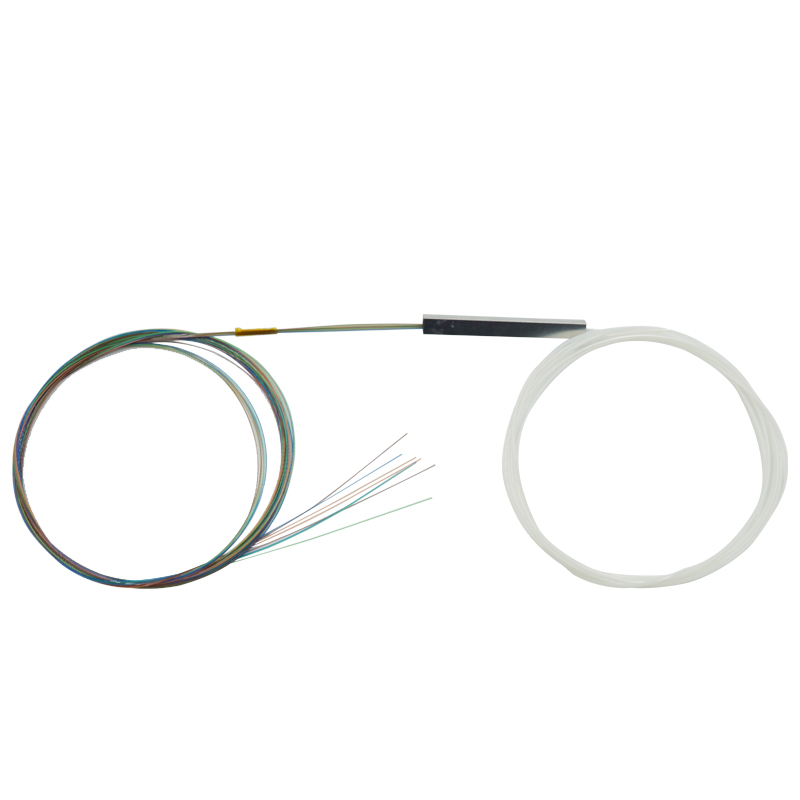

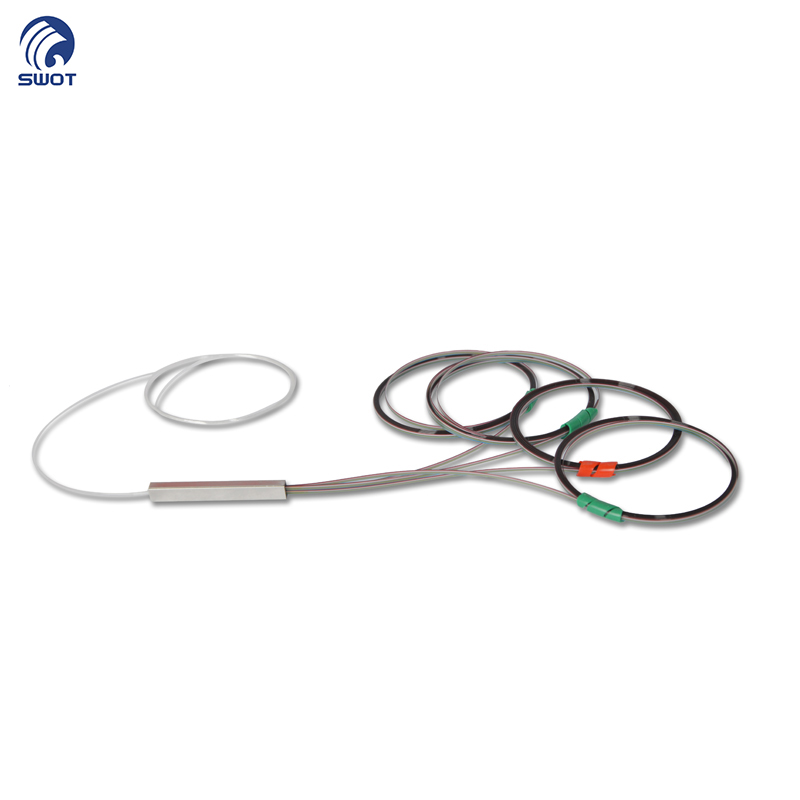

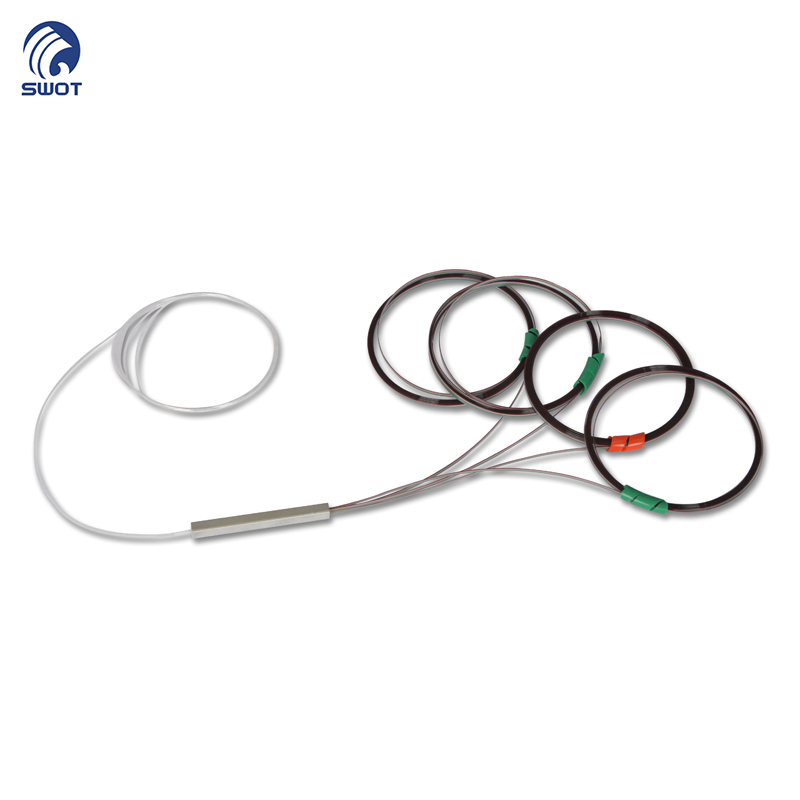

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity. These are widely used in PON networks to realize optical signal power splitting as a low-cost solution.
|
Specifications |
|||||||||
|
Port Configuration |
1x2 |
1x3 |
1x4 |
1X6 |
1x8 |
1X12 |
1x16 |
1x32 |
1x64 |
|
Insertion Loss (dB) |
3.8 |
6.3 |
7.1 |
9.8 |
10.3 |
12.6 |
13.2 |
16.5 |
20.3 |
|
Loss Uniformity (dB) |
0.6 |
0.6 |
0.6 |
0.6 |
0.8 |
1.0 |
1.2 |
1.5 |
1.5 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.4 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temperature Dependent Loss (dB) |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
Return Loss (dB) |
≥55 |
||||||||
|
Directivity (dB) |
≥ 55 |
||||||||
|
Operating Wavelength (nm) |
1260～1650 |
||||||||
|
Fiber Type |
G657A1 or customer specified |
||||||||
|
Operating Temperature |
-40~+85 |
||||||||
|
Storage Temperature |
-40~+85 |
||||||||
|
Profile Size |
|
|
1x2;1x3;1x4;1x6;1x8 |
4x4x40mm |
|
1x12;1x16 |
5x4x45mm |
|
1X32 |
7x4x60mm |
|
1X64 |
12x4x60mm |
|
Packing |
|
|
1x2;1x3;1x4;1x6;1x8;1x12;1x16 |
1000pcs/carton |
|
1x32 |
400pcs/carton |
|
1X64 |
300pcs/carton |
|
packing material |
plastic box |
|
Carton Dimension (HxWxD) |
430x410x405mm |
PLC Splitter Type-----Input/Output -----Input Tube Type------Input Tube Length-----Output Tube Type-----Output Tube Length
Package: 5 pcs/ small box, 1000 pcs/carton or as your requirement
