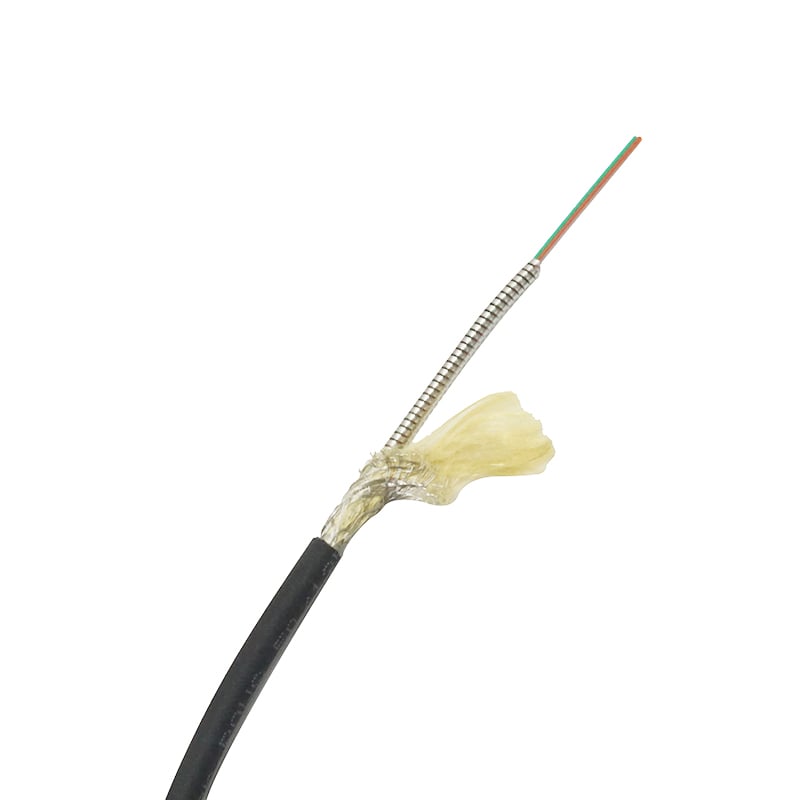

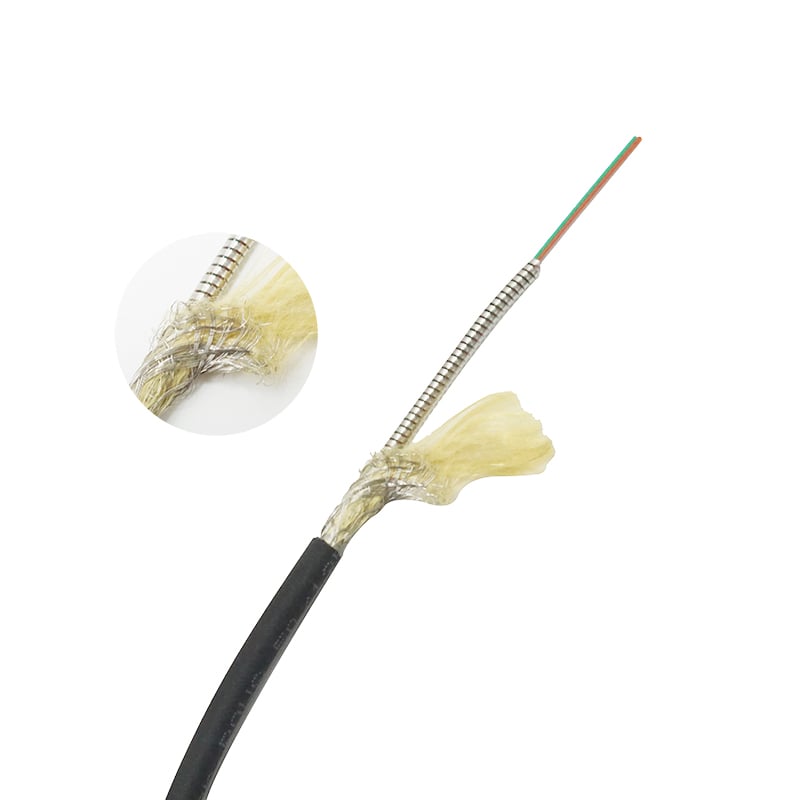

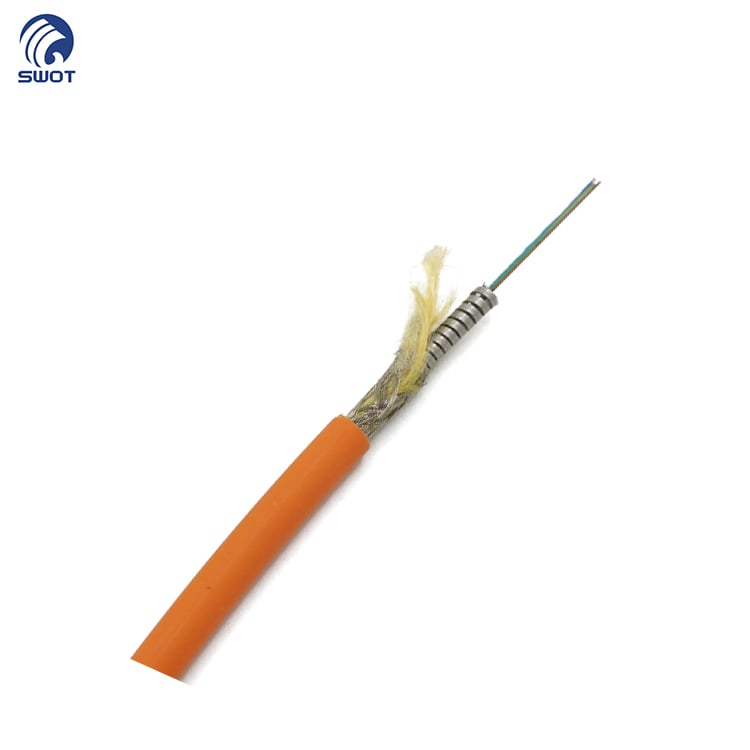

24 Core Braided Armored Indoor Fiber Cable GJFJKH Type

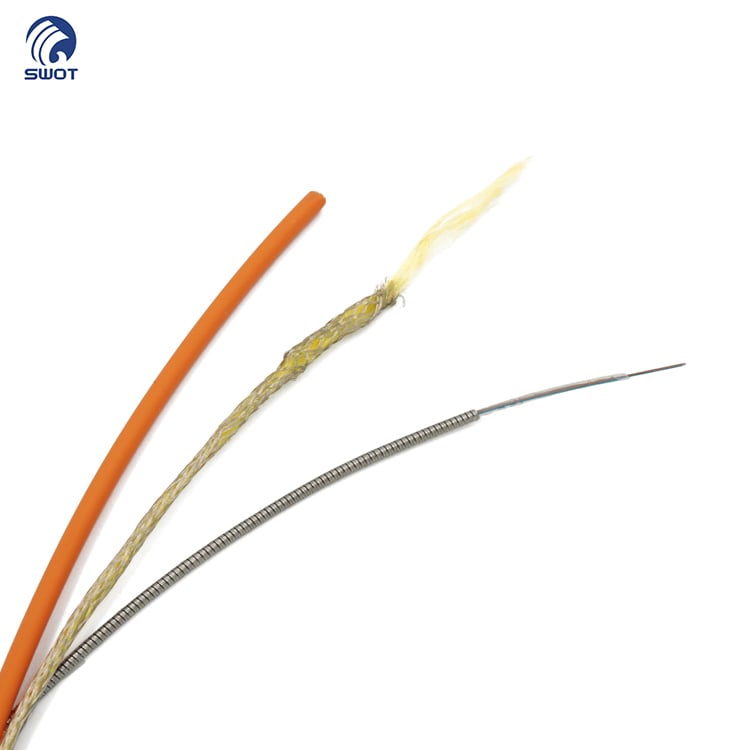

| Cable structure | Material /model | Specifications | |||||
| 1 | Optical Fiber | SM/MM | Ф0.25 | ||||
| 2 | Strengthen | Kevlar | 1000DTEX | ||||
| 3 | Jacket | LSZH | Ф2.5±0.1 | ||||
| 4 | Metal Tube | Stainless Steel | Ф3.8±0.2 | ||||
| 5 | Strengthen | Kevlar | 1000DTEX | ||||
| 6 | Metal Braiding | Stainless steel | 0.07*3*16 | ||||
| 7 | Jacket | pvc/lszh | 6.0±0.2 | ||||
|
Optical Fiber |
G652D |
G657A1 |
A1b(62.5/125um) |
OM2(50/125um) |
OM3-300(50/125um) |
OM4(50/125um) |
|
Wavelength(nm) |
1310/1550 |
1310/1550 |
850/1300 |
850/1300 |
850/1300 |
850/1300 |
|
Attenuation |
0.8/0.6 |
0.4/0.3 |
3.5/1.5 |
3.5/1.5 |
2.8/0.7 |
2.5/0.7 |
|
Bandwidth |
- |
- |
200~800/200~1200 |
160~800/200~1000 |
≥700/≥500 |
≥1500/≥700 |
|
Colour Of Outer Sheath |
Yellow |
Yellow |
Orange |
Orange |
Aqua |
Violet |
