Factory Supply 3.0mm 1F GJFJV GJFJH Indoor Simplex Fiber Optic Cable Single/Multi Mode Tight Buffer Optical Cable for Patch Cord Pigtail

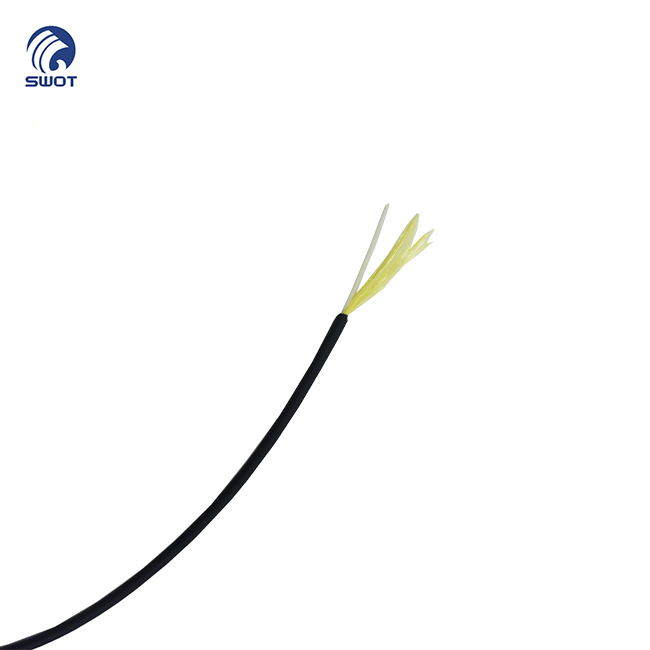

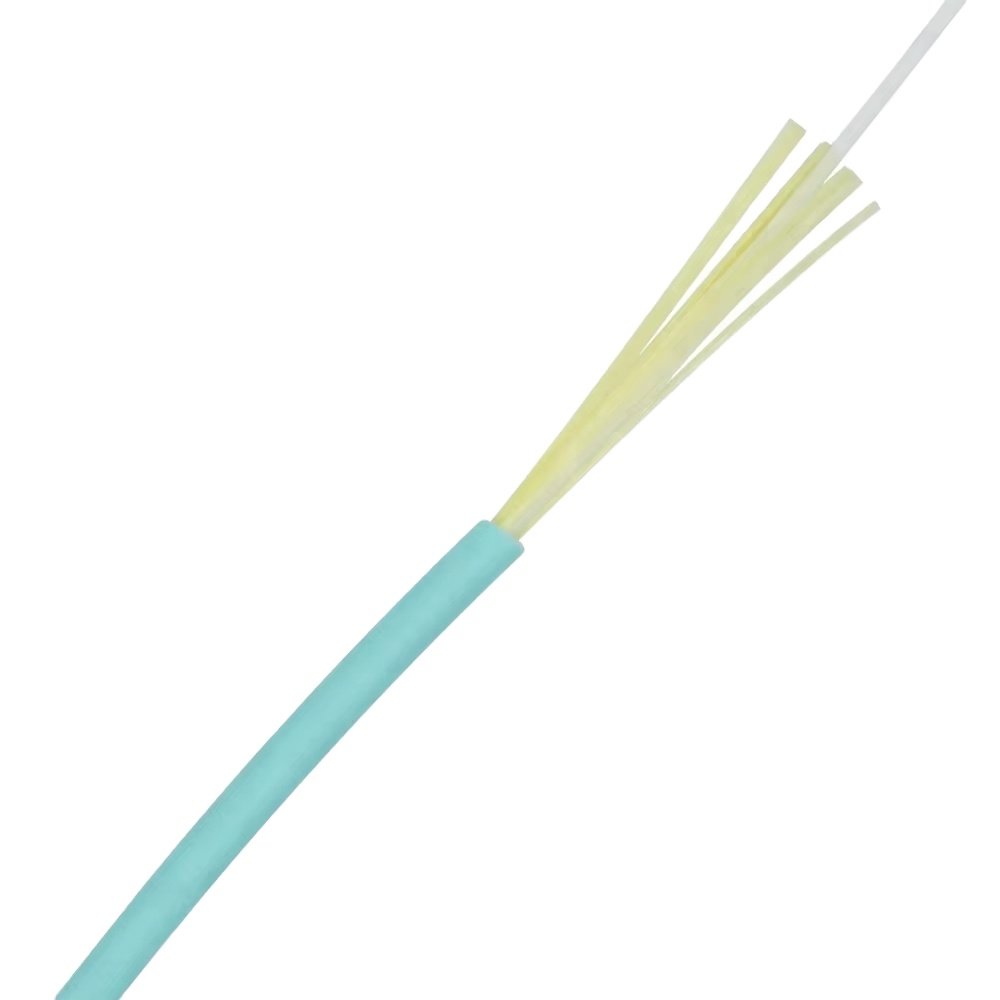

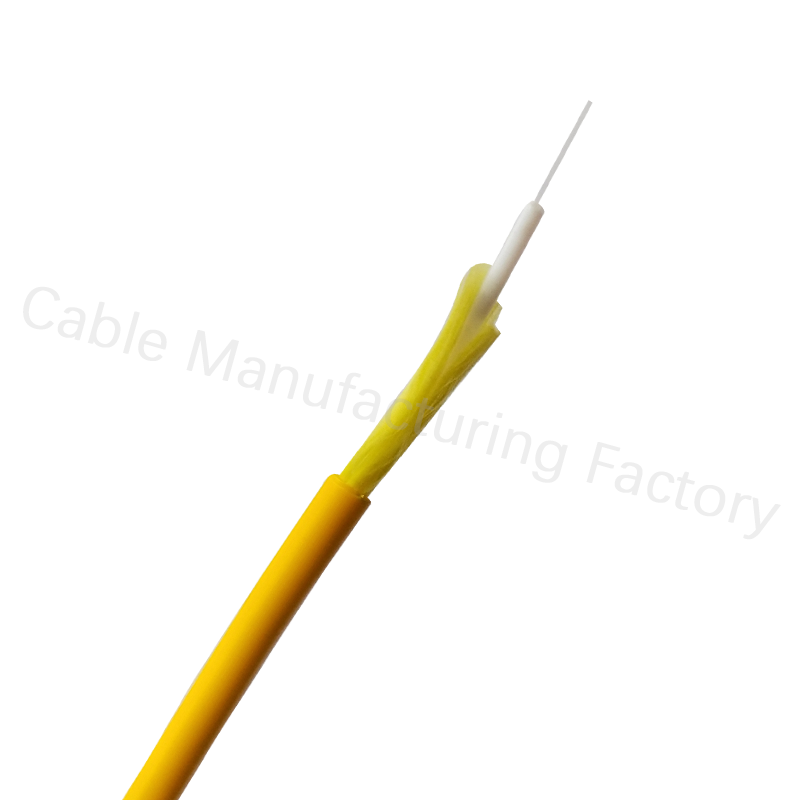

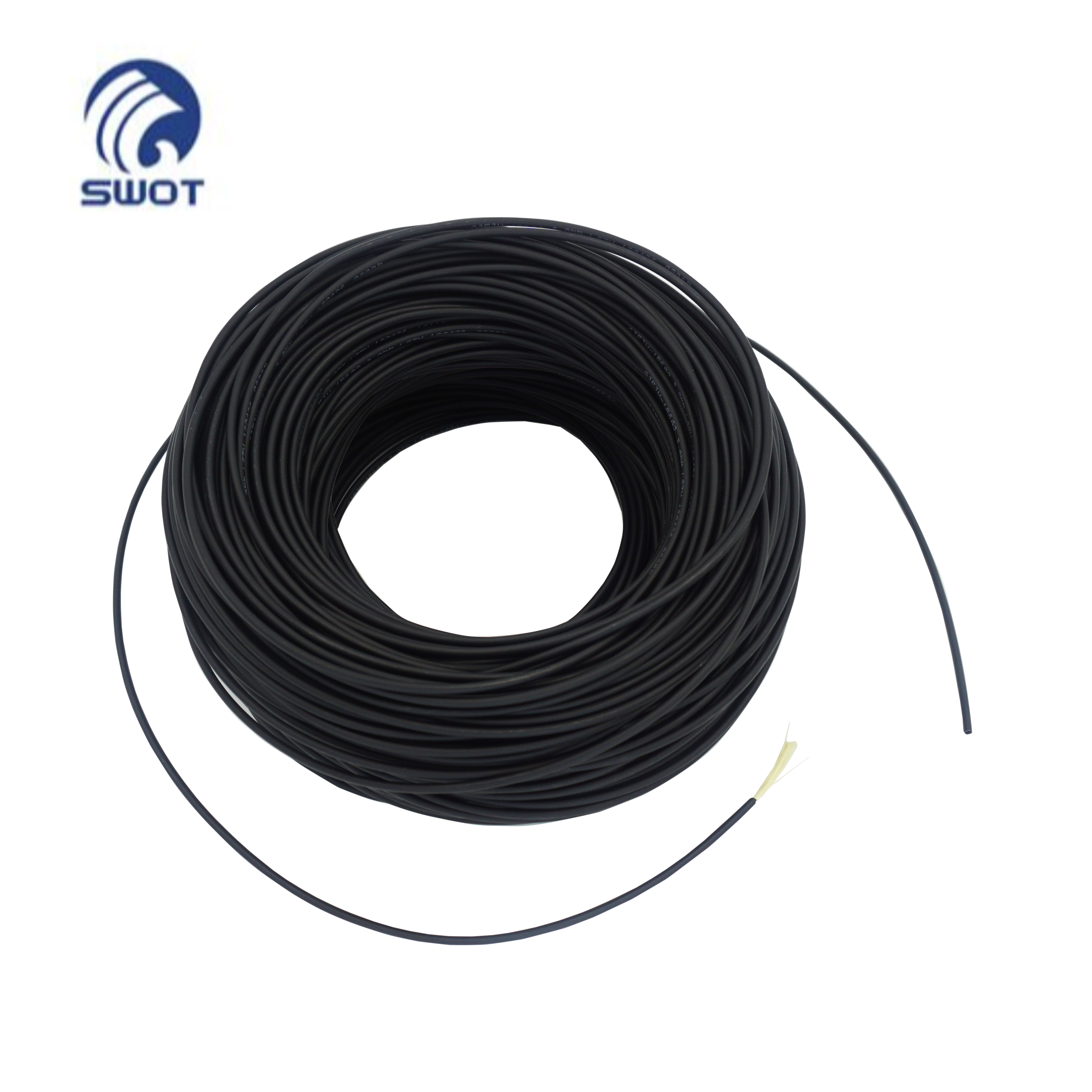

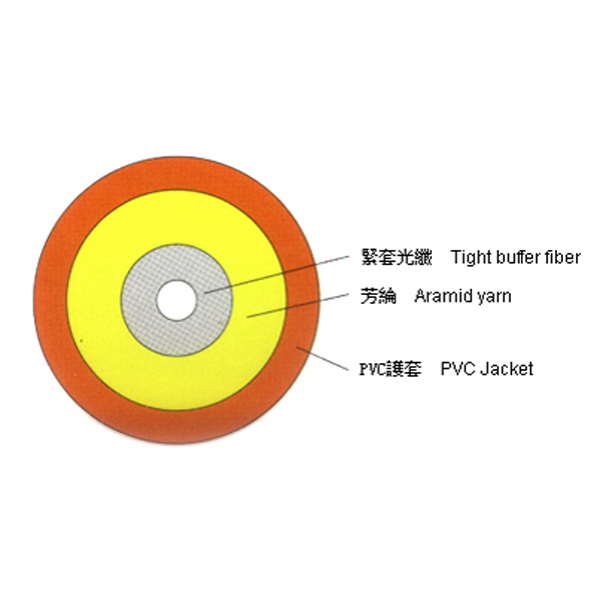

This GJFJV simplex indoor tight buffer fiber optic cable is a single-core indoor optical cable specially designed for indoor structured cabling, patch cord and pigtail production. It adopts standard 0.9mm tight buffer fiber, wrapped with high-strength aramid yarn as tensile strength member, covered with PVC or LSZH outer sheath, finished with 2.0 or 3.0mm standard cable diameter.
Support multiple fiber types including single mode G652D/G657A1/G657A2 and multimode OM1/OM2/OM3/OM4/OM5, with stable low attenuation and high bandwidth performance. Compact, lightweight and flexible design makes it ideal for point-to-point indoor data transmission, widely used in data center, server room, FTTH, LAN network and equipment interconnection.
|
No. of cable |
1 |
|||
|
Tight lines |
Material |
PVC/LSZH |
||
|
Thickness（±0.03）mm |
0.32 |
|||
|
Diameter（±0.06）mm |
0.9 |
|||
|
Colour |
White |
|||
|
Strength Member |
Material |
Aramid Yarn |
||
|
Outer Sheath |
Material |
PVC/LSZH |
||
|
Thickness（±0.05）mm |
0.35 |
0.45 |
||
|
Cable Diameter（±0.2）mm |
2.0 |
3.0 |
||
|
Cable Wetght（±2）kg/km |
5 |
7 |
||
|
Allowable Tensile Strength |
Short Term |
N |
150 |
|
|
Long Term |
80 |
|||
|
Allowable Crush Resistance |
Short Term |
N/100mm |
500 |
|
|
Long Term |
100 |
|||
|
Min. bending radius |
Without Tension |
10.0D |
||
|
Under Maximum Tension |
20.0D |
|||
|
Temperature range（℃） |
Installation |
-20~+60 |
||
|
Transport&Storage |
-20~+60 |
|||
|
Operation |
-20~+60 |
|||
|
Optical Fiber |
G652D |
G657A1 |
A1b(62.5/125um) |
OM2(50/125um) |
OM3-300(50/125um) |
OM4(50/125um) |
|
Wavelength(nm) |
1310/1550 |
1310/1550 |
850/1300 |
850/1300 |
850/1300 |
850/1300 |
|
Attenuation |
0.8/0.6 |
0.4/0.3 |
3.5/1.5 |
3.5/1.5 |
2.8/0.7 |
2.5/0.7 |
|
Bandwidth |
- |
- |
200~800/200~1200 |
160~800/200~1000 |
≥700/≥500 |
≥1500/≥700 |
|
Colour Of Outer Sheath |
Yellow |
Yellow |
Orange |
Orange |
Aqua |
Violet |
