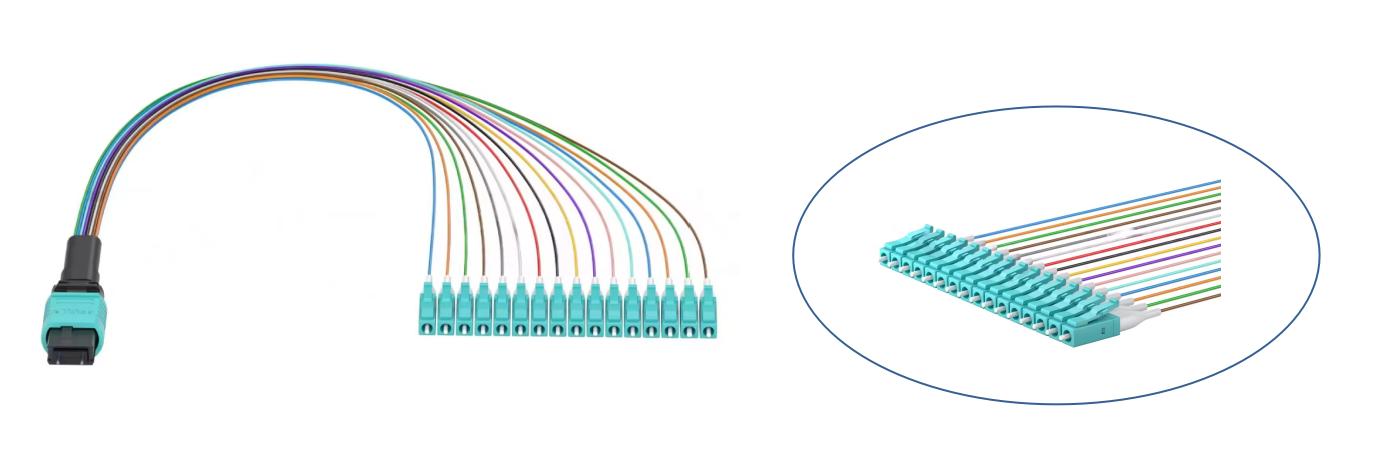

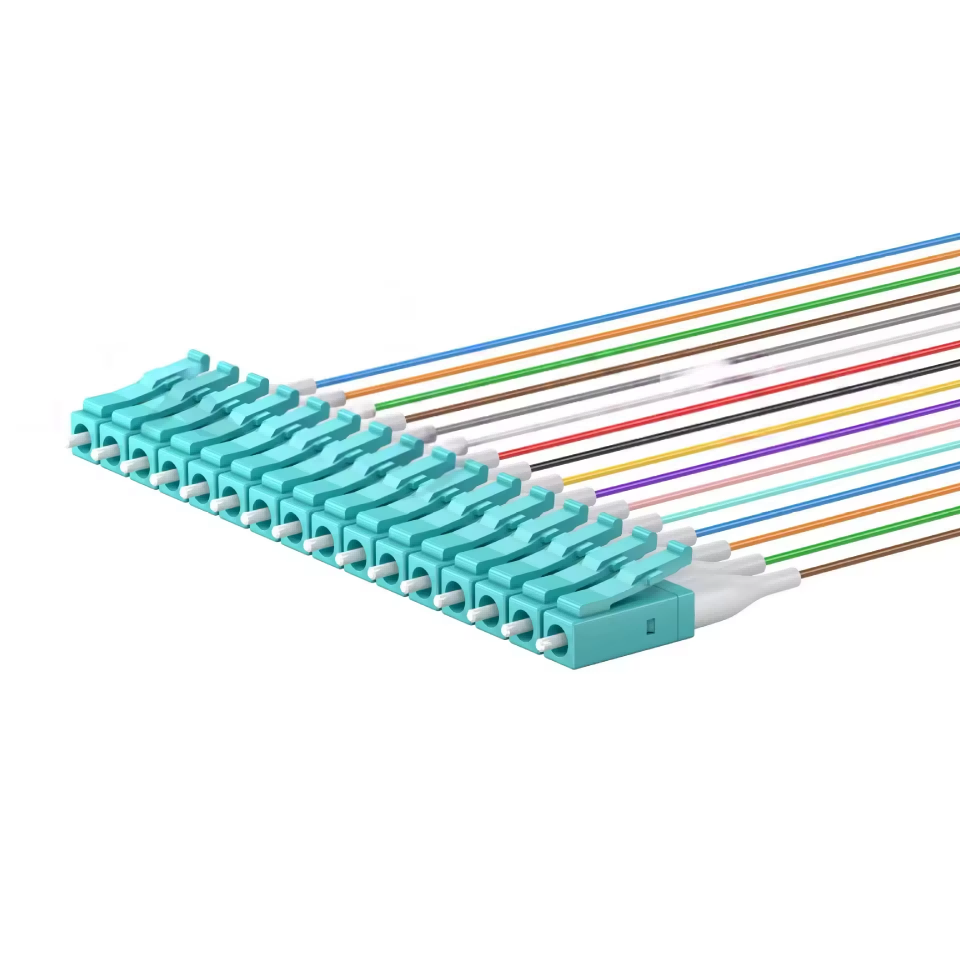

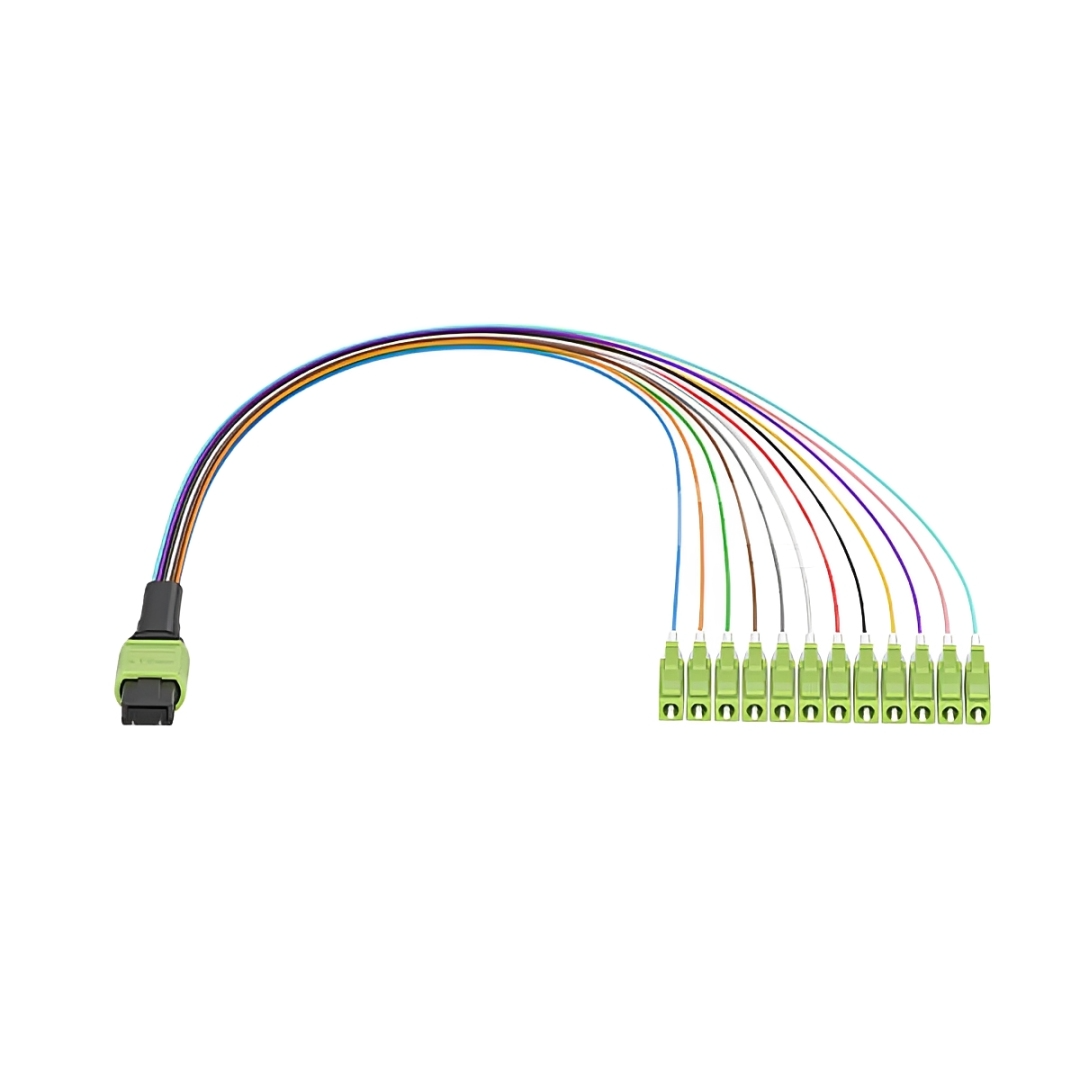

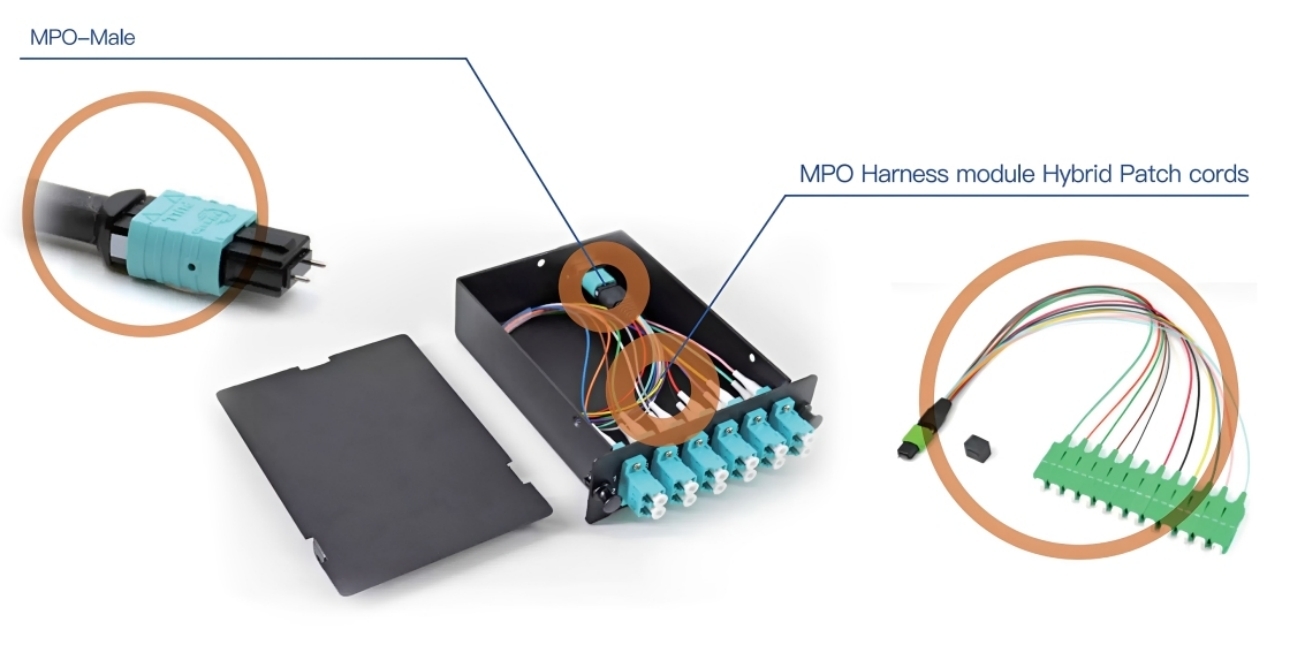

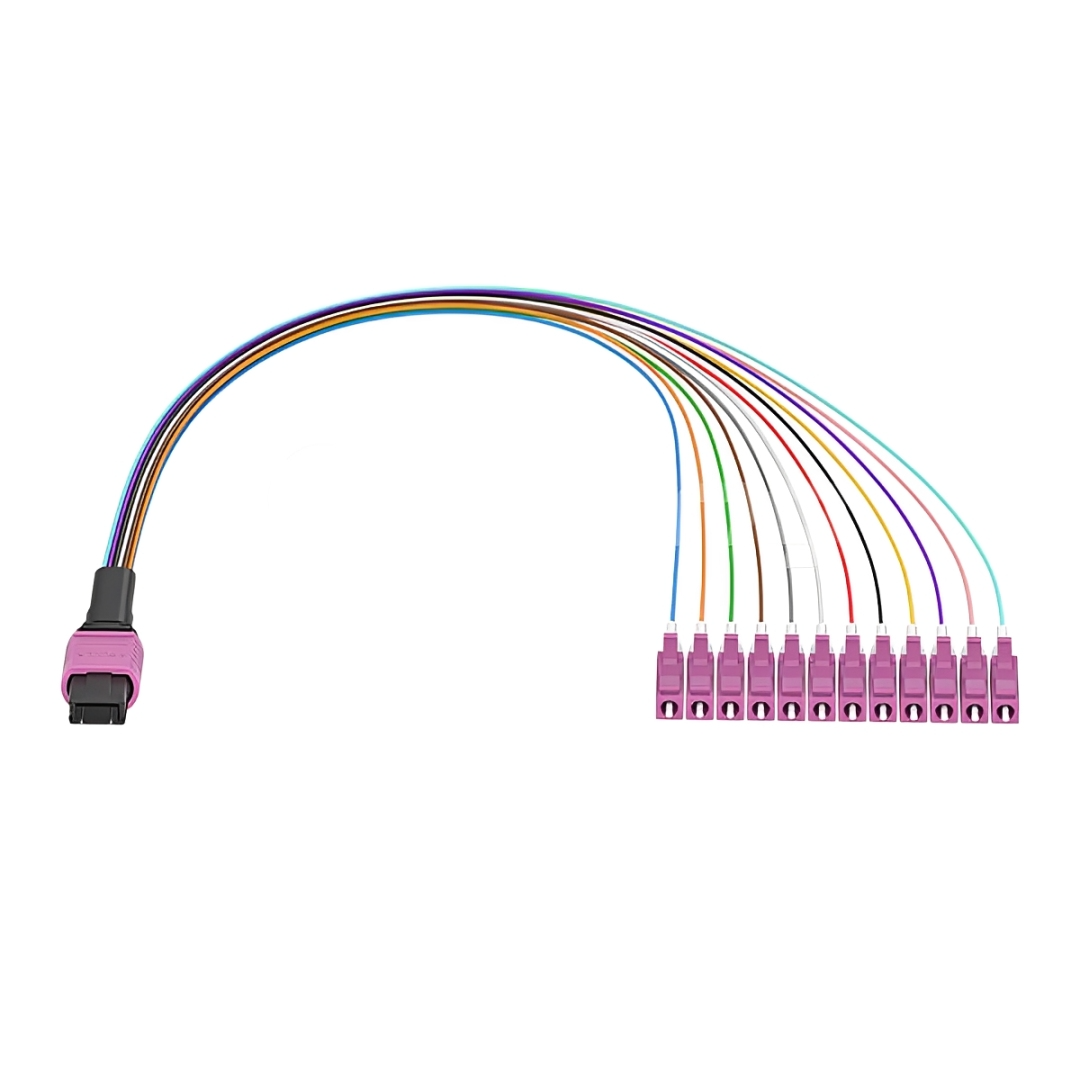

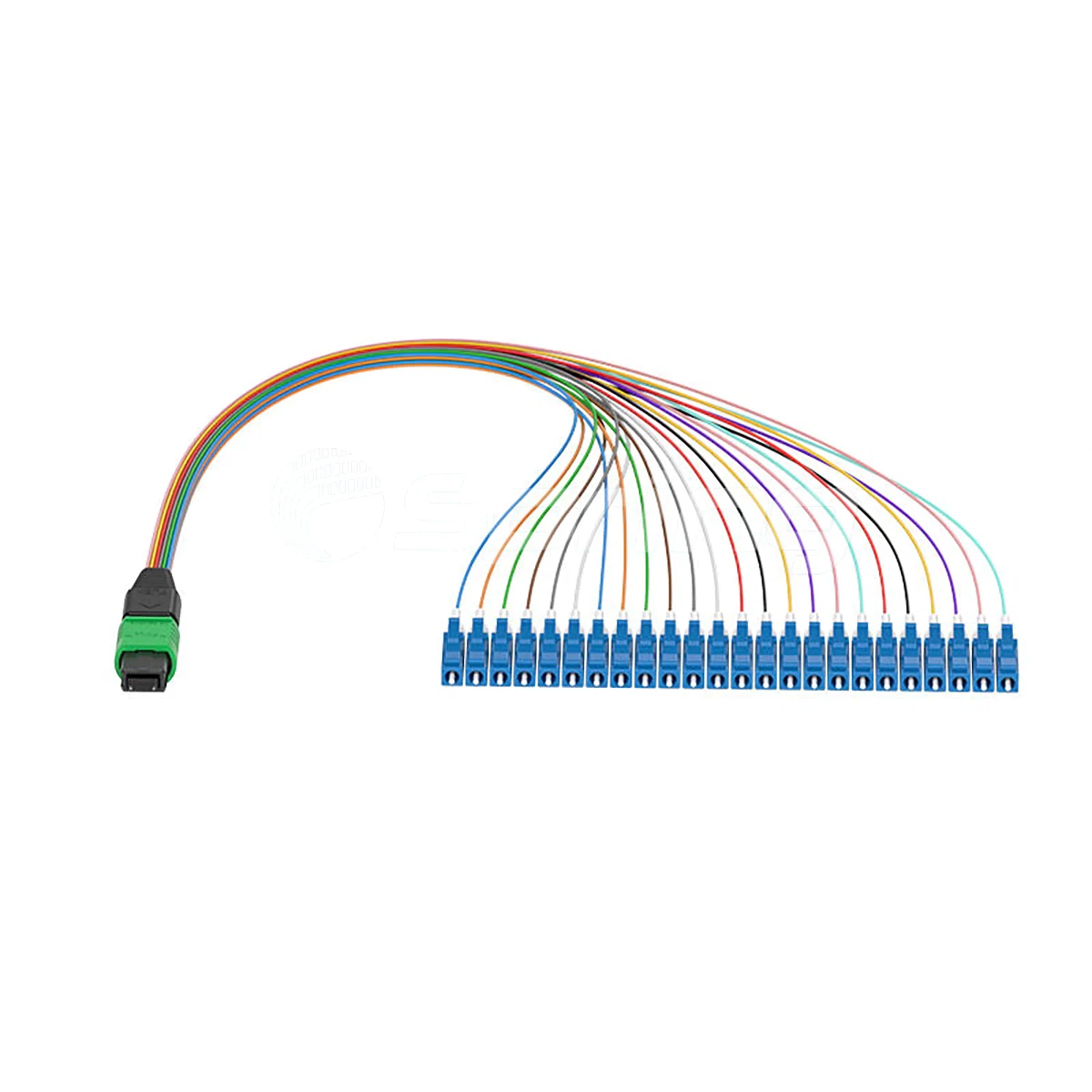

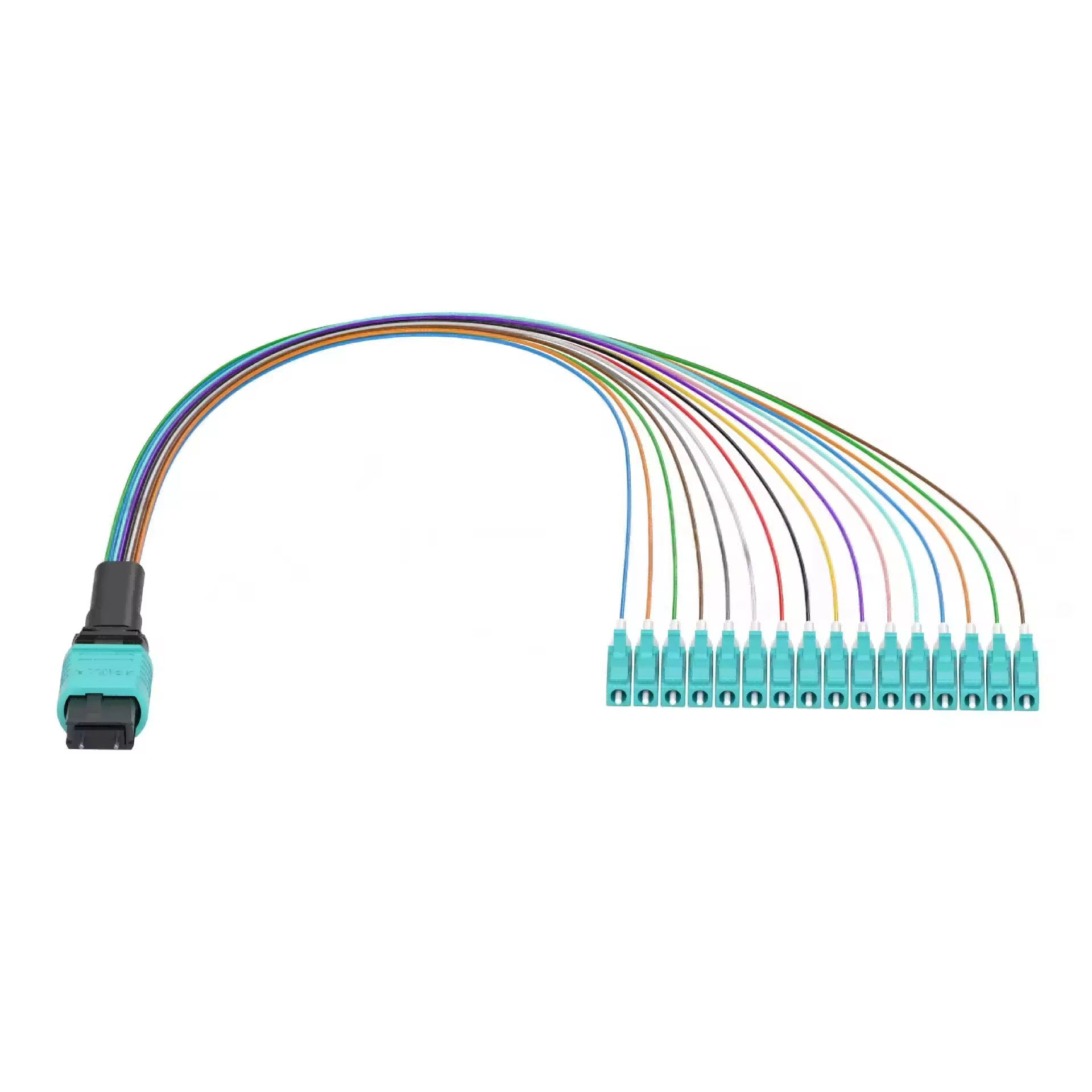

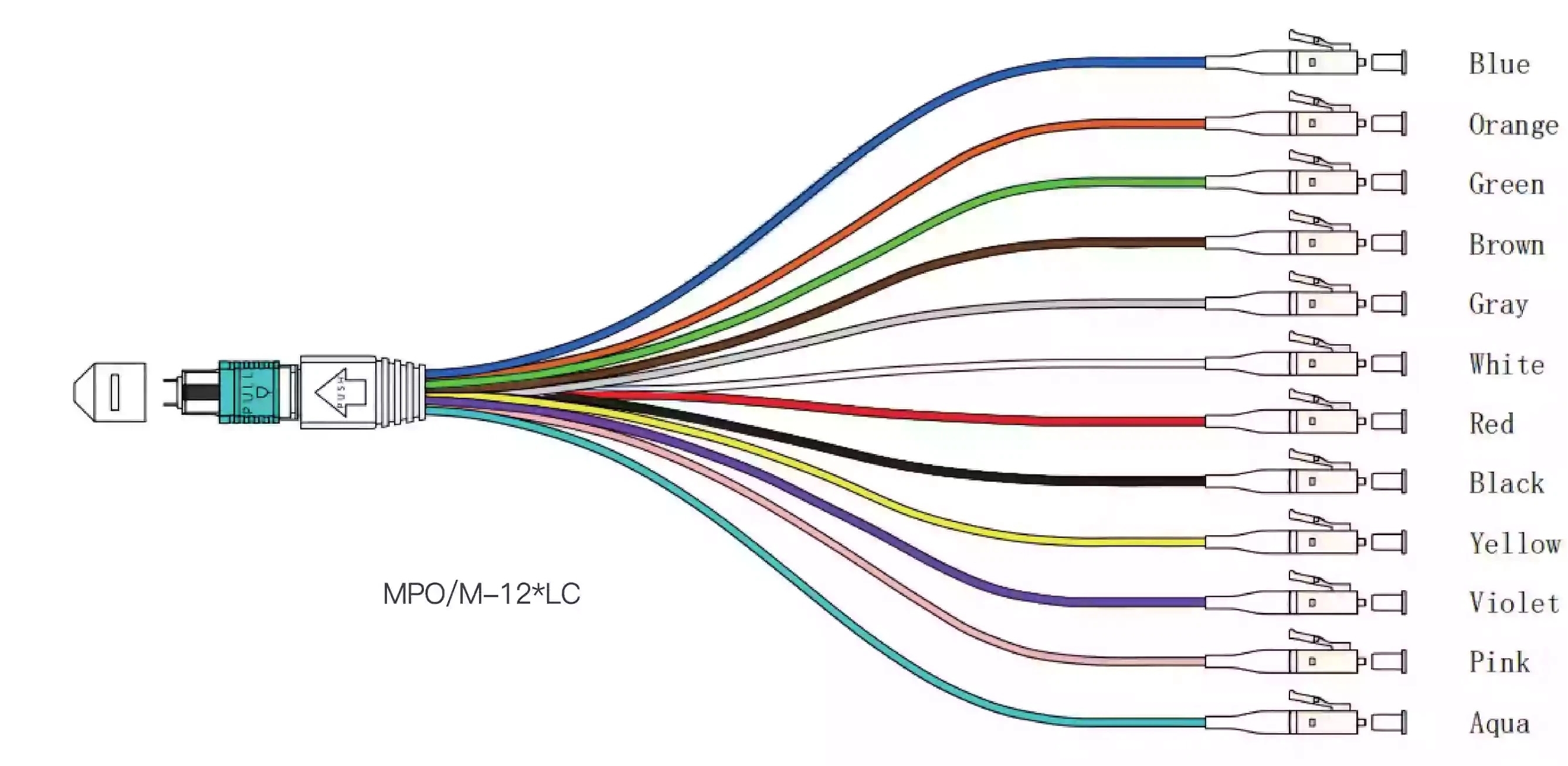

MPO to LC harness cable is a specialized MPO-to-LC breakout patch cord designed for internal connectivity within MPO cassette modules and compact modular fiber enclosures.
Distinguished from standard rack-to-rack MPO breakout cables, this harness cable is optimized for short-distance internal routing. It is constructed with Ø0.9mm breakout legs and a male MPO connector with guide pins, allowing neat and space-saving fiber management in high-density cassette applications where space constraints, bending performance and cable congestion are critical.
This product is widely applied in data centers, ODF/FDF modular frames, MPO cassette systems and high-density fiber distribution networks. It supports parallel-to-duplex fiber conversion for 40G, 100G and 400G optical transmission architectures.
|
• Designed for internal interconnection in MPO cassettes and modular boxes • Male MPO with guide pins for precise, secure mating • Ø0.9mm slim breakout legs for high-density routing • Available in 12F & 24F MPO-to-LC harness configurations • Supports OM3/OM4/OM5 multimode & single-mode fiber • Optional standard loss & low loss performance options • Factory-terminated with 100% optical testing • LSZH jacket compliant with data center fire safety standards |
|
| Parameter | Specification |
| Product Type | MPO to LC Harness Cable |
| Connector A | MPO Male (PC or APC, with guide pins) |
| Connector B | LC/UPC |

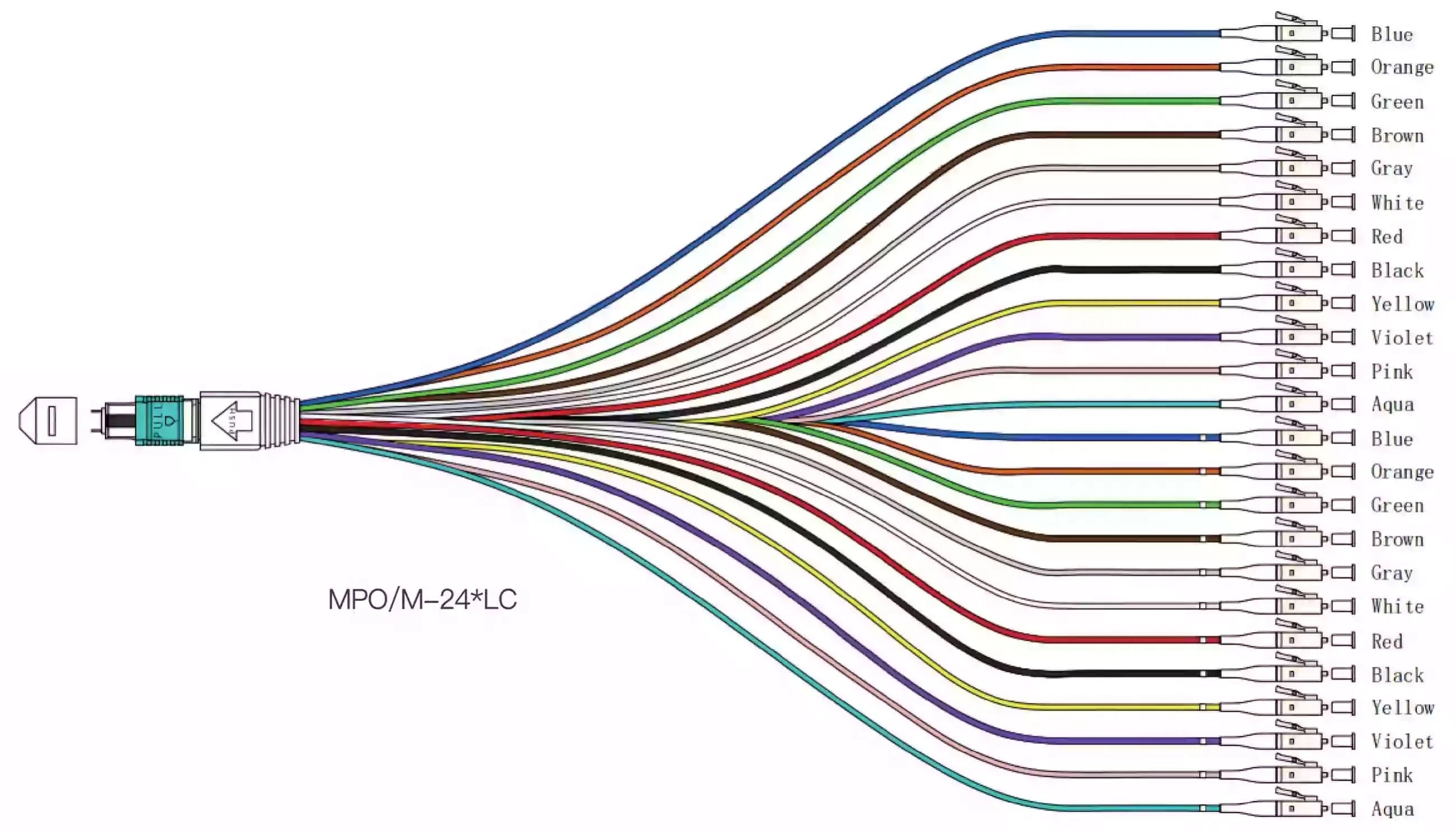

| Fiber Count | 12 Fiber / 24 Fiber |
| Fiber Type | OM3 / OM4 / OM5 Multimode |
| G.652D / G.657A1 / G.657A2 Single Mode | |
| Cable Structure | Mini Bundle Cable |
| Breakout Diameter | Ø0.9 mm |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Operating Wavelength | 850 nm (Multimode) |
| Operating Temperature | -10°C to +70°C (14°F to 158°F) |
| Insertion Loss | Standard Loss ≤0.75 dB |
| Low Loss ≤0.35 dB | |
| Return Loss | >30 dB (UPC) |
| Repeatability | ≤0.1 dB |
