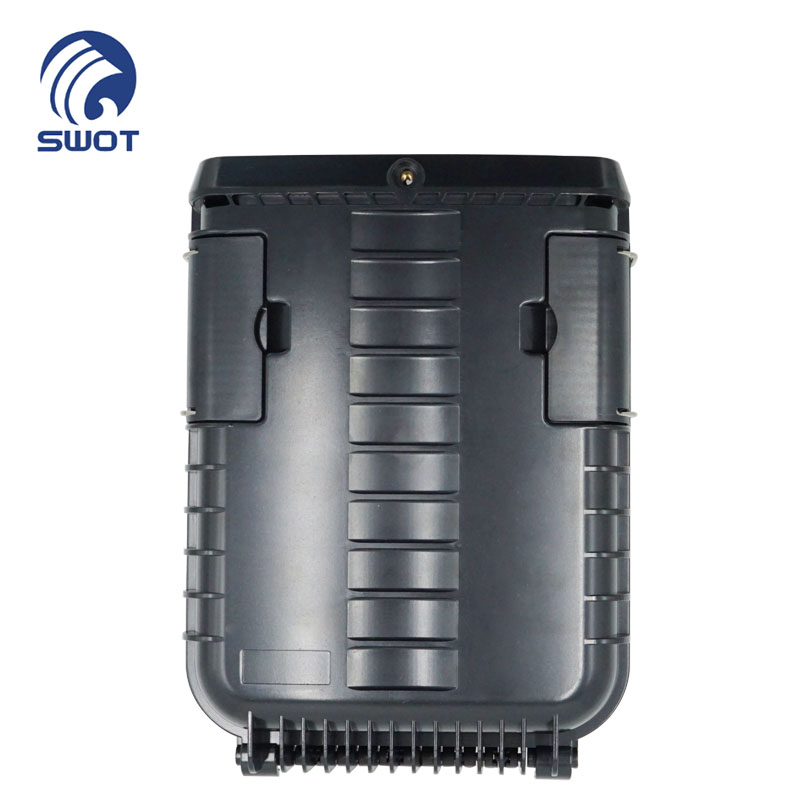

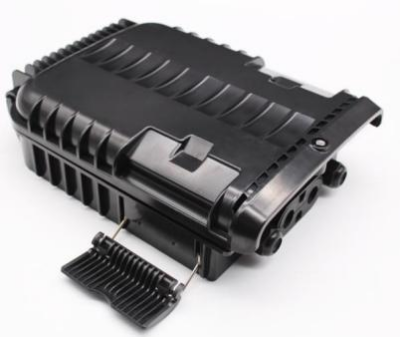

Optical Termination Closure has the purpose of accommodating and protecting optical splice between the distribution cable and the drops of an optical termination network.It is used as a distribution box and a termination point for the feeder cable to connect with drop cable in FTTX network system.It integrates fiber splicing, splitting, distribution, storage and

cable connection in one solid protection box.

Supports 2 configurations: up to 2 splicing trays with up to 16 fusions each, plus an adapter tray with up to 16

positions and storage of up to two splitters;It also provides management and storage of optical adapters for connectorized outputs. It has a mechanical seal system.This Optical Termination Closure is designed to seal with screws and

buckles.The compact size and flip-over cover bring easy operation as well as complete function.The splice trays are

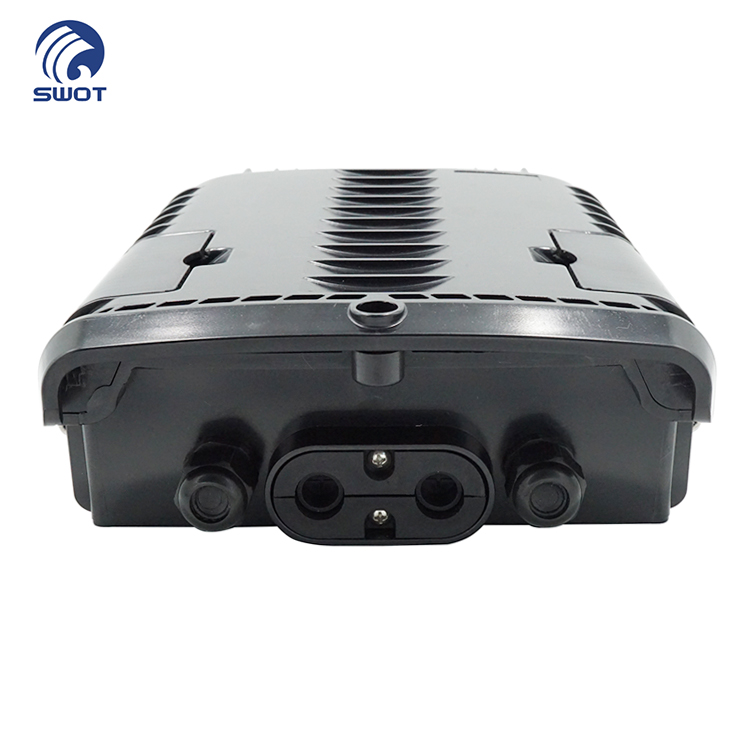

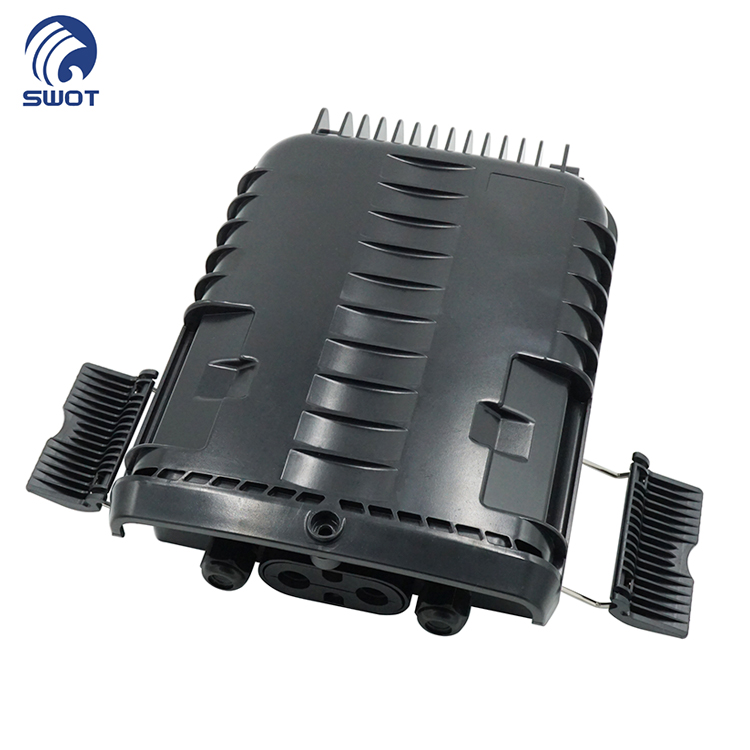

jointed with a hinge at one side, which makes the operation in each tray easier.It accepts an input cable with a diameter of up to 15 mm, through its oval port, which has 2 holes for cables with diameters of 8 to 15 mm and 2 holes for cables with diameters of 5 to 8 mm, allowing the cables distribution. It supports up to 16 output drops cables, which can be round with diameters from 4.5 to 5.3 mm or flat with dimensions of 3.0x2.0 mm.

● Optical Telecommunication System,

● LAN,Optical fiber Communication System

● Optical fiber broadband access network

● FTTH access network

• Water-proof design with IP-65 Protection Level.
• 16 outports for drop cable
• All stainless metal plate and anti-rusting bolts, nuts
• Fiber bend radius control more than 40mm
• Suitable for the fusion splicer or mechanical splice
• 2 Pcs of 1*8 Splitter can be installed as an option
• Mechanical sealing structure and mid-span cable entry.
• Can be used indoor and outdoor, wall mount and pole moun

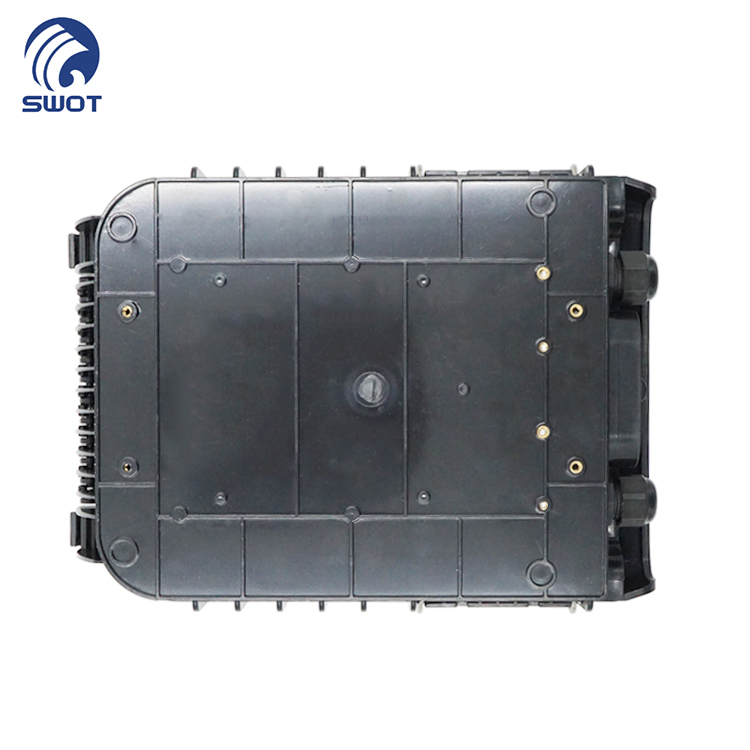

1．Wall-mounted installation

Drill 4 holes over the wall based on the size in table 1 ，place the expansion bolt Φ7.5*40 ，place the box to match up the holes and use bolt to fasten。

2．Pole-mounted installation

Fix 1 set of the easy pole ring to the telecom pole .
