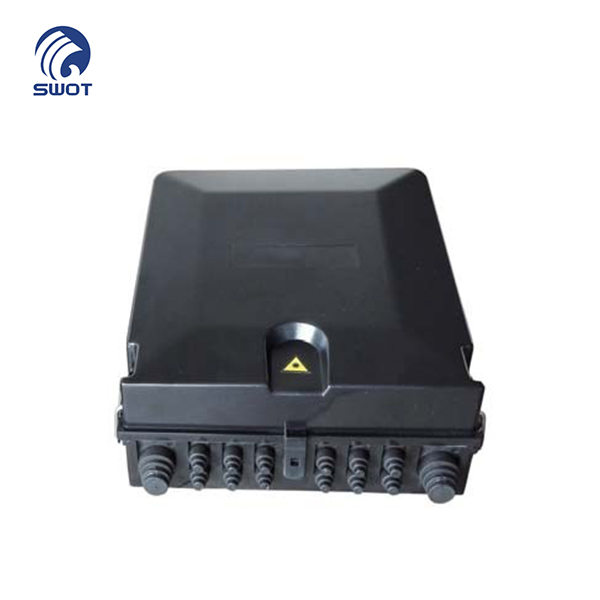

FDB--T224B-24 FTTx Distribution Box

Description
Specifications
Performance
Dimensions
Side lock devices-Hasp
The box cover holding device
Drop cable fasten solution
Mounting kit
Fiber Optic Splice Tray & PLC Splitter Tray

Is there a problem? Please contact us to serve you!

+86-13265756131

[email protected]

Description

Applicable for the FTTx project and provide mechanical protection for fiber management system that includes the functions of splicing, patching and passive component integration.

Specifications

Part No.	FDB-T224B-24
Dimension	245×296×97 mm
Entry ports and cable dia. Cmax.3	2×ĳ22mm
Output ports and cable dia. (max.)	4×ĳ11mm
Output ports and cable dia. (max.)	8×ĳ10mm
Max. number of splice trays	6 pcs
Splice capacity of each tray	12/24FO
Max. numbers of adaptors	24 SC
Cover open fixed position	90 & 180 degree
Lock type	Key lock with dust proof cover (Optional)
Installation way	Wall-mounted or pole-mounted

Performance

Part No.	FDB-T224B-24
Housing material	Plastic
Temperature range	-40 oC to +70 oC.
Flame resistant	V0
Seal material of the box	EPDM
Seal material of the ports	Rubber
Protection rating	IP54

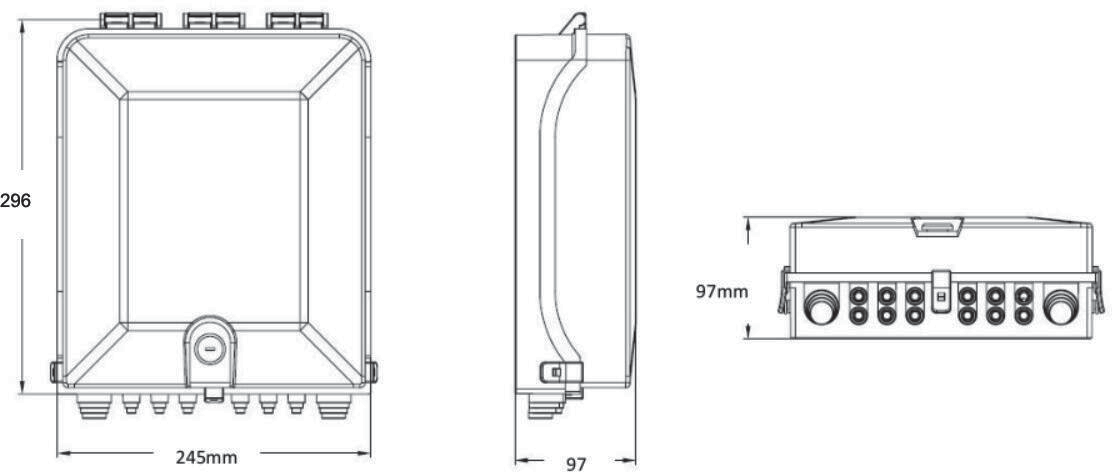

Dimensions

FDB-T224B-24 (3).png

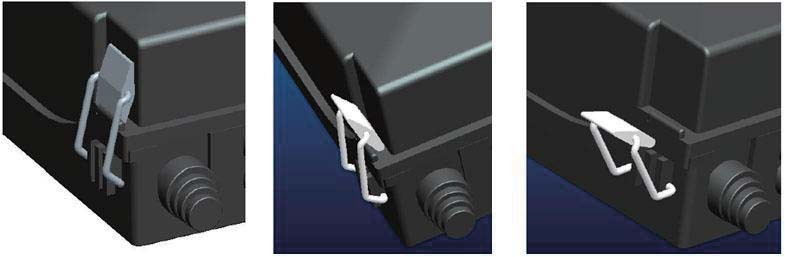

Side lock devices-Hasp

FDB-T224B-24 (4).png

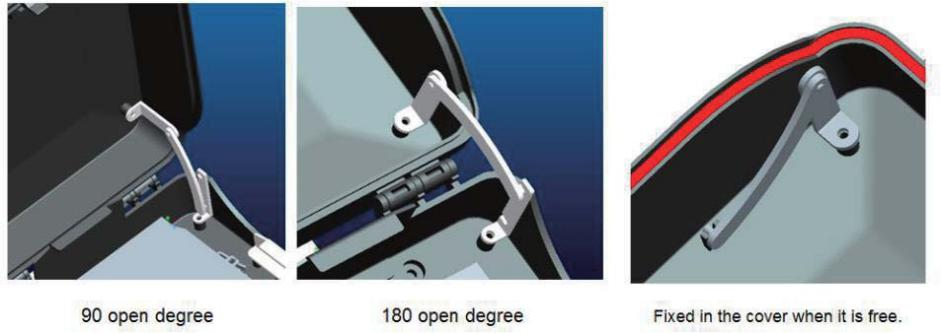

The box cover holding device

FDB-T224B-24 (5).png

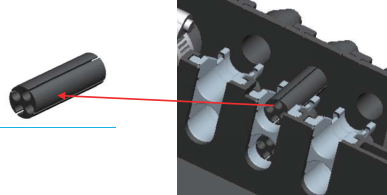

Drop cable fasten solution

FDB-T224B-24 (6).png

Remark: Put the drop cables into the glands directly and fixing the glands together with the 4 drop cables in by bridle.

Mounting kit

Wall-mounted kit (standard configuration).

FDB-T224B-24 (7).png

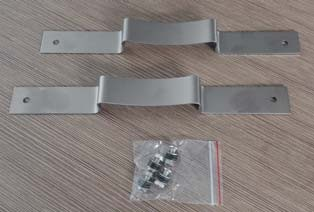

Pole-mounted kit (Optional)

FDB-T224B-24 (9).png FDB-T224B-24 (8).png

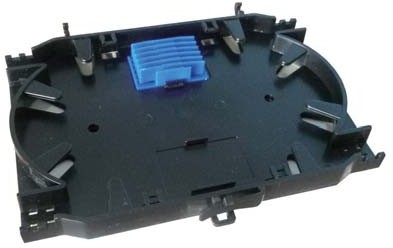

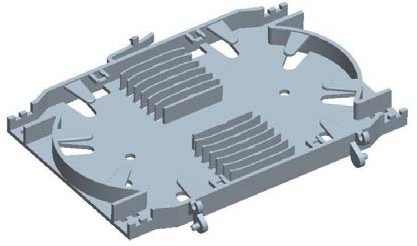

Fiber Optic Splice Tray & PLC Splitter Tray

FDB-T224B-24 (11).png FDB-T224B-24 (10).png

Specifications

Part No.	P042 Splice tray	P043 PLC Splitter tray
Dimensions	115x144x10mm
Material	ABS
Splice capacity	12/24 FO	6/12 FO
Suitable sleeve	40-45mm	40-45mm
Splice module	Fixed, cannot be removed	Can be removed
Splitter type	N.A	Micro PLC Splitter
Bend radius	Š30mm
Plastic cover	For top tray
Transparent cover	For other trays except the top one
