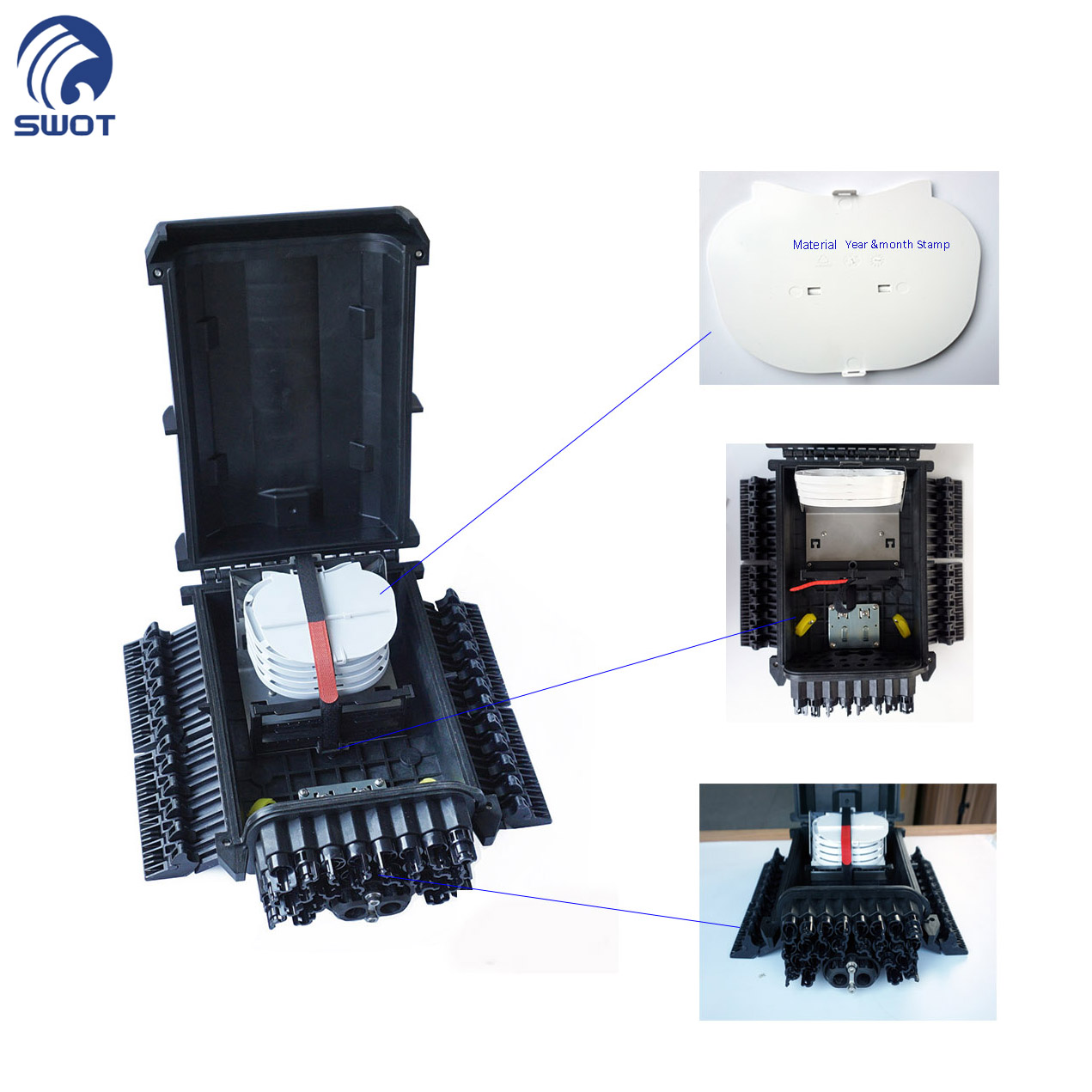

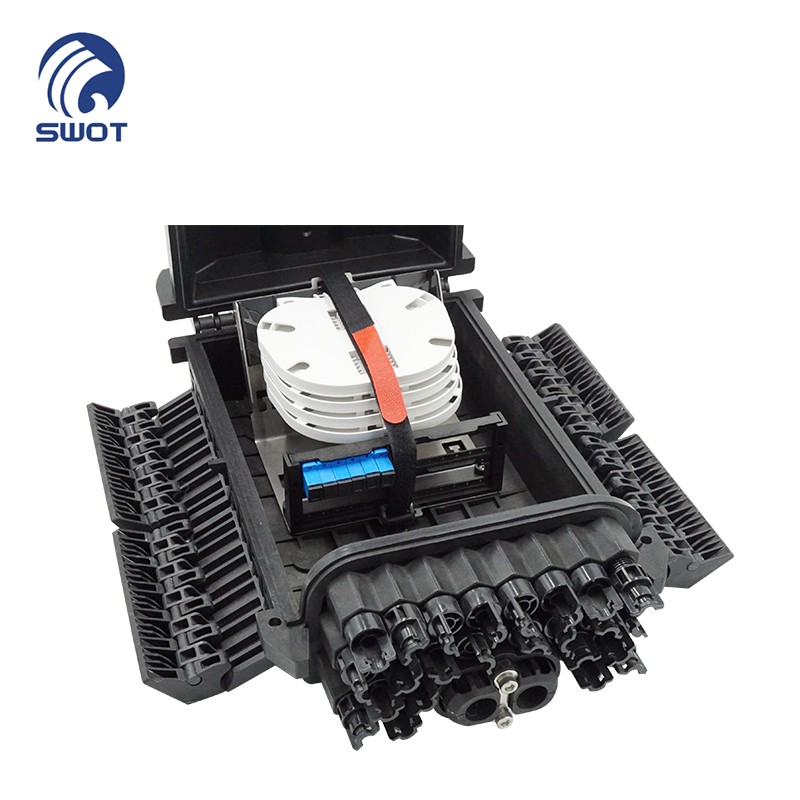

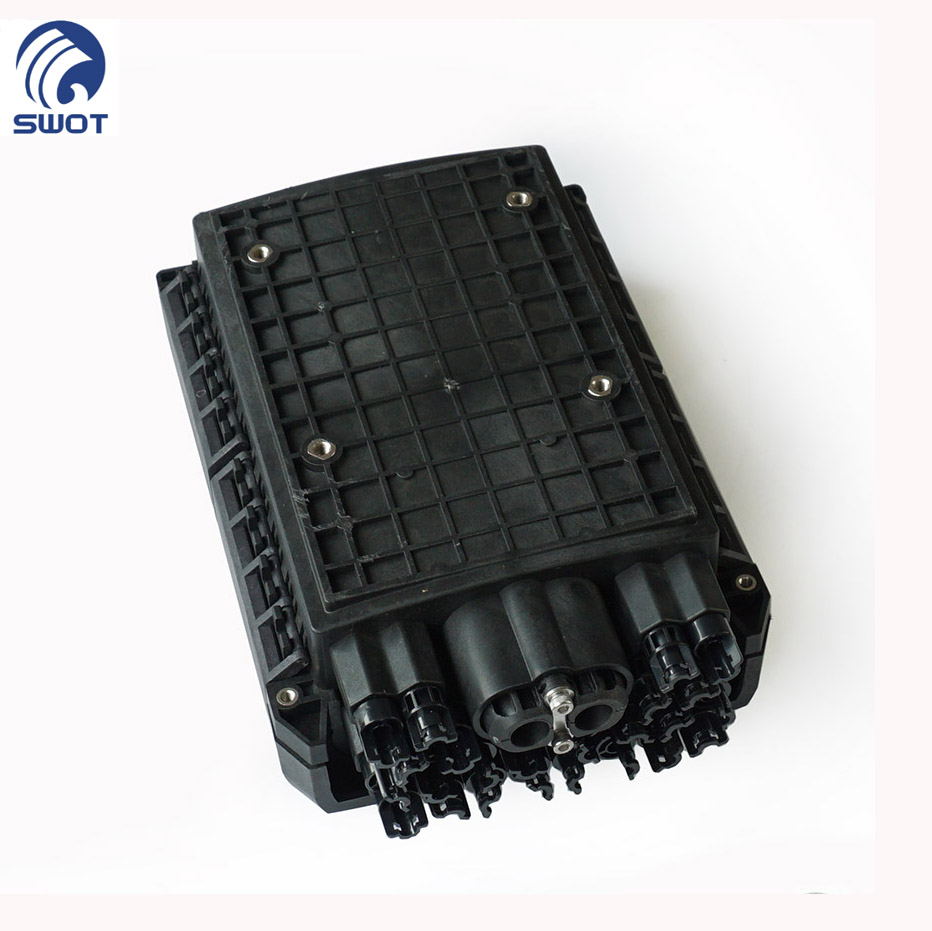

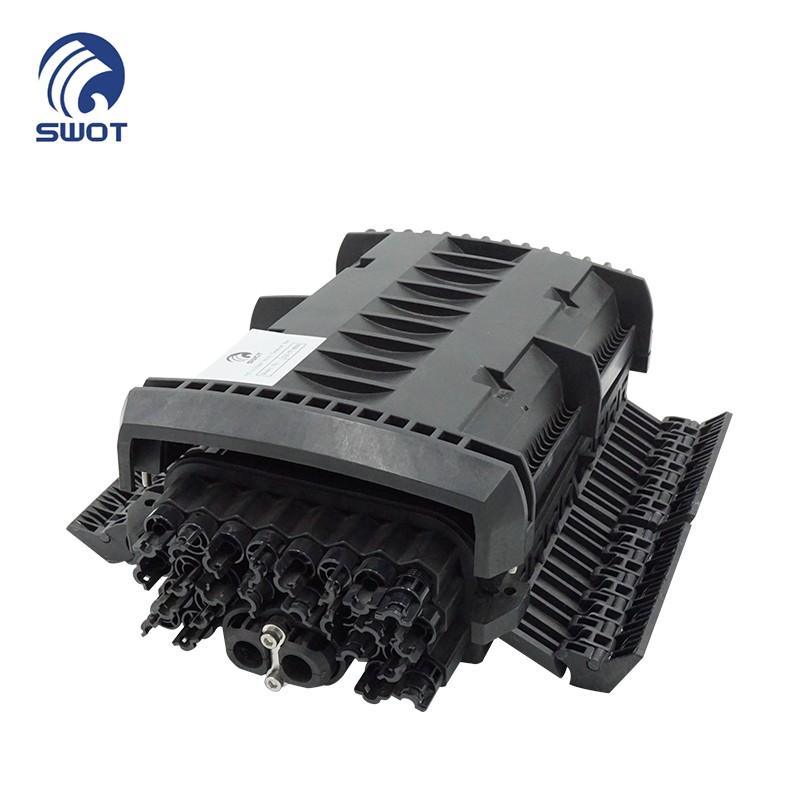

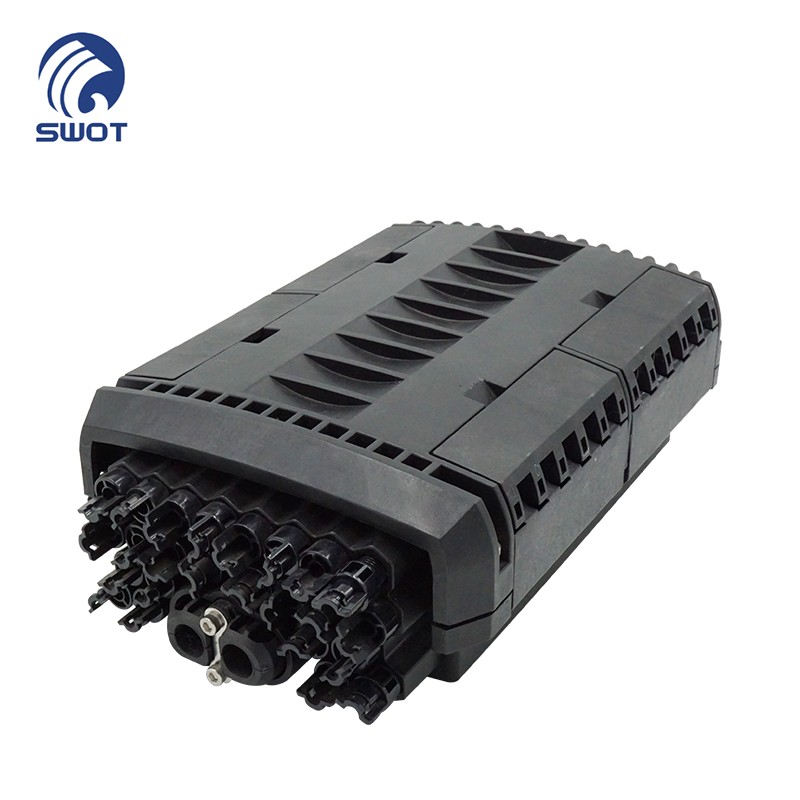

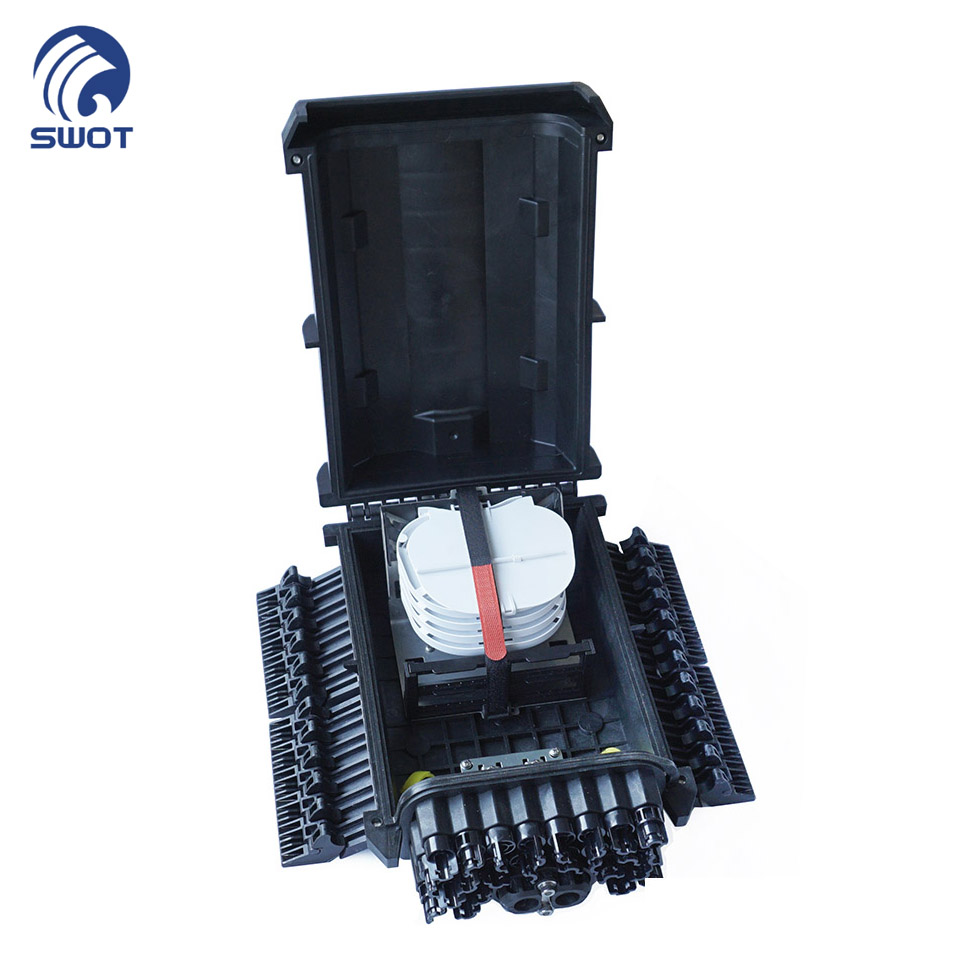

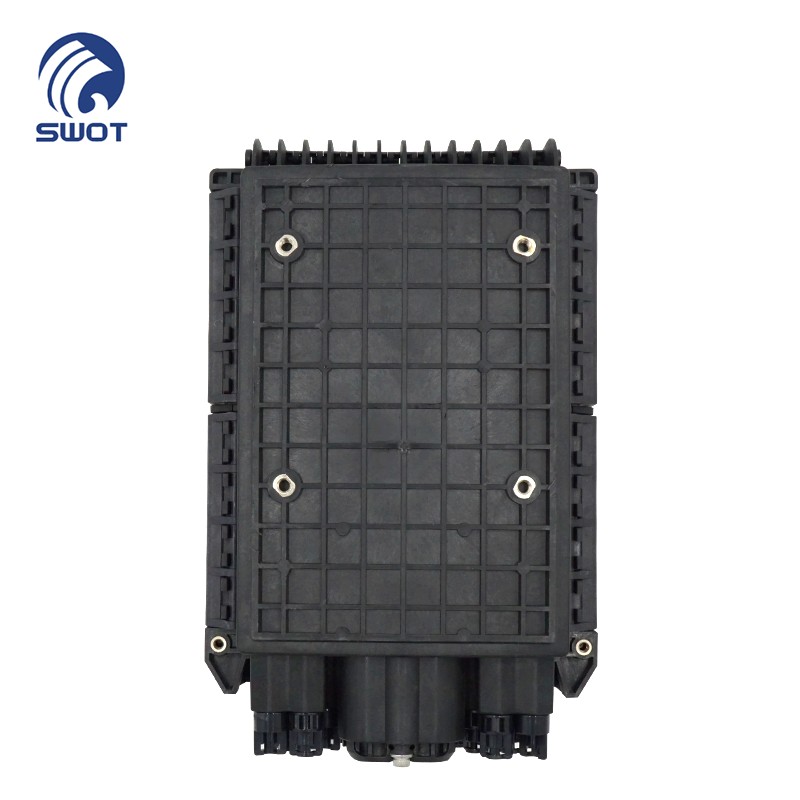

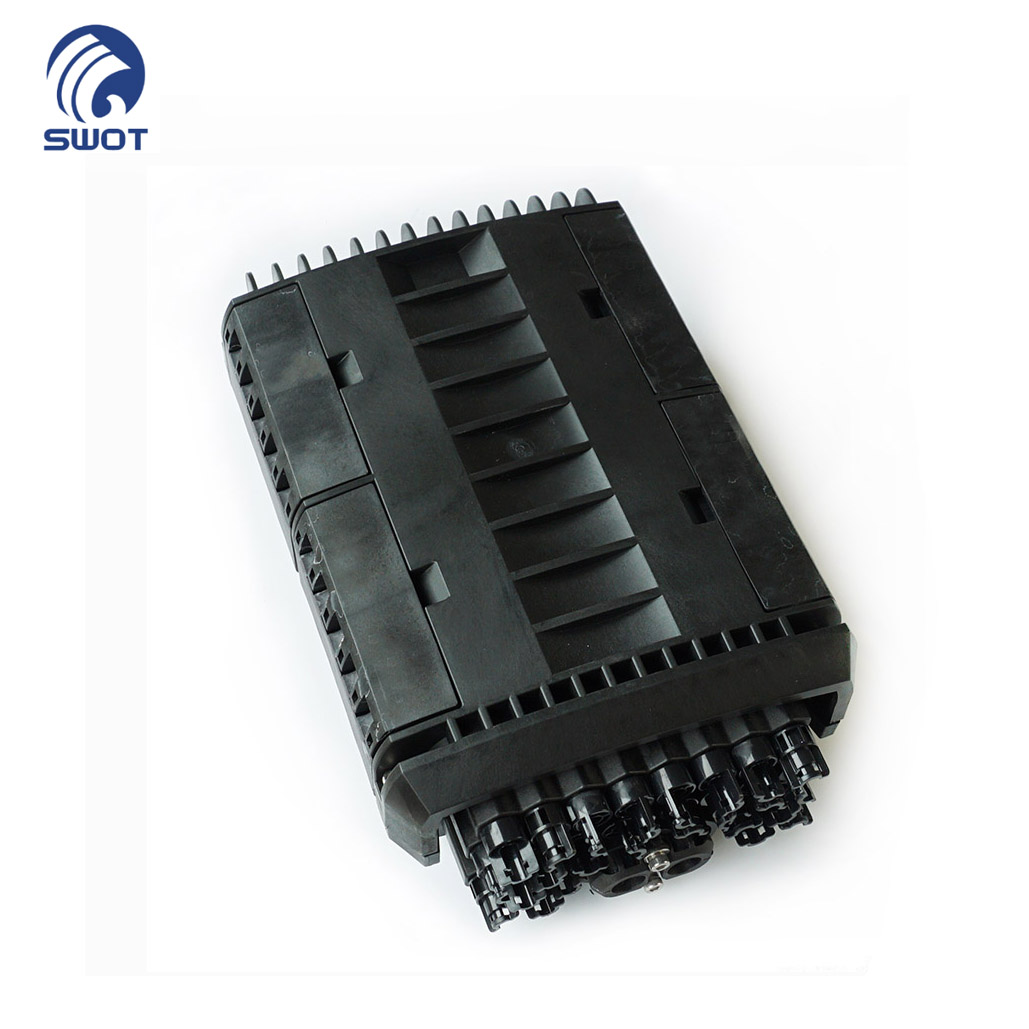

FTTH Drop Cable Type Fiber Optic Splice & Splitter Closure features ruggedness, which is tested under harsh conditions and stands up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps users get a better experience and safer operating environment.
|
Model |
GJS-TT-H024A |

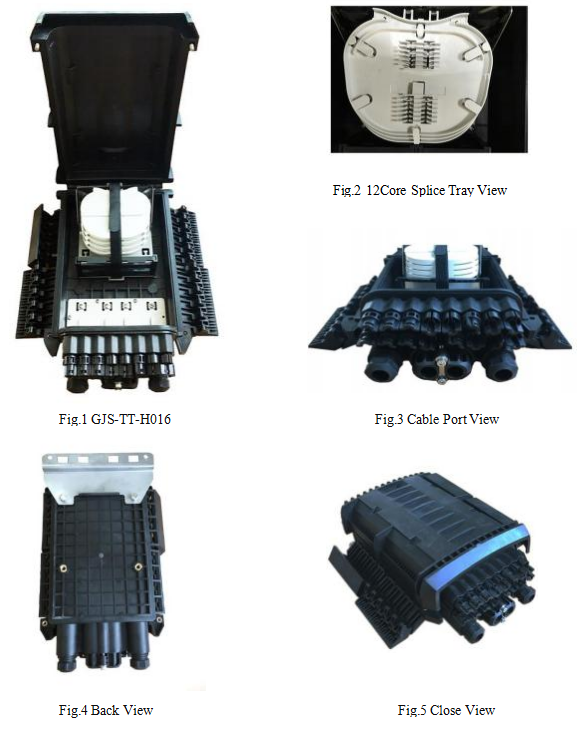

GJS-TT-H016 |
GJS-TT-H024B |
||
|
Adapter |
24 pcs of SC |
16 pcs of SC |
24 pcs of SC |
||
|
Cable Ports |
1 uncut port |
1 uncut port |
2 round ports |
1 uncut port |
2 round ports |
|
Applicable Cable Diameter |
10~17.5mm |
10~17.5mm |
8~17.5mm |
10~17.5mm |
8~17.5mm |
|
Drop Cable Ports |
24 ports |
16 ports |
24 ports |
||
|
Applicable Cable Diameter |
2*3mm FTTH Drop Cable,2*5mm Figure 8 FTTH Drop Cable |
||||
|
Dimension |
385*245*130mm |
385*245*130mm |
385*245*155mm |
||
|
Material |
modified polymer plastic |
||||
|
Sealing Structure |
mechanical sealing |
||||
|
Color |
black |
||||
|
Maximunm Splicing Capacity |
48 fibers(4 trays,12 fibers/tray) |
||||
|
Apllicable Splitter |
1 pc of 1*16 PLC Splitter or 2 pcs OF 1*8 PLC Splitters |
|
Sealing |
IP68 |
|
Impact Test |
IK10 |
|
Pull Force |
100N |
|
Midspan Entry |
yes |
|
Storage(Tube/Micro Cbale) |
yes |

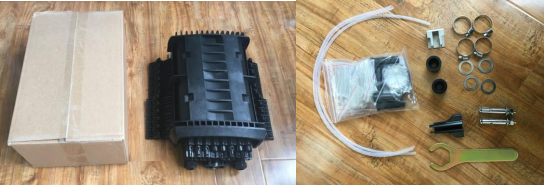

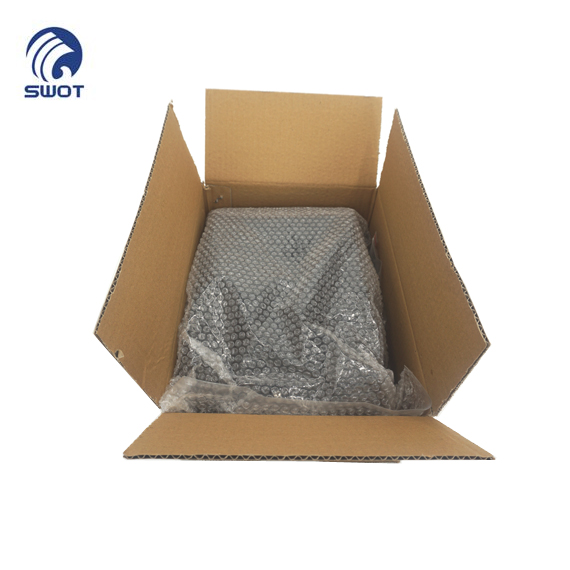

1 piece /small carton box
4pieces/ big carton box
Packing size: 540*410*375mm/pce
