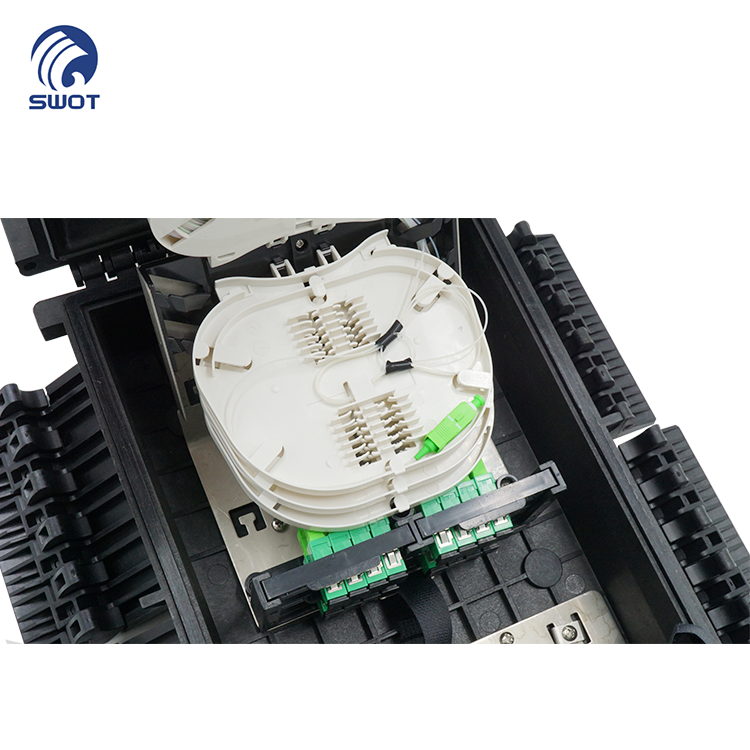

FTTH Drop Cable Type Fiber Optic Splice & Splitter Closure features with ruggedness, which is tested under harshconditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment.
• Dis-mountable adaptor panel
• Support mid span termination

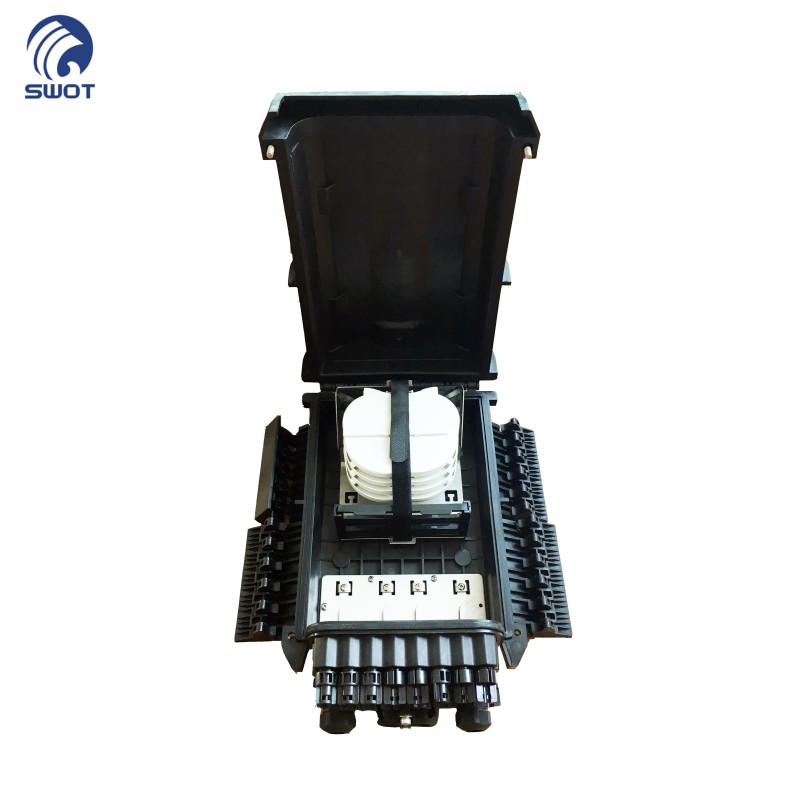

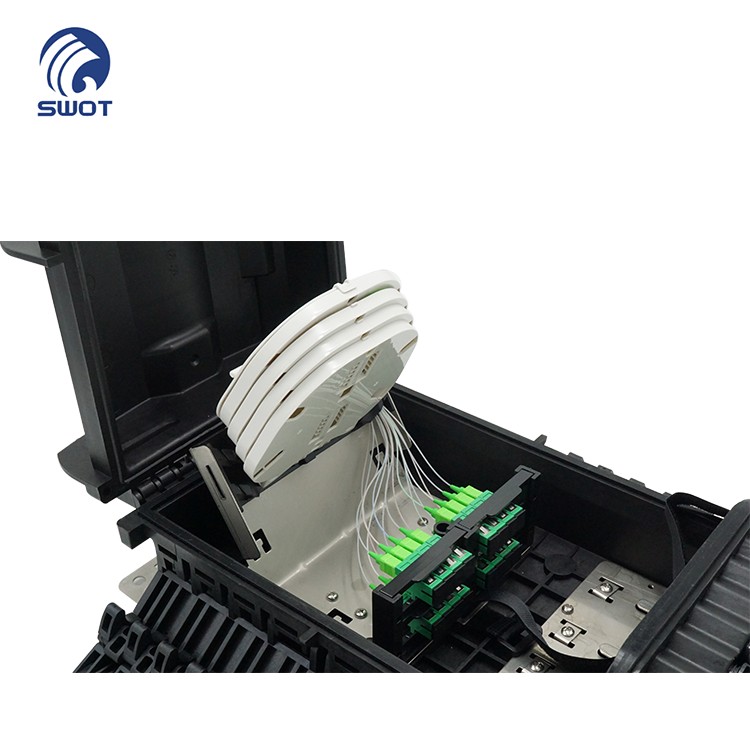

• Rotatable and dis-mountable splice tray for easy splicing

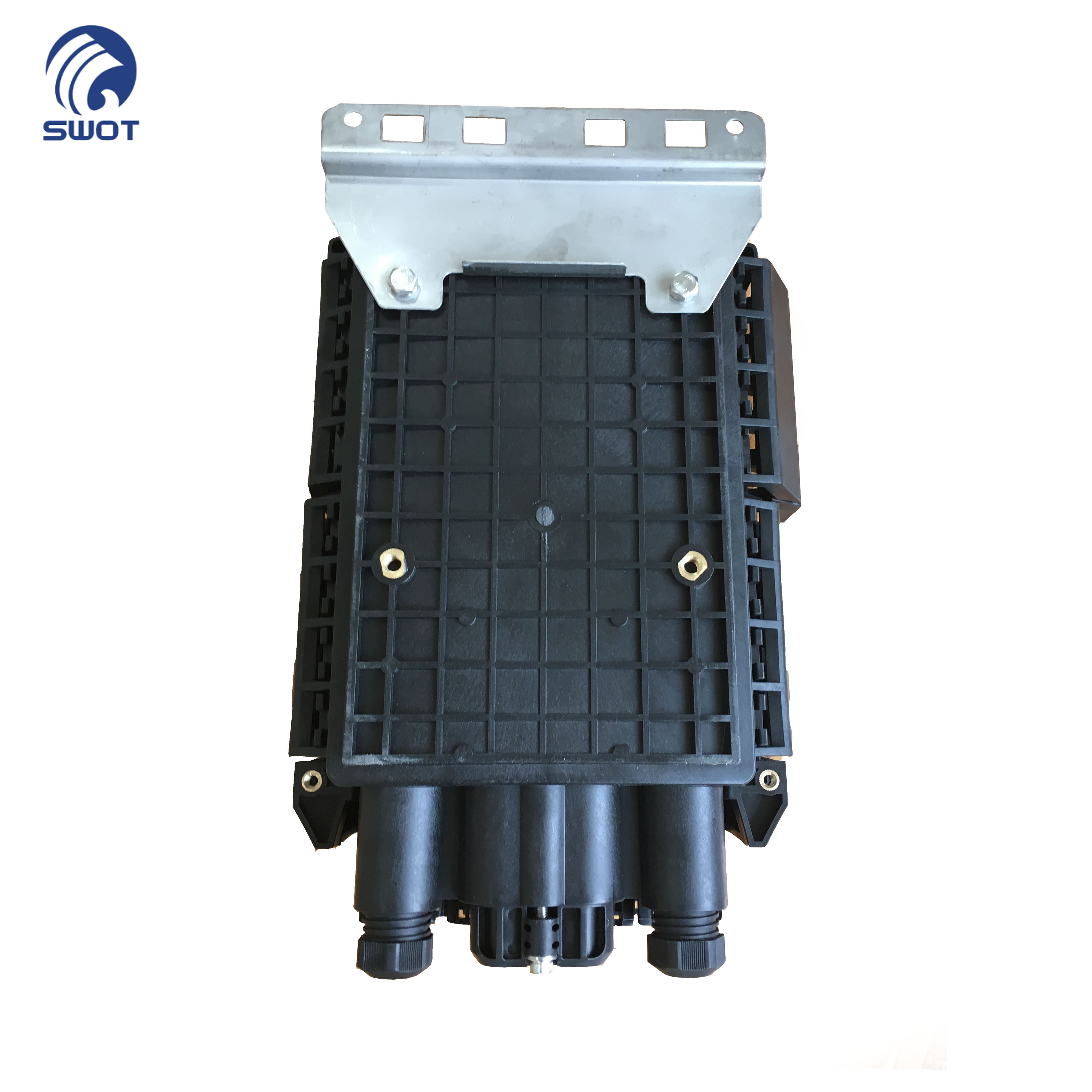

• Wall mounting & pole mounting installation
• Suitable for 2*3mm Indoor FTTH Drop cable and outdoor figure 8 cable
|
Model |
GJS-TT-H024A |
GJS-TT-H016 |
GJS-TT-H024B |
||
|
Adapter |
24 pcs of SC |
16 pcs of SC |
24 pcs of SC |
||
|

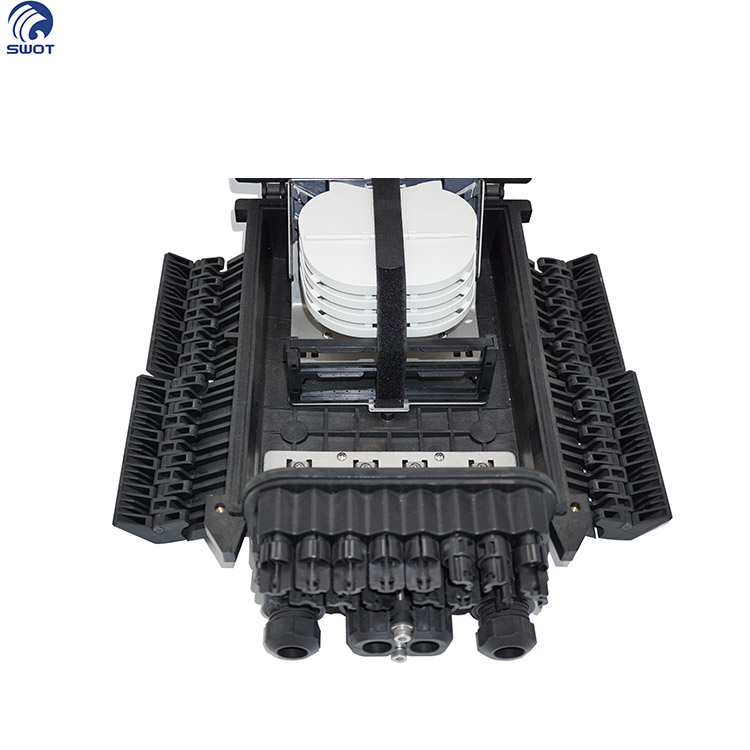

Cable Ports |
1 uncut port |
1 uncut port |
2 round ports |
1 uncut port |
2 round ports |
|
Applicable Cable Diameter |
10~17.5mm |
10~17.5mm |
8~17.5mm |
10~17.5mm |
8~17.5mm |
|
Drop Cable Ports |
24 ports |
16 ports |
24 ports |
||
|
Applicable Cable Diameter |
2*3mm FTTH Drop Cable,2*5mm Figure 8 FTTH Drop Cable |
||||
|
Dimension |
385*245*130mm |
385*245*130mm |
385*245*155mm |
||
|
Material |
modified polymer plastic |
||||
|
Sealing Structure |
mechanical sealing |
||||
|
Color |
black |
||||
|

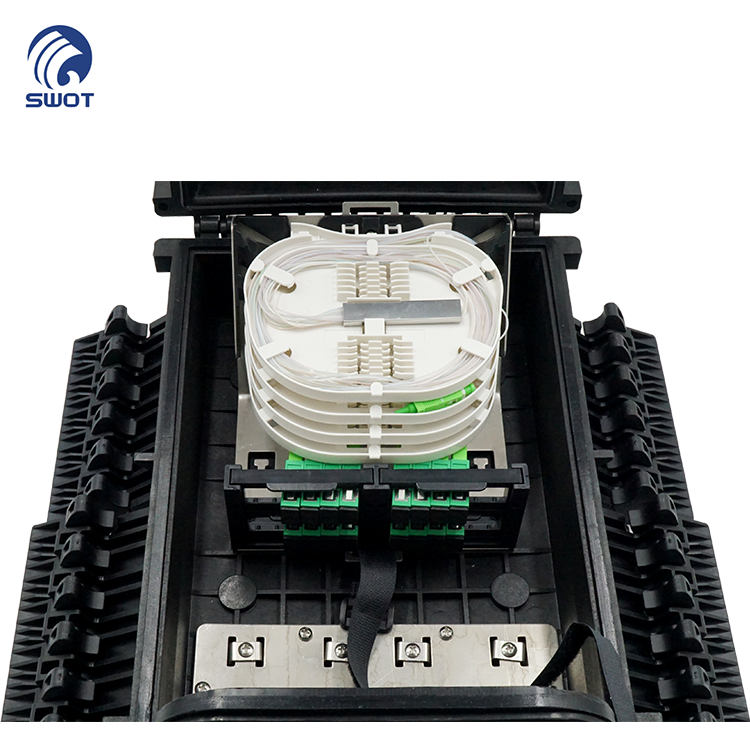

Maximunm Splicing Capacity |
48 fibers(4 trays,12 fibers/tray) |
||||
|
Apllicable Splitter |
1 pc of 1*16 PLC Splitter or 2 pcs OF 1*8 PLC Splitters |
|
Sealing |
IP68 |
|
Impact Test |
IK10 |
|
Pull Force |
100N |
|
Midspan Entry |
yes |
|
Storage(Tube/Micro Cbale) |
yes |
