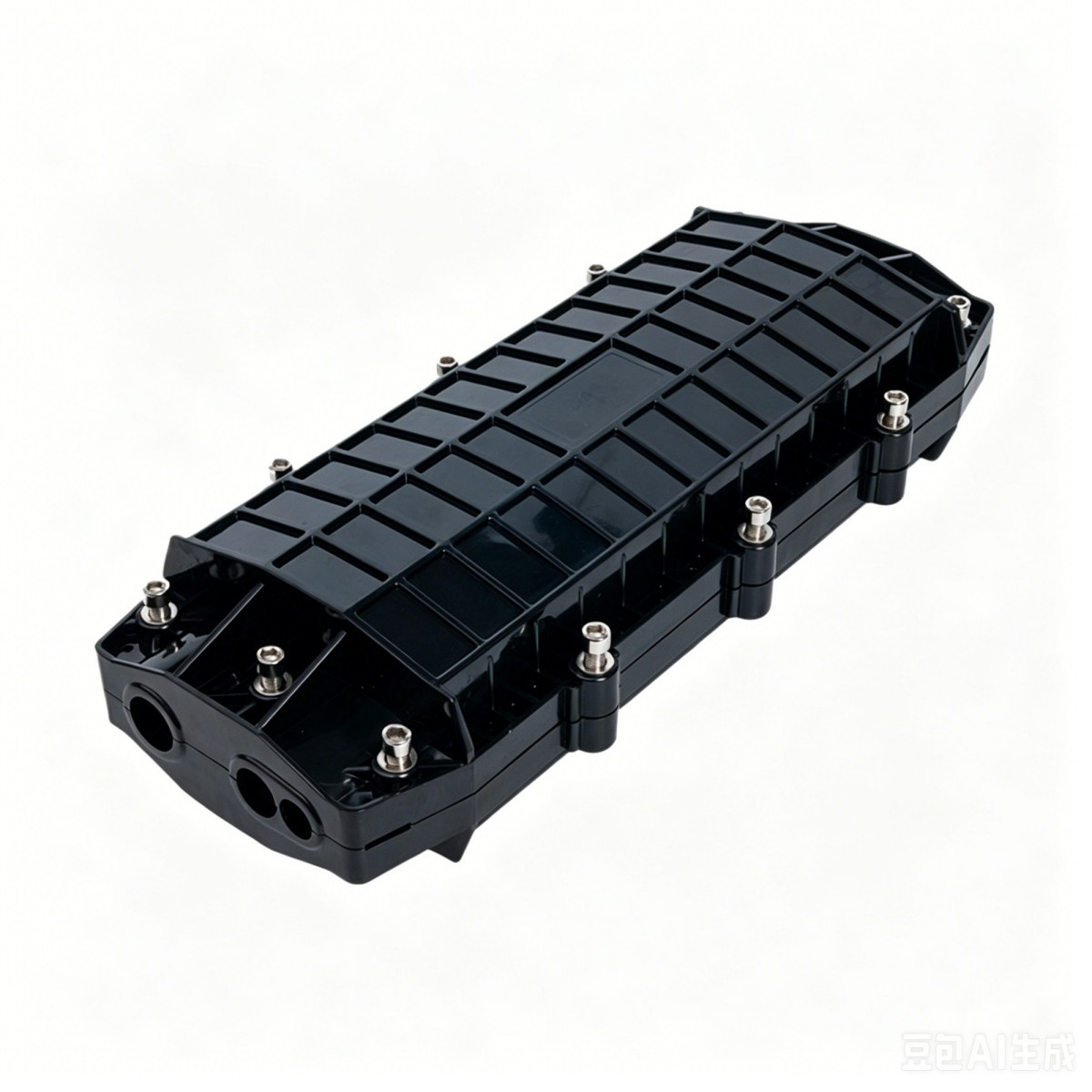

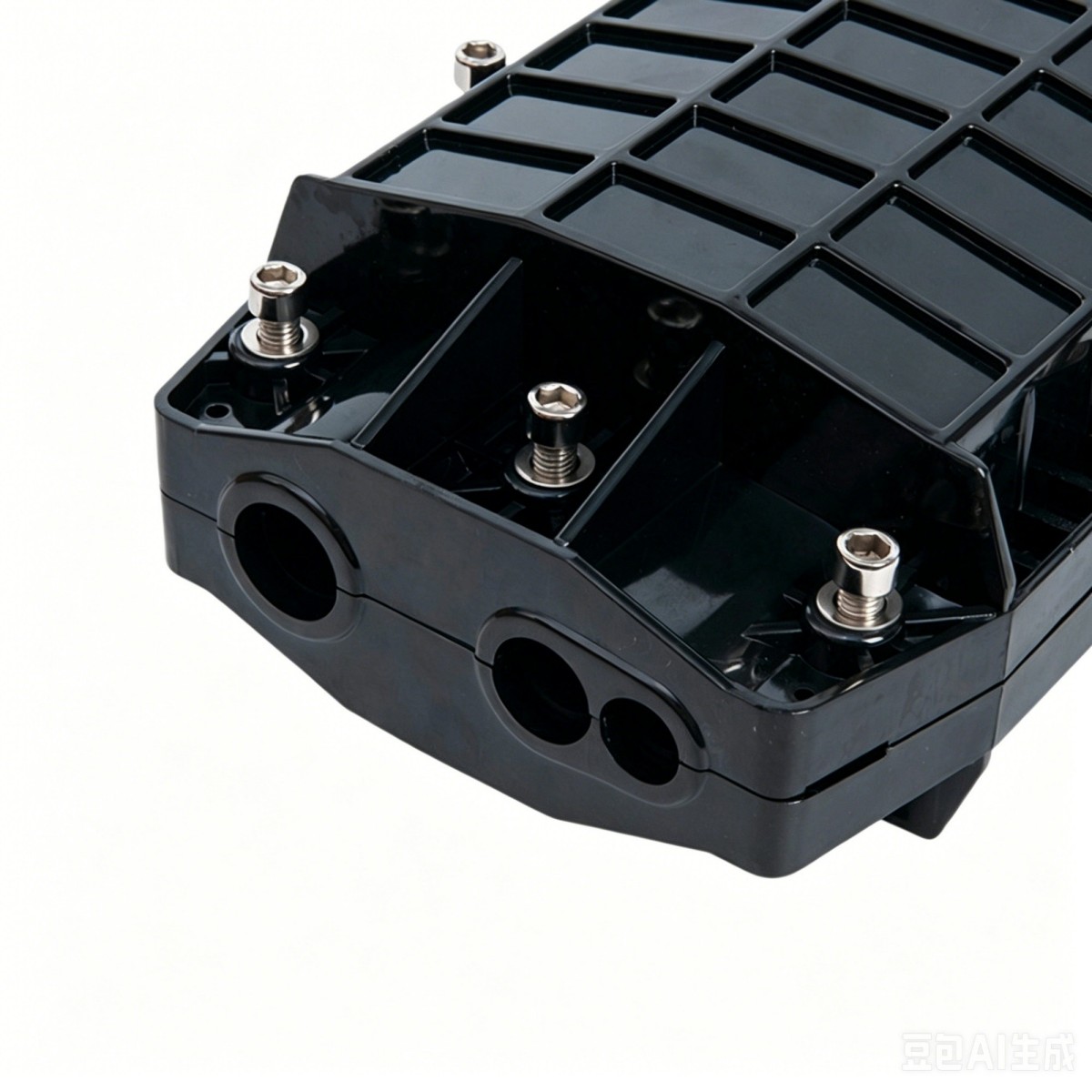

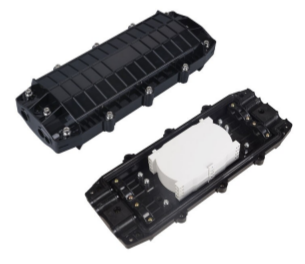

96 Core Fiber Optic Closure(3 in 3 out)

optical splice closures are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. They are applicable to situations such as overhead, man-well of pipeline, embedded situation etc. Comparing with terminal box, the closure requires much stricter requirement of seal.

environment. The protection grade reaches IP68.

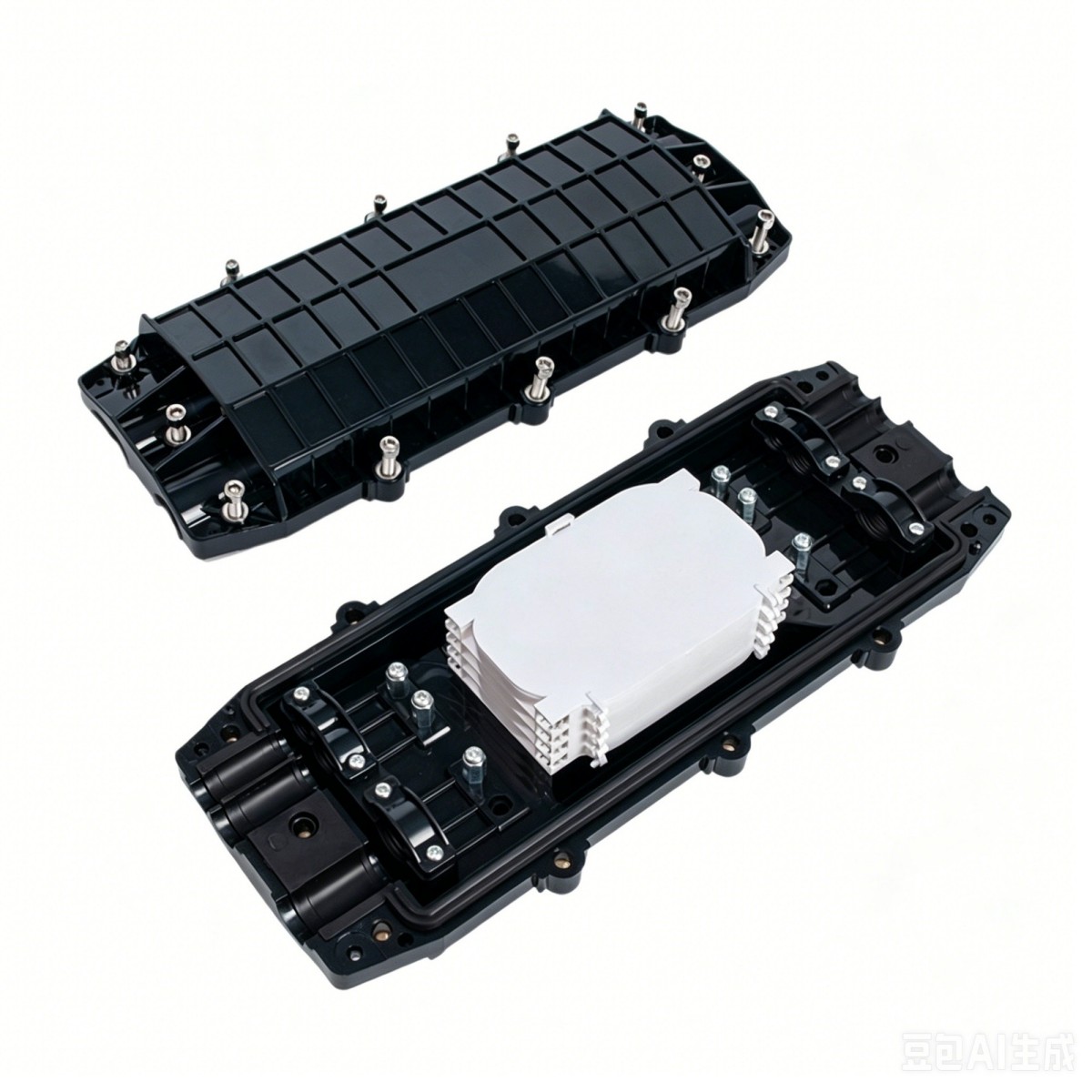

The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable and fiber can be operated individually.

The closure is of small volume, big capacity and convenient maintenance. The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance.

（A ） Metal press wire block	（B） Plastic press wire block

Used for direct transmission of outdoor cable in aerial、duct and direct buried application.

Used for branching connection and protect the joint.

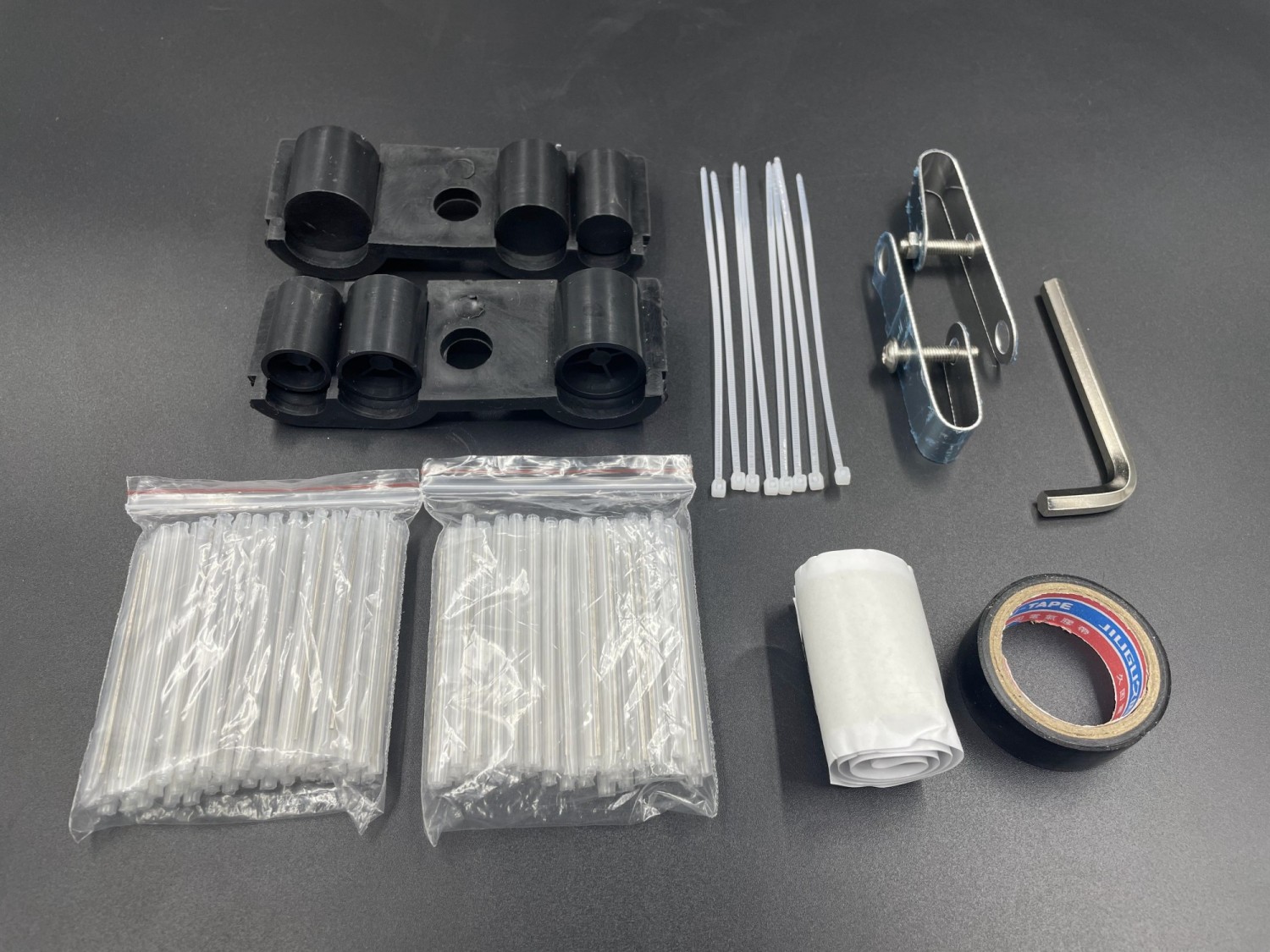

Metal spanner：1pcs

Metal hanger ：2pcs

Sealing rubber strip：1pcs

Insulating tape：1pcs

Cable tie:3mm*110mm 8pcs

Plastic plug：6pcs

Rubber waterproof strip：2pcs

Heat-shrink sleeve:1.2mm*60mm 96pcs
