Passive Optical Points Terminal Box -FTTH FTT-H308

FTTX series corridor sub-fiber box—FTT-H308

The terminal box made ​​of high strength materials, UV resistance, resistance to rain, maximum capacity up to 16 cores, the perfect space design, micro-optical splitter installation clever, can be used in indoor and outdoor environment, safe, reliable, cost-effective,provide the best solutions for optical access networks

1、the use of high strength materials, UV resistant, UV resistant.
2、a new waterproof design, suitable for indoor and outdoor overhead and wall and other natural environment.
3、the box of "locking" type structure, the box body opening and closing, the use of more secure.

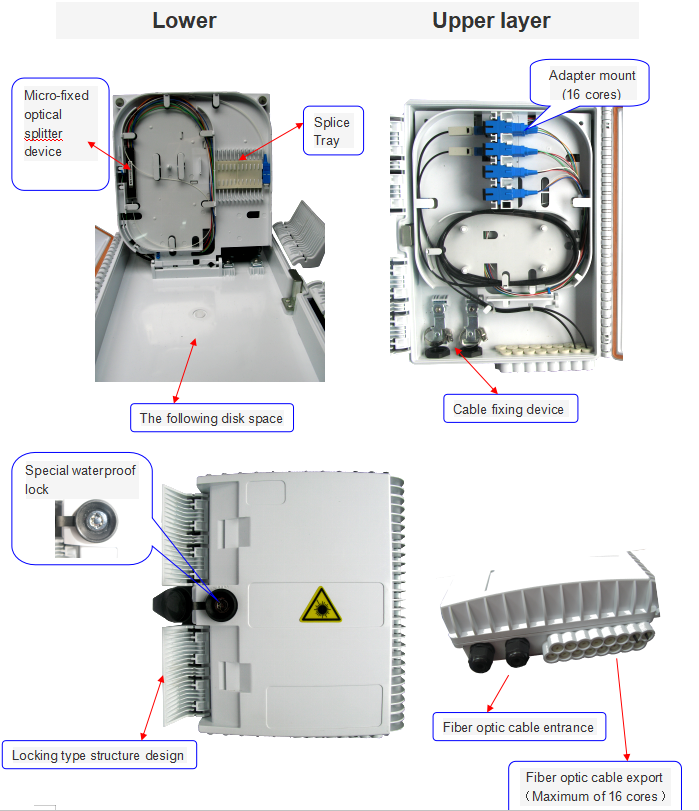

4、the splice tray flip-storey design program is easy to install and maintain, Splice points fiber completely separated, the layout is more reasonable.
5、protection class: IP65.
6、the product can meet the different needs of the hot melt and cold then, high versatility.

1、Size: 306mm × 240mm × 106mm (length × width × height)
2、Weight: 1.8KG
3、which can accommodate 16 SC adapters, optical ratio up to 1:16.
4、access to two fiber optic cable.
5、 the output fiber optic cable capacity of 16 cores.

1、Operating temperature: -40 ℃ -60 ℃.
2、Environmental Humidity: 95% at 40 ℃.
3、the air pressure: 62kPa-105kPa

1、Stainless steel hoop(for customers chose)
2、wall mount kit 1 set
3、waterproof two dedicated lock key
