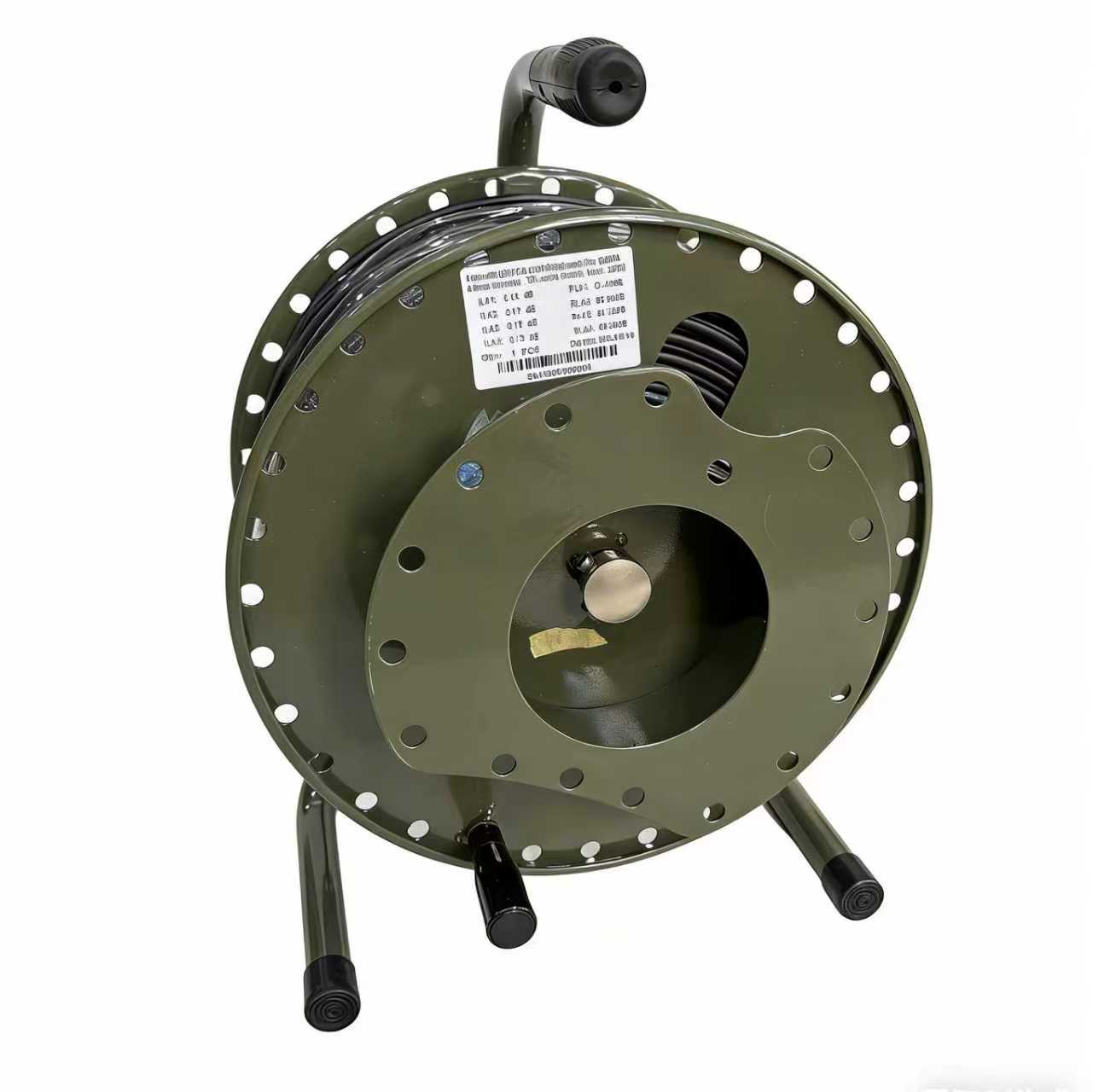

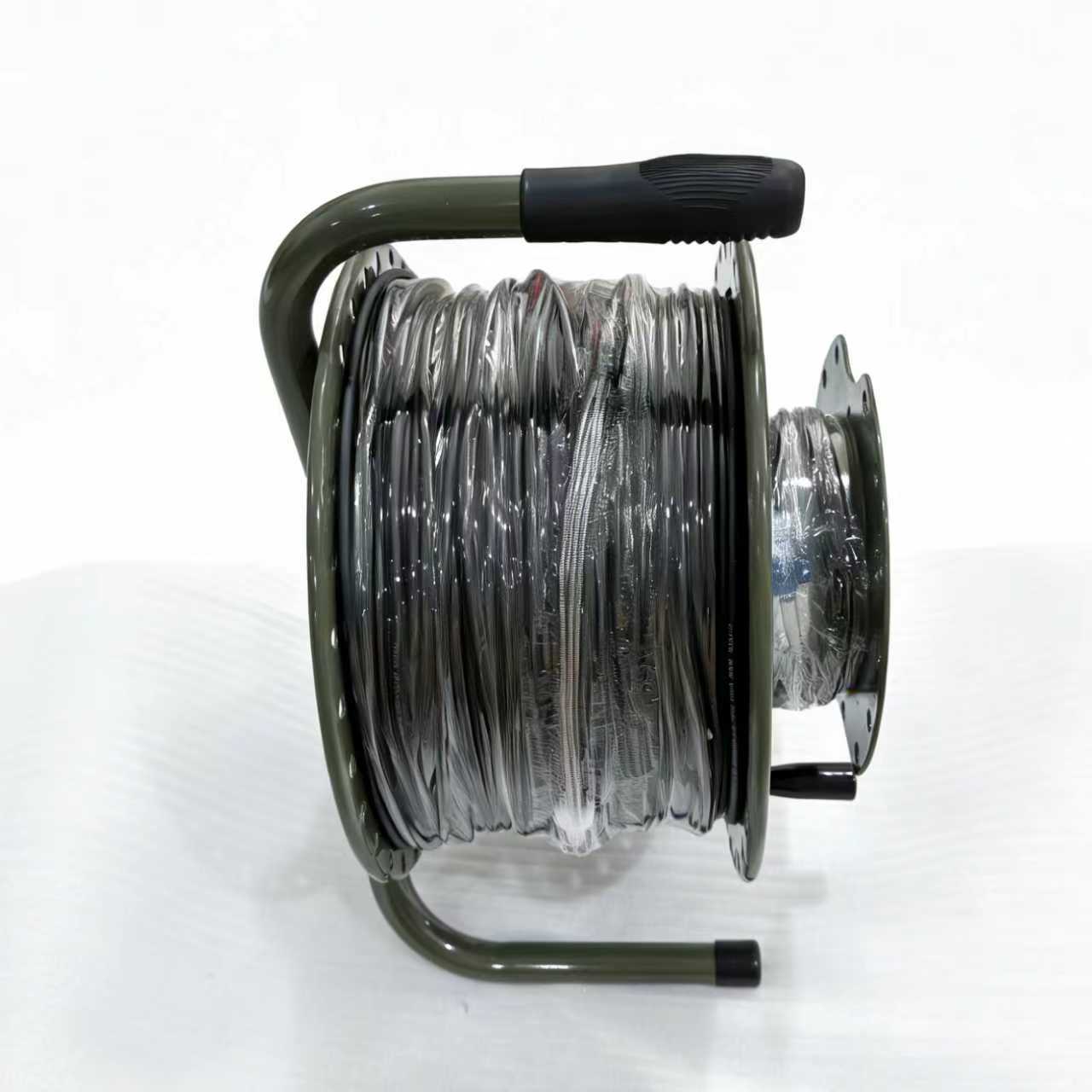

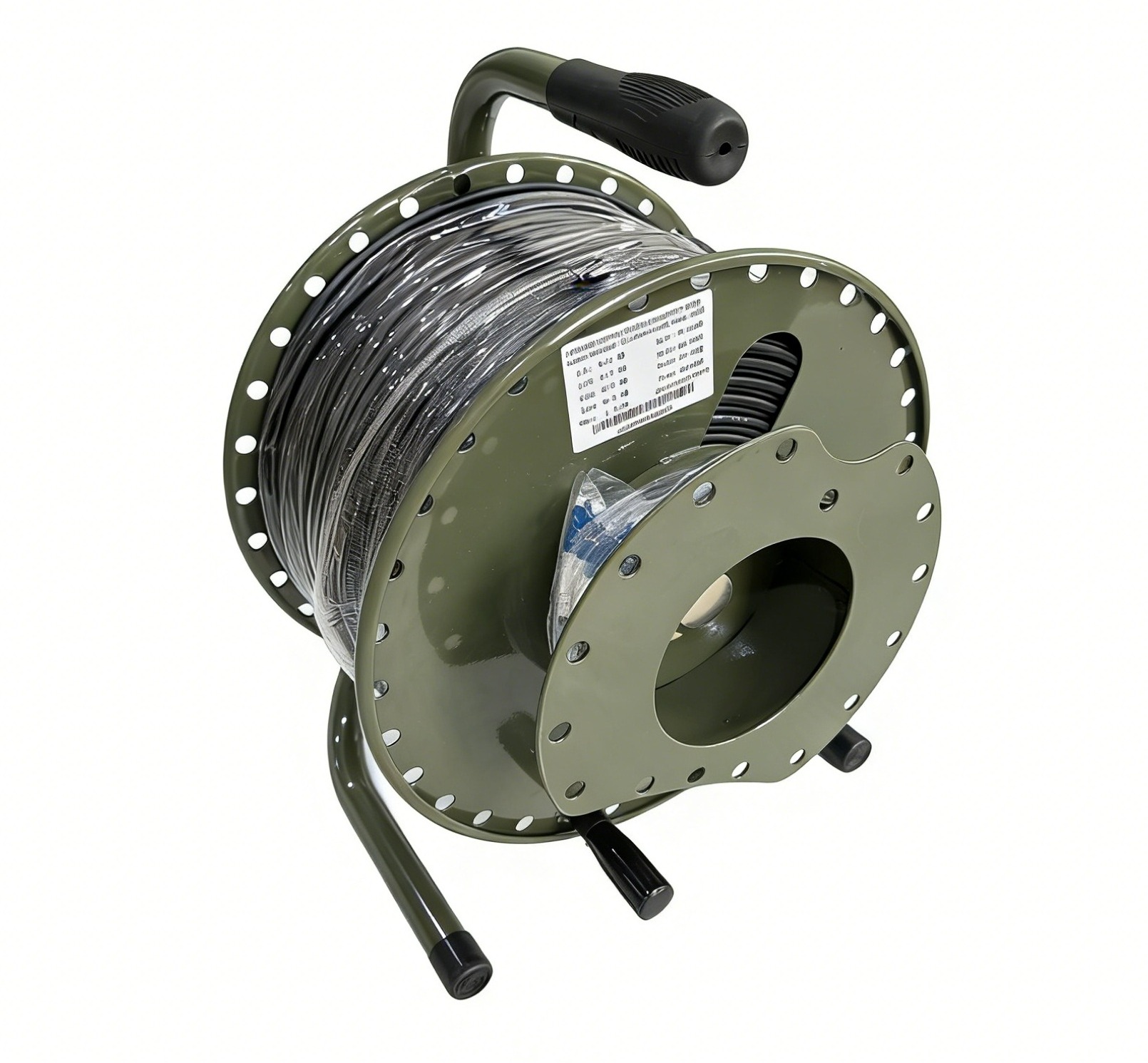

Portable mobile pre-terminated cable reels is developed for temporary field deployment where fiber connections are required. It comes in a portable cable reel for ease of transportation and deployment. It's widely used in mobile television vans, can be spooled with fiber cable. network cable, power cable. etc. These reels mostly work together with waterproof cables and connectors outdoor. It's most important accessory in the filed of waterproof cabling systems.
• The mechanical characteristics of jacket meet the requirements of relevant standards;
• Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;
• Low Insertion Loss, High Reliability;
• Easy to Install with Removable Parts;
• Water/Dust Proof,Anti Corrosion;
• High Tensile Load Capability;
• Excellent Termination Strength.
• Telecommunication networks
• Building access
• Cabling system. ODF
• CATV
• FTTX applications
| No. of cable | 2-4 | ||
| Fiber Model | SM MM | ||

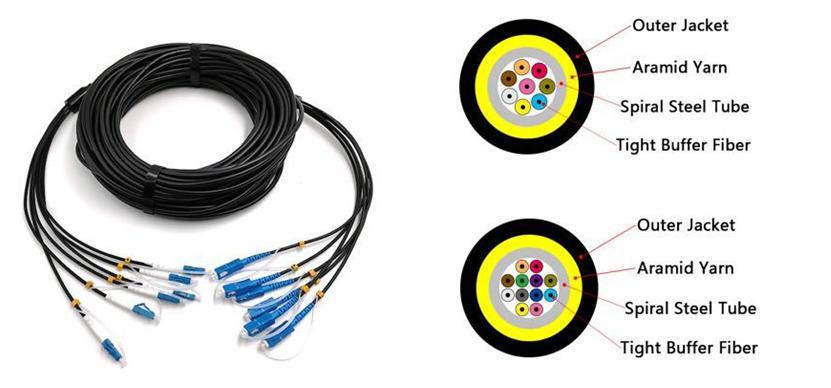

| Strength Member | Material | Aramid yarn | |
| Tight buffer | Material | PVC | |
| Diameter（±0.06）mm | 0.9 | ||
| Thickness（±0.03）mm | 0.32 | ||
| Strength Member | Material | Spiral steel tube | |
| Outer Sheath | Material | LSZH | |
| Thickness（±0.1）mm | 1 | ||
| Color | Black | ||
| Cable Diameter（±0.2）mm | 5 | ||
| Min. bending radius | Without Tension | 10.0×Cable-φ | |
| Under Maximum Tension | 20.0×Cable-φ | ||
|
Temperature range （℃） |
Installation | -20~+60 | |
| Transport&Storage | -40~+70 | ||
| Operation | -40~+70 | ||
| Connector | SC/LC/FC/ODVA/ FULLAXS/FDLC/ODC or as your request | |
| Insertion loss | SM &MM | ≤0.3 dB typical, ≤0.5 dB max per connector; total IL ≤0.75 dB. |
| Return loss | SM &MM | UPC≥ 20dB |
| Reaptability | ≤ 0.1db | |
| Changeability | ≤ 0.2dB | |
| Working temperature | -40 to +80° C | |
| Durability | 1000 times | |
| Sustain tension | ≥ 100N | |
