WB012

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

• Total enclosed structure.
• Material: ABS, wet-proof, water-proof, dust-proof, anti-aging, protection
• level up to IP68.
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
• Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
• Easy for maintenance and installation.
• Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

1. Environmental requirement
Working temperature：-40℃~+85℃
Relative humidity：≤85%（+30℃)
Atmospheric pressure：70KPa～106Kpa

2. Main technical datasheet
Insertion loss：≤0.15dB
UPC return loss：≥50dB
APC return loss：≥55dB

Applications---Wall mounting and pole mounting installation ·FTTH pre-installation and filed installation

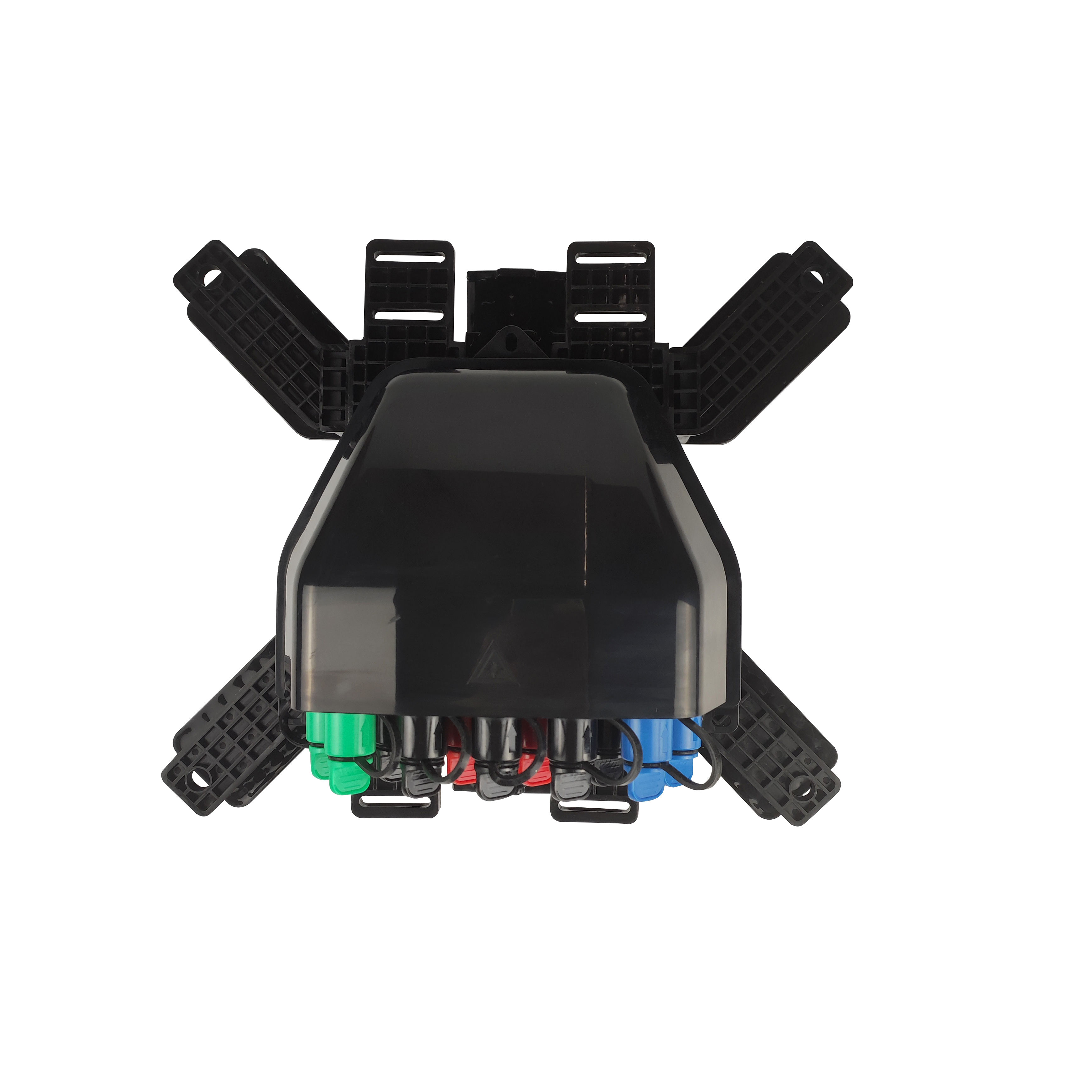

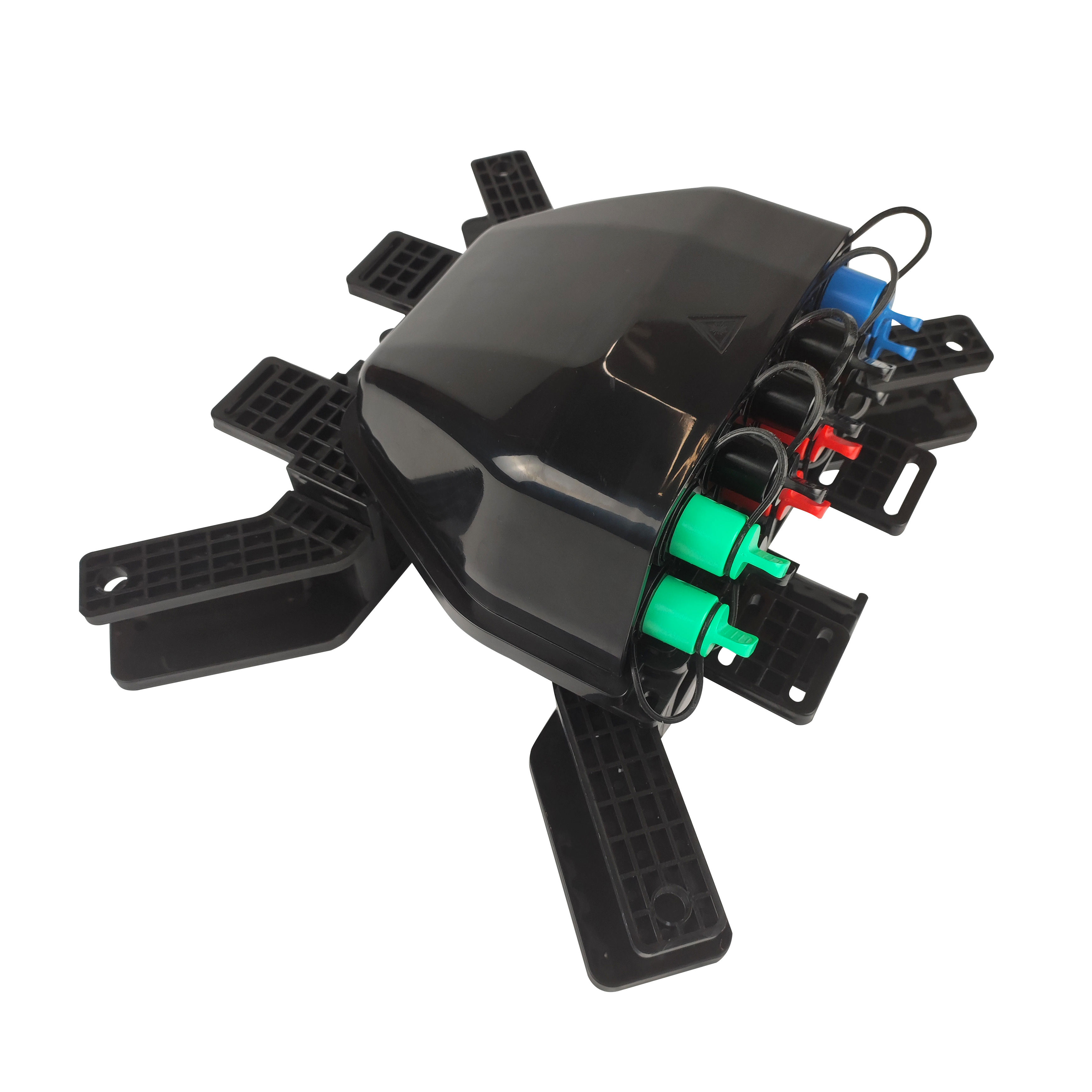

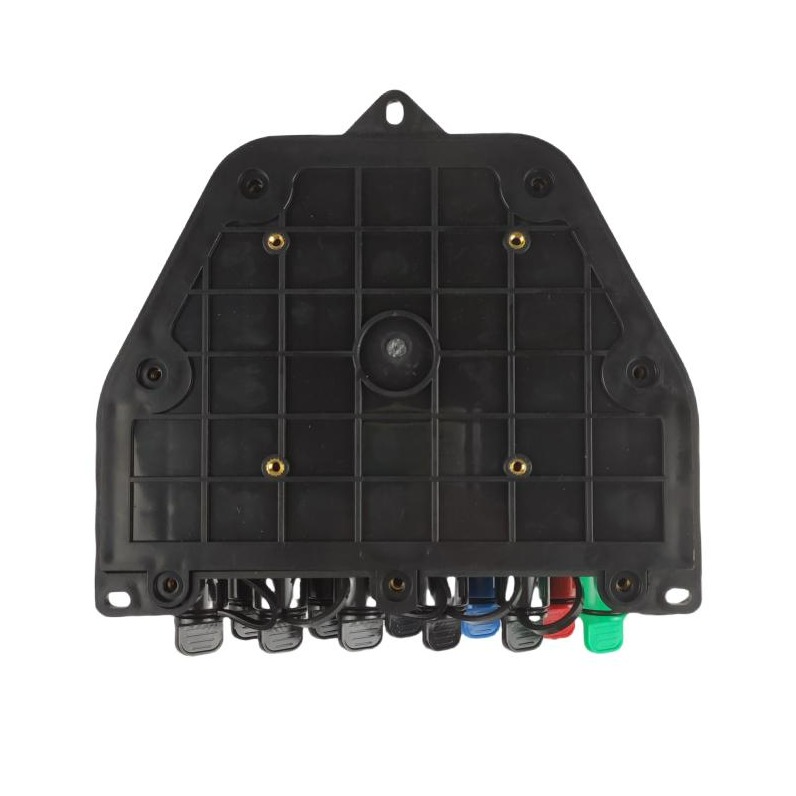

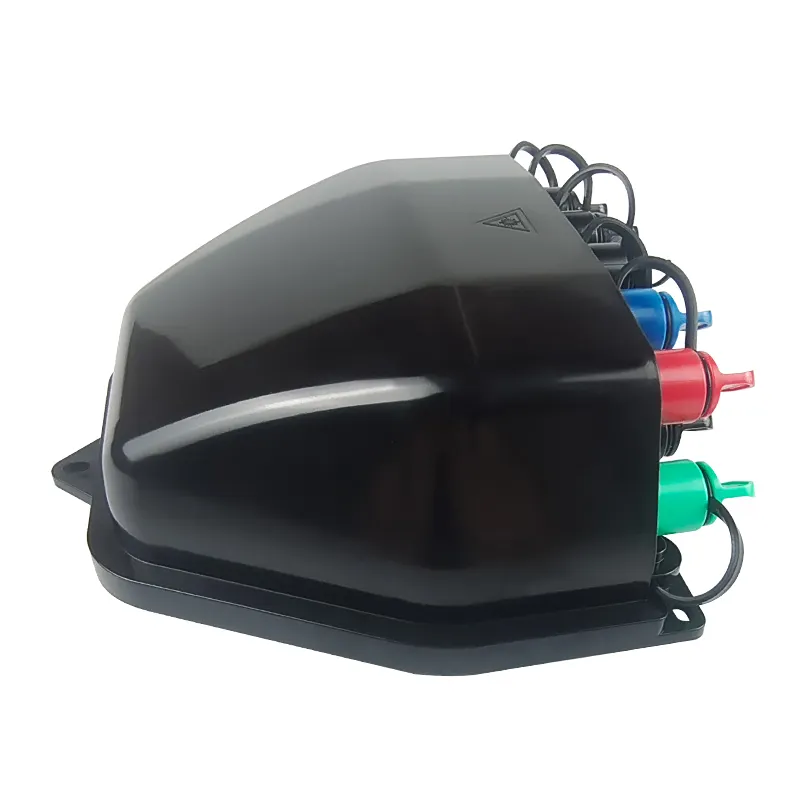

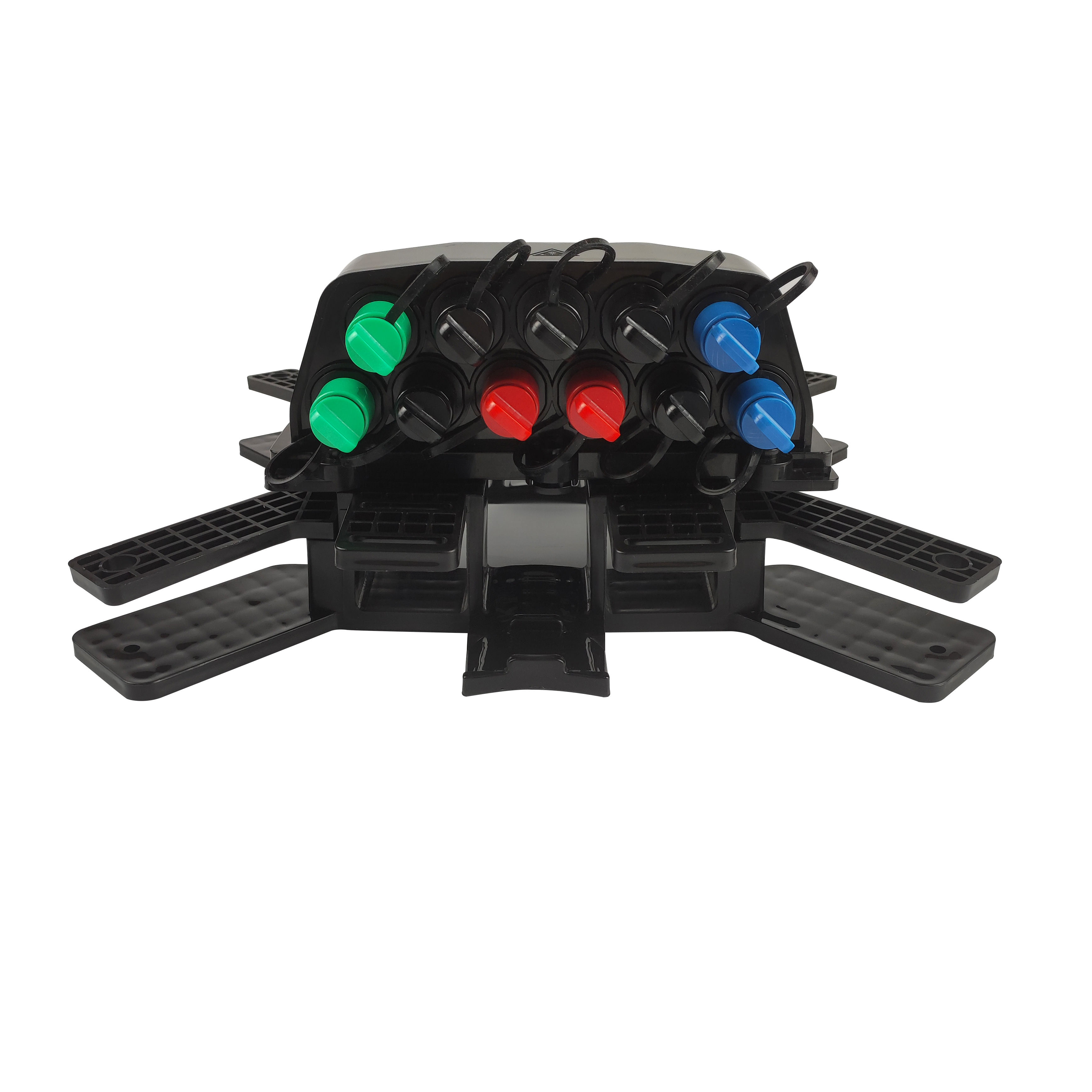

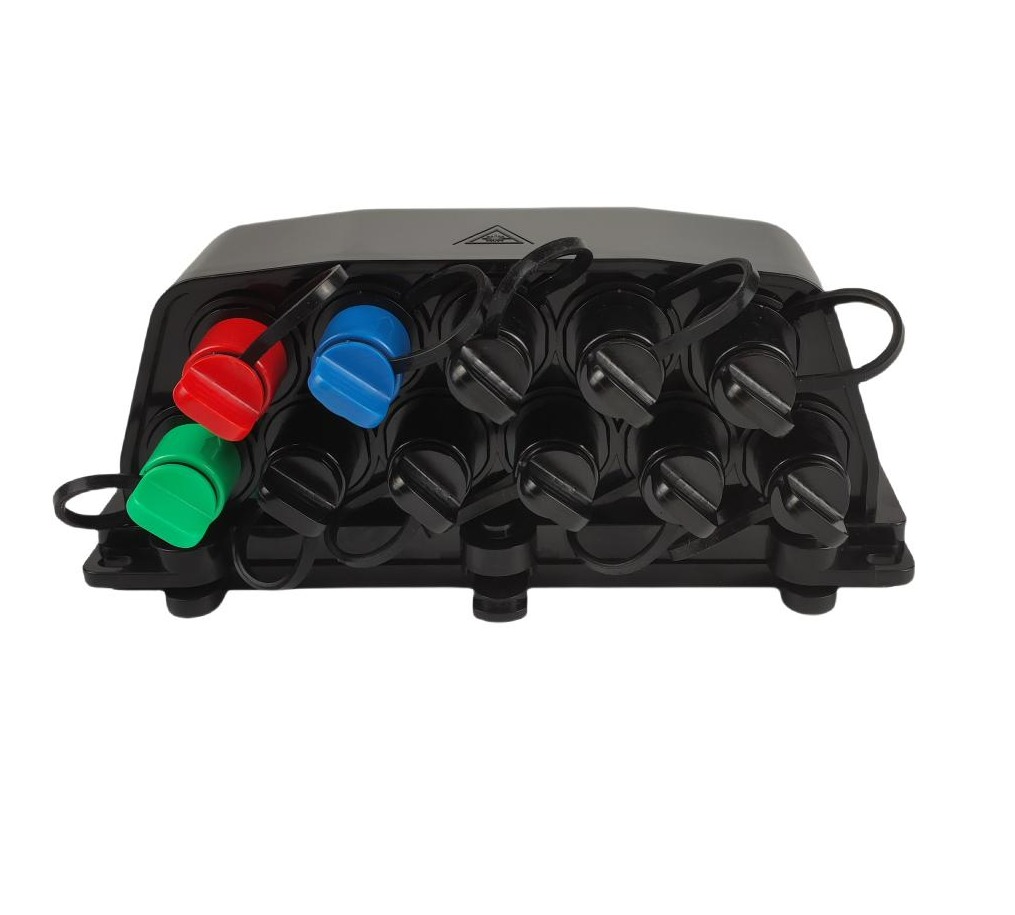

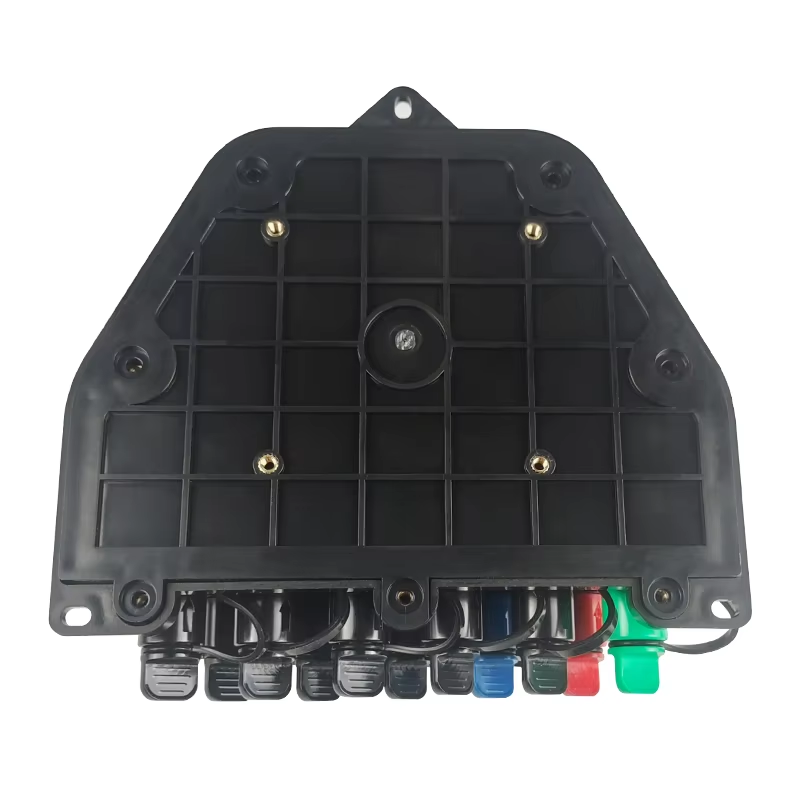

Product appearance

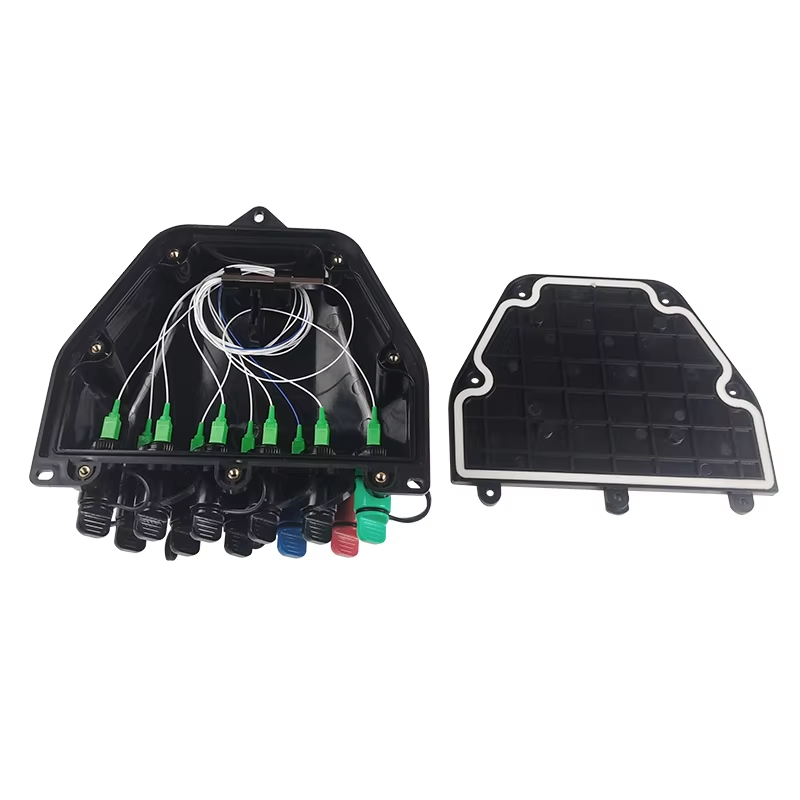

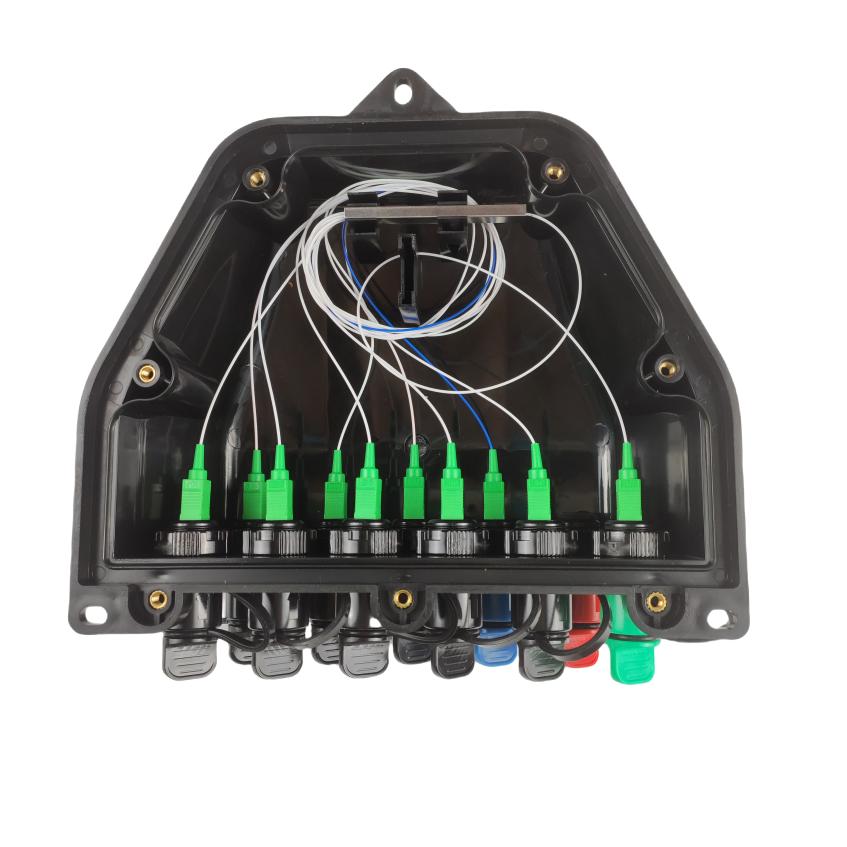

Inside the product

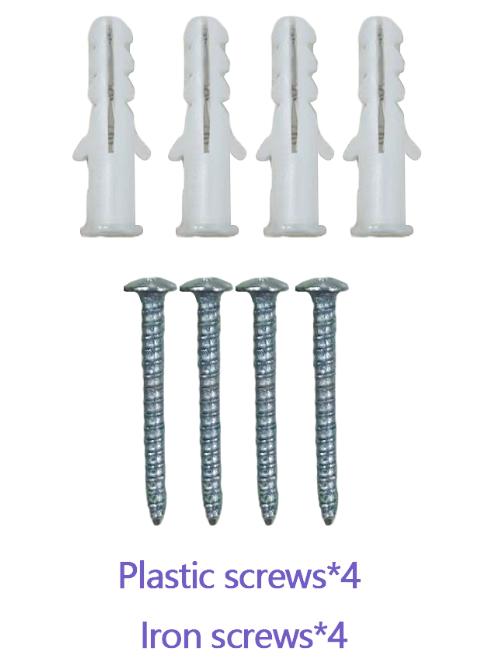

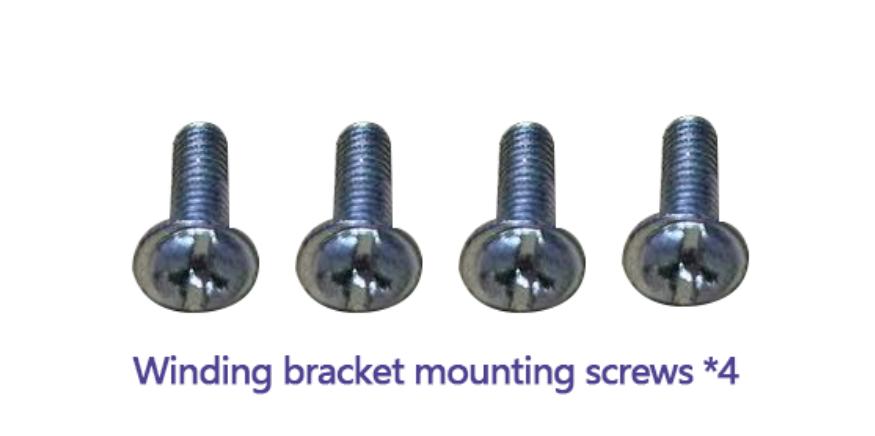

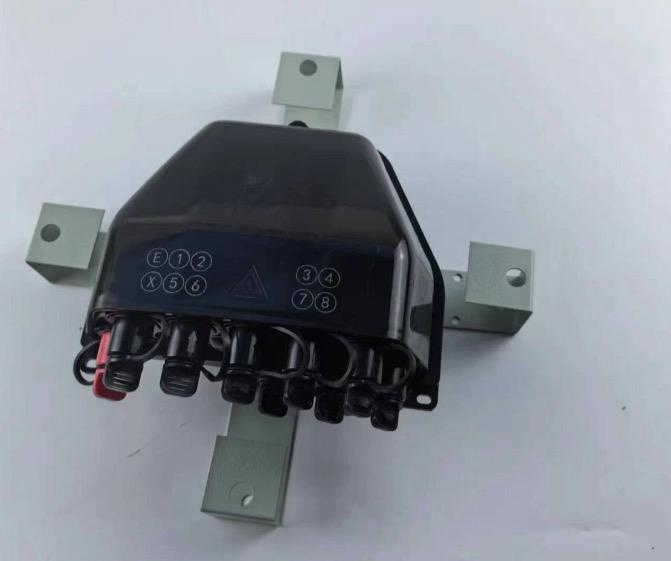

Regular accessories（Wall mounting）

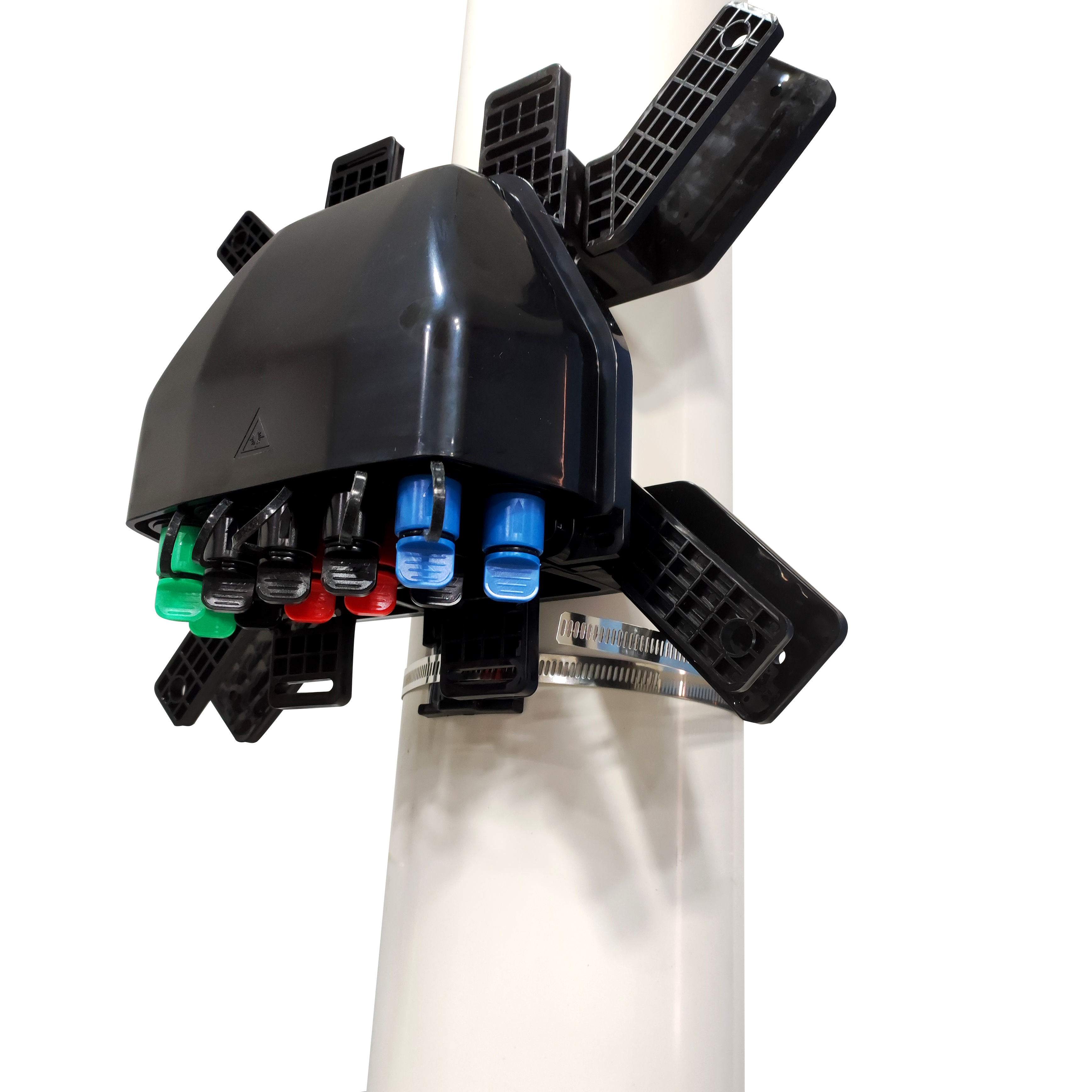

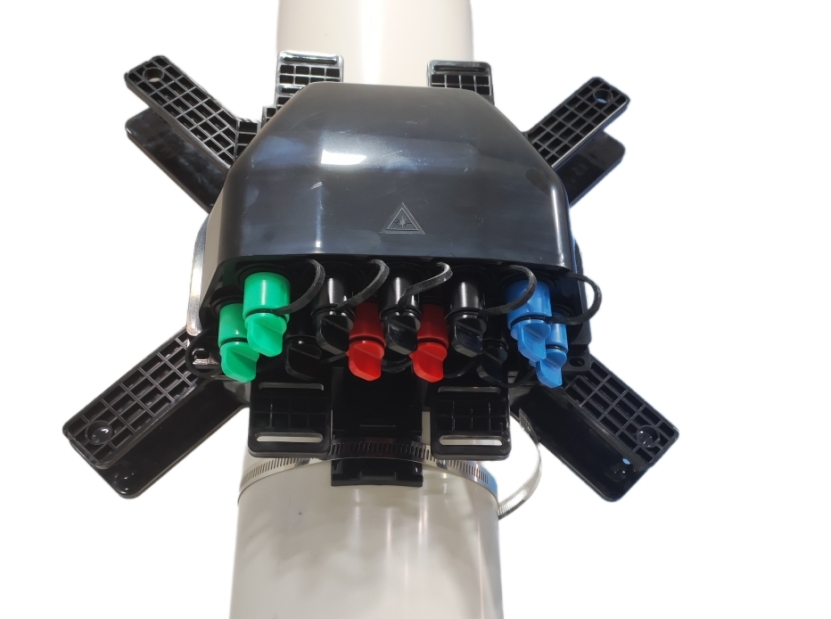

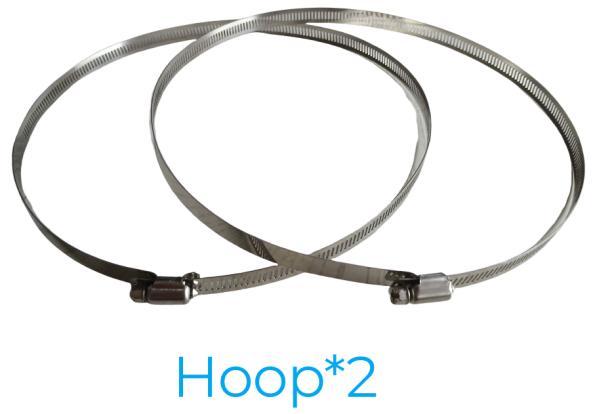

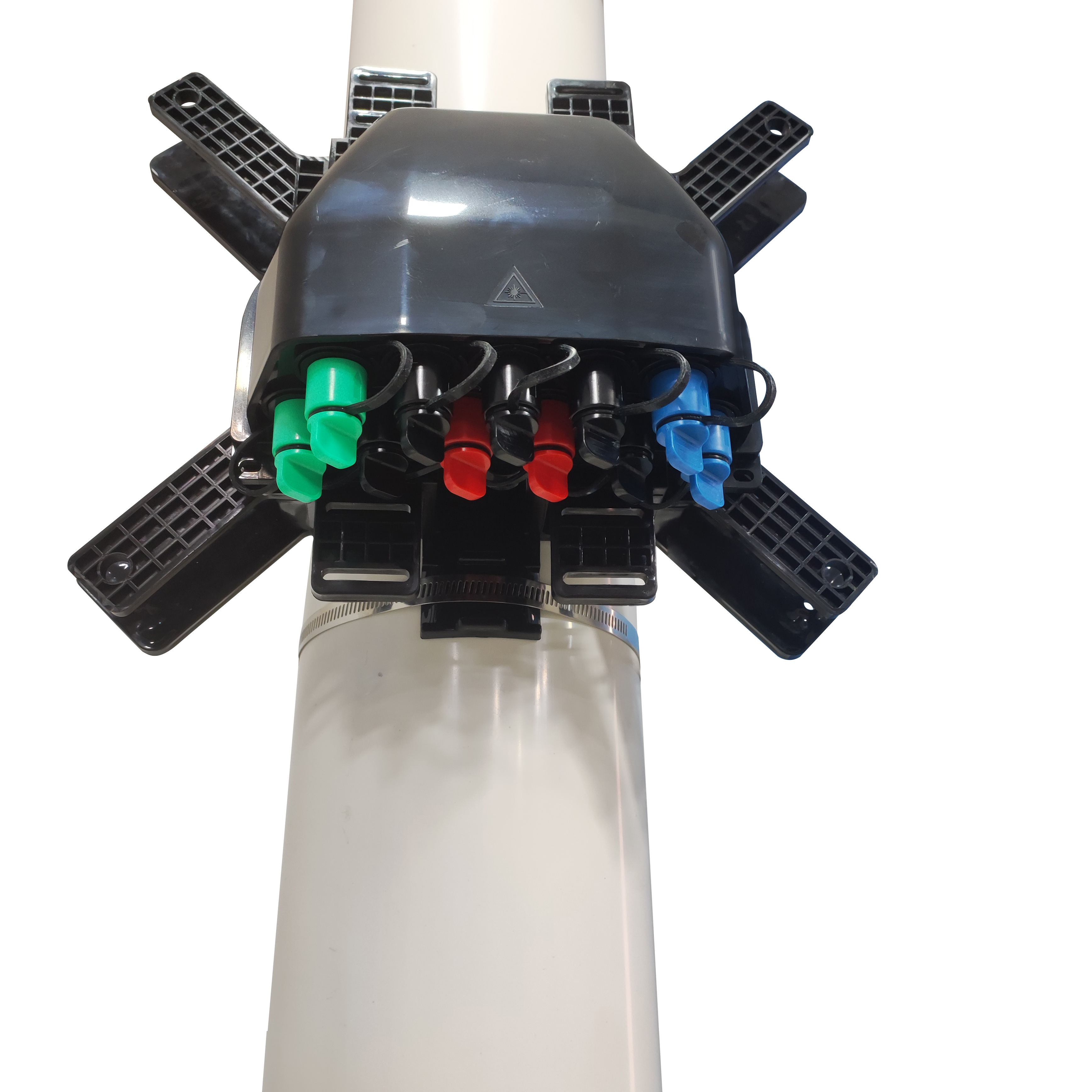

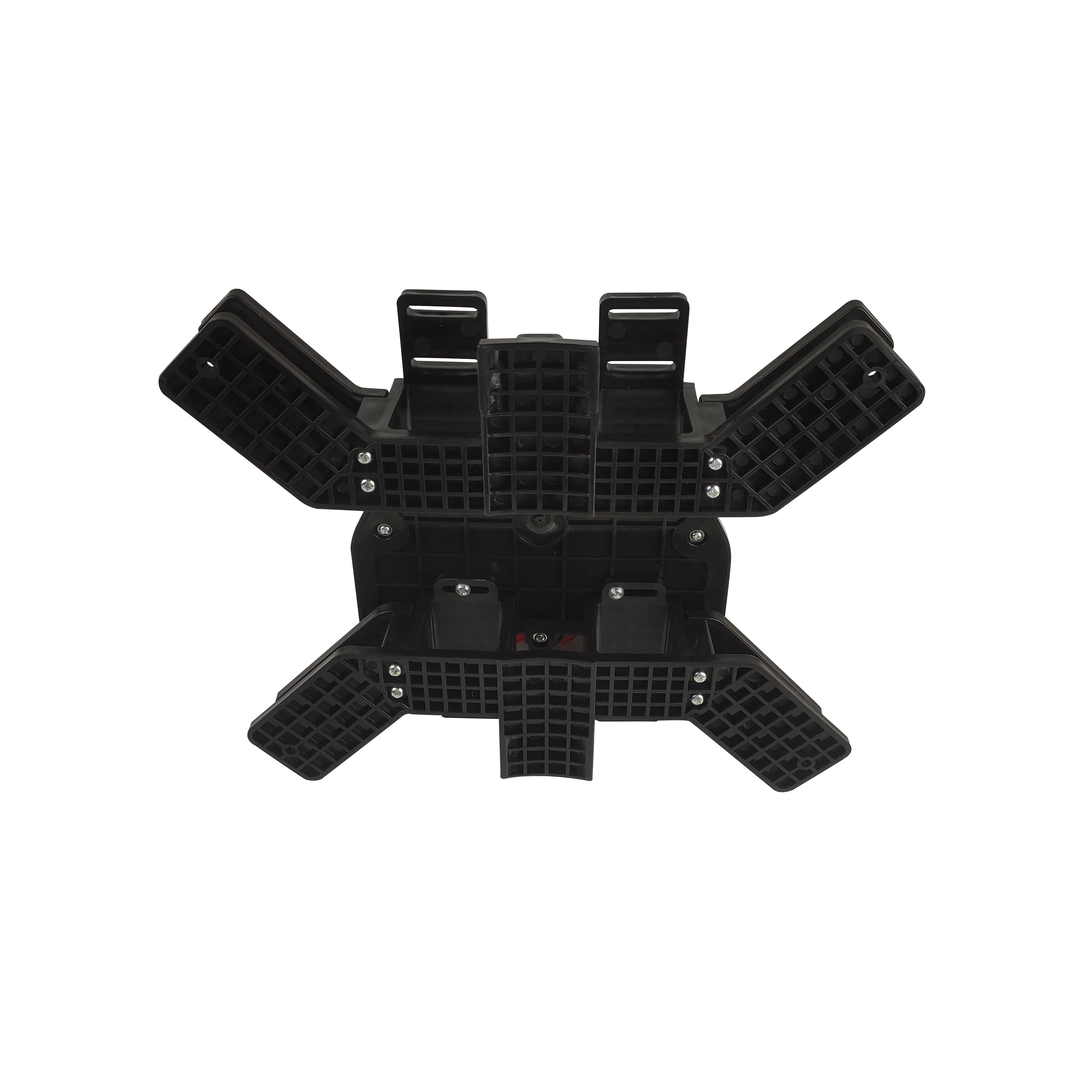

Pole mounting installation
