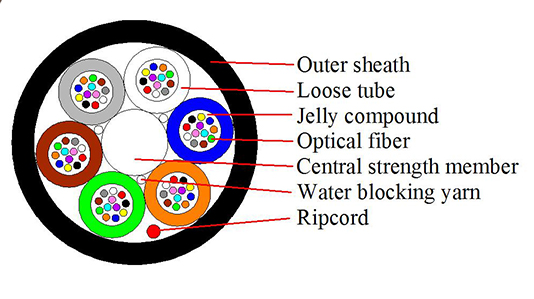

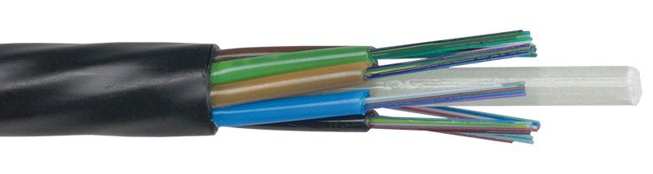

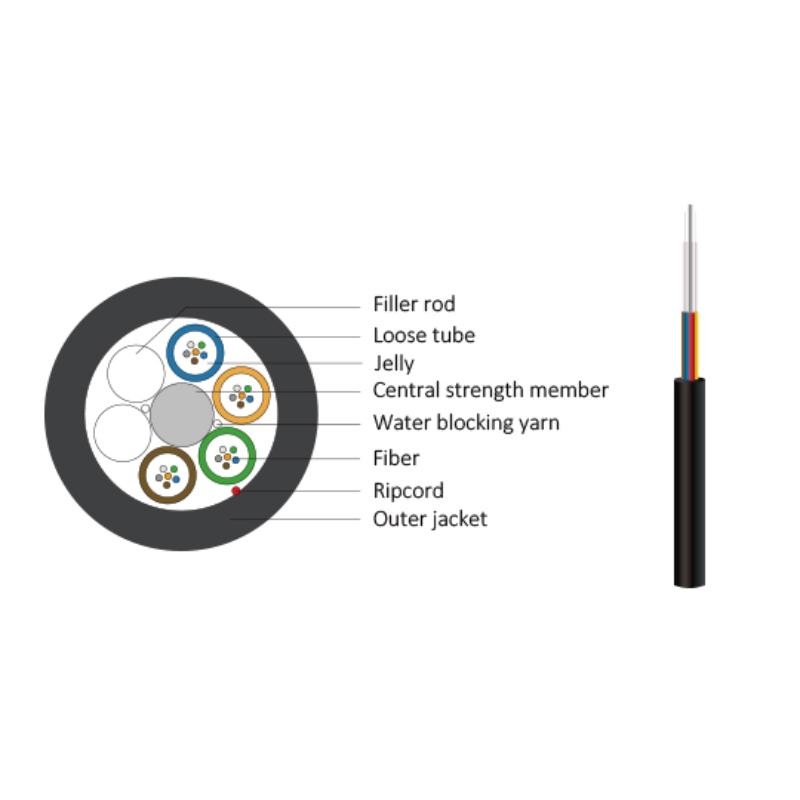

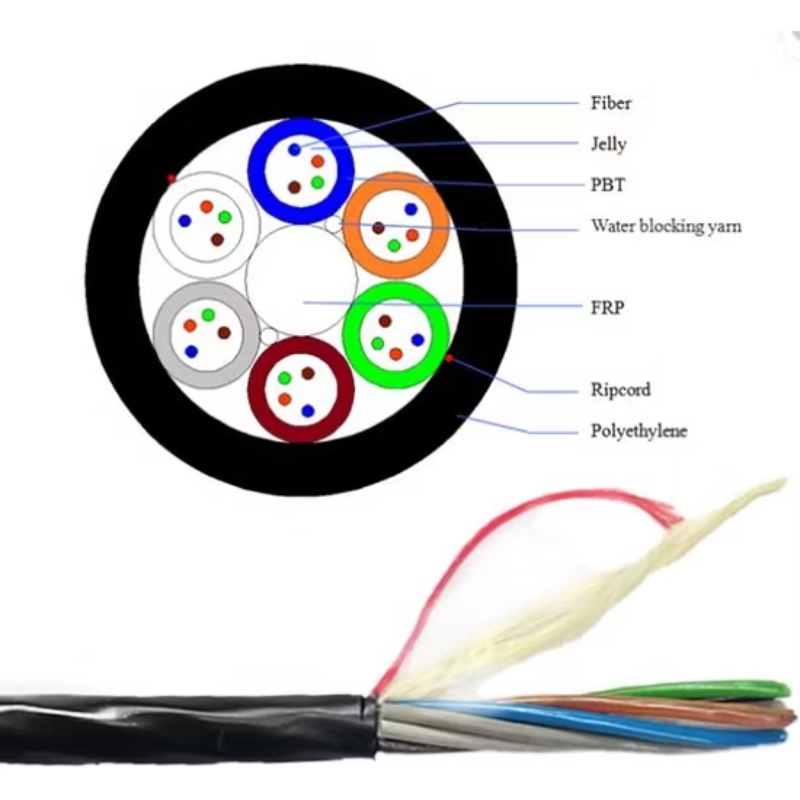

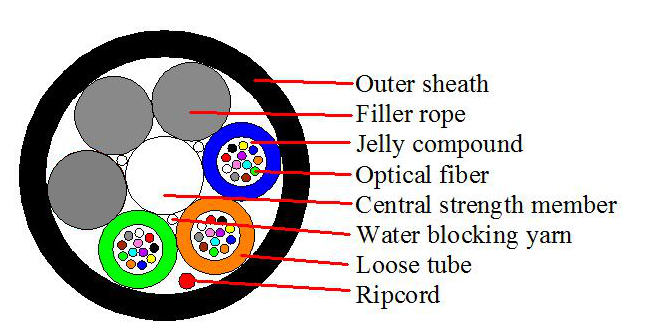

The fibers, 250μm, are position in a loose tube made of high modulus plastics(PBT), The tubes are filled with water resistant gel. Loose tubes and PP filler rope are stranded around the Non-metallic FRP central strength member(with PE sheath covering when needed). Cable core is filled with water blocking yarn. Outer sheath is made of UV resistance black HDPE jacket.

Micro-duct Air blown fiber optical cable (GCYFTY) (2).pngMicro-duct Air blown fiber optical cable (GCYFTY) (1).pngMicro-duct Air blown fiber optical cable (GCYFTY)4.pngMicro-duct Air blown fiber optical cable (GCYFTY) (4).png

No. of cable

24

72

144

Fiber Model

G.652D

Design(Strength Member +Tube &Filler)

1+6

1+12

Central Strength Member

Material

FRP

FRP+PE sheath

Diameter（±0.06）mm

1.5

2.1

Loose Tube

Material

PBT

Diameter（±0.06）mm

1.5

Thickness（±0.03）mm

0.32

The Max.Core NO./Tube

12

12

12

Filler rope

Material

PP

Diameter（±0.06）mm

1.5

NO.

3

2

0

Additional sheath

Material

PE

Diameter（±0.1）mm

0

0

4.3

Outer Sheath

Material

MDPE

Thickness（±0.1）mm

0.5

Cable Diameter（±0.2）mm

5.5

5.5

8.5

Cable Weight（±5）kg/km

23

23

55

Min. bending radius

Without Tension

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

（℃）

Installation

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

NO.

Item

Requirement

1

Allowable Tensile Strength

Short Term

500 N

1000N

Long Term

150N

300N

2

Allowable Crush Resistance

Short Term

450 (/100mm)

Long Term

150 (/100mm)

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua

Item

Specification

Fiber type

Single mode

Fiber material

Doped silica

Attenuation coefficient

@ 1310 nm

@ 1383 nm

@ 1550 nm

@ 1625 nm

£ 0.36 dB/km

£ 0.32 dB/km

£ 0.22 dB/km

£ 0.30 dB/km

Point discontinuity

£ 0.05 dB

Cable cut-off wavelength

£ 1260 nm

Zero-dispersion wavelength

1300 ~ 1324 nm

Zero-dispersion slope

£ 0.092 ps/(nm2.km)

Chromatic dispersion

@ 1288 ~ 1339 nm

@ 1271 ~ 1360 nm

@ 1550 nm

@ 1625 nm

£3.5 ps/(nm. km)

£5.3 ps/(nm. km)

£18 ps/(nm. km)

£22 ps/(nm. km)

PMDQ (Quadrature average*)

£0.2 ps/km1/2

Mode field diameter @ 1310 nm

9.2±0.4 um

Core / Clad concentricity error

£ 0.5 um

Cladding diameter

125.0 ± 0.7 um

Cladding non-circularity

£1.0%

Primary coating diameter

245 ± 10 um

Proof test level

100 kpsi (=0.69 Gpa), 1%

Temperature dependence

0℃~ +70℃ @ 1310 & 1550nm

£ 0.1 dB/km

Item

Test Method

Acceptance Condition

Tensile Strength

IEC 794-1-2-E1

- Load: Short term tension

- Length of cable: about 50m

- Fiber strain £ 0.36%

- Loss change £ 0.1 dB @1550 nm

- No fiber break and no sheath damage.

Crush Test

IEC 60794-1-2-E3

- Load: Short term crush

- Load time: 1min

- Loss change £ 0.05dB@1550nm

- No fiber break and no sheath damage.

Impact Test

IEC 60794-1-2-E4

- Points of impact: 3

- Times of per point: 1

- Impact energy: 5J

- Loss change £ 0.1dB@1550nm

- No fiber break and no sheath damage.

Temperature Cycling Test

YD/T901-2001-4.4.4.1

- Temperature step:

+20oC→-40oC→+70oC →+20oC

- Time per each step: 12 hrs

- Number of cycle: 2

- Loss change £ 0.05 dB/km@1550 nm

- No fiber break and no sheath damage.

The cable sheath marking shall be as follows:

Color: white

Interval: 1 m

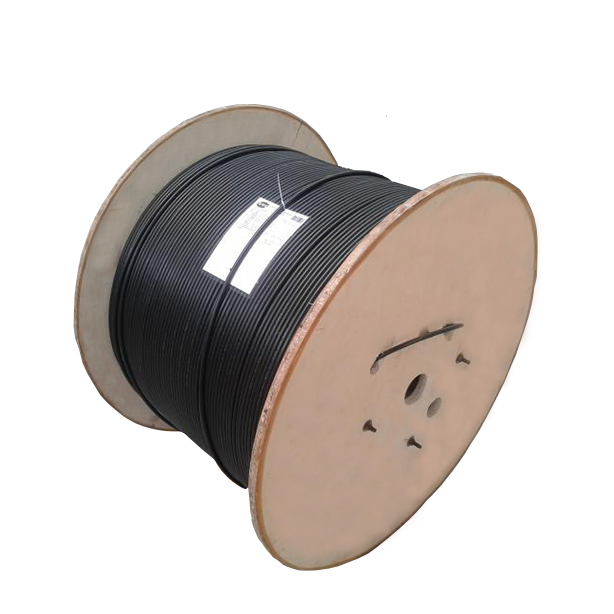

Both cable ends are sealed with heat shrinkable end caps to prevent water ingress during shipping, handling and storage.

Packaging detail: 2km / export wooden drum

Micro-duct Air blown fiber optical cable (GCYFTY) (5).pngMicro-duct Air blown fiber optical cable (GCYFTY) (6).png
