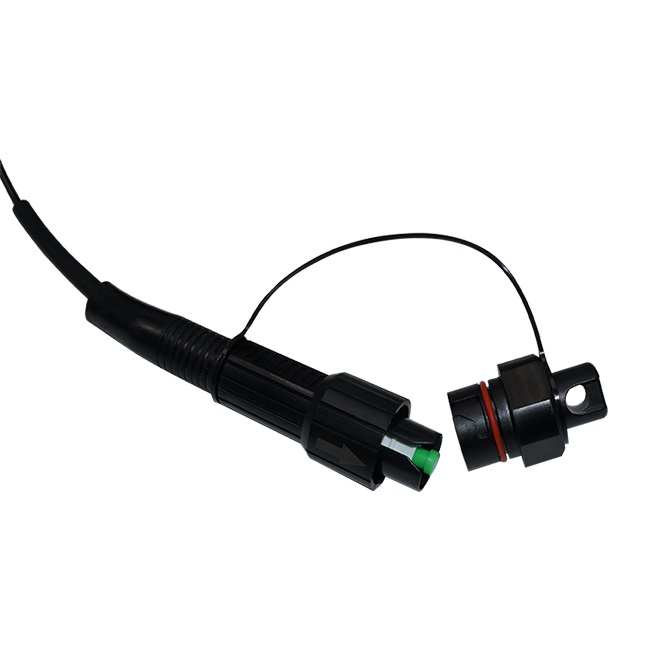

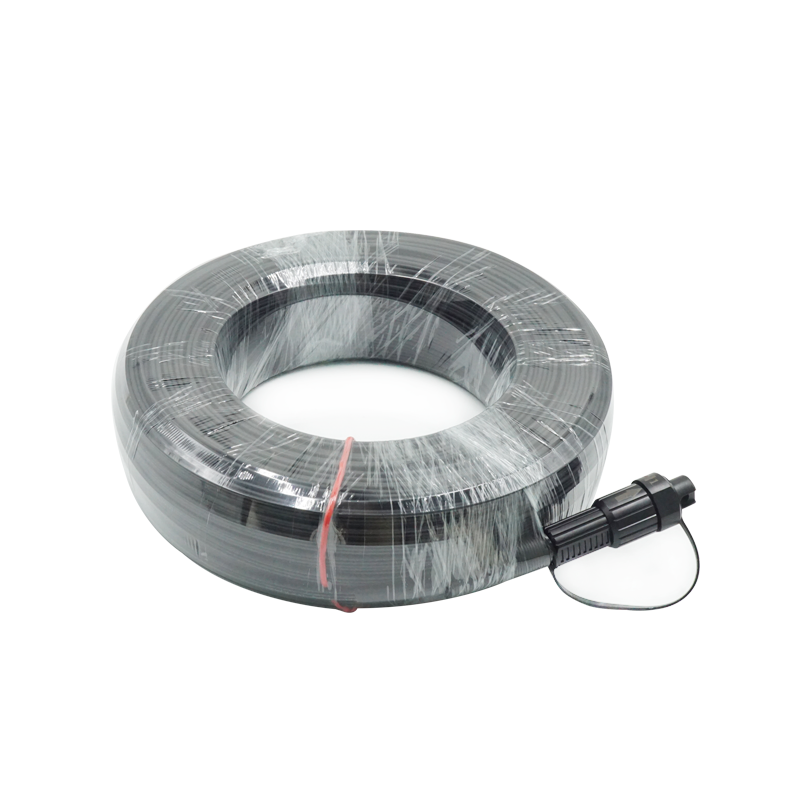

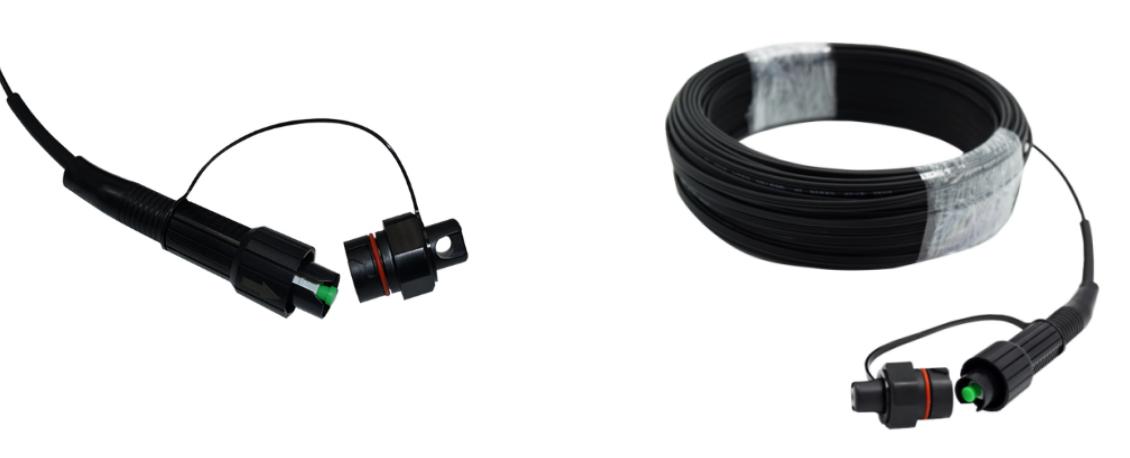

FTTH Outdoor Drop Cable Patch Cord/Pigtail With Waterproof MINI SC Connector

Mini SC Connector contains an adaptor and inner connector as the basis for coupling inside the adaptor/connector housing. The product ensures reliability and compatibility with a wide range of SC, LC and MPO connectors currently on the market. Products have been designed and tested to meet the stringent requirements necessary in environmental protection for outdoor application.

The connecting is safe and reliable. Also have the functions of waterproof, dustpoof and fireproof,This connectors widely used in FTTA, Base station, and the outdoor waterpoof condition.
And more this cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP68

• Cost effective solution for in house termination

• IP68 Water immersion and Dust protection for hash environment ·

• Chemical Resistance ·

• Simple assembly requiring no special tools ·

• Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal

• Durable mechanical mating, minimum of 500 matings

• Wide range of operational temperature for outside plant -40 to+85°C

• Fiber-to-the-Antenna (FTTA)

• Automation and industrial cabling

• Surveillance systems

• Naval and ship building

• Broadcast

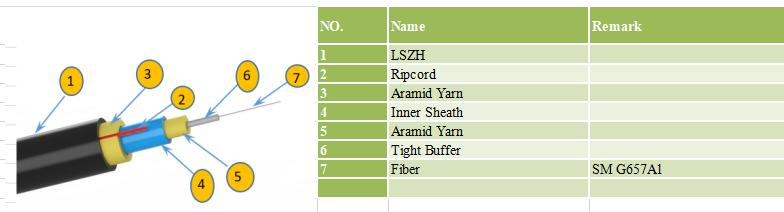

1.FTTH outdoor drop cable (2.0x5.2mm)

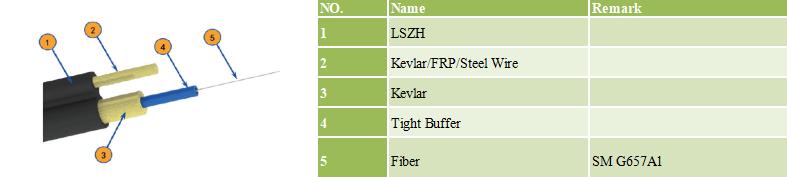

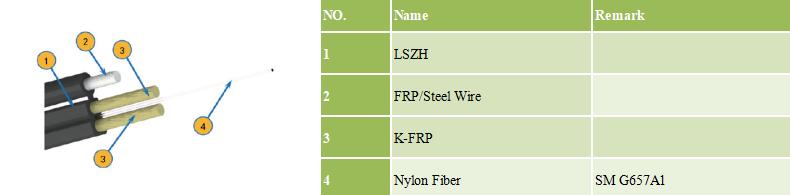

2.Small size Fig-8 drop cable (3.0x5.2mm)

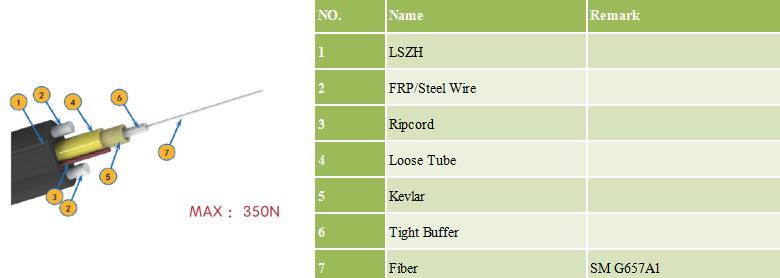

3.Flat fiber optic cable, 4.0X7.0mm

4.Round fiber optic cable, 5.0mm.
