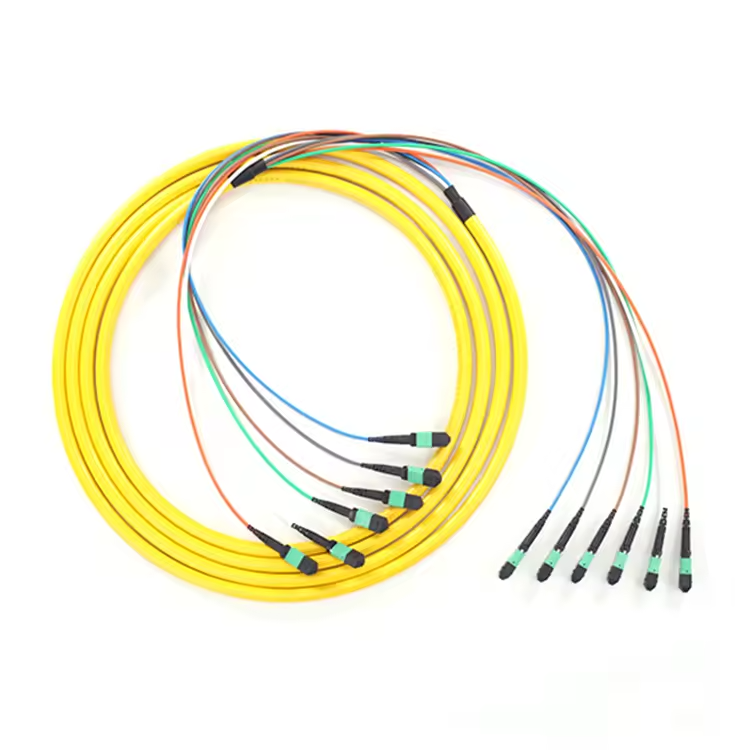

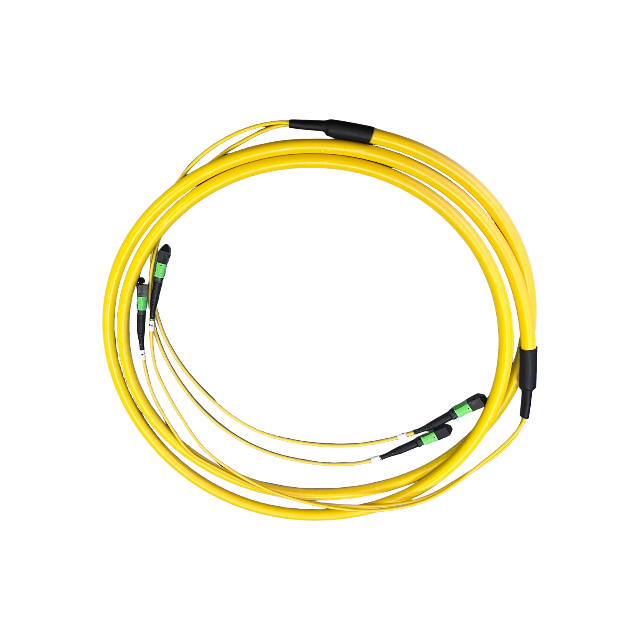

MPO/MTP trunks are factory pre-terminated and rigorously tested, coming with reliable MPO-MPO or MPO-LC Uniboot connectors. It can reduce signal loss during transmission to support long-distance transmissions and multiple connection areas. The robust double-jacket sheath enhances crush resistance, ensuring durability and performance over long-distance runs. These features make MPO trunks an ideal choice for high-density cabling in data centers, widely used in main, horizontal, and zone distribution areas.
 |

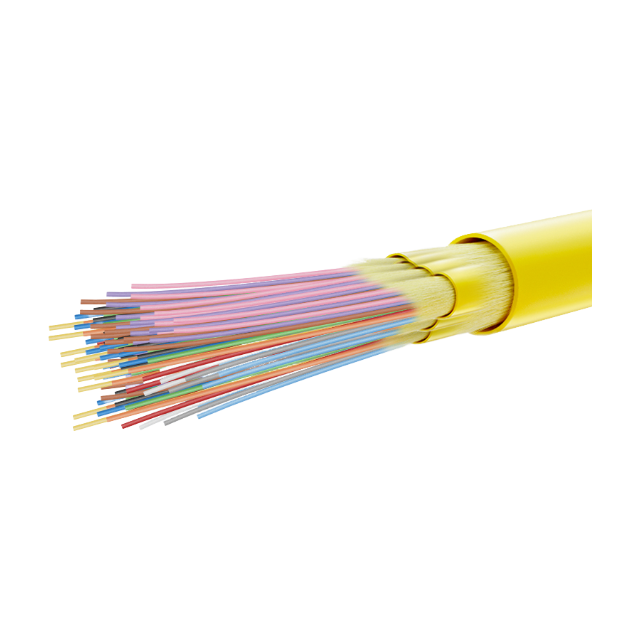

• Double Jacket Sheath Protects Network Connection Further |

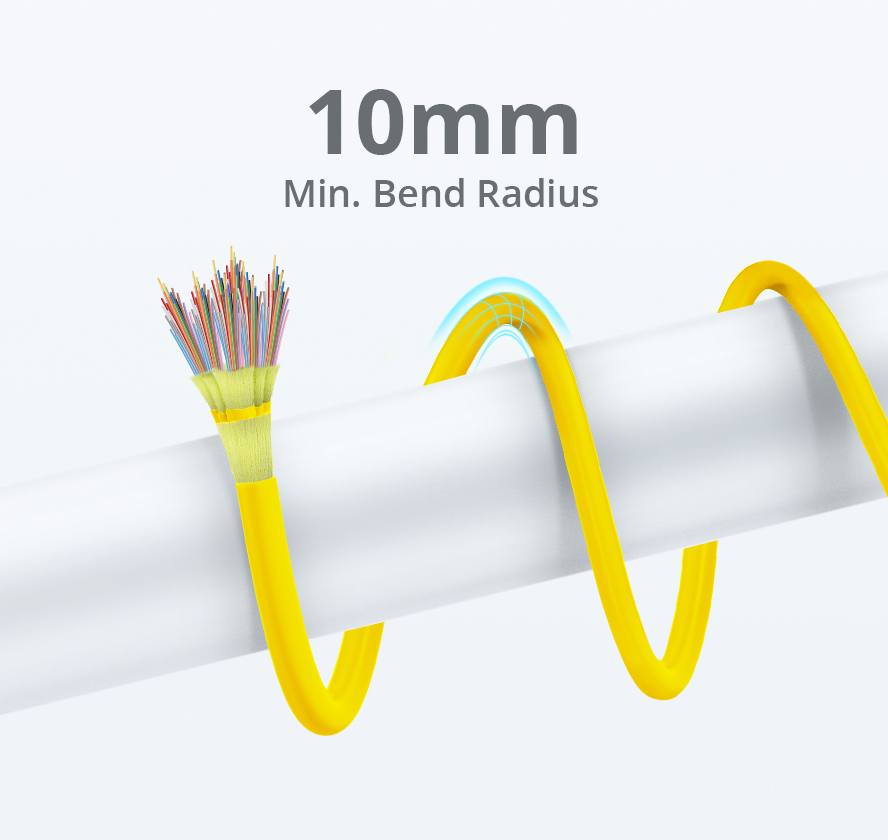

| • Bend-insensitive fiber excels in tight bends & bandwidth. |  |
 |
• High-performance connector for data center and carrier-grade applications. • Supports 40G and 100G network applications • Cable Jacket material: LSZH, OFNR, OFNP available • Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available |
• Data communication network
• Optical System Access network
• Storage area networking fiber channel
• High density architectures
| Connector Type | MPO/MTP-MPO/MTP |

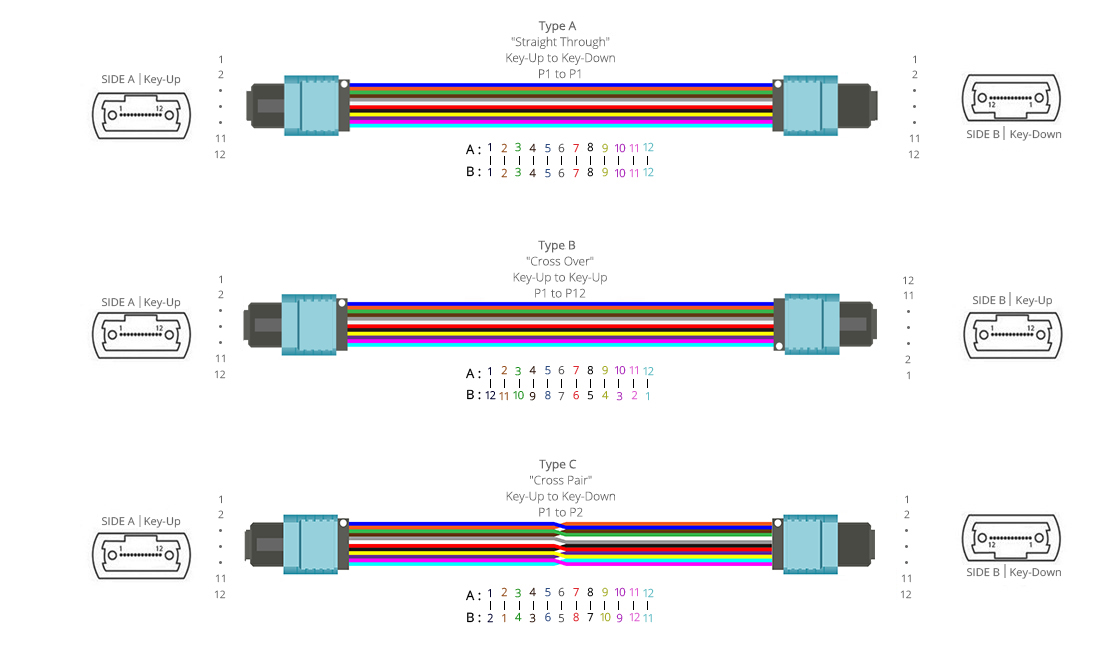

| Polarity | Type A, Type B, Type C |
| Fiber type | OS2(G675a)/OM1/OM2/OM3/OM4 |
| Cores | 12-144 cores |
| Cable Jacket | Plenum (OFNP) |
| Low Smoke Zero Halogen (LSZH) | |
| Riser (PVC) |

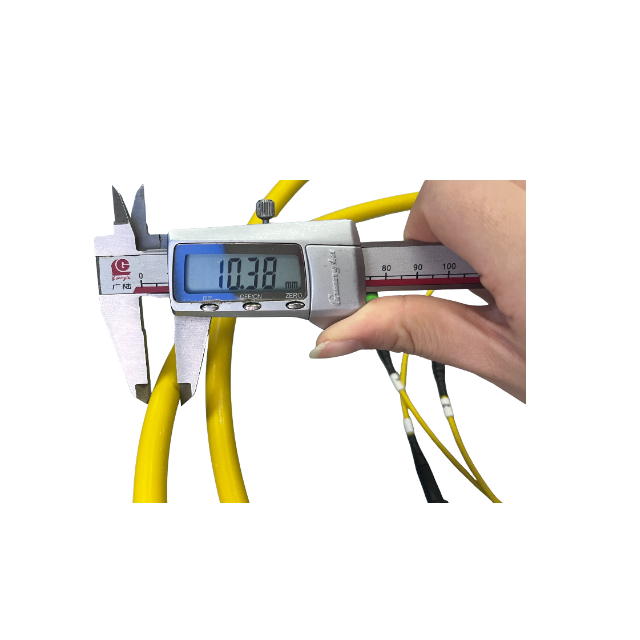

| Bundle Count | MPO/MTP-12 | MPO/MTP-24 | Trunk Diameter |
| 2 Bundles | 24 Fibers | 48 Fibers | 7.2mm |
| 3 Bundles | 36 Fibers | 72 Fibers | 9.3mm |
| 4 Bundles | 48 Fibers | 96 Fibers | 9.5mm |
| 6 Bundles | 72 Fibers | 144 Fibers | 11.7mm |
| 8 Bundles | 96 Fibers | / | 12.0mm |
| 12 Bundles | 144 Fibers | / | 17.3mm |
MPO/MTP-12 cables, 2 bundles mean 24 Fibers(2x 12F) ; MPO/MTP-24 cables, 2 bundles mean 48 Fibers(2x 24F)
| Cable Jackets | OS2: Yellow ;OM4: violet ;OM3: Aqua;OM1/OM2:orange |
| Connectors | MPO:OS2: Green; Multimode: Aqua |
| LC: OS2: UPC Blue, APC Green; Multimode: Beige | |
| Boots | MPO:Black; |
| LC: Single Mode: UPC Blue, APC Green Multimode: Beige |

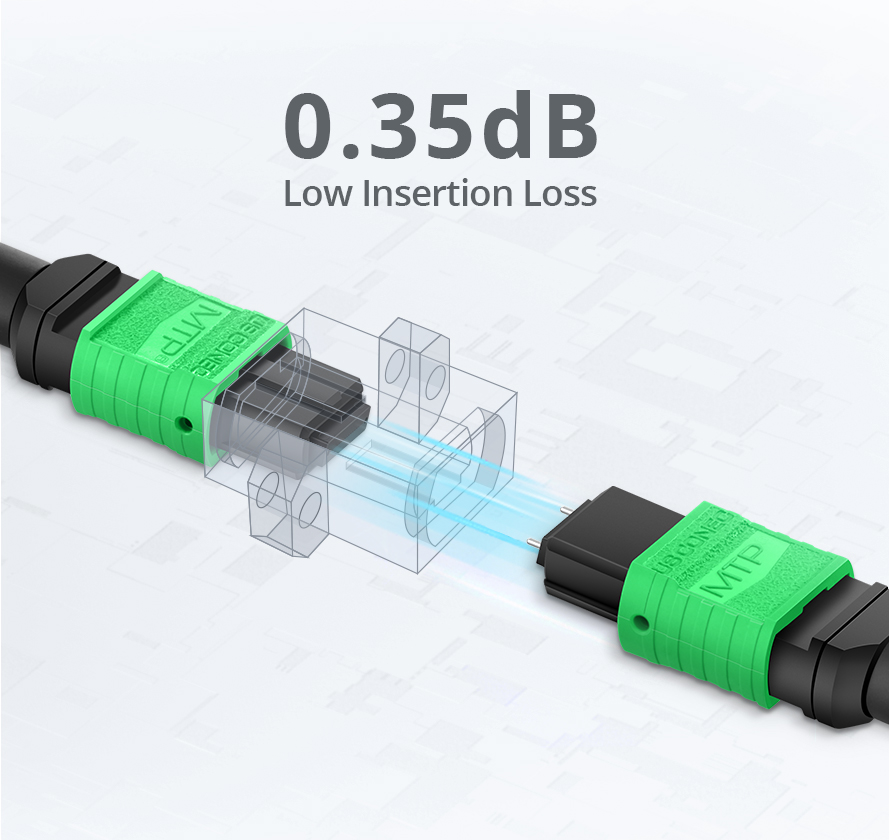

| Insertion Loss | Standard：max≤0.75dB; (Typical≤0.35dB) |
| Elite：max≤0.35dB; (Typical≤0.15dB) | |
| Return Loss | SMF: UPC≥50dB; APC≥60dB; MMF: ≥30dB |
| Attenuation at 1310 nm | 0.36 dB/km |
| Attenuation at 1550 nm | 0.22 dB/km |
| Attenuation at 850 nm | 3.0 dB/km |
| Attenuation at 1300 nm | 1.0 dB/km |
