48C ADSS All Dielectric Self Supporting Fiber Optic Cable Dual Jacket

G652D single mode fiber

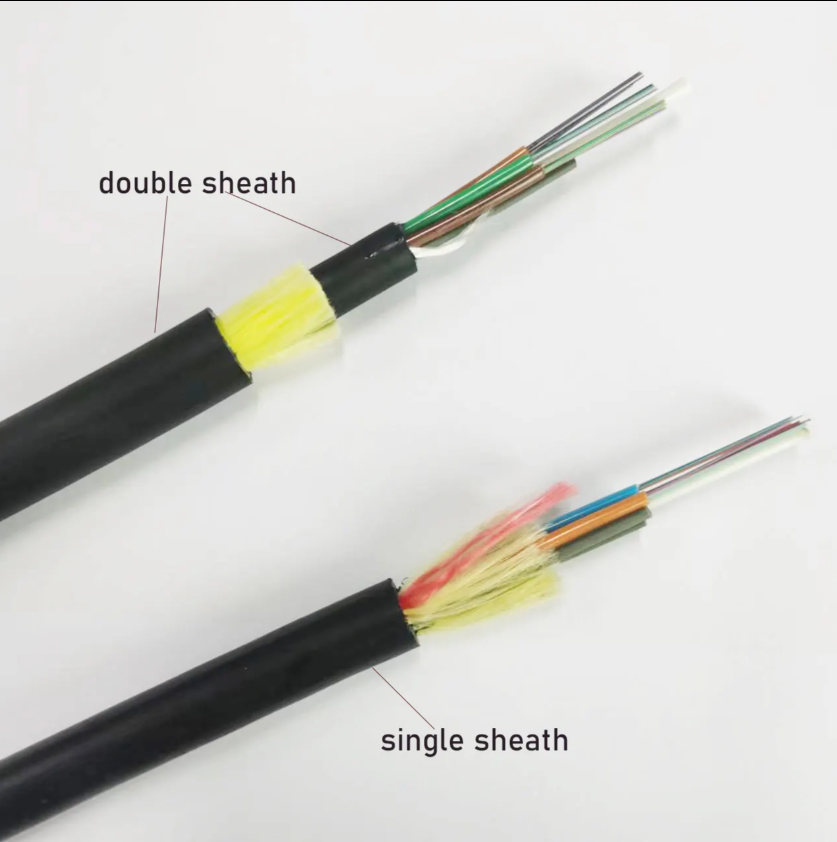

Double sheath PE

Span length 100M

Aerial application in pole

Description
Specfication

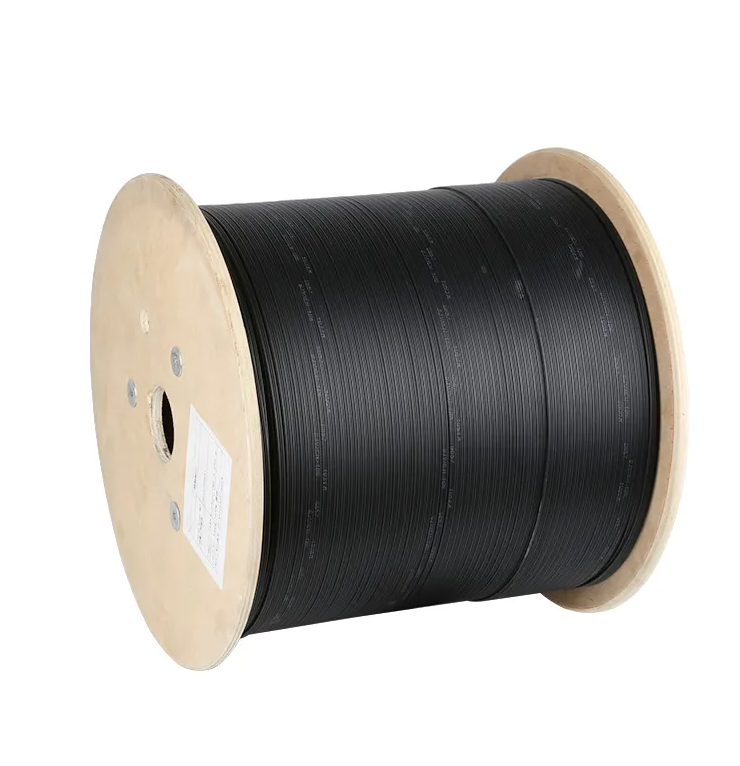

Packaging

Is there a problem? Please contact us to serve you!

+86-13265756131

[email protected]

Description

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

Specfication

No. of cable				4	24	48
Fiber Model				G652D
Central Strength Member	Material			FRP
	Diameter（±0.05）mm			1.5
Loose Tube	Material			PBT
	Diameter（±0.06）mm			1.8		2.1
	Thickness（±0.03）mm			0.32		0.35
	The Max.Core NO./Tube			6		12
Filler rope	Material			PE
	Diameter（±0.06）mm			1.8		2.1
Water Blocking Layer				Flooding Compound
Additional Strength Member				Aramid Yarn
Inner Sheath	Material			PE
	Thickness（±0.1）mm			0.9
Outer Sheath	Material			PE
	Thickness（±0.1）mm			1.8
Cable Diameter（±0.2）mm				11.2		11.8
Cable Weight（±5）kg/km				90		96
Cable breaking strength(RTS)				5.8Kn
Working Tension (MAT)				2.2Kn
Wind velocity				30m/s
Icing				5mm
Span				100 m
Crush Resistance			Short Term	2200（N/100mm）
			Long Term	1100（N/100mm）
Min. bending radius		Without Tension		10.0×Cable-φ
		Under Maximum Tension		20.0×Cable-φ
Temperature range （℃）		Installation		-20~+60
		Transport&Storage		-40~+70
		Operation		-40~+70
