Description

The 6 cores outdoor FTTX BOX can accommodate up to six optical fibers, suitable for small and medium-sized network construction needs. The device is made of weather resistant materials, with waterproof, dustproof, and UV resistant characteristics to ensure stability and long-term use in complex outdoor environments.

Features

ABS material used ensures the body strong and light
Water-proof design for outdoor us
Protection Level: IP65.

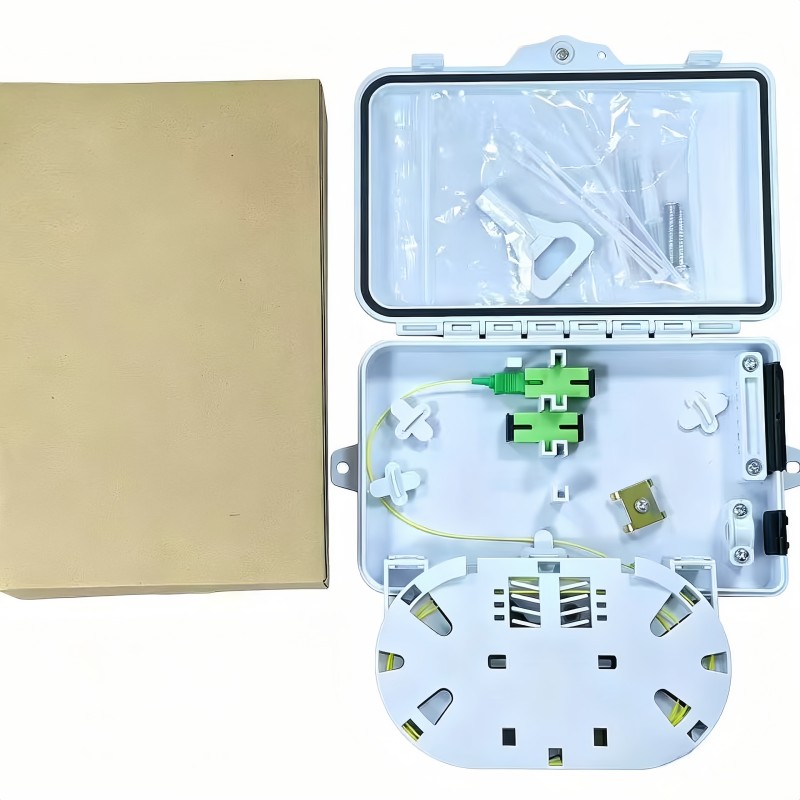

Easy installations: Ready for wall mount – installation kits provided

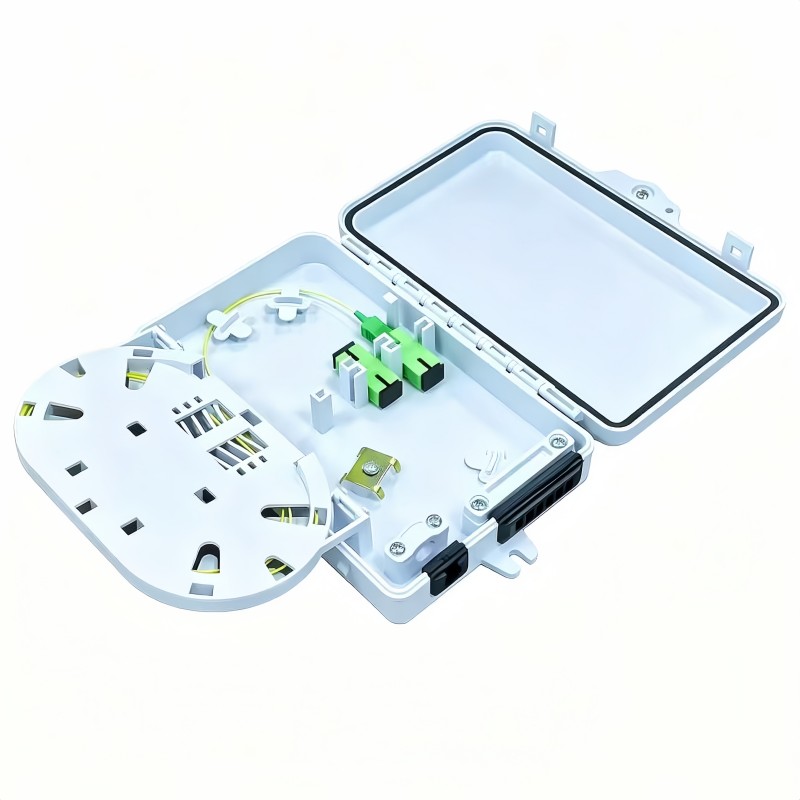

Adapter slots used – No screws and tools needed for installing adapters

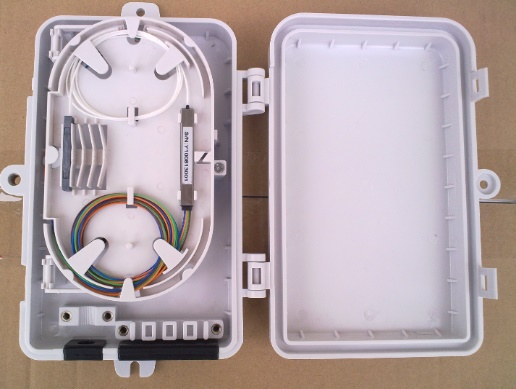

Ready for splitters: designed space for adding splitters

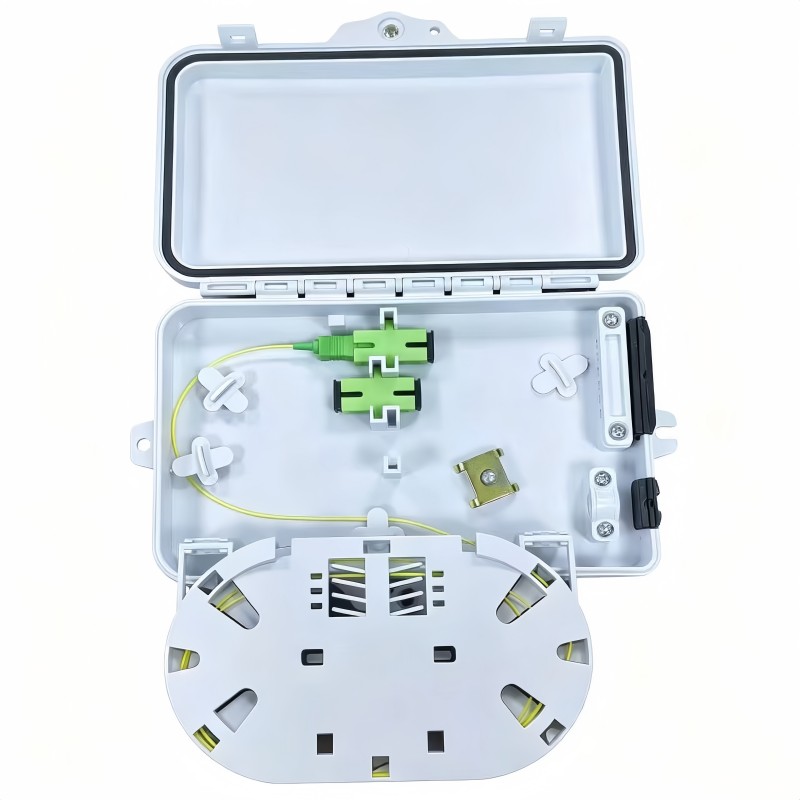

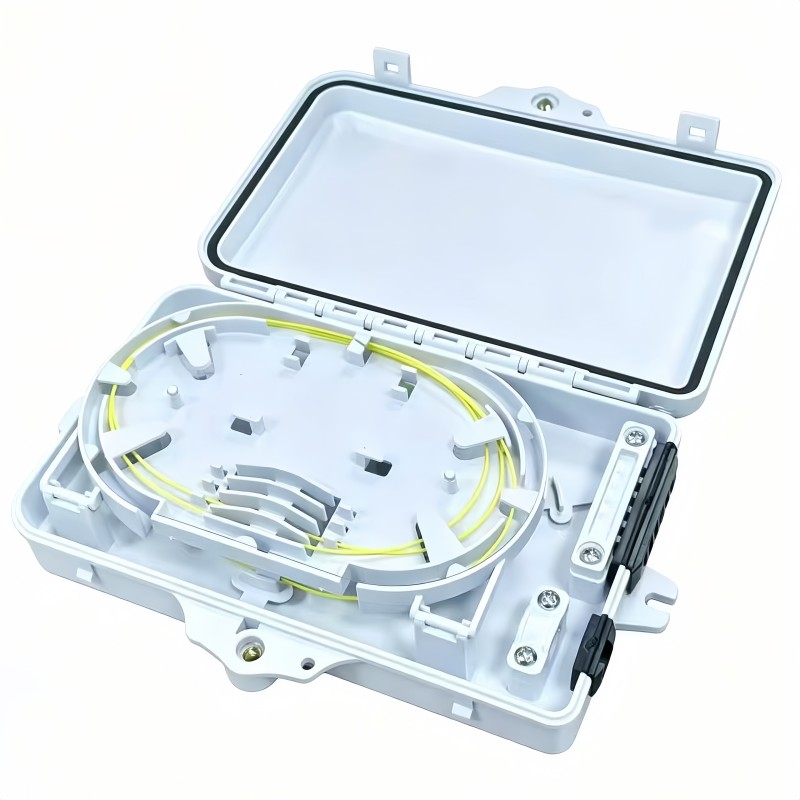

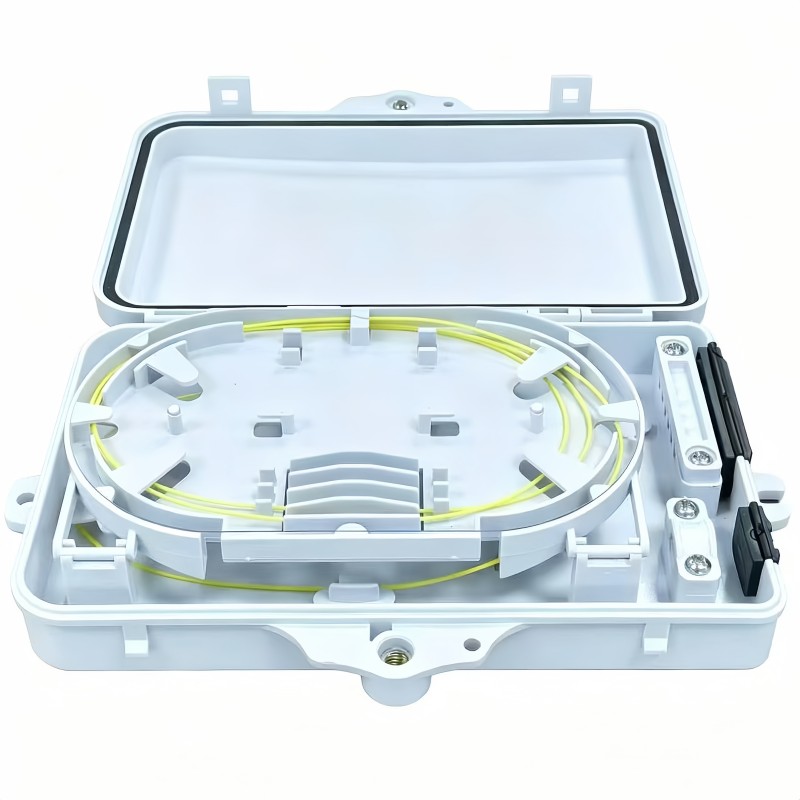

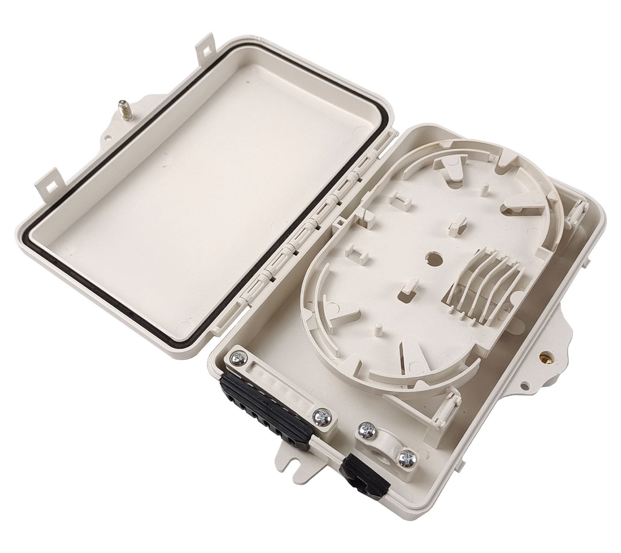

Space saving! Double-layer design for easier installation and maintenances
Lower layer for splitters and over length fiber storage
Upper layer for splicing, cross-connecting and fiber distribution
Cable fixing units provided for fixing the outdoor optical cable
Accommodates both cable glands as well as tie-wraps
Lock provided for extra security

Application

FTTX Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks
CATV Networks

Specifications

Parameter	Value
Model	FTTH-106C

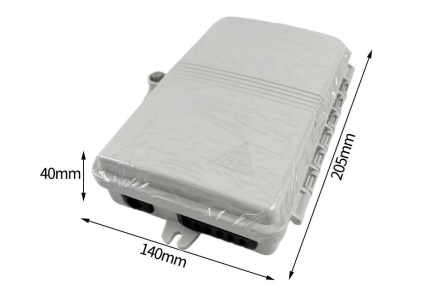

Outside Dimension (mm)	205mm140mm40mm
Material	ABS
Color	White
Adapter Capacity	6pcs
Operating Temperature	-40°C+ 60°C
Working Environment	Indoor and Outdoor wall-mounted
Waterproof Level	IP65
Product Weight	0.3KGS
