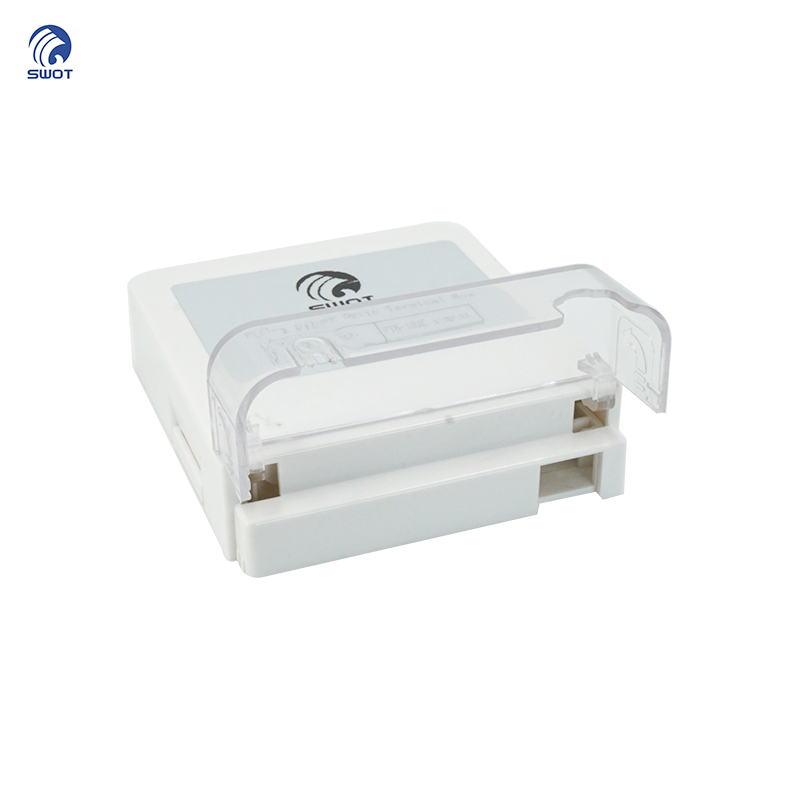

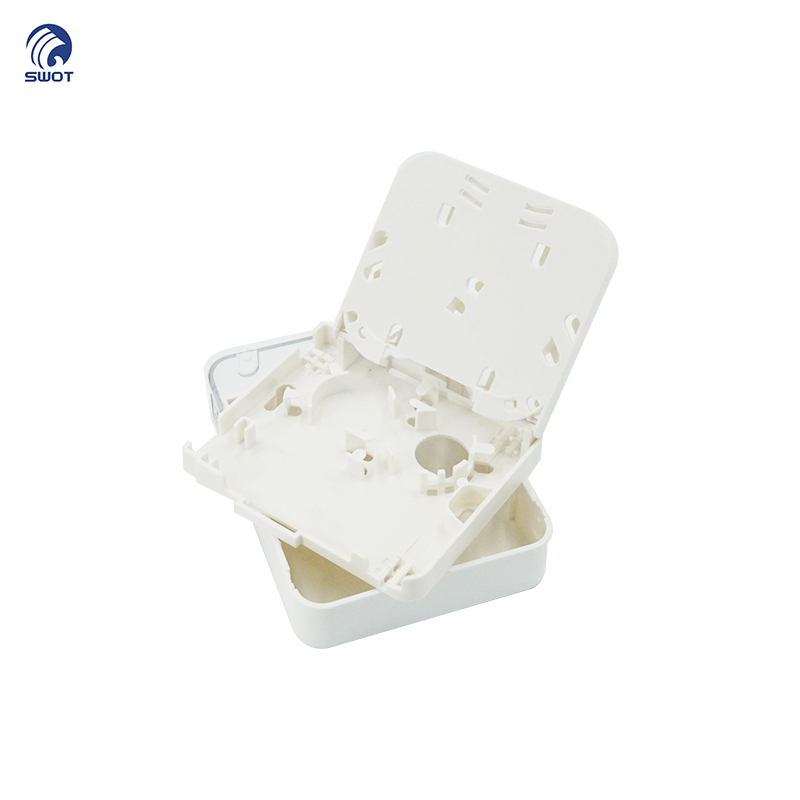

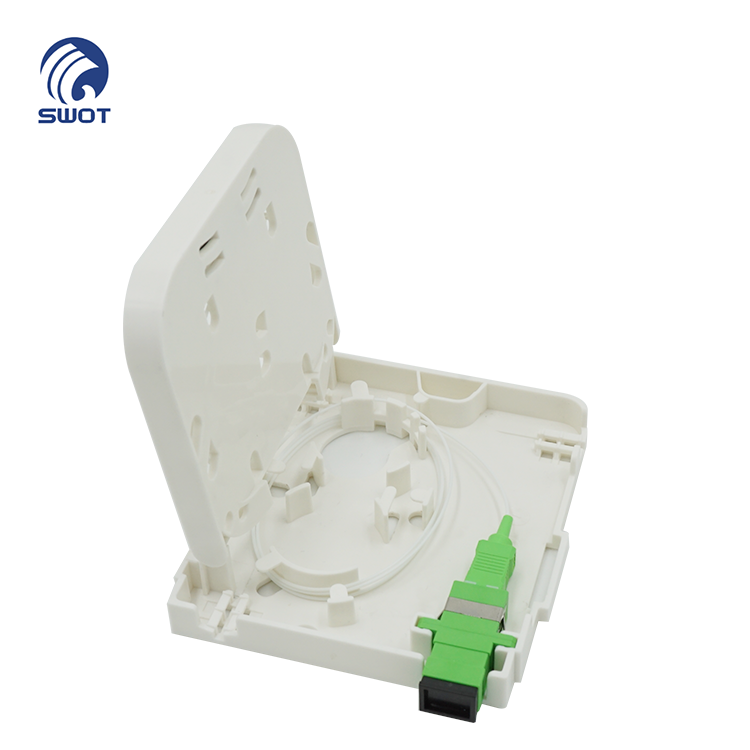

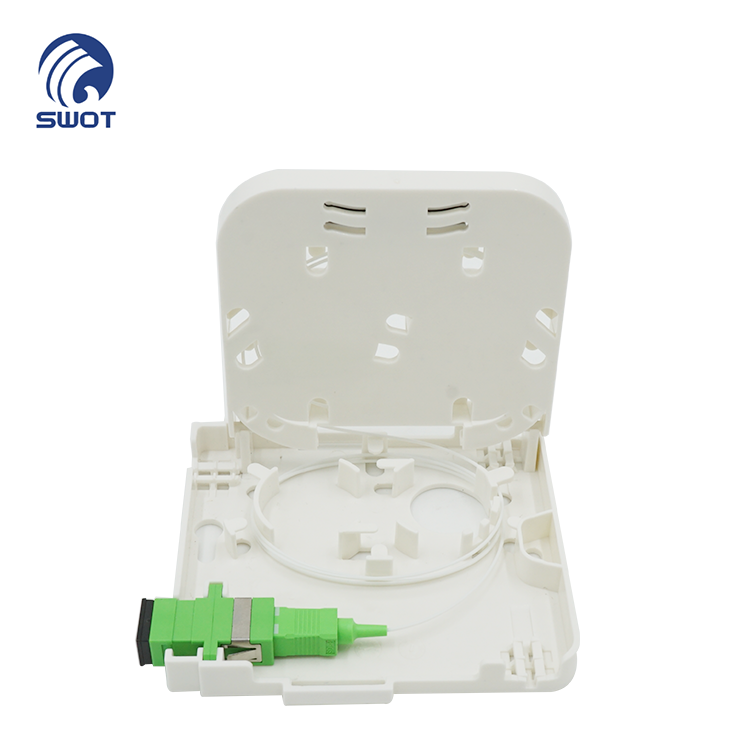

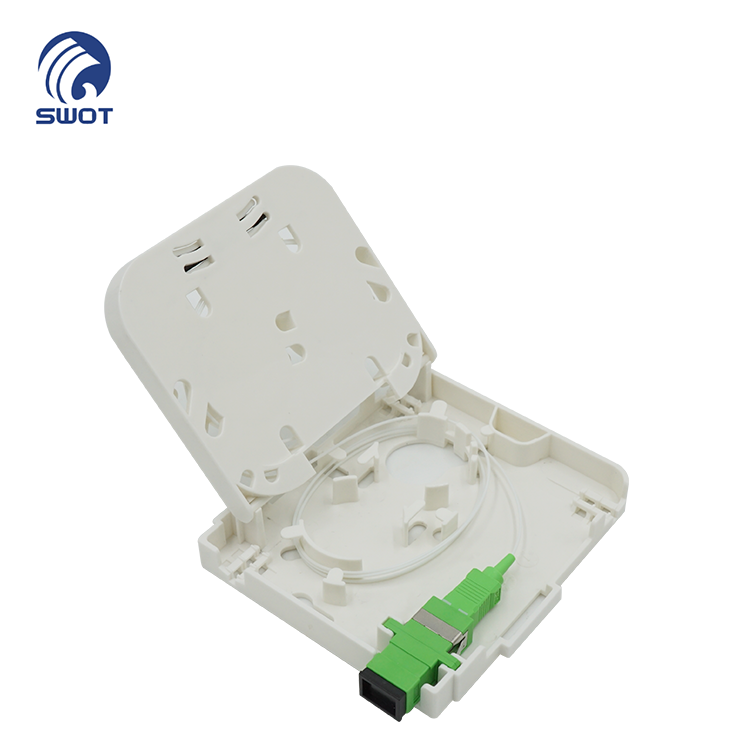

FTB-102C-S FIBER OPTIC OUTLET
The FTB-102C-S is a floor mounted or wall mounted termination box for end user, indoor use, capable to handle fiber fusion, fiber cables and pigtails.
|
Parameter |
Value |
Remark |
|
Model |
FTB-102C-S |
|
|
Outside Dimension (mm) |
116*86*23 |
|
|
Material |
Plastic |
|
|
Color |
White |
|
|
Storage of fibers |
G.657 |
|
|
Splice capacity |
1/2 fiber |
|
|
Splice Method |
Fusion Splice |
40mm sleeve |
|
Adapter type and count |
1 SC SX/ 1 LC DX |
|
|
Input cable |
3mm or figure 8 (2*3mm) |
From side or bottom |
|

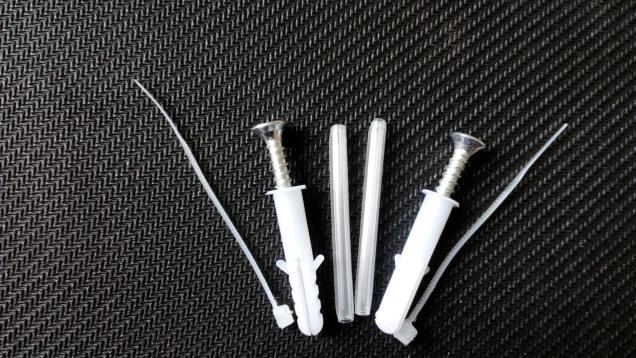

No. |
Name |
Qty. |
 |
|
1 |
Fiber splice protection sleeve |
2 pcs |
|
|
2 |
Expansion bolts for the outlet wall-mounted |
2 set |
|
|
3 |
Nylon tie |
2 pcs |
