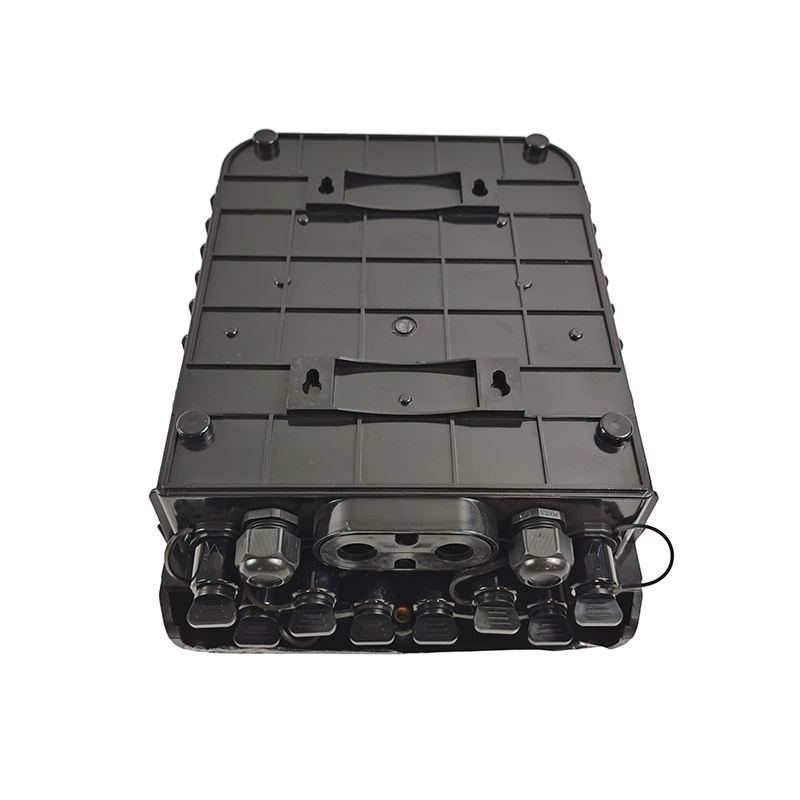

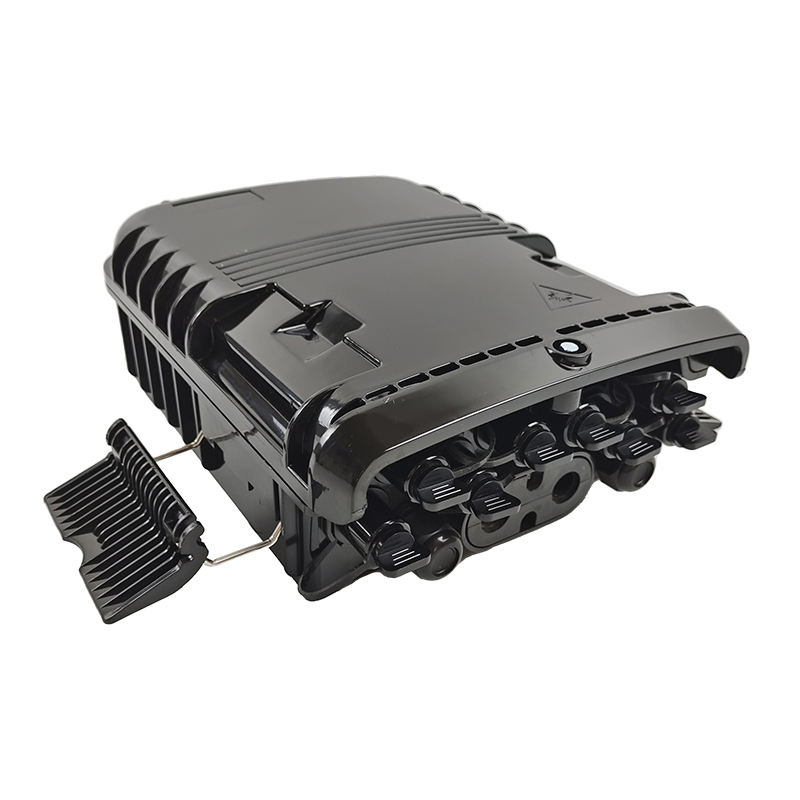

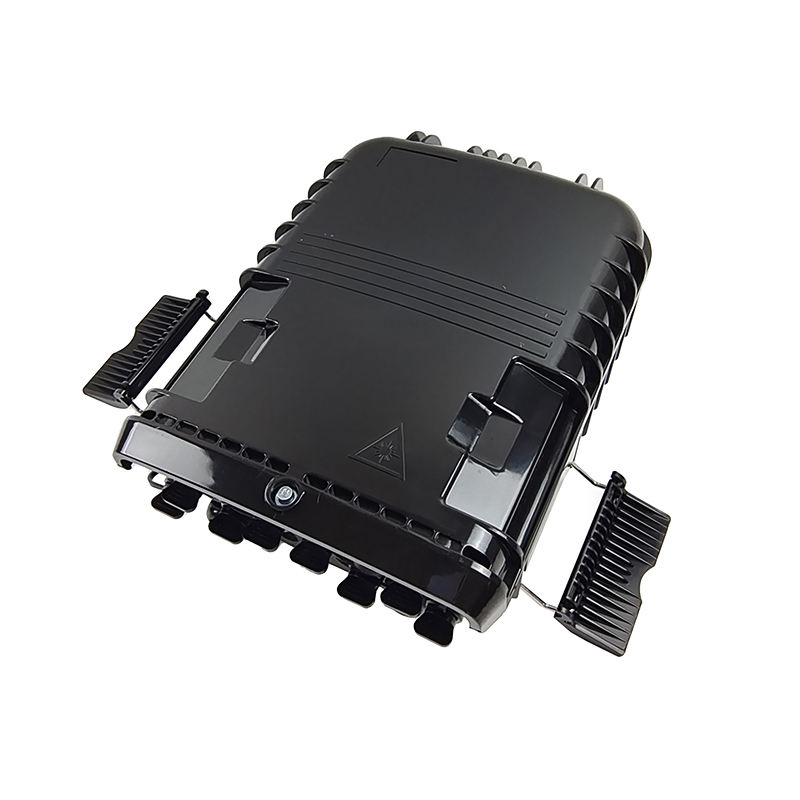

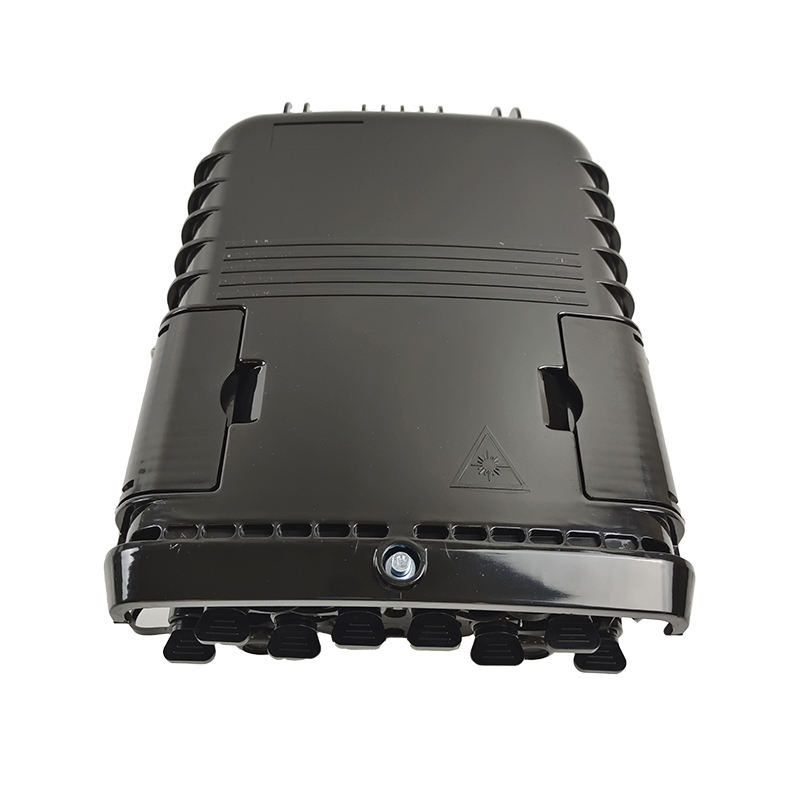

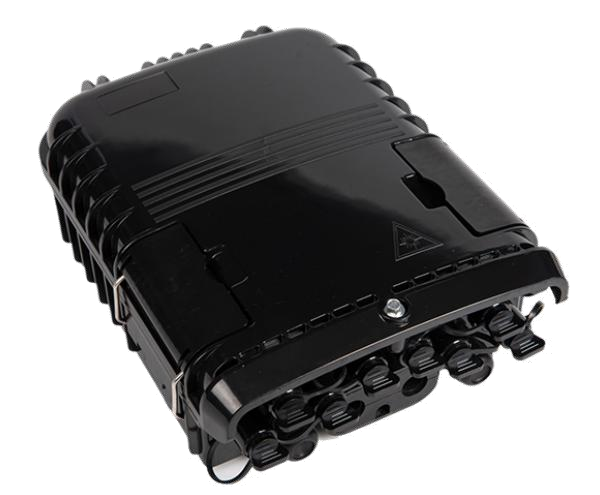

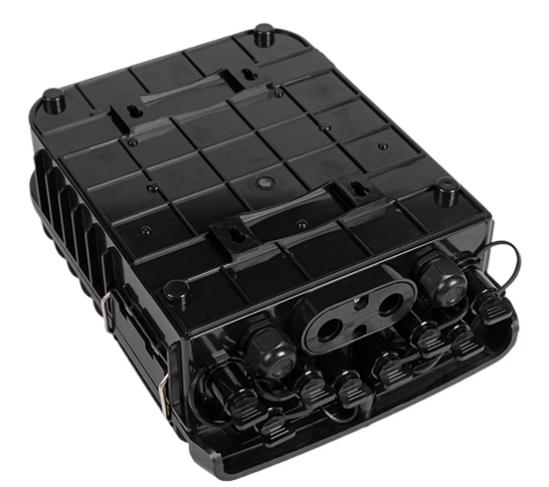

This box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system.It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.
• Total enclosed structure.
• Material: ABS, wet-proof, water-proof, dust proof, anti-aging, protection level up to IP65.
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage distribution ... etc all in one.
• Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.

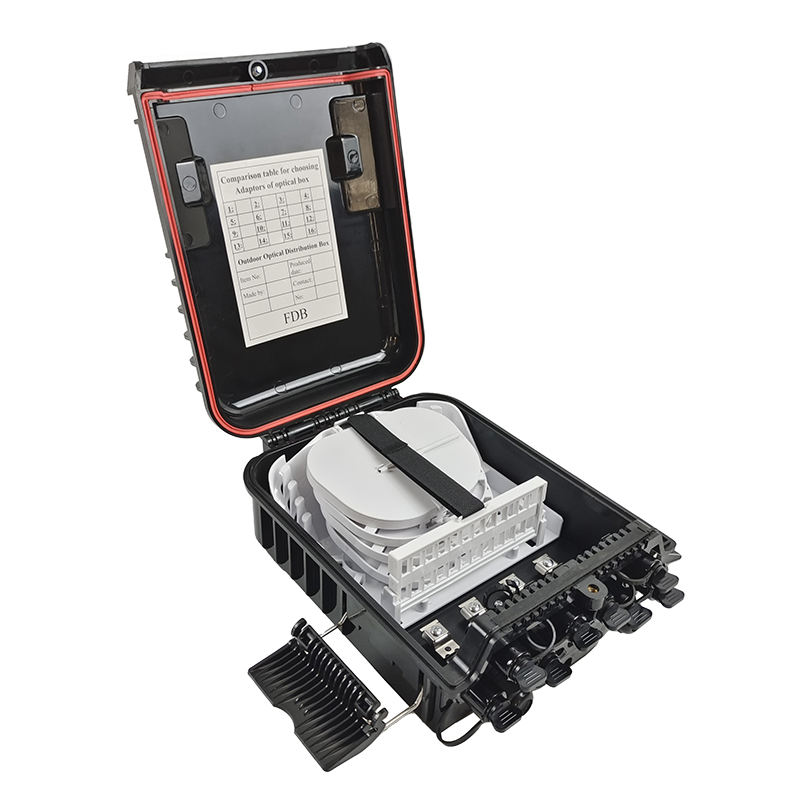

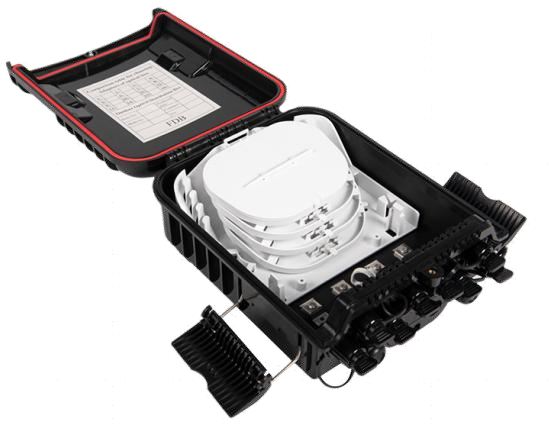

• Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
• Box can be installed by the way of wall-mounted or pole-mounted, suitable for both indoor and outdoor uses.
| Material | Size | Max Capacity | Nos of PLC | Nos of Adaptor | Weight | Ports |
| ABS | 300*210*90 | Splice 96 Fibers | (1trays,24core / tray) | 1pcs of 1x8 PLC | 8pcs of SC(max) 1.35 kg | 4 in 8 out |
| PCS/CARTON | Gross Weight(Kg) | Net Weight(Kg) | Carton Size(cm) | Cbm(m³) |
| 10 | 16 | 15 | 54.5*30.5*49.5 | 0.082 |
• Screw: 4mm*40mm 4pcs
• Expansion bolt: M6 4pcs
• Cable tie:3mm*10mm 6pcs
• Heat-shrink sleeve:1.0mm*3mm*60mm 8pcs
• Metal ring:4pcs
• Key:1pcs
