Manual of FTB104B Customer Terminal Box

FTB104B is a newly developed by our company for application of FTTH. The box is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTH

1.1 This box could be used for wall-mounted and rack-mounted applications

1.2 The base and cover of the box adopts “self-clip” method, which is easy and convenient to open and close

1.3 It could be used for adaptors such as SC,FC, etc

1.4 The max capacity is 4 fibers

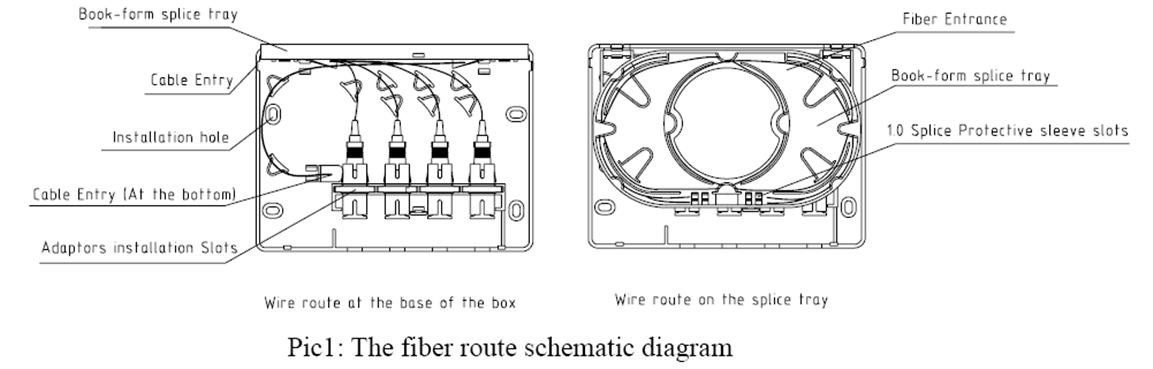

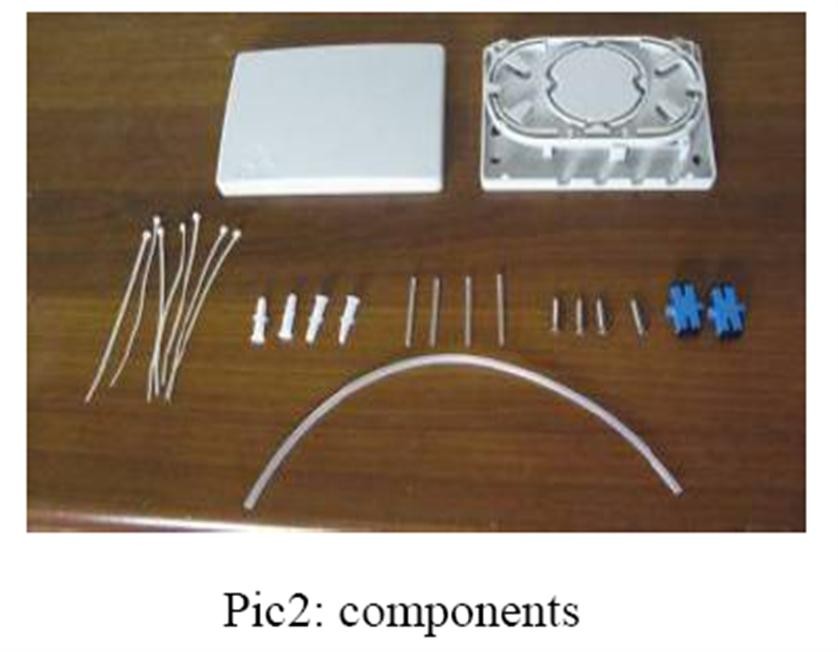

1 Open the package of the box to check all the components. See following Pic2 (the adapter is as optional component.

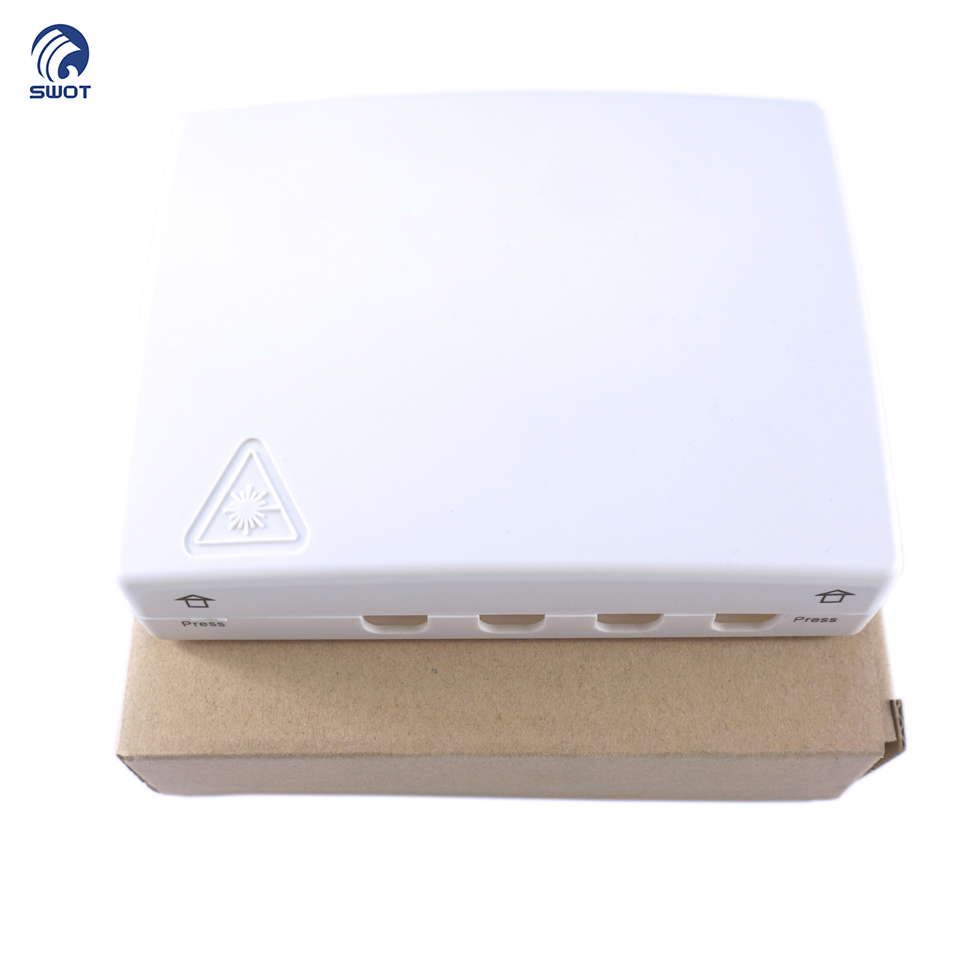

2 Press the front side of the box, withdraw the cover and slide it backwards.

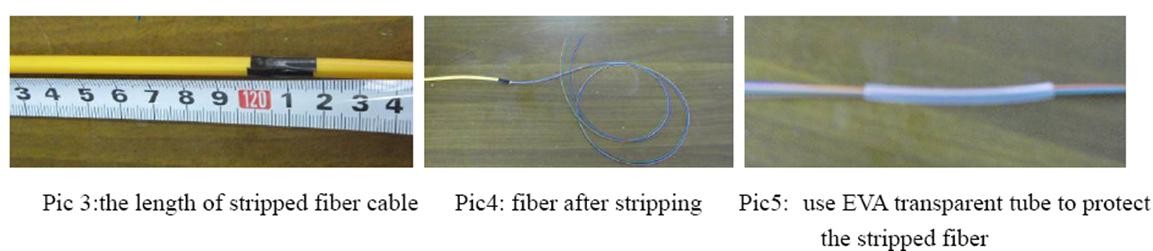

3 Indoor wiring fiber cable needed to lead in the location that fix the terminal box, the length of stripping is about 120cm from the end.

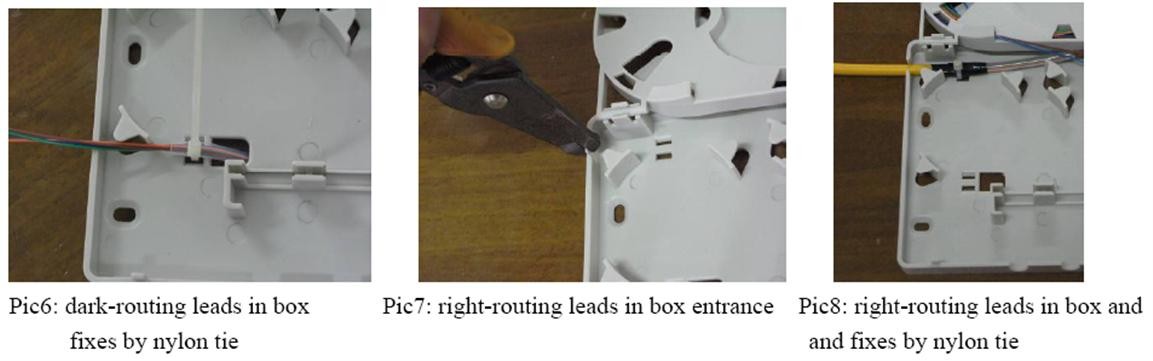

4 It is suitable for two routing methods: dark-routing and right-routing, see dark-routing leading in Pic6, see right-routing leading in Pic7/8

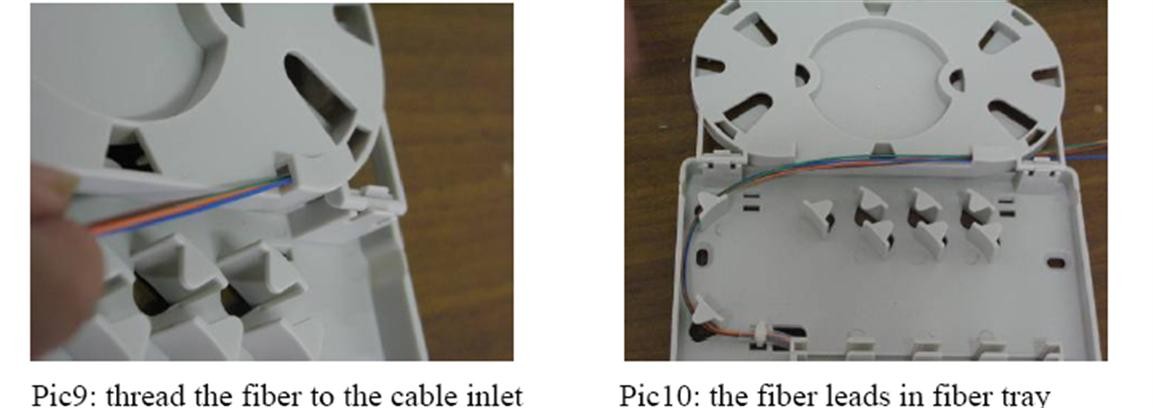

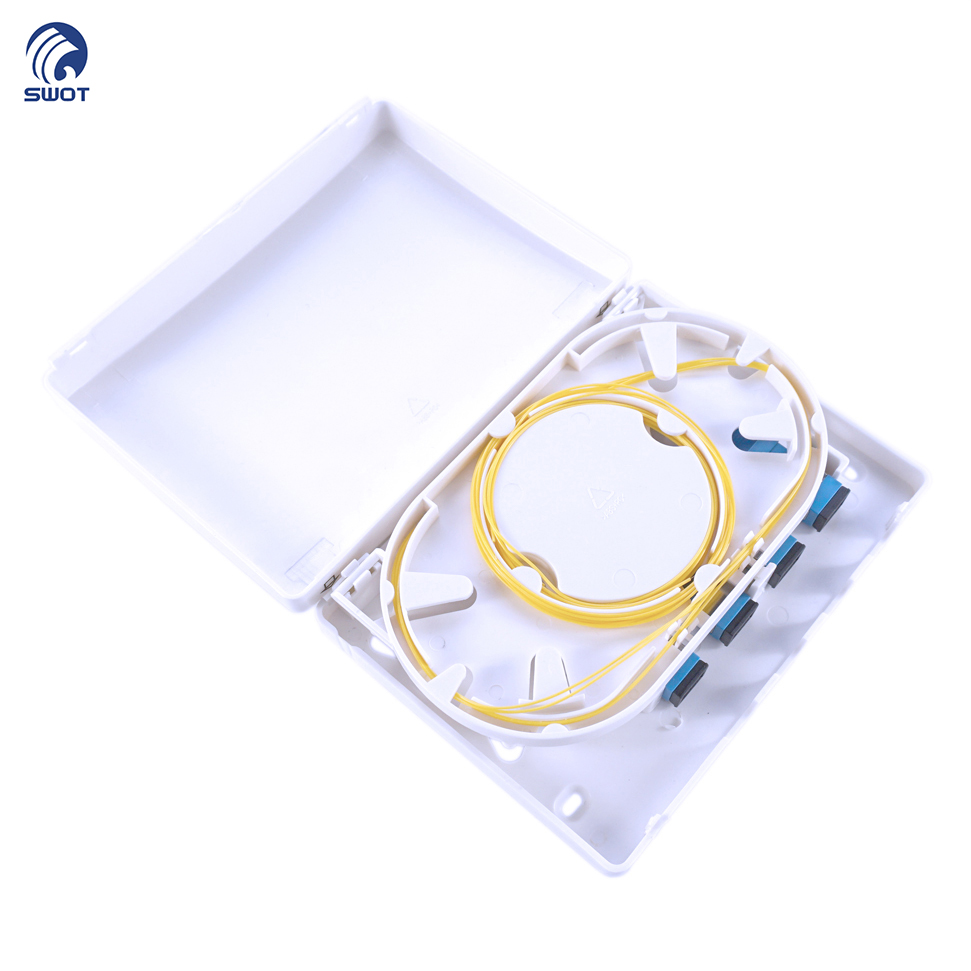

5 Outside fiber cable leads in fiber tray through cable outlet of tray as picture 9/10.

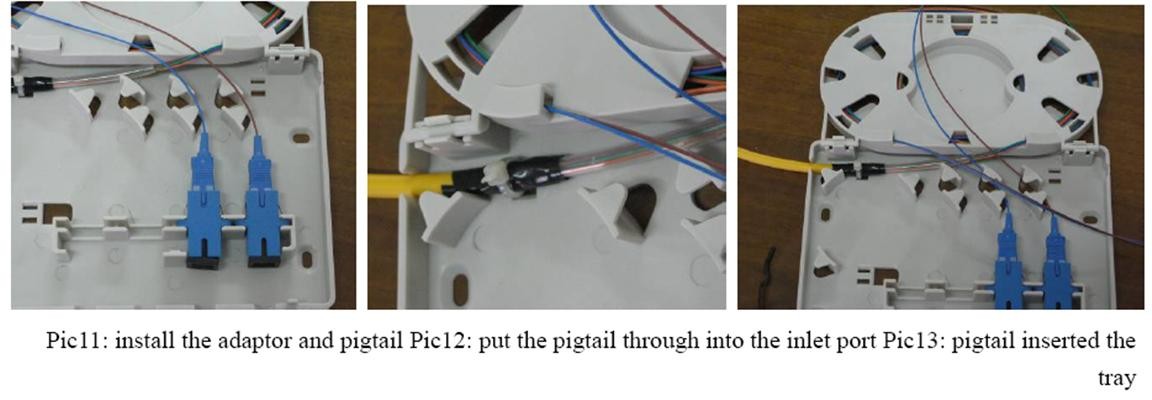

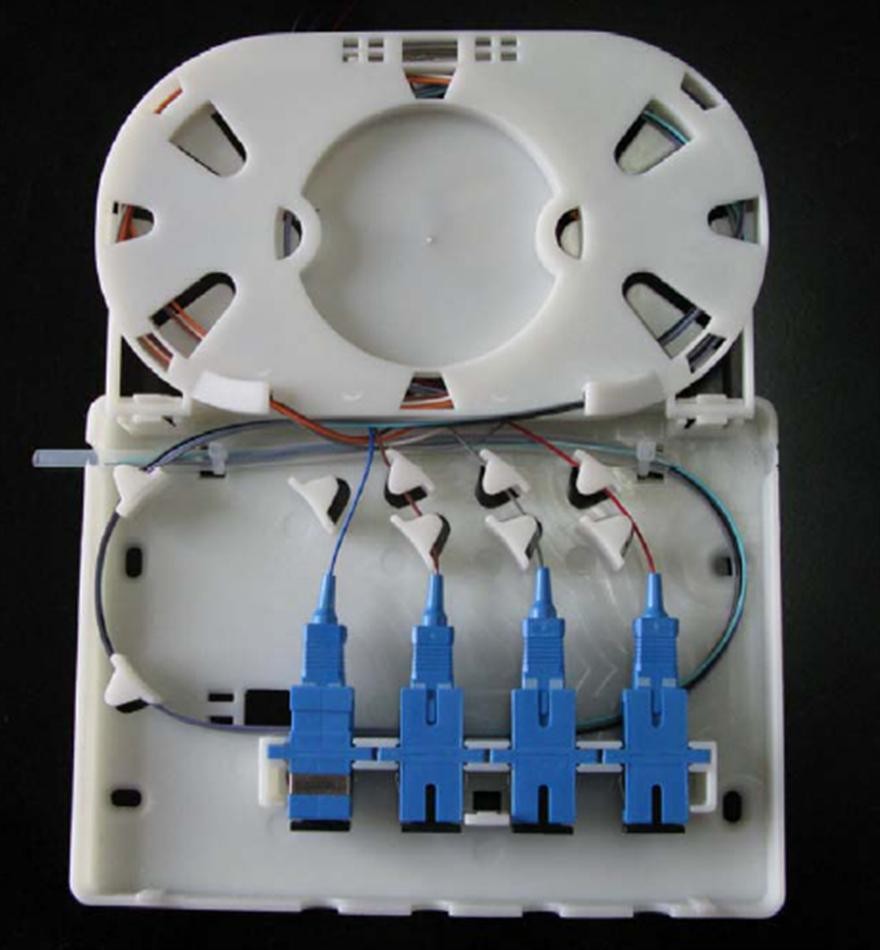

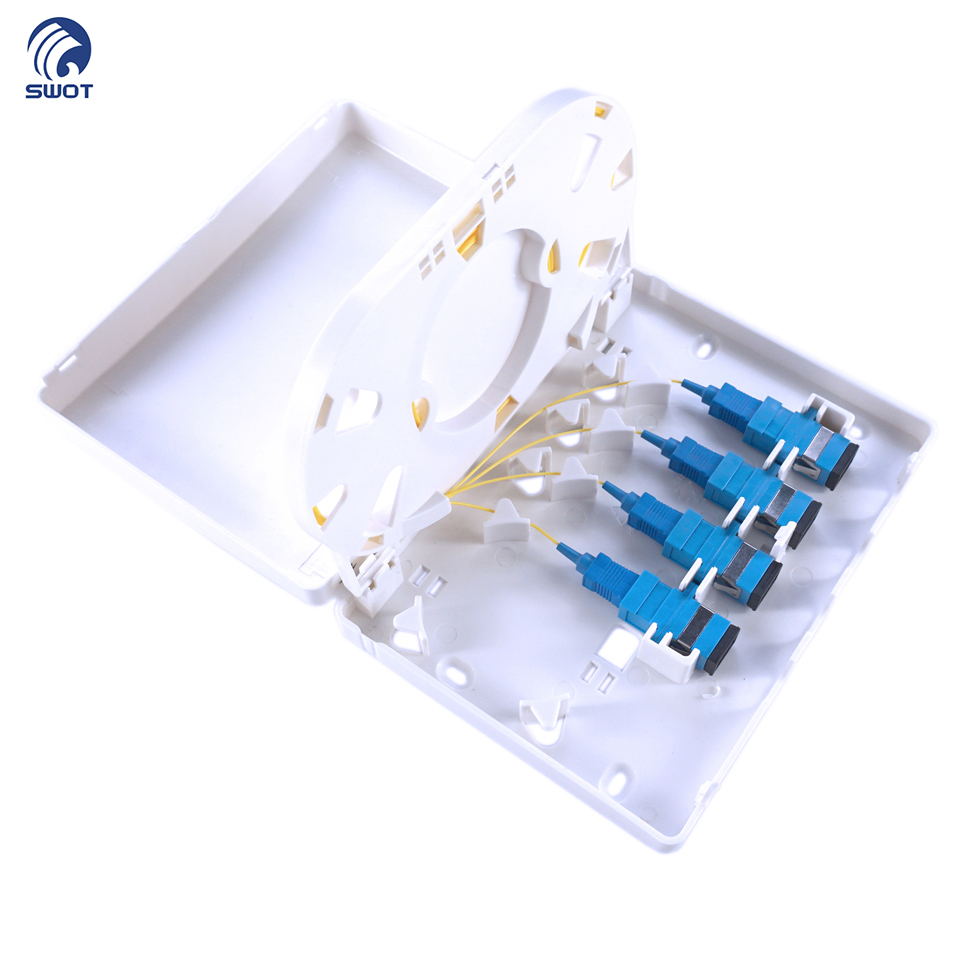

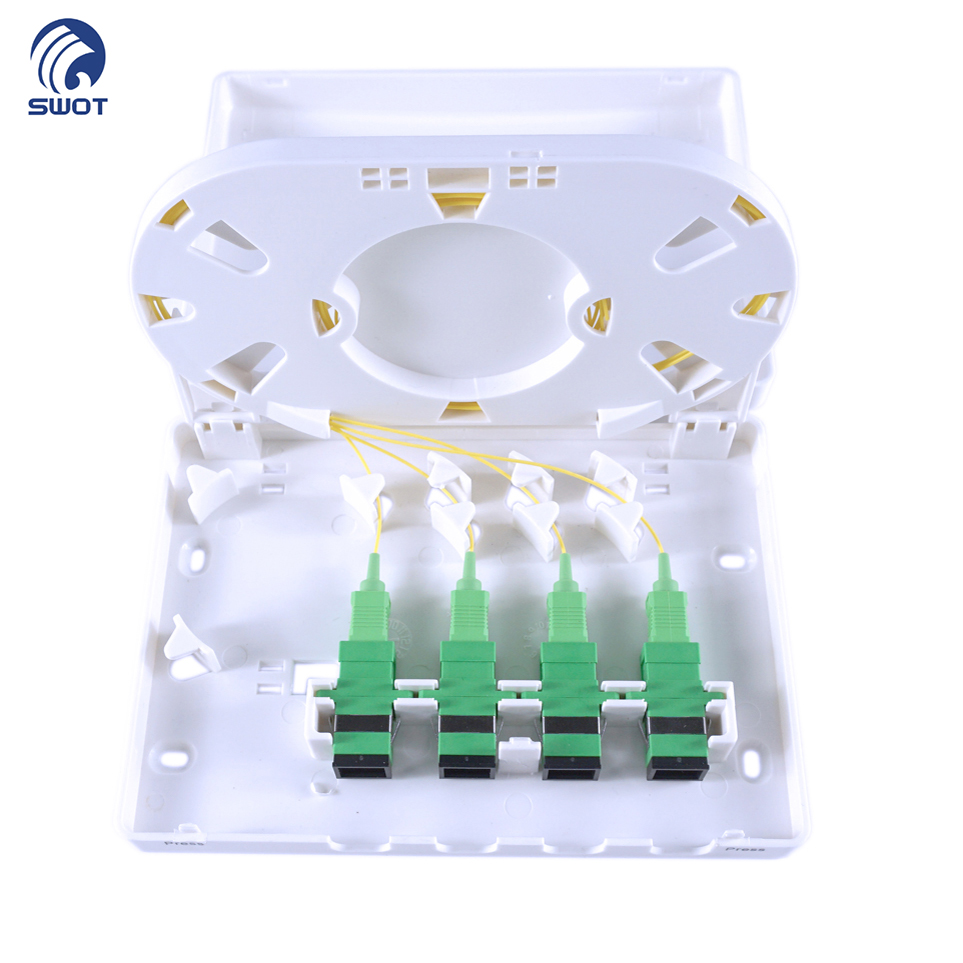

6 Installing the adaptor, inserting the pigtail plug, Taking the pigtail through into splice tray. Like Picture 11/12/13

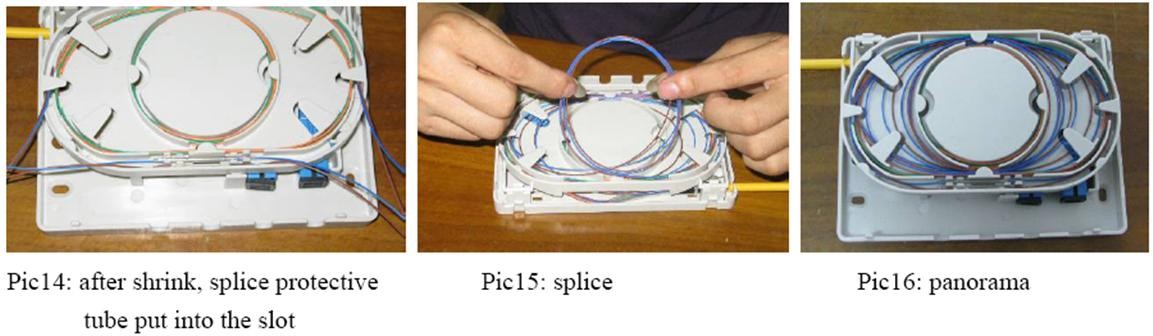

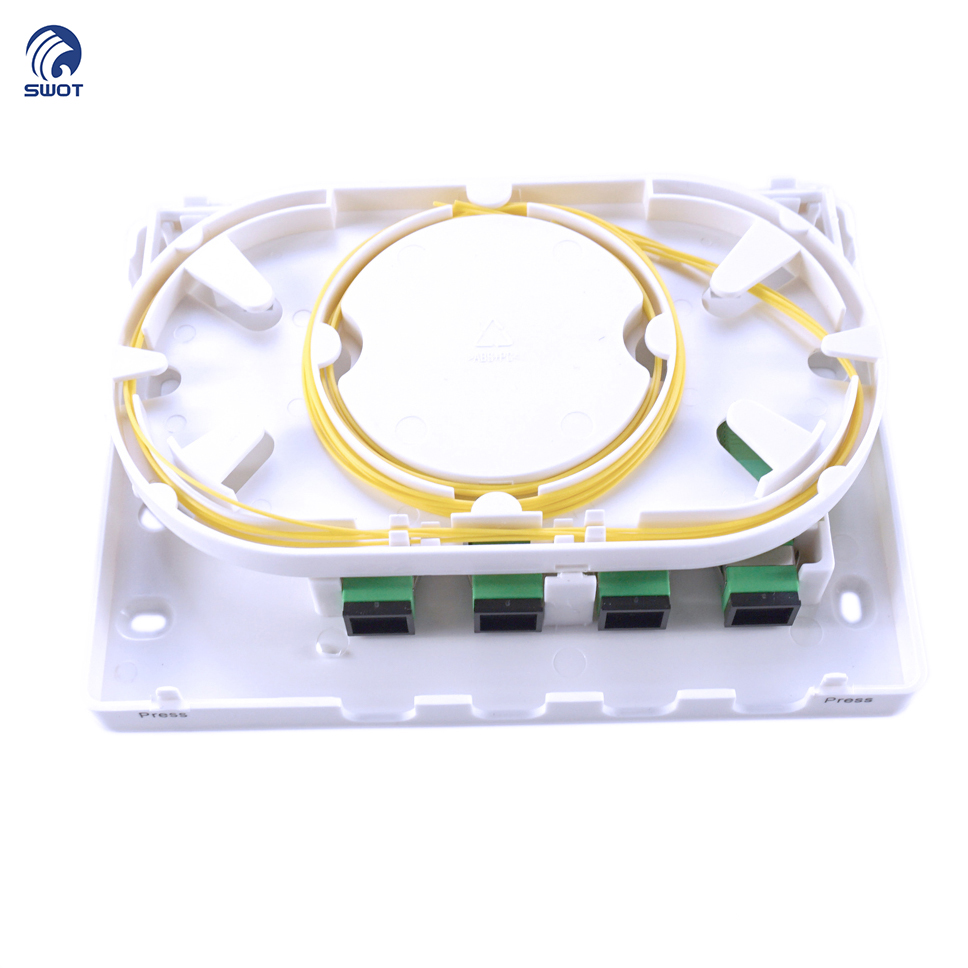

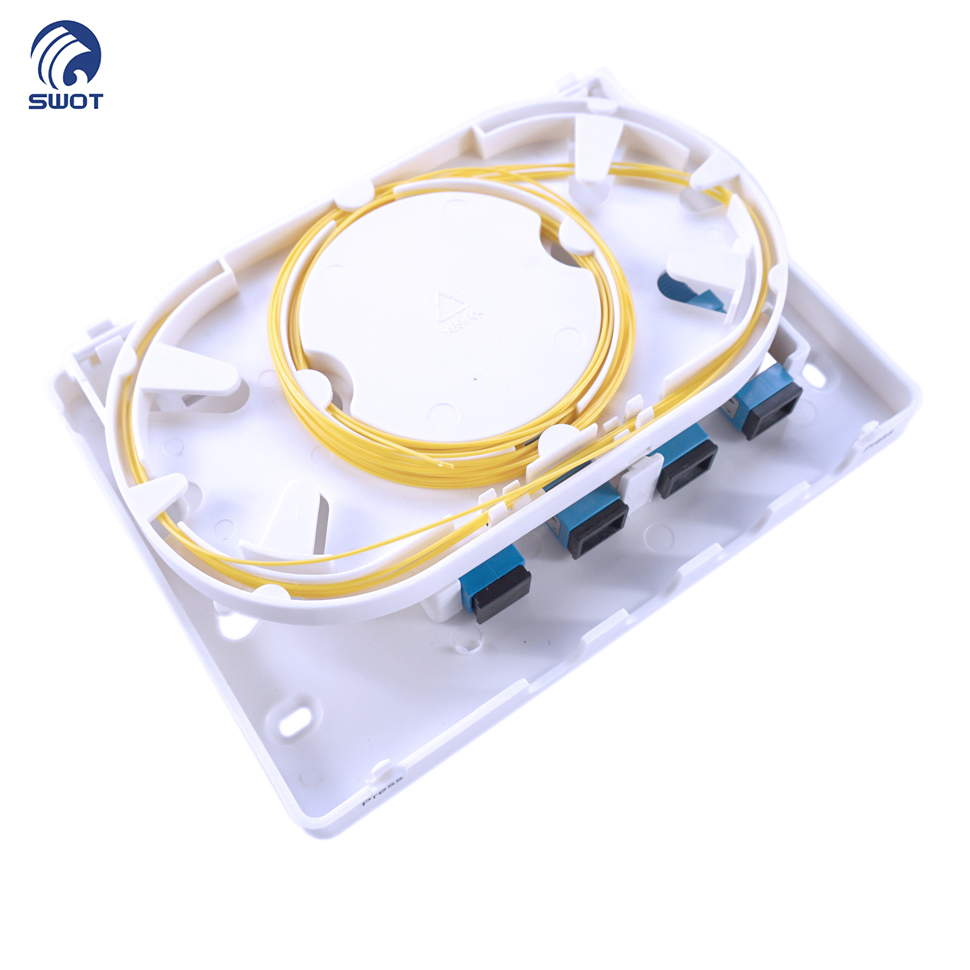

7 Splice as per usual.Then put the splice protective tube into the slot of tray. Like picture 14/15/16

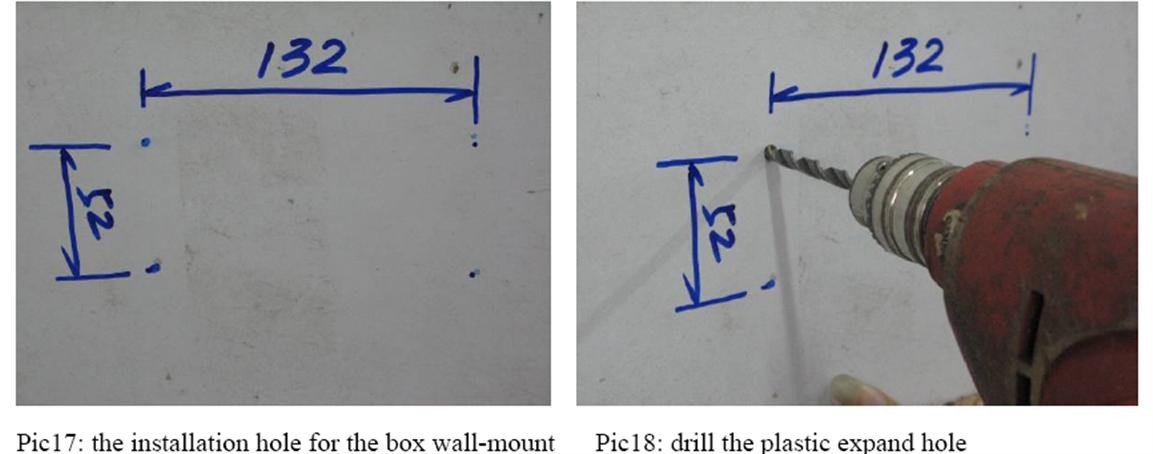

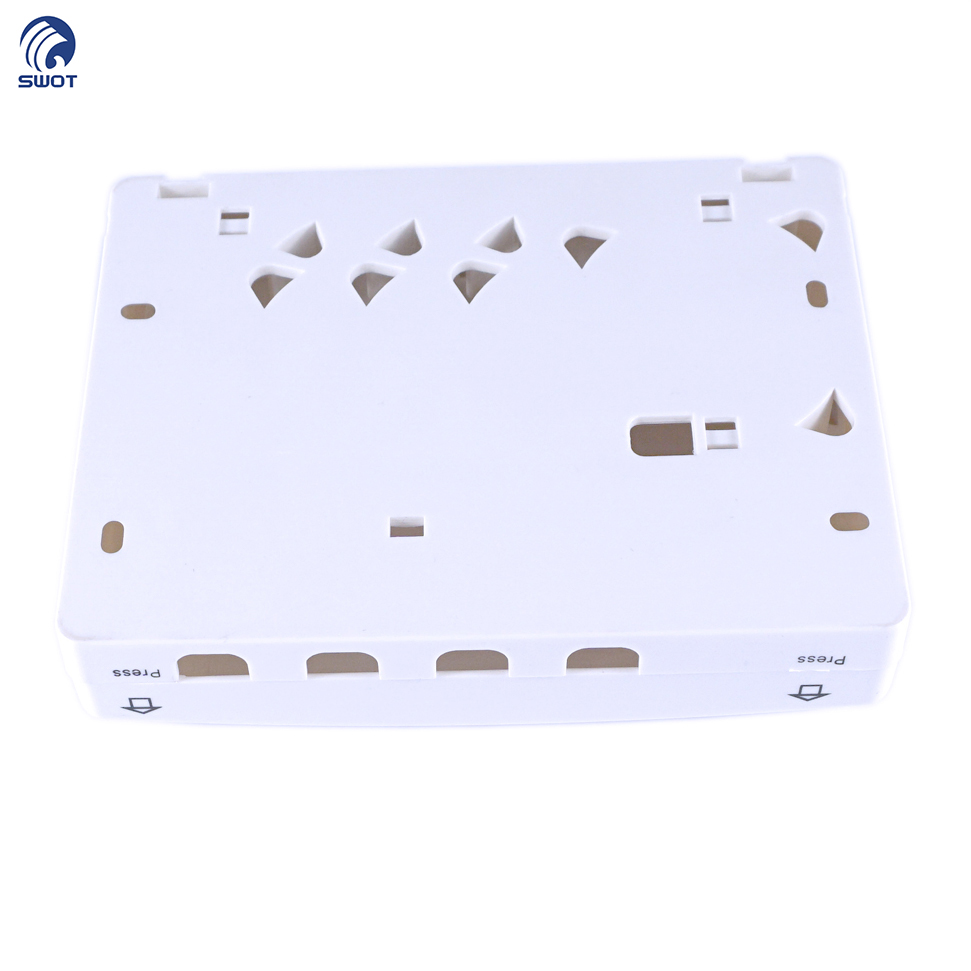

1 According to the size of box size, drill the hole for M4 expand bolt as Pic17/18.

2 Knocking the plastic expand bolt into the hole.

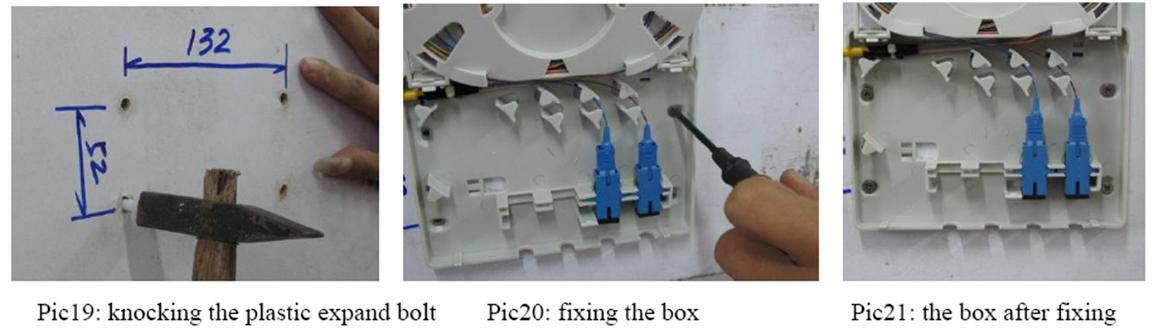

3 Fixing the box to wall with 4×25 screw thread bolt as Picture 20/21.

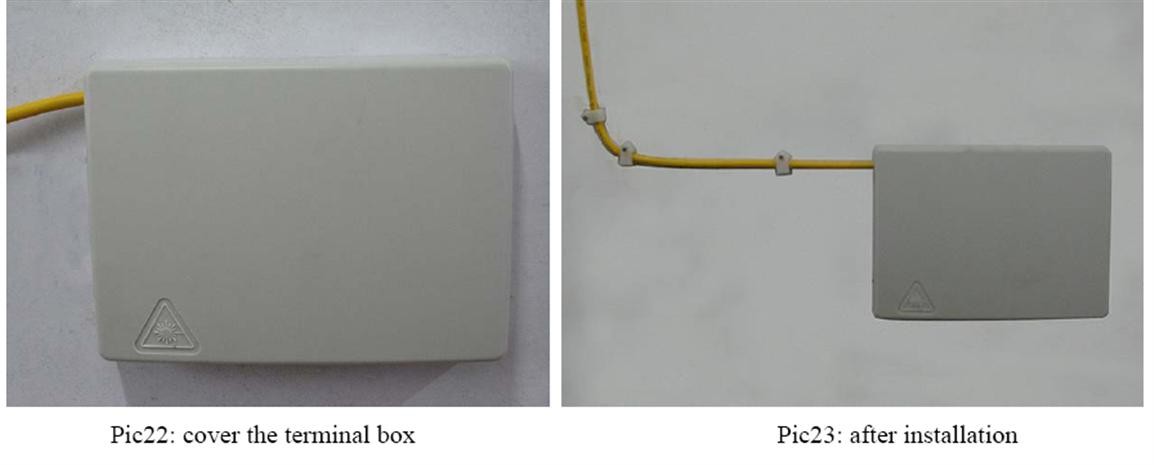

4 Cover the tray and terminal box

1 Environmental Temperature：－25℃～40℃;

2 Max capacity: 4 fibers;

3 Suitable types of fiber cables: 4 fibers indoor fiber cables
