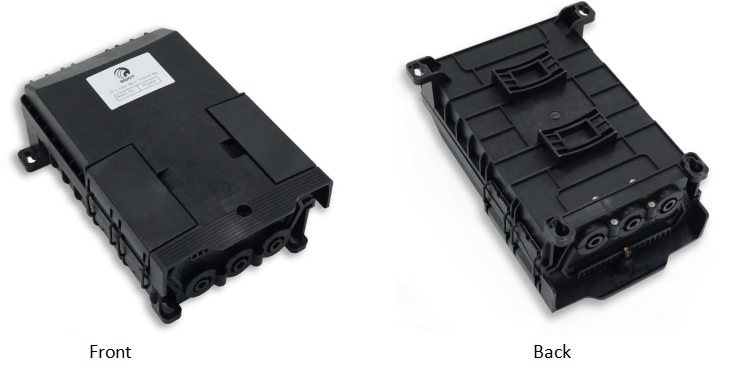

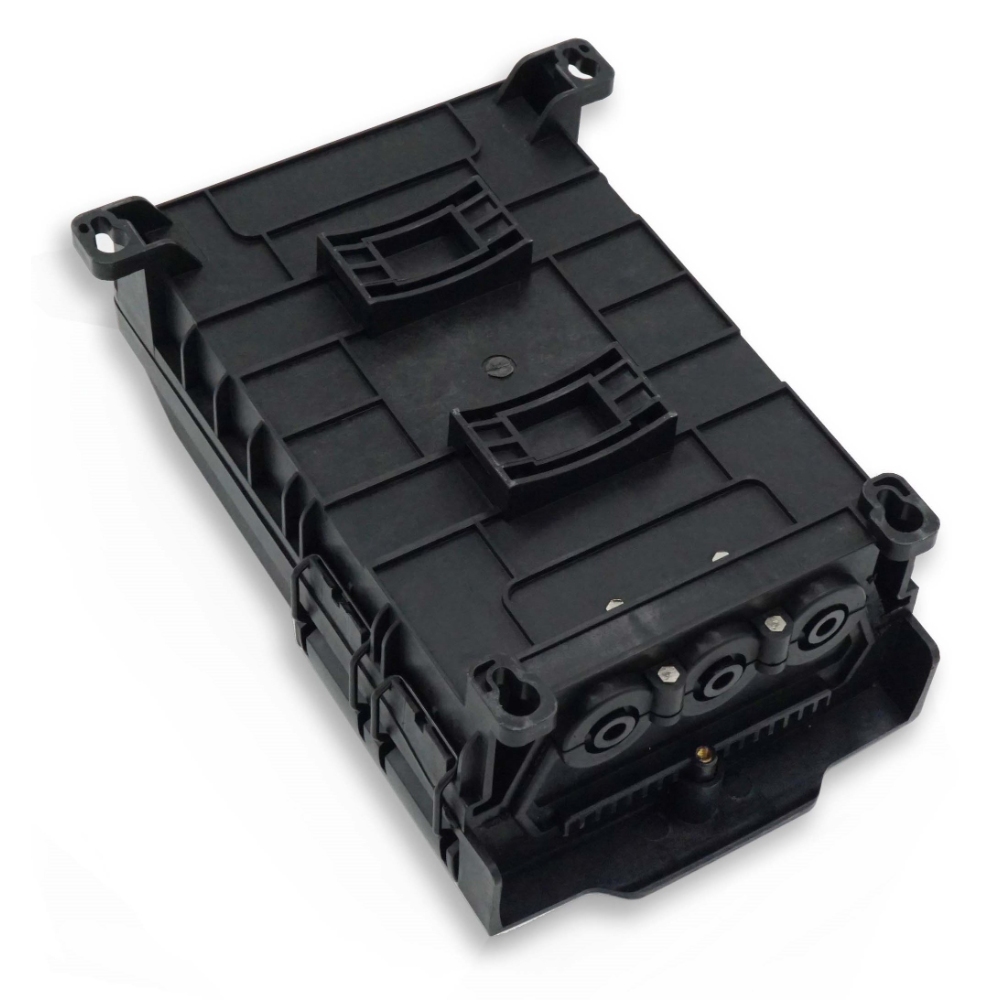

Fiber Optic Splice & Splitter Closure IP68 FTT-H1816X

Standard comply: UL 94, Test for Flammability of Plastic Materials for Parts in Devices and Appliances YD / T 2150-2010 Optical fiber cable distribution box.

• Made of high quality engineer plastic material (PP), IP68 waterproof type, Good mechanical strength, Elegant appearance, sturdiness and durability.
• Suitable for indoor or outdoor, wall-mounted, pole installation.

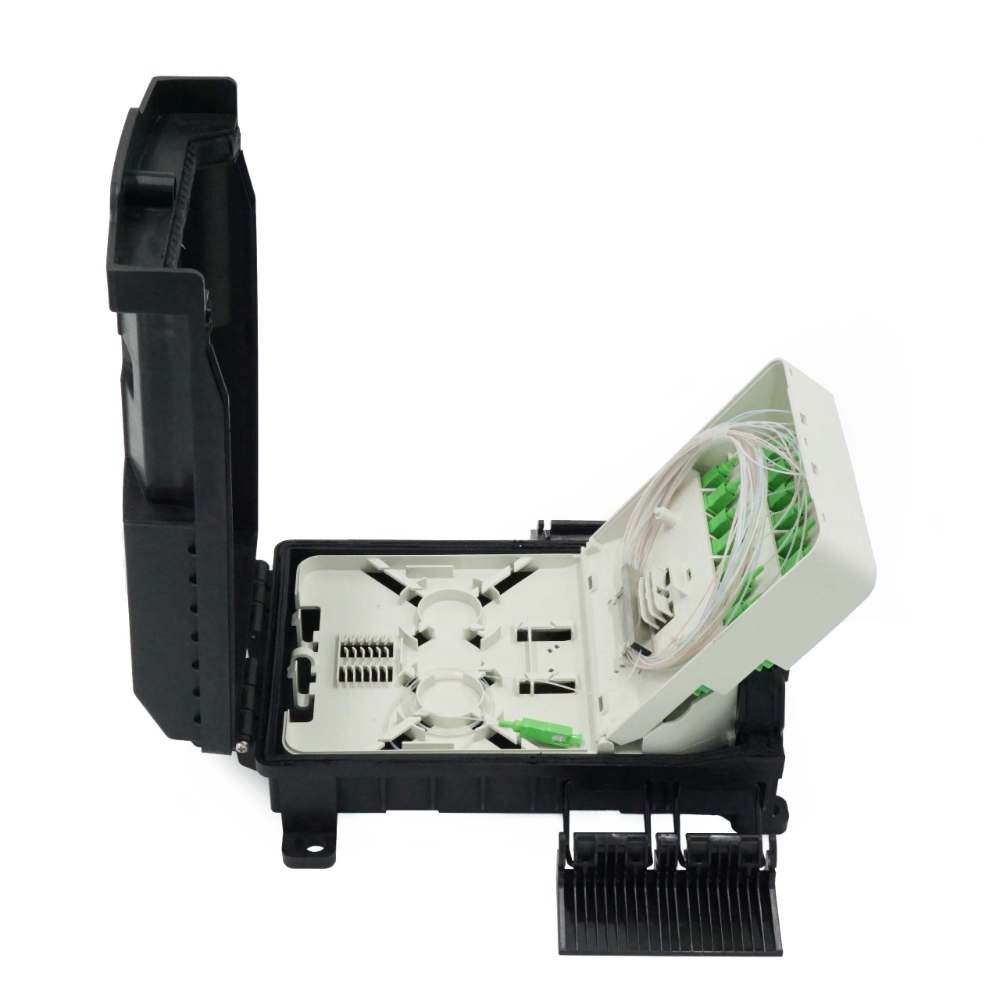

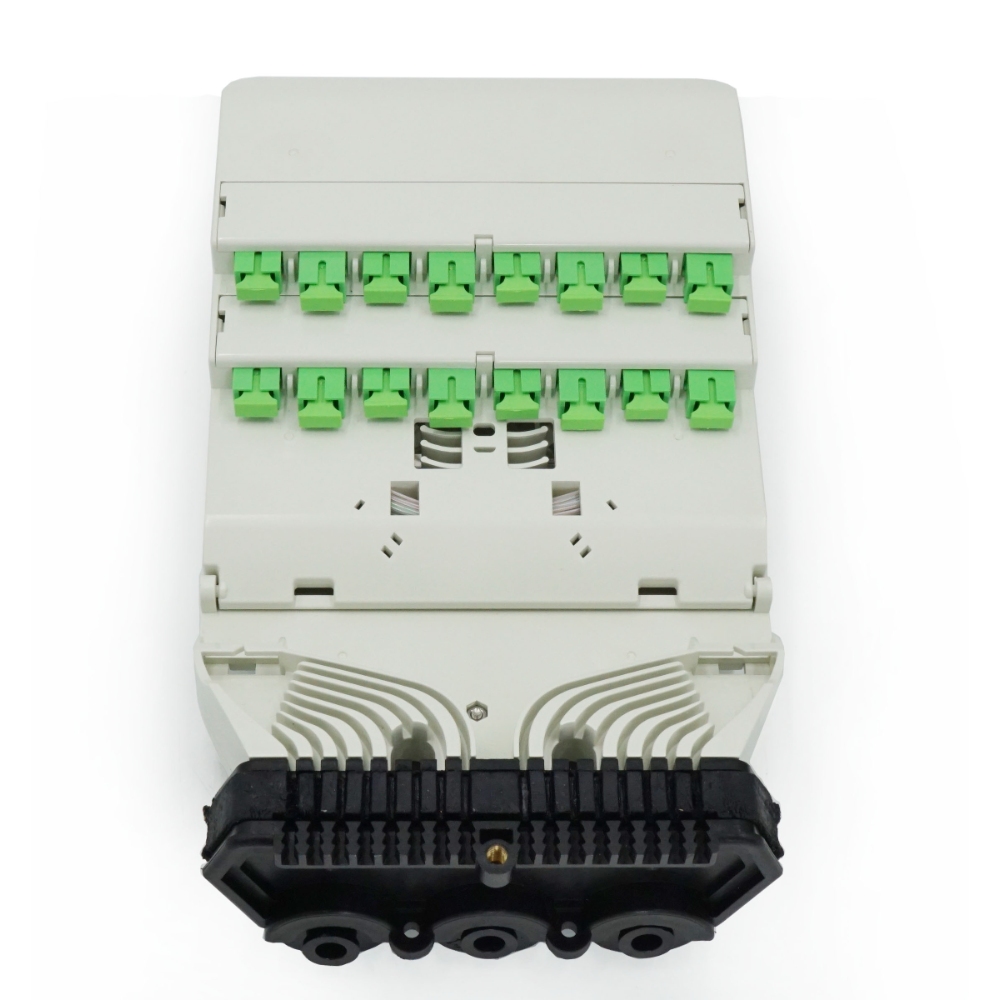

• Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.

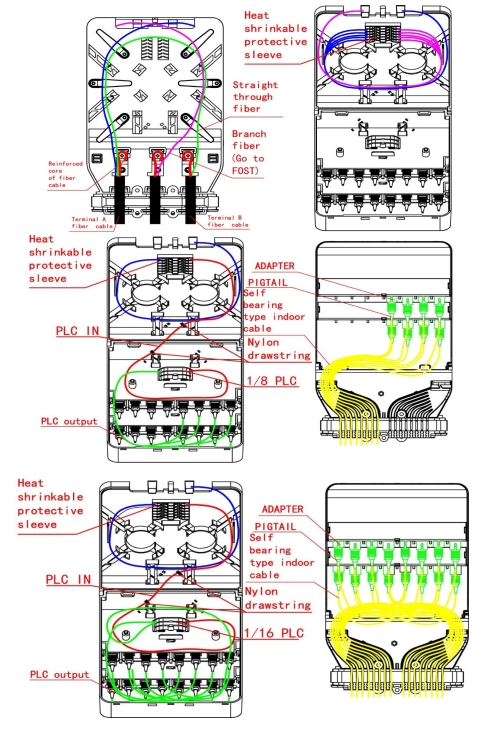

• Fiber routing is reasonable.
• Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

The insulation resistance between the grounding device and the metal parts of the box is no less than 2´104MΩ / 500V (DC) IR≥2 × 104 MΩ / 500V.

The voltage resistance between the grounding device, and the boxand its metal parts is no less

than 3000V (DC) / min, no puncture, no flashover; U≥3000V

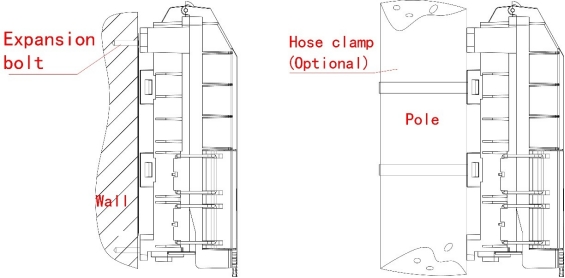

Wall-mounted installation

Drill 4 holes into the wall based on the size in table 1, place the expansion bolt Φ7.5*40, place the box to match up the holes and use bolt to fasten.

Pole-mounted installation

Fix 1 set of the pole ring to the telecom pole, as below.

Storage temperature: -20 ℃ ~ +65 ℃

• Storage humidity: ≤ 95% (30 ℃),no corrosive gases around;

• Transport: cars, trains, ships and aircraft

• Transportation to avoid collisions, falls, rain and snow poureddirectly attack and daylight expo
