The termination box is suitable for one optical cable with diameter of 16mm jointing to two cable with diameter of 11mm,or one cable with diameter of 16mm jointing to anther cable of 16mm.
1. High-strength plastic,UV,UV-resistant,resistant to rain
2. Overhead for indoor and outdoor use with wall
3. Of the box a "lock" structure,opening and closing of the box simple,convenient and safe use of locking features.

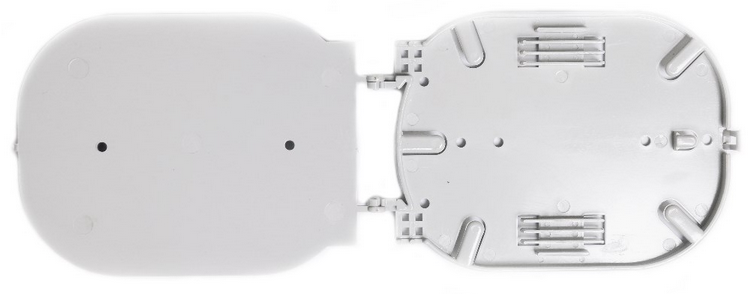

4. Splice tray page design easy to use,with the sub-fiber splice more rational distribution of complete separation.

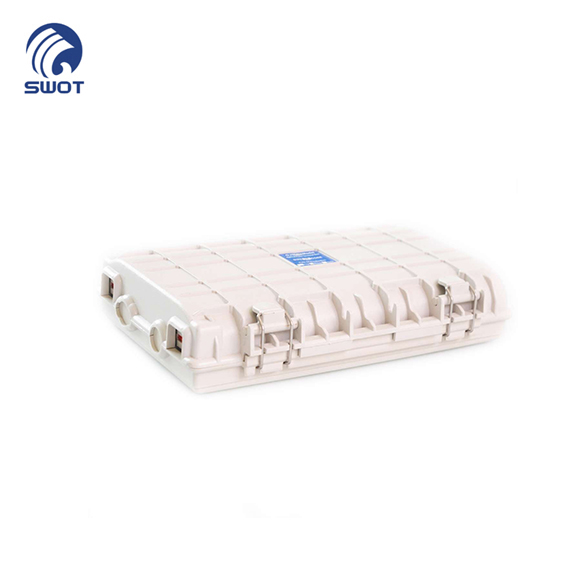

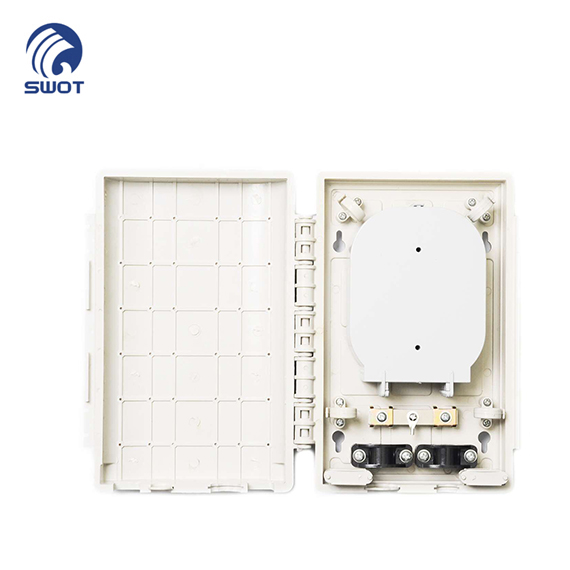

5. The structure of T001 termination box is innovative,designed in up-down bisection.Its installation is quite simple.By untightening one piece of fixing nut,it succeeds in opening the housing and allows fiber cable and pigtails to pass in and out in one side.The box is made of high-strength polycarbonate plastic materials,which has mechanical strength,therefore it is reliable and long lasting,it is of nice shape and beautiful appearance.

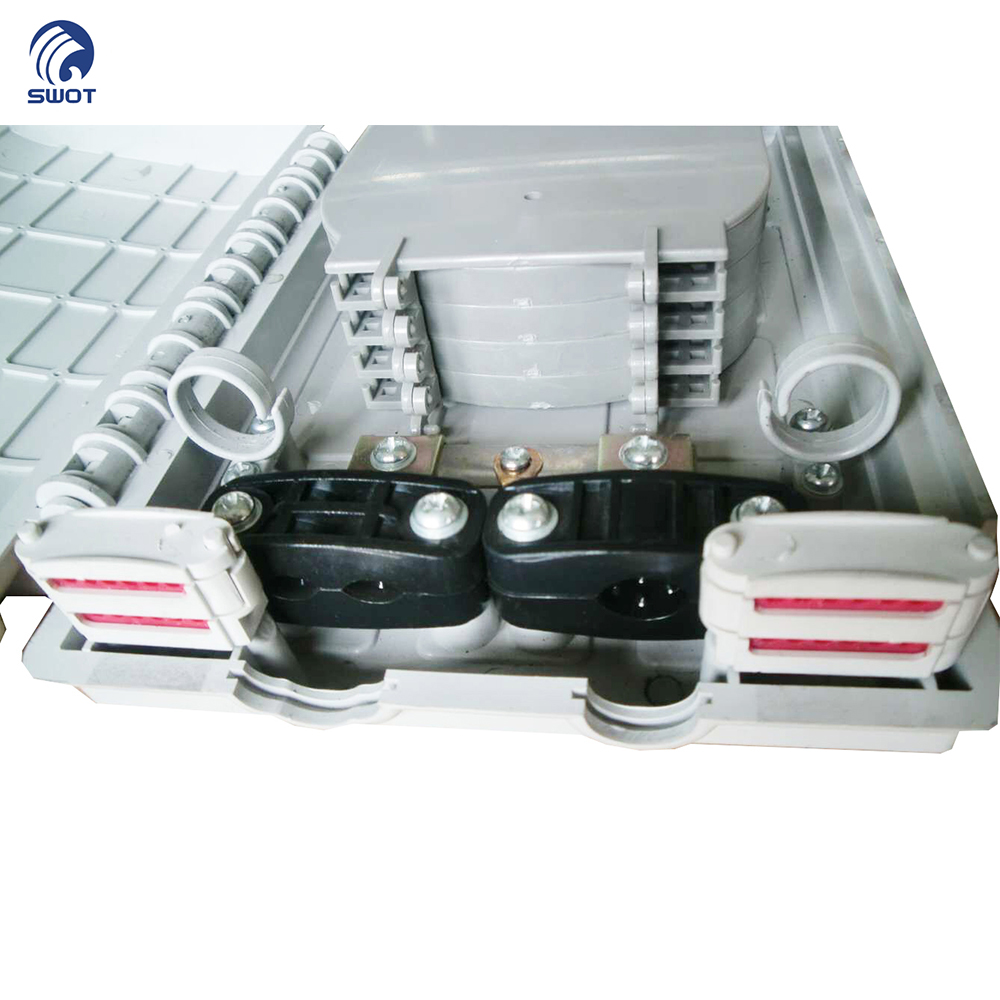

6. The elastic material is used to fix pigtail.When distribution of pigtail can not be determined,it is possible to wind pigtail into clasp.Whenever it is needed,the connector could be installed outside of the housing,there fore it can connect termination equipment without connecting adapters.
|
Size: mm L×W×H |
Cable enter ports |
Cable Diameter(max) |
Max.Capacity(bunchy) |
No.of trays |
|
250×180×50 |
Single-side 2 pieces(total 2 pieces) |
φ2mm~φ20mm |
6~24 |
1~4 |
|
Model No. |
Capacity |
Size: mm L×W×H |
|
FOST 009 |
Bunchy:single 6 cores |
1051359 |
|
No. |
specification |
Carton size(cm) |
Capacity |
N.W |
Remarks |
|
1 |

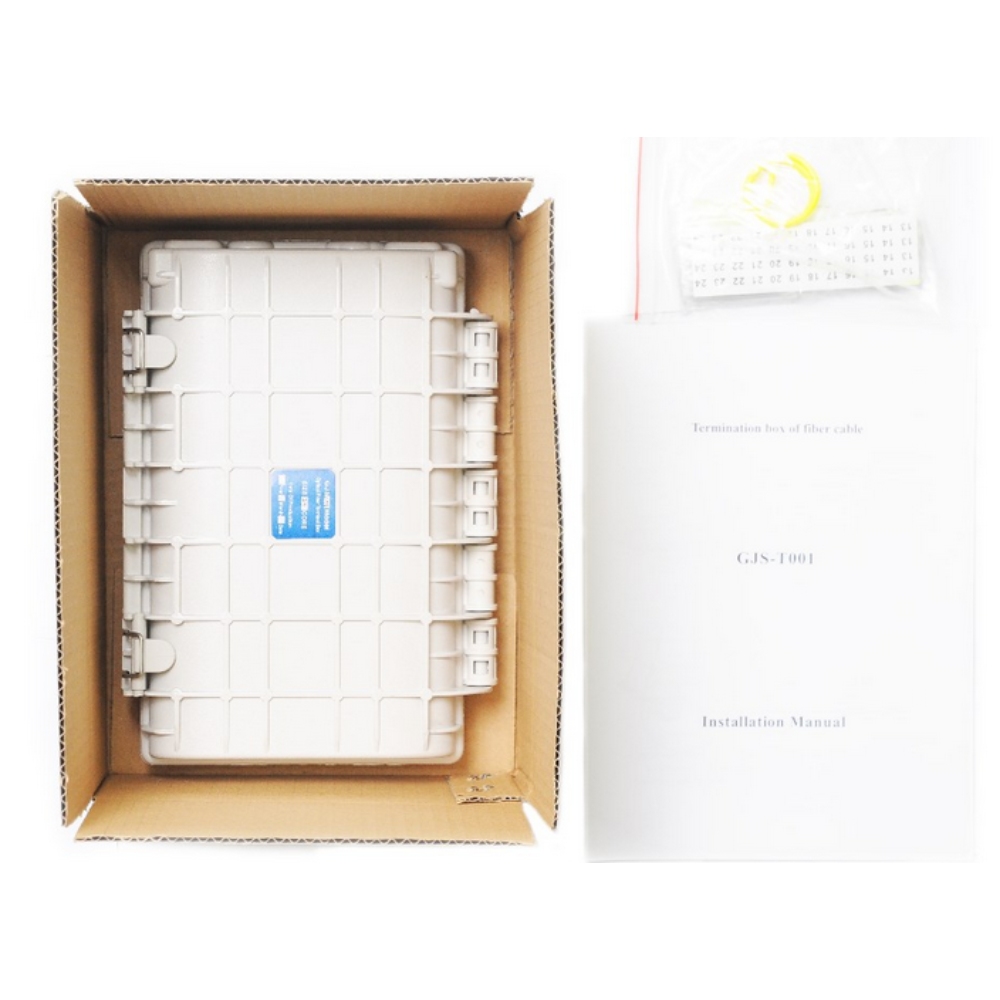

inner box |
27.5×20×8 |
1pcs |
0.65-0.75KG |
Configuration as per weight |
|
2 |
outer box |
57×43×44.5 |
20pcs |
13-15KG |
Configuration as per weight |
