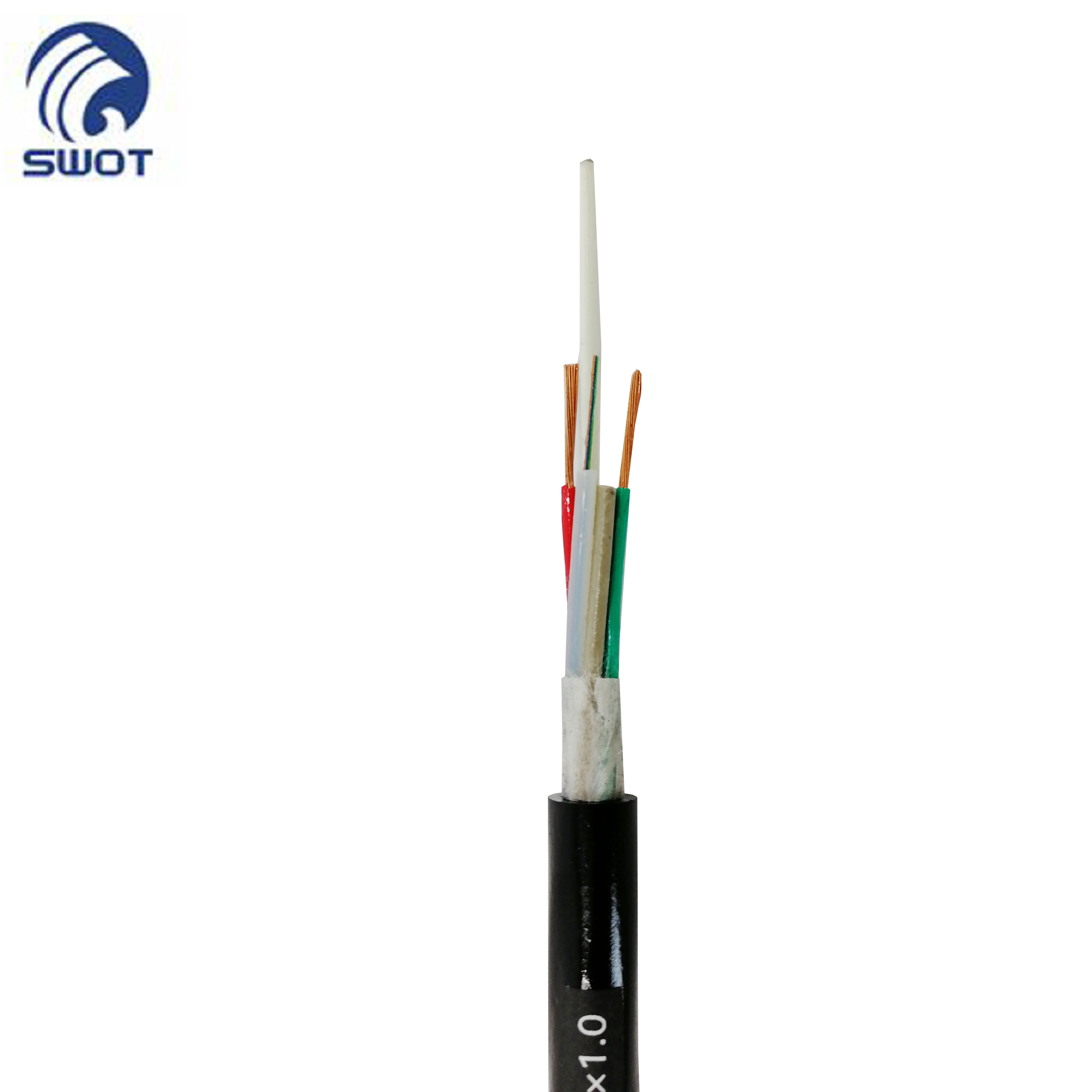

Non-Armored FRP Strength Member Hybrid Fiber Optic Cable with Copper Conductors Water Blocking Yarn for Telecom Network Construction
Photoelectric composite cable is applicable to transmission line in broadband access network system. It is a new access method, which integrates optical fiber and cooper transmission line, and can solve problems of broadband access, equipment electricity and signal transmission.
|
No. of cable |
4B1+2*1.0mm2 |
|
|
Fiber Model |
G.652D |
|
|

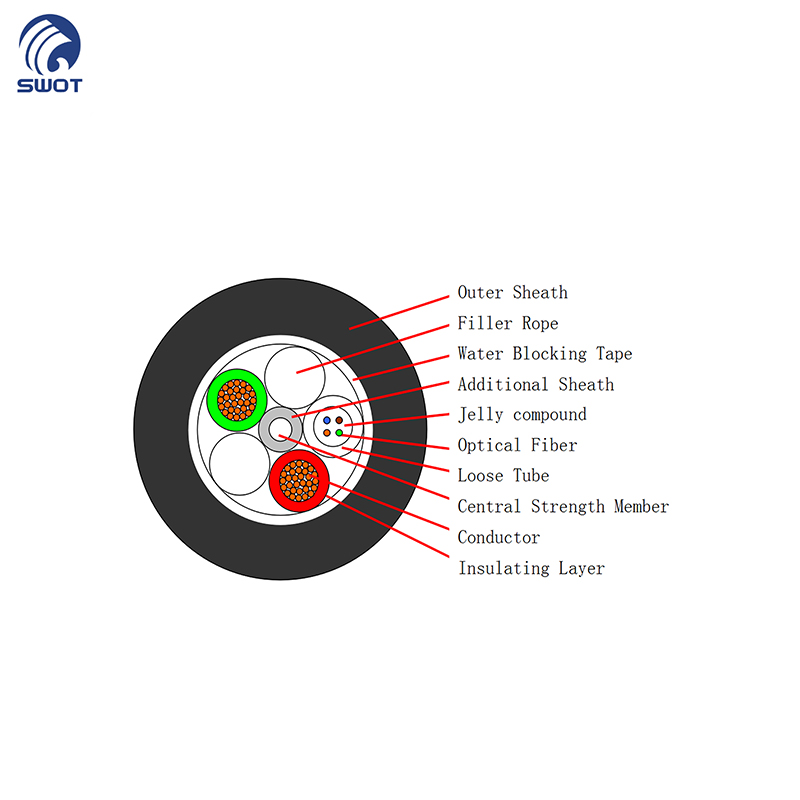

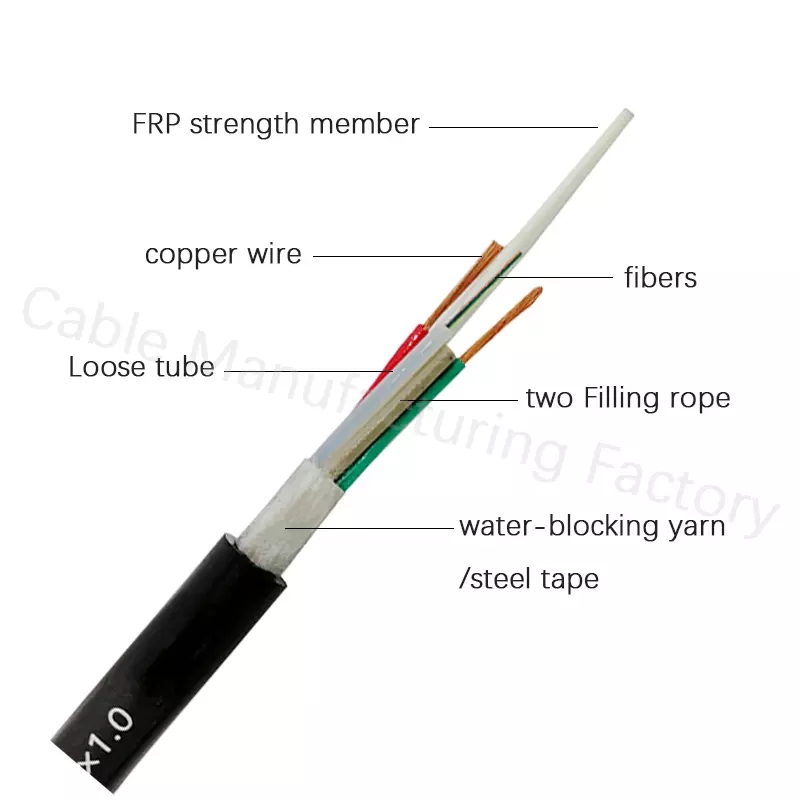

Design(StrengthMember+Tube&Filler) |
1+5 |
|
|
Central Strength Member |
Material |
FRP |
|
Diameter（±0.05）mm |
1.2 |
|
|
Additional Sheath |
Material |
LDPE |
|
Diameter（±0.05）mm |
2.1 |
|
|
Loose Tube |
Material |
PBT |
|
Diameter（±0.06）mm |
2.3 |
|
|
Thickness（±0.03）mm |
0.35 |
|
|
The Max.Core NO./Tube |
4 |
|
|
Filler Rope |
Material |
LDPE |
|
Colour |
White |
|
|
Diameter（±0.06）mm |
2.3 |
|
|
NO. |
2 |
|
|
Conductor |
Material |
Bare Copper |
|
Acreage（±0.1）mm2 |
1.0 |
|
|
Single copper wire diameter （±0.01）mm |
0.20 |
|
|
NO. |
32 |
|
|
Insulating Layer |
Material |
HDPE |
|
Thickness（±0.05）mm |
0.6 |
|
|
Diameter（±0.1）mm |
2.5 |
|
|
Water Blocking layer（Material） |
Water Blocking Tape |
|
|
Outer Sheath |
Material |
MDPE |
|
Thickness（±0.1）mm |
1.6 |
|
|
Cable Diameter（±0.2）mm |
10.6 |
|
|
Min. bending radius |
Without Tension |
10.0×Cable-φ |
|
Under Maximum Tension |
20.0×Cable-φ |
|
|
Temperature range （℃） |
Installation |
-20~+60 |
|
Transport&Storage |
-40~+70 |
|
|
Operation |
-40~+70 |
|
|
Item |
Specification |
|
Fiber type |
Single mode G652D |
|
Fiber material |
Doped silica |
|
Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm |
£ 0.36 dB/km £ 0.32 dB/km £ 0.22 dB/km £ 0.30 dB/km |
|
Point discontinuity |
£ 0.05 dB |
|
Cable cut-off wavelength |
£ 1260 nm |
|
Zero-dispersion wavelength |
1300 ~ 1324 nm |
|
Zero-dispersion slope |
£ 0.092 ps/(nm2.km) |
|
Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm |
£3.5 ps/(nm. km) £5.3 ps/(nm. km) £18 ps/(nm. km) £22 ps/(nm. km) |
|
PMDQ (Quadrature average*) |
£0.2 ps/km1/2 |
|
Mode field diameter @ 1310 nm |
9.2±0.4 um |
|
Core / Clad concentricity error |
£ 0.5 um |
|
Cladding diameter |
125.0 ± 0.7 um |
|
Cladding non-circularity |
£1.0% |
|
Primary coating diameter |
245 ± 10 um |
|
Proof test level |
100 kpsi (=0.69 Gpa), 1% |
|
Temperature dependence 0oC~ +70oC @ 1310 & 1550nm |
£ 0.1 dB/km |
