SC/APC & SC/UPC
Model No.s: WP-FC-186
Mini SC Series Field Installable Fast Waterproof Connector is a new design waterproof fiber optical connector for outdoor , and compatible with Huawei Mini SC connector /adapter . It’s mainly used for FTTH outdoor installation . It’s small and easy to be installed with IP68 grade . Mini sc fast connector is an excellent solutions with Huawei Device and do not need terminated the connector in laboratory . It can be field assembled easily to save time and short the project time.
• FTTH & Outdoor Fiber Terminal End
• Harsh Environment
• FTTA BBU RRU
• Data Video Transmission
• Optical Fiber Access Of Mobile Base Station
| Category | Specification |
| Cable Scope | 2*1.6mm/2*3.0mm /2.0*5.0mm flat drop cable, |
| 5.0mm/3.0mm/2.0mm round cable | |
| Fiber Diameter | 125μm ( |
| Coating Diameter | 250μm |
| Mode | Single mode or Multi mode |
| Operation Time | about 15s(exclude fiber presetting) |
| Working wavelength | 1310 nm, 1490 nm, 1550 nm |
| Insertion Loss | AVG≤ 0.3dB, |
| MAX≤ 0.5dB(1310nm & 1490nm& 1550nm) | |
| Return Loss | ≥ 50dB for UPC, |
| ≥ 55dB for APC | |
| Success Rate | >98% |
| Reusable Times | >5 times |
| Tensile Strength | >30 N |
| Temperature | -40 ~ +85 C |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability(500 times) | IL ≤ 0.3dB |
| Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |
| Category | Specification | |||
| Condition | IL Variation | RL Variation | Appearance | |
| High TEMP | 85℃,168H | ≤ 0.5 | ≤5 |
No mechanical damage, like deformation, cracking |
| Low TEMP | -40℃,168H | ≤ 0.5 | ≤5 | |
| TEMP Cycling | -40~85℃,3.5H/Cle, 100C | ≤ 0.5 | ≤5 | |
| HAST | 85℃,90%RH,168H | ≤ 0.5 | ≤5 | |
| Immersion | 25℃,168H | ≤ 0.5 | ≤5 | |
| Salt Mist | 5% Nacl,6.5 | ≤ 0.5 | ≤5 | |
| Tensile | 50N | ≤ 0.5 | ≤5 | |
| Item | Model NO.s: 1901 (SC/UPC) |
| 1903(SC/APC) | |
| Same with ESC250D | |
| Length | 52mm |
| Ferrules | SM/UPC / SM/APC |
| Inner Diameter of ferrules | 125um |
| Insertion Loss | AVG≤0.3dB MAX≤0.5dB |
| Return Loss | UPC≥50dB / APC≥55dB |
| Working Temperature | -40~+85℃ |
| Storage Temperature | -40~+85℃ |
| Mating Times | 500Times |
| Cable Diameter | DROP CABLE : 2*1.6mm/2*3.0mm/2.0*5.0mm |

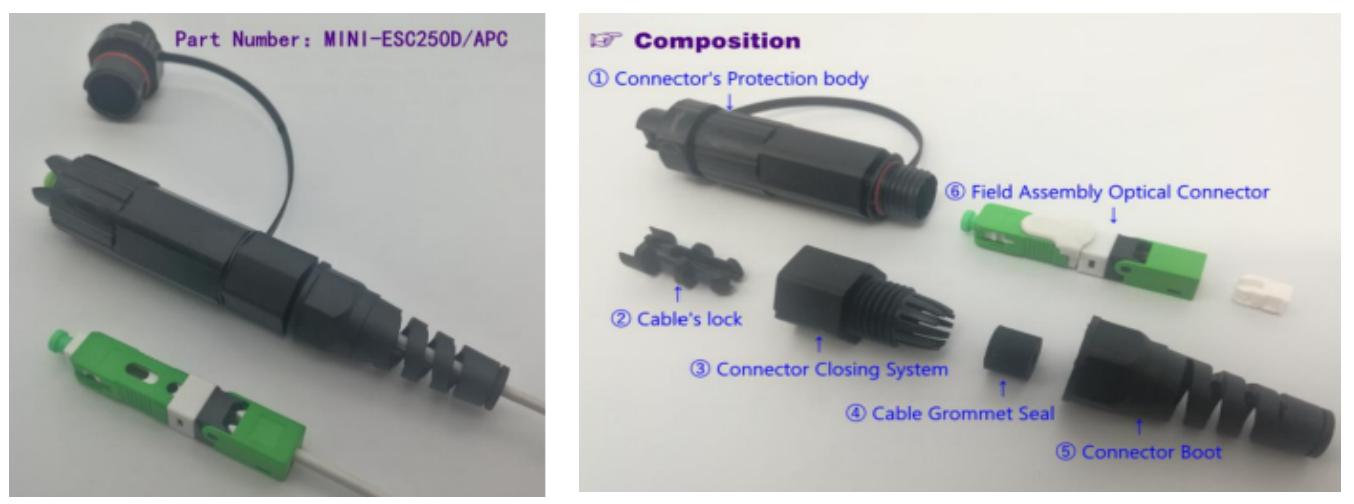

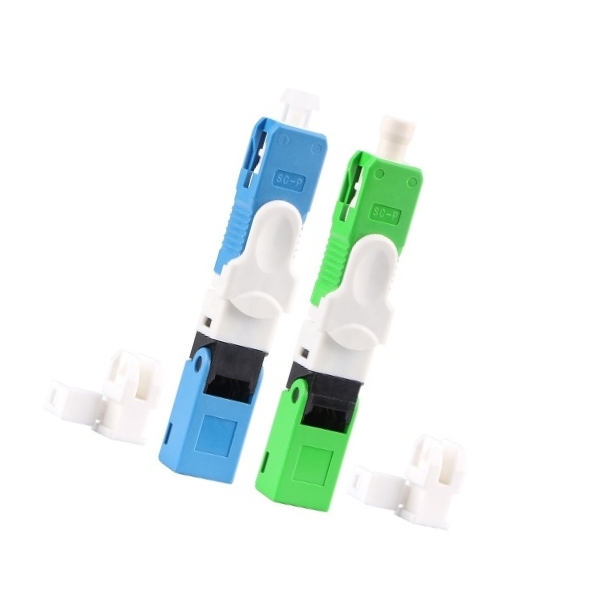

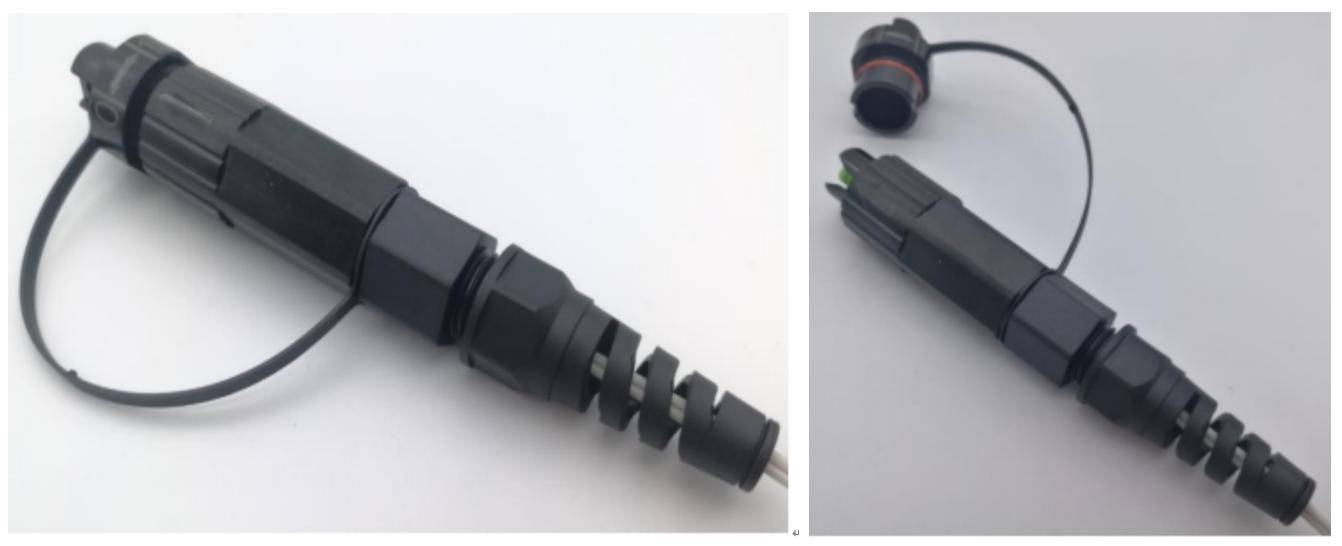

MINI-SC/APC Field Installable Reinforced Connector for 2x3mm flat cable(ESC250D/APC) compatible with the Telefonica closure

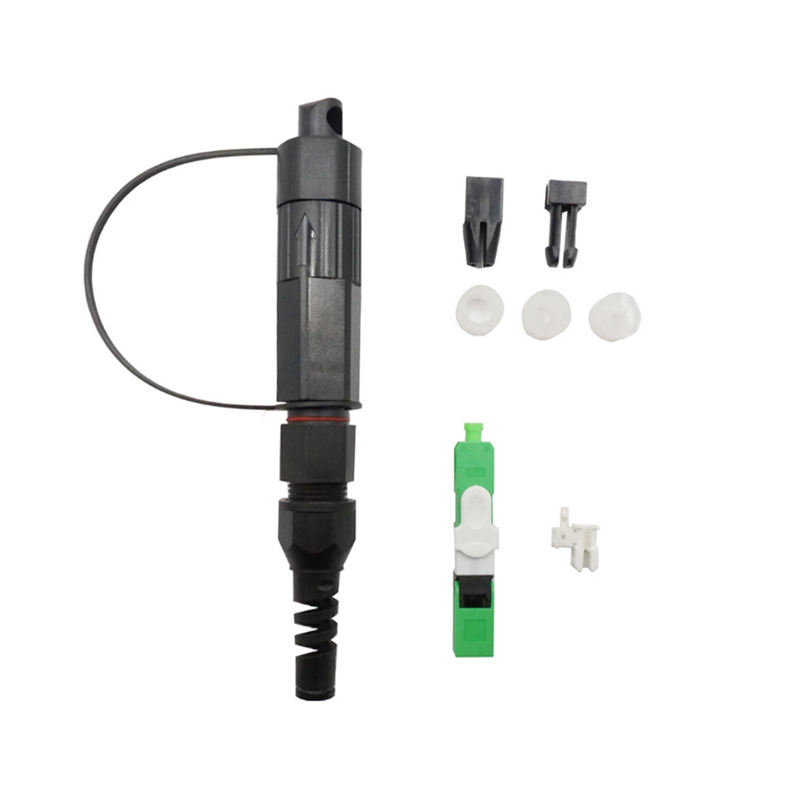

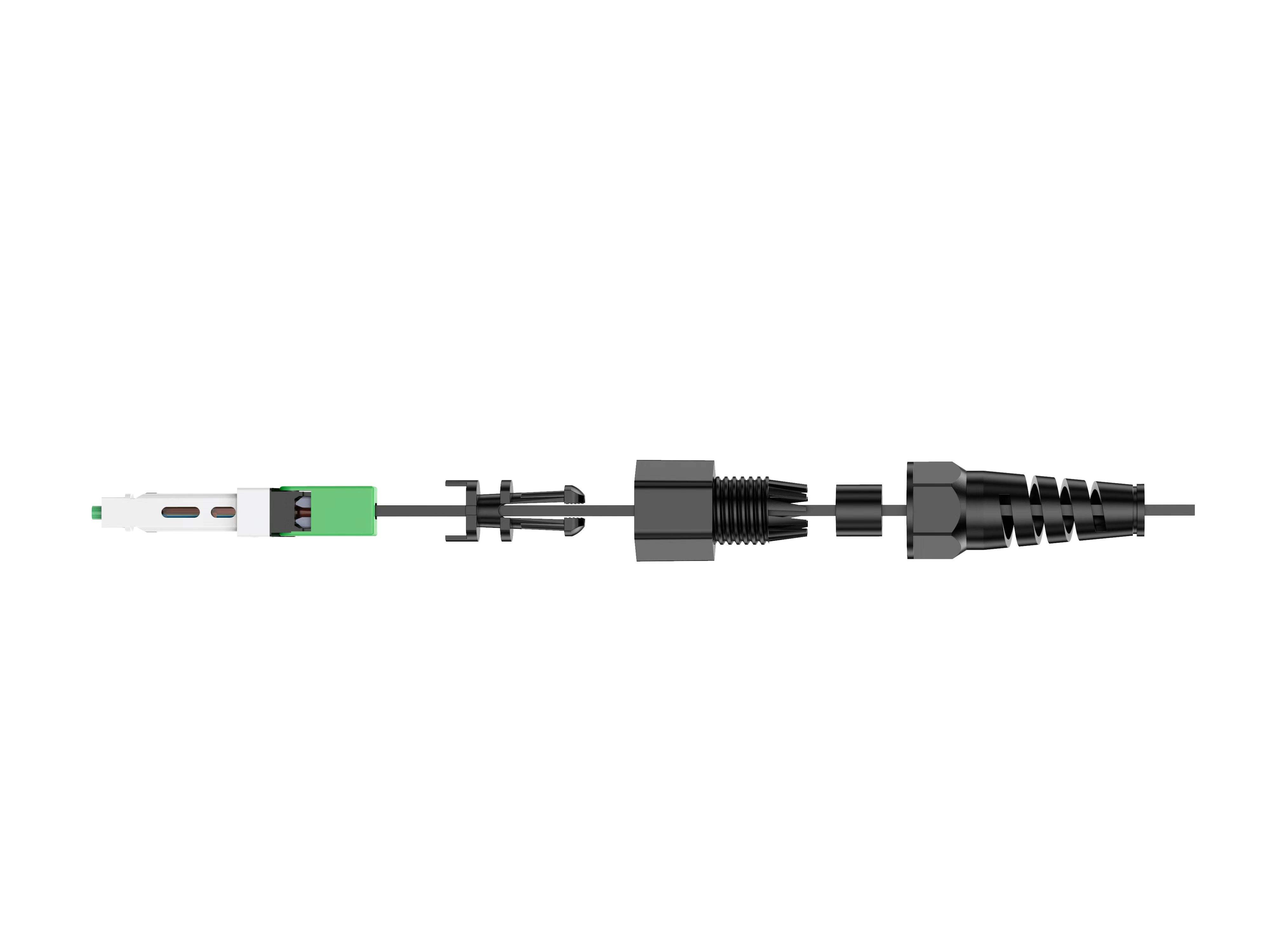

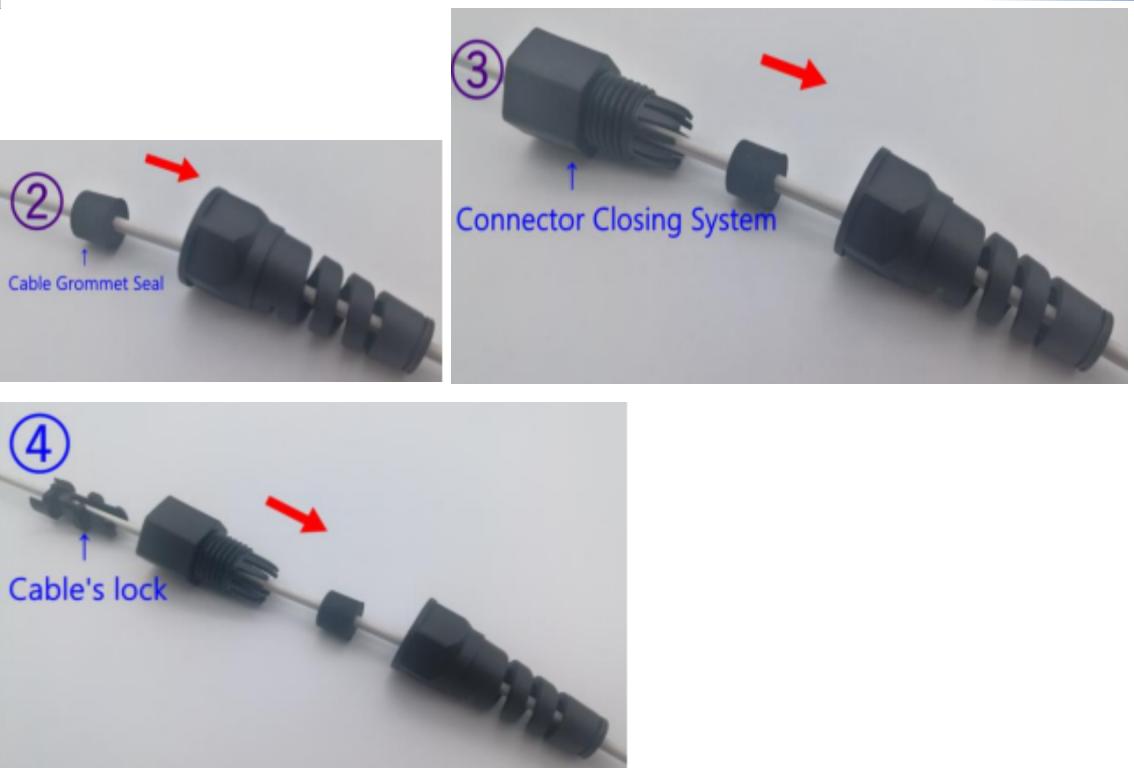

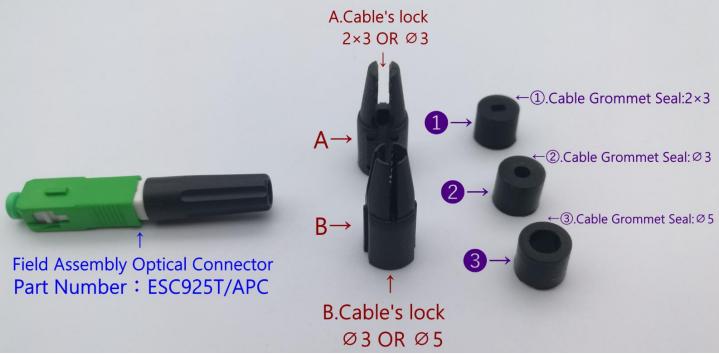

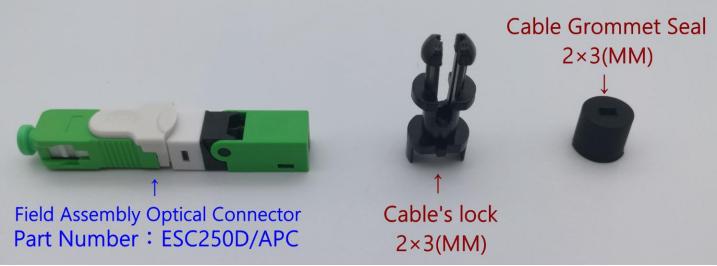

1. Insert the parts in numerical order then install the connector；

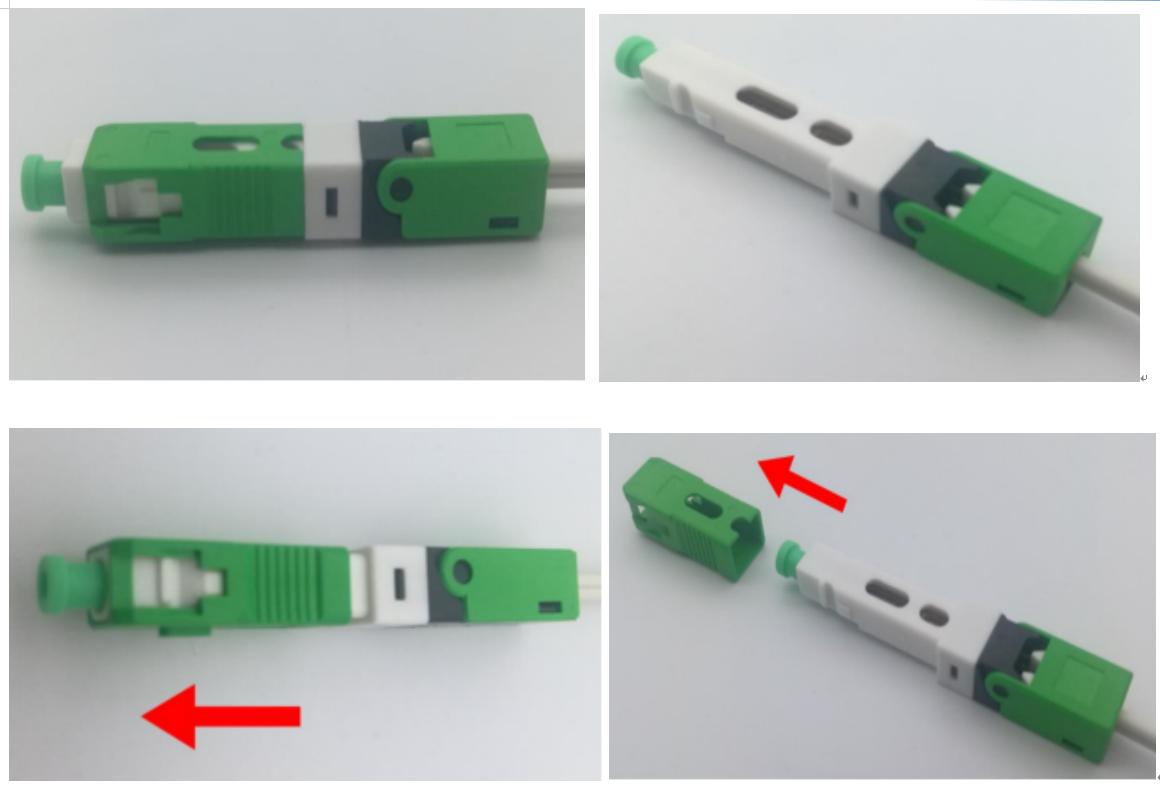

2. Remove the outer housing from the connector
Grip the connector’s outer shell(green) like the upper picture；
Push the outer shell on the table until removing the shell like the upper picture；

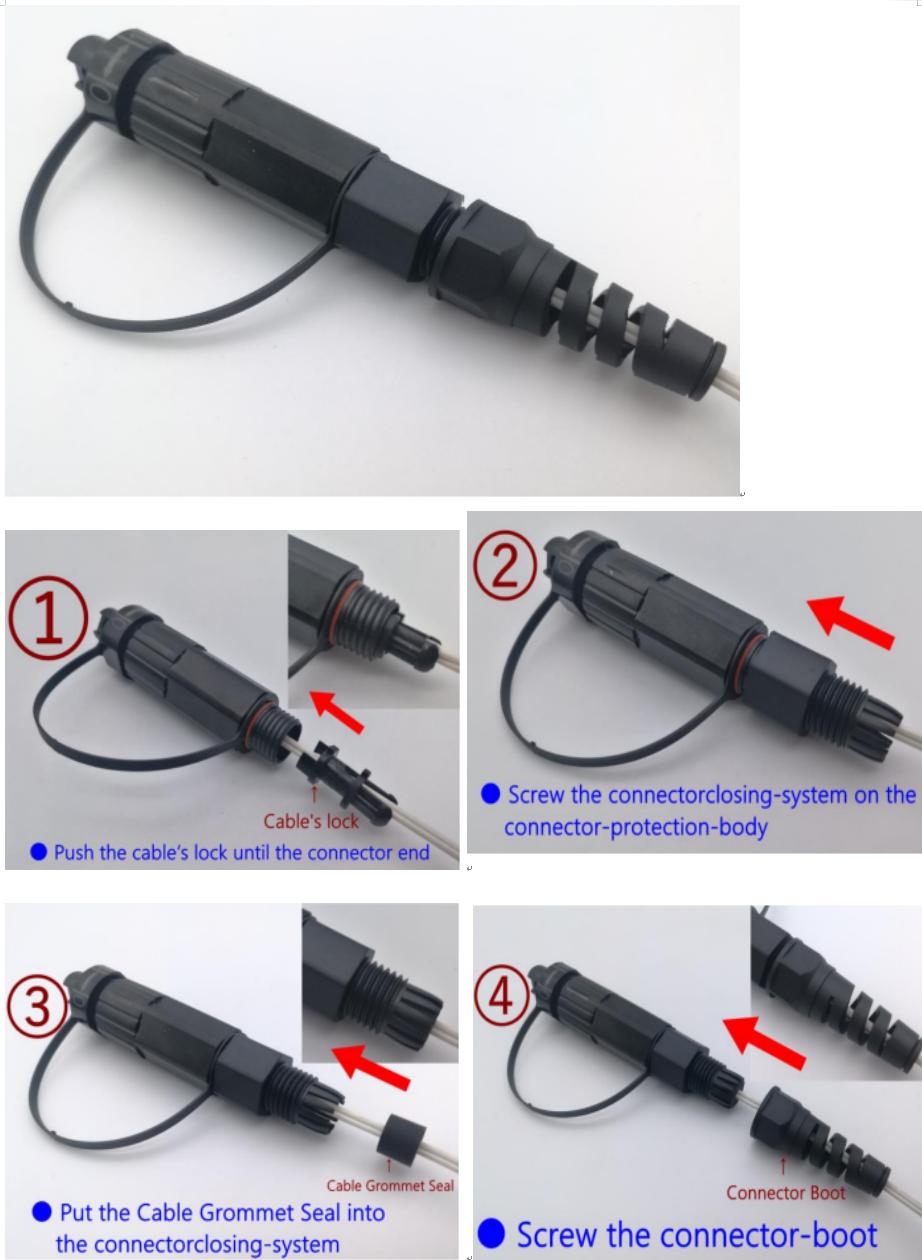

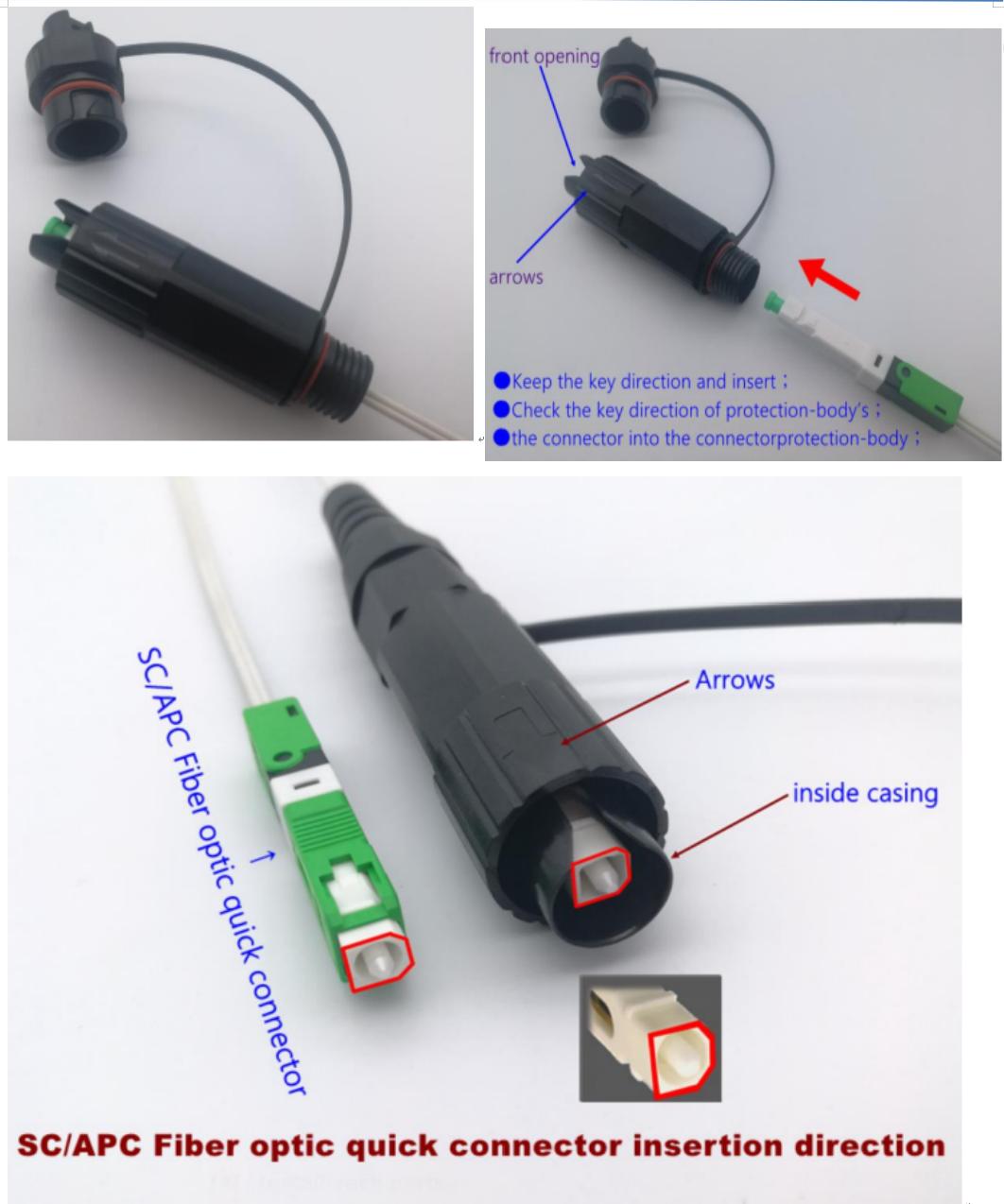

3. Insert the connector to the Connector's Protection body；

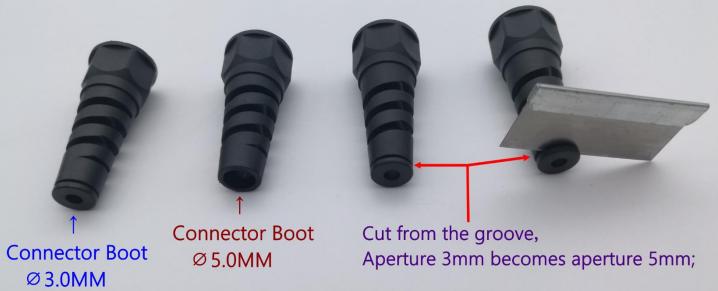

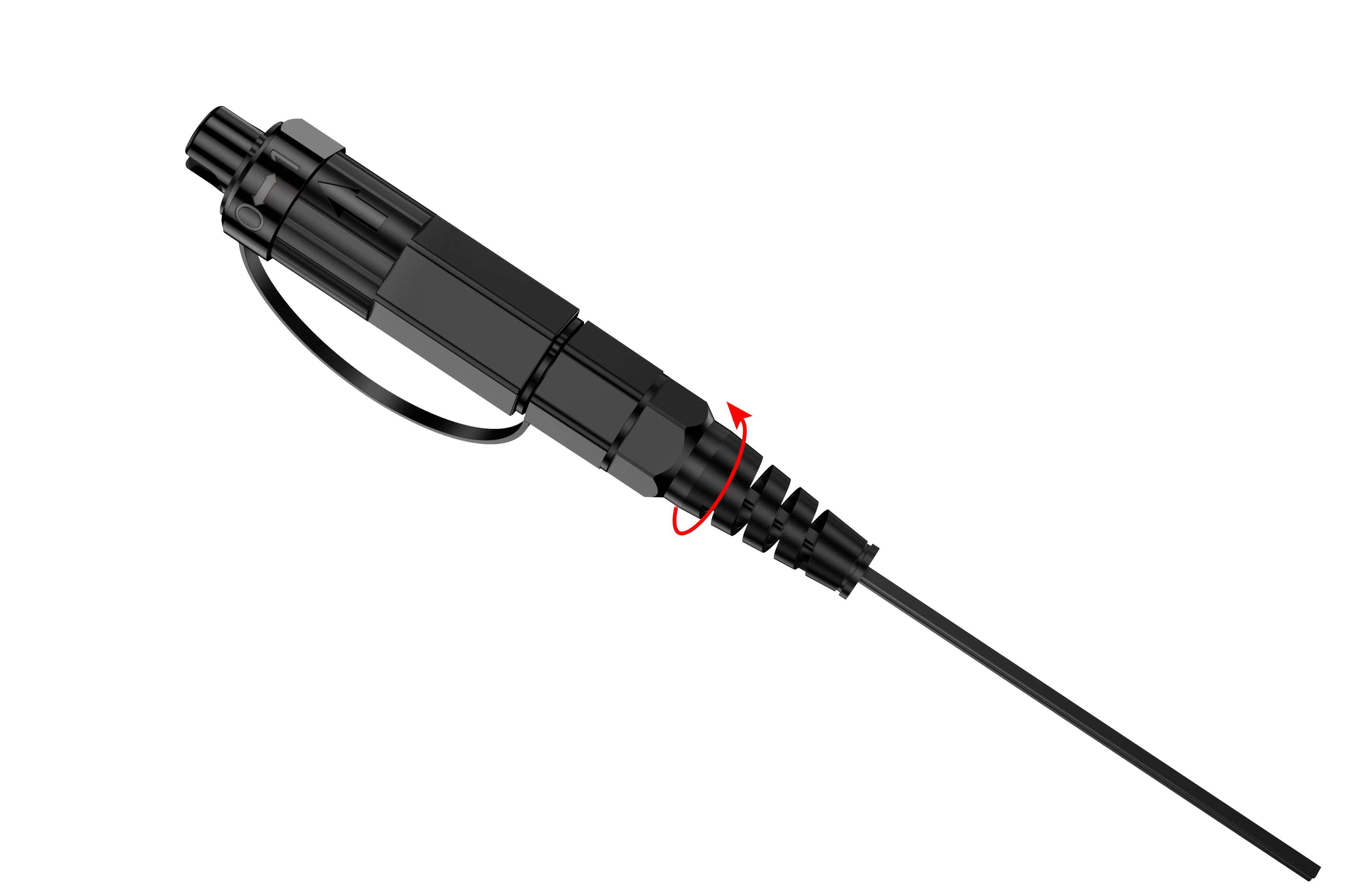

4. Install each parts；
5. Completion
