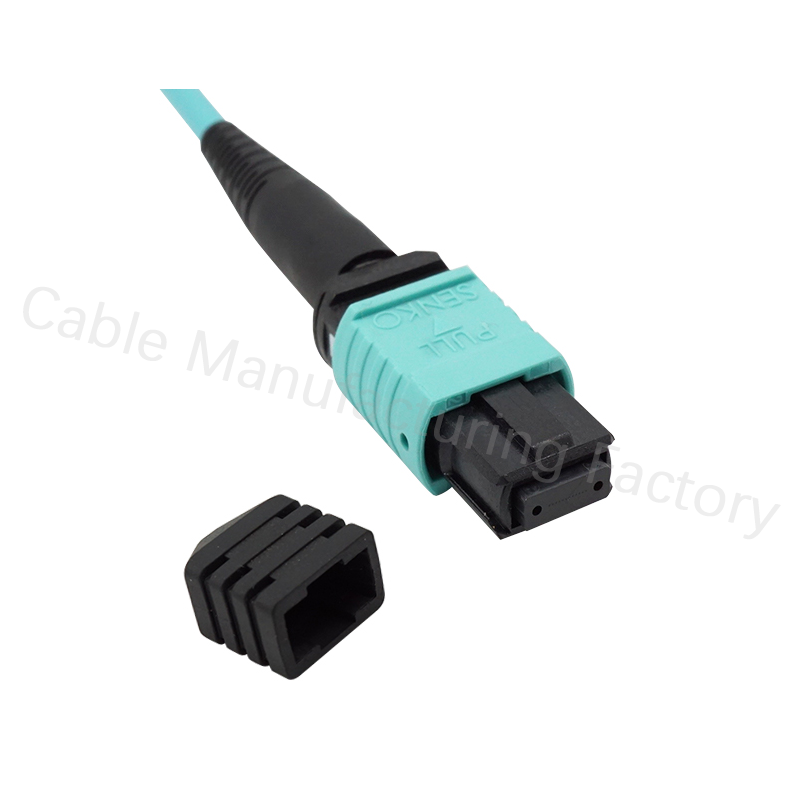

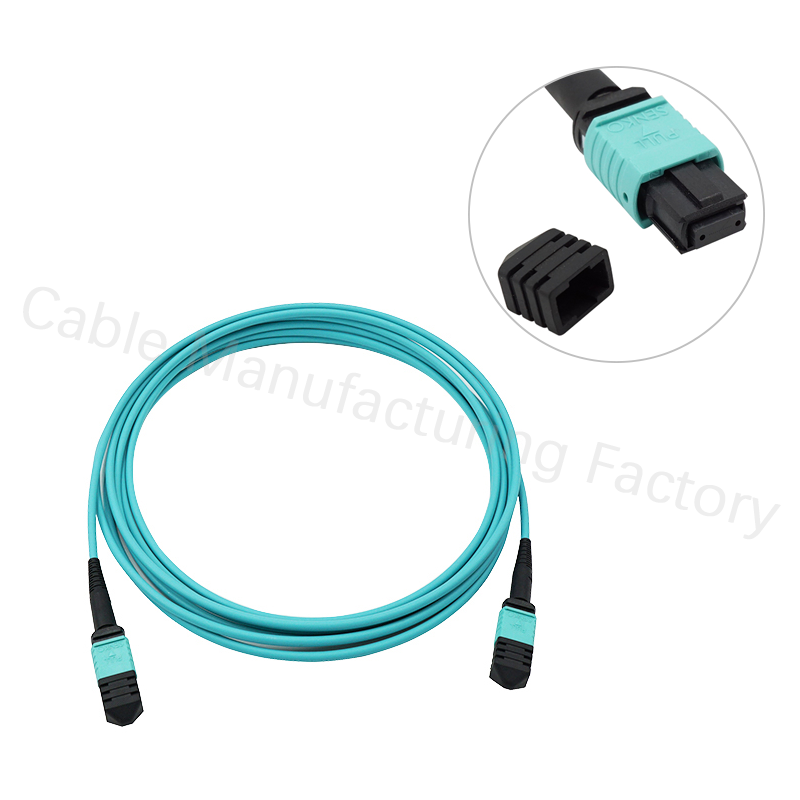

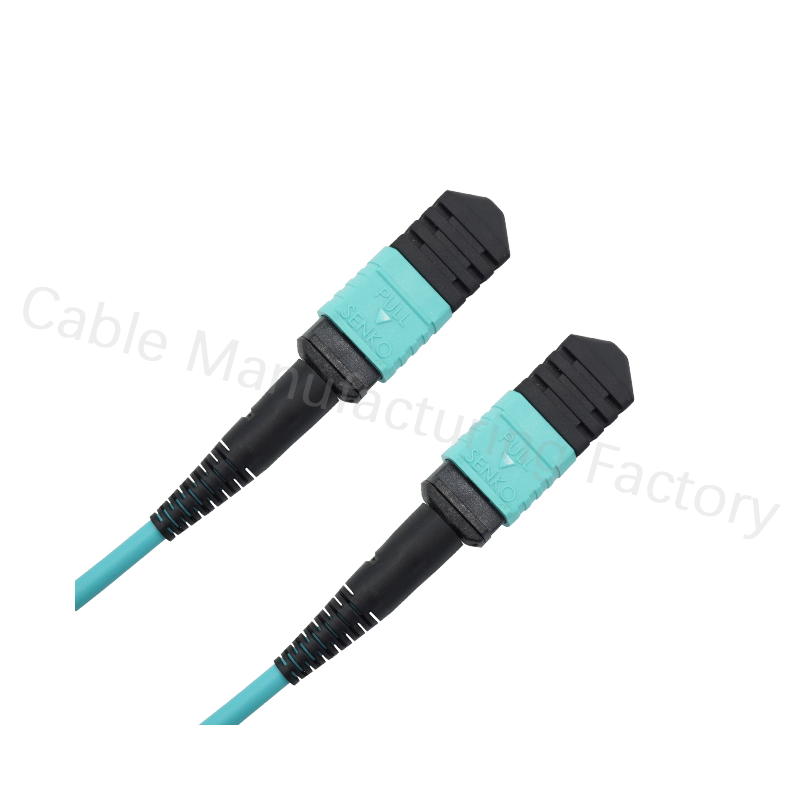

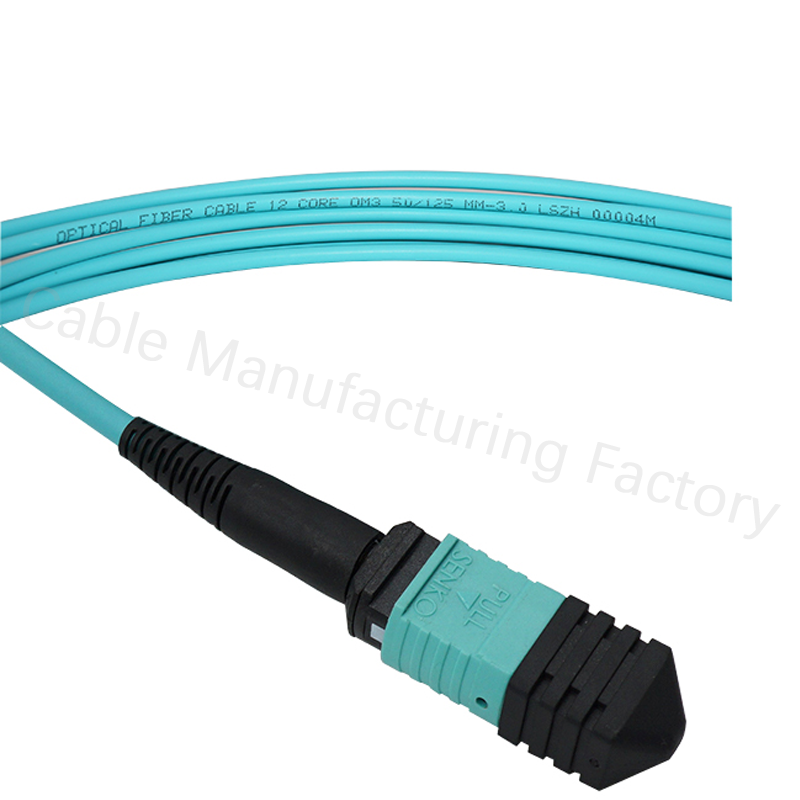

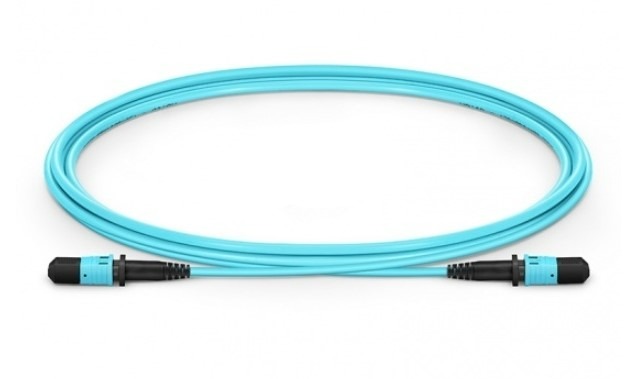

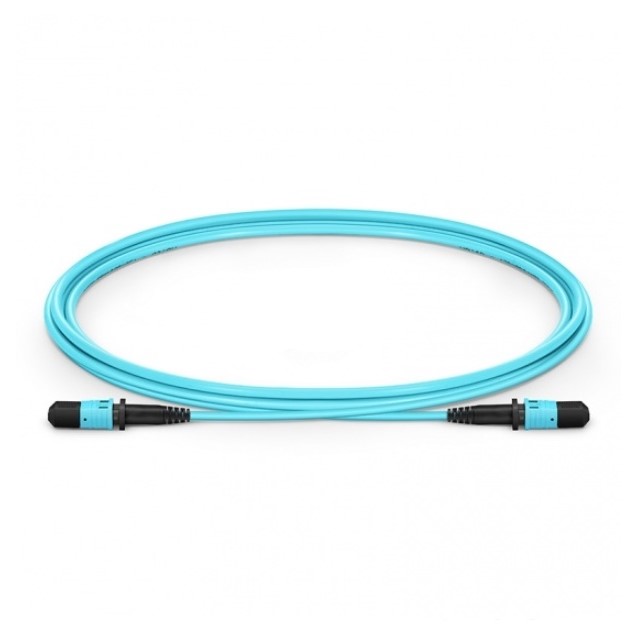

MPO patch cord are used in parallel optics and duplex transmission cross connect systems to increase cable density between switch and server cabinets. Designed for high- density fiber patching in data centers, they ensure peak performance throughout your local area network. Allow for rapid deployment of high-density, multi-port patch field connectivity for Storage Area Network.
|
• Pre-terminated and tested in factory to ensure transfer performance • Rapid configuration and networking, reduce installation time • Supports 40G and 100G network applications • Cable Jacket material: LSZH, OFNR, OFNP available • Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available |
 |
|
• Data communication network • Optical System Access network • Storage area networking fiber channel • High density architectures |
 |
| Model No.: |  |
 |
 |
| WBMPO24FSM | WBMPO24FOM3 | WBMPO24FOM4 | |
| Fiber Mode | OS2 9/125μm | OM3 50/125μm | OM4 50/125μm |
| Connector Type | MPO-MPO | MPO-MPO | MPO-MPO |
| Cores | 24 cores | 24 cores | 24 cores |
| Polarity | Type A, Type B, Type C | ||
| Wavelength | 1310/1550nm | 850/1300nm | 850/1300nm |
| Cable Jacket | Low Smoke Zero Halogen (LSZH) | ||
| Cable Jacket Color | Yellow | Aqua | Magenta |
| Glass Fiber | G.657.A1 | Bend Insensitive Fiber | Bend Insensitive Fiber |
| Min. Bend Radius (Optical Fiber) | 10mm | 7.5mm | 7.5mm |
| Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) | 20/10D (Dynamic/Static) | 20/10D (Dynamic/Static) |
| Insertion Loss | ≤0.35dB | ≤0.35dB | ≤0.35dB |
| Return Loss | ≥60dB | ≥20dB | ≥20dB |
| Attenuation | ≤0.35dB/km at 1310nm, ≤0.21dB/km at 1550nm | ≤2.3dB/km at 850nm, ≤0.6dB/km at 1300nm | ≤2.3dB/km at 850nm, ≤0.6dB/km at 1300nm |
