FTTx Fiber Management

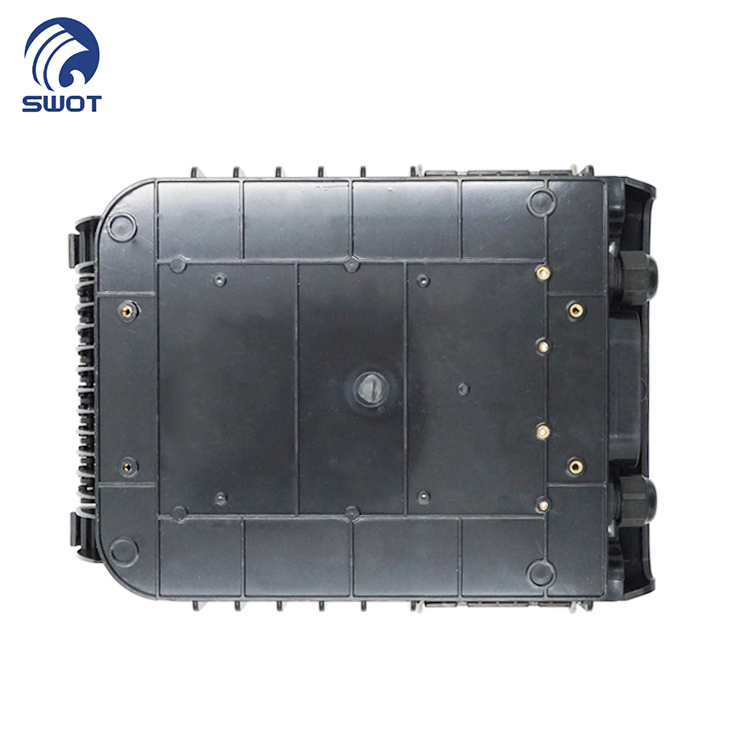

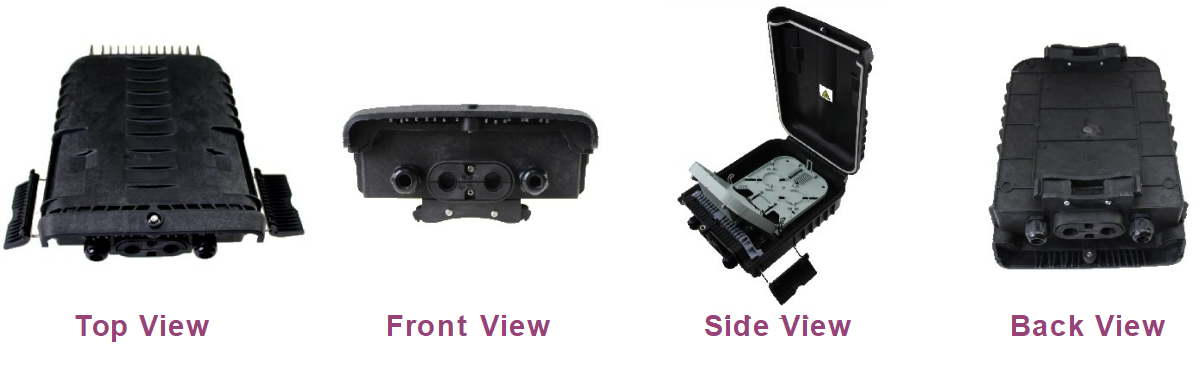

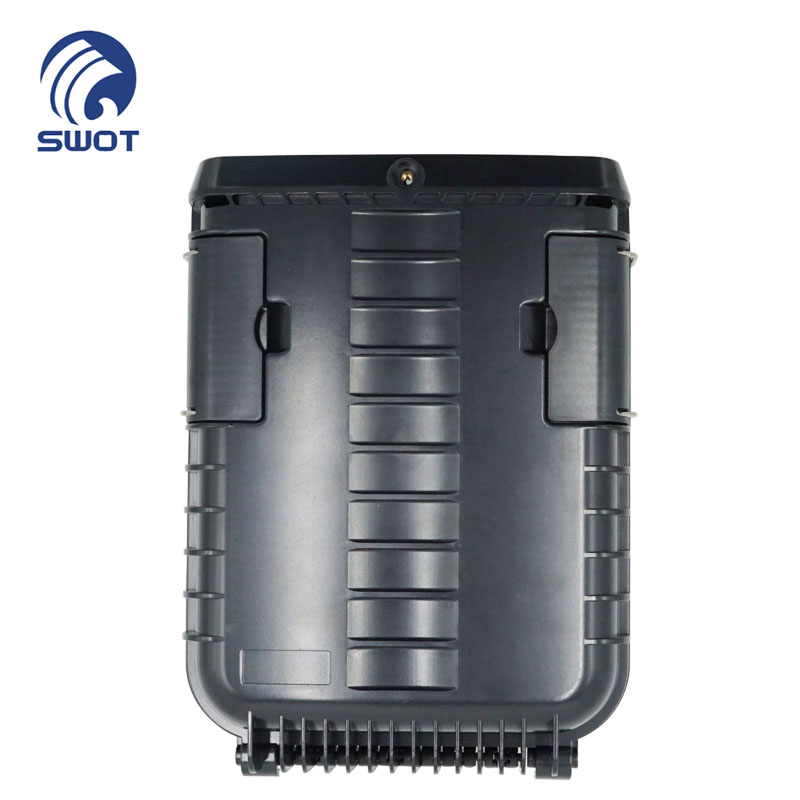

H19016 fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

• The box casing is made of industrial plastic PP+GF material. Outdoor application and good UV resistant.

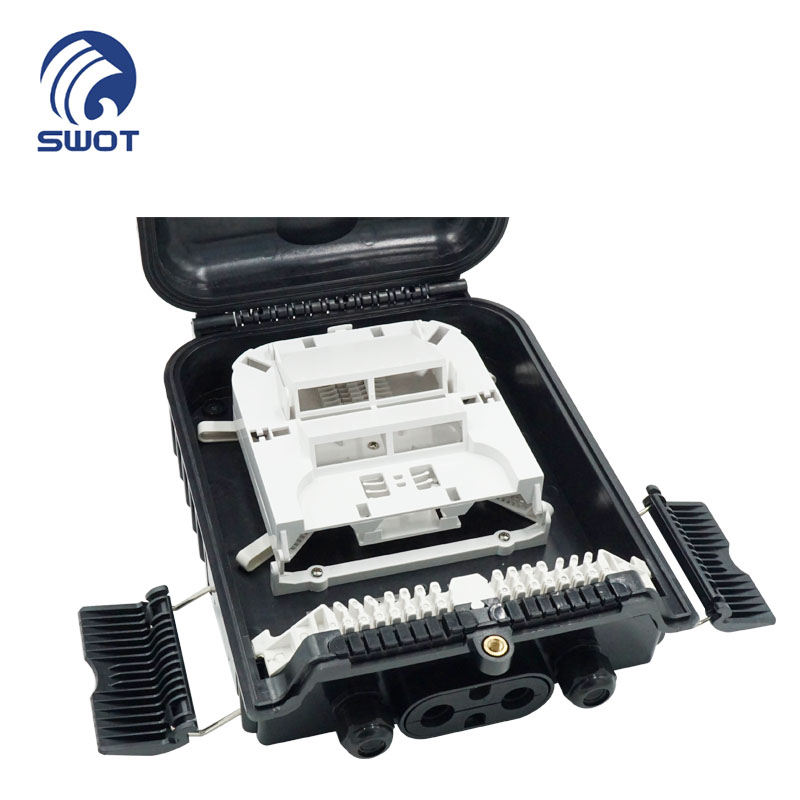

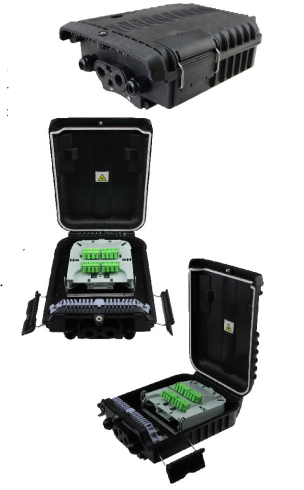

• Maximum 16F splice capacity, 2-steps patch panel for 16 x adapters Neat cabling, easy for maintenance and expansion.
• Fiber bend radius control more than 35mm.

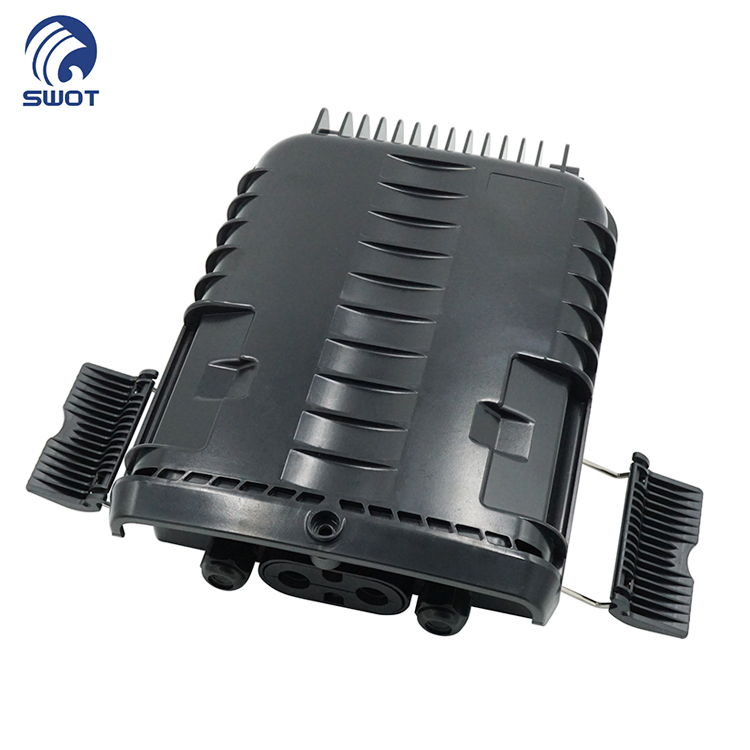

• 180 degree access with 2pcs of buckled lock structure.
• Designed position for 2pcs of 1x8 or 1pcs of 1x16 PLC Splitter. Protection level: IP65.

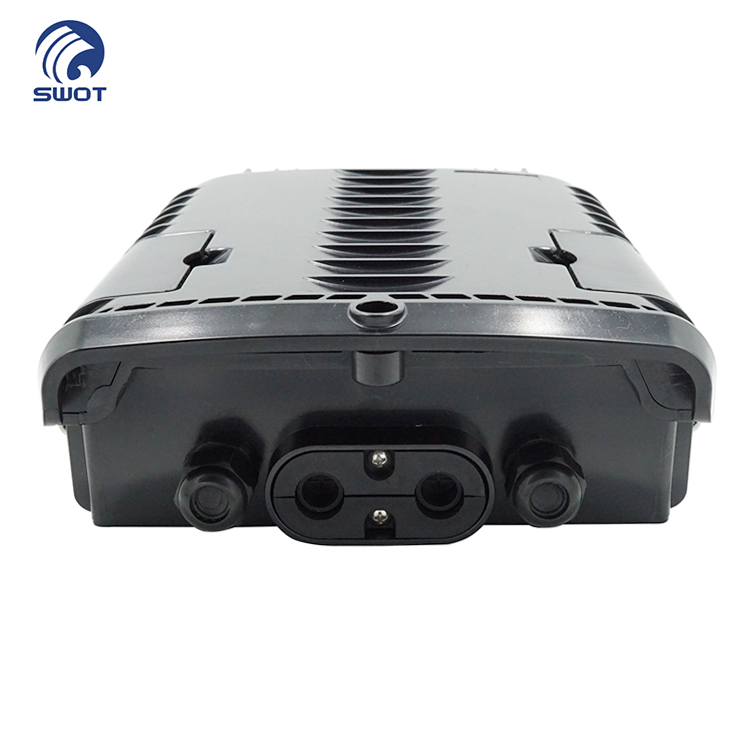

• 1 mid- span cable entrance(10-16.5mm) for uncut cable and 2
• reser ved cable entrances for distribution cable gland(8-13.5mm).

Splice cassette, wall mounted kits, fiber protective sleeves, patch panel for 16 x adapters, cable protection tube, key, PG

13.5 cable glands for distribution por ts.

Pole mounted kits.
