GJPJV 48 Core Indoor Micro Unit Fiber Optic Cable (4×12 Subunits) OFNR Riser Rated Single Mode Multi Mode Aramid Reinforced Water-Blocking Indoor Backbone Cable for Data Center Vertical Riser Structured Cabling
GJPJV 48 Core Indoor Micro Unit Fiber Optic Cable (4×12 Subunits) OFNR Riser Rated Single Mode Multi Mode Aramid Reinforced Water-Blocking Indoor Backbone Cable for Data Center Vertical Riser Structured Cabling
GJPJV 48 Core Indoor Micro Unit Fiber Optic Cable (4×12 Subunits) OFNR Riser Rated Single Mode Multi Mode Aramid Reinforced Water-Blocking Indoor Backbone Cable for Data Center Vertical Riser Structured Cabling
GJPJV 48 Core Indoor Micro Unit Fiber Optic Cable (4×12 Subunits) OFNR Riser Rated Single Mode Multi Mode Aramid Reinforced Water-Blocking Indoor Backbone Cable for Data Center Vertical Riser Structured Cabling
GJPJV 48 Core Indoor Micro Unit Fiber Optic Cable (4×12 Subunits) OFNR Riser Rated Single Mode Multi Mode Aramid Reinforced Water-Blocking Indoor Backbone Cable for Data Center Vertical Riser Structured Cabling
GJPJV 48 Core Indoor Micro Unit Fiber Optic Cable (4×12 Subunits) OFNR Riser Rated Single Mode Multi Mode Aramid Reinforced Water-Blocking Indoor Backbone Cable for Data Center Vertical Riser Structured Cabling

GJPJV 48 Core Indoor Micro Unit Fiber Optic Cable (4×12 Subunits) OFNR Riser Rated Single Mode Multi Mode Aramid Reinforced Water-Blocking Indoor Backbone Cable for Data Center Vertical Riser Structured Cabling

48F GJPJV OFNR Indoor Breakout Fiber Cable 4×12 Micro Unit Multi Mode Optical Cable

Get a Quote Contact Us
  • Description
  • Feature
  • Technical data
  • Performance Parameters Of Optical Fiber
Is there a problem? Please contact us to serve you!

Is there a problem? Please contact us to serve you!

+86-13265756131
[email protected]
Inquiry
Our GJPJV 48-core indoor micro-unit fiber optic cable is a high-density, riser-rated OFNR backbone cable designed for vertical riser runs in commercial buildings, enterprise campus networks and large-scale data center distribution.

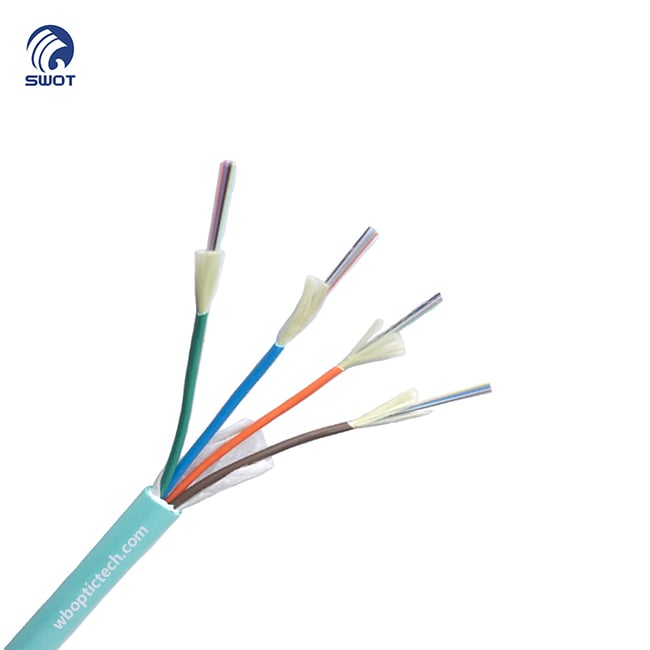

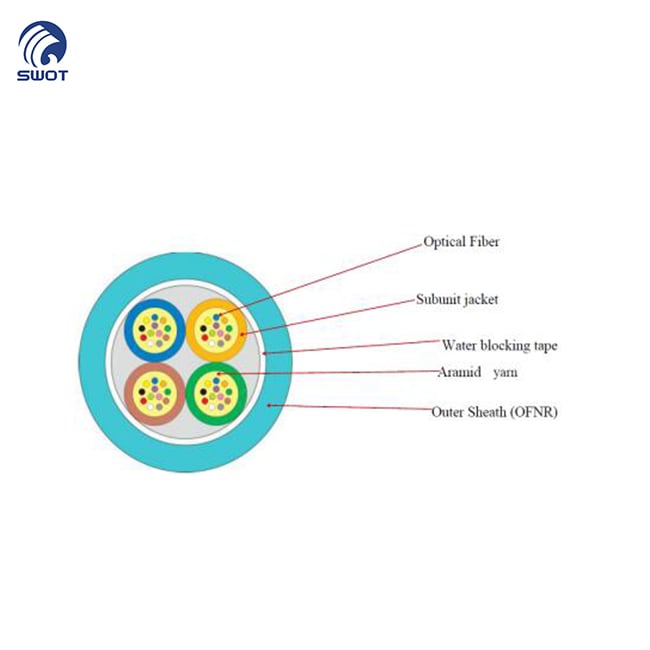

This all-dielectric cable adopts a 4×12 micro subunit structure: 4 independent color-coded micro tubes, each preloaded with 12 color-coded single-mode optical fibers. Wrapped with water-blocking tape and reinforced by high-tensile aramid yarn, the cable is finished with a flame-retardant OFNR PVC outer sheath.
Each subunit can be separated independently for floor-level fiber branching without extra breakout kits, greatly cutting field installation time and labor costs. Compatible with ITU-T G.652D & G.657A1 low-bend single-mode fibers, it delivers ultra-low signal attenuation for long-distance stable data transmission. We also support custom multimode fiber configurations including A1b(OM1), OM2, OM3 and OM4 laser-optimized multimode fibers to satisfy short-distance high-bandwidth data center interconnection demands. Compact 8.5mm outer diameter saves valuable conduit and cable tray space, with stable performance across wide temperature ranges.

  • 4×12 Separable Micro Subunit Design
    4 independent subunits with 12 fibers each; split directly on-site without extra furcation kits, simplifies multi-floor branching & fiber management, cuts installation labor cost significantly.
  • OFNR Riser Flame-Retardant Jacket
    UL OFNR-rated non-flame-spreading outer sheath, restricts fire spread between building floors, compliant with indoor riser safety codes for offices, hospitals and malls.
  • Heavy-Duty Mechanical Protection
    Aramid yarn reinforcement delivers 2000N short-term tensile strength & 500N/CM short-term crush resistance; minimum bend radius: 30×OD during installation, 15×OD after installation, flexible for narrow vertical riser shafts.
  • Water-Blocking All-Dielectric Structure
    Built-in water-blocking tape prevents moisture penetration; metal-free fully dielectric design eliminates EMI/RFI interference, no grounding required.
  • Compact Slim Size & Wide Temperature Adaptability
    Only 8.5mm outer diameter, lightweight at 58kg/km to save conduit space; stable working range -40℃~+60℃, storage -10℃~+70℃, installation 0℃~+40℃.
  • Standard Color Coding & Custom Marking
    Industry-standard color sequence for fibers & micro tubes; ink-jet meter marking printed every 1m, customizable brand text, job number and cable specs on jacket.

No. of cable

/

48

Design(Fiber×Tube)

/

4*12

Strength Member

Material

/

Aramid Yarn

Inner Sheath

Material

mm

PVC

Diameter/Thickness

(±0.03mm)

2.0/0.25

Outer Sheath

Material

mm

PVC

Thickness

(±0.2mm)

1.0

colour

aqua

Cable Diameter(±0.2mm)

mm

8.5

Cable Wetght(±10.0kg/km)

kg/km

58

Min. bending radius

During installation

mm

30.0×Cable-φ

After installation

15.0×Cable-φ

Temperature range

（℃）

Installation

℃

+0~+40

Transport&Storage

-10~+70

Operation

-40~+60

Optical Fiber

G652D

G657A1

A1b(62.5/125um)

OM2(50/125um)

OM3-300(50/125um)

OM4(50/125um)

Wavelength(nm)

1310/1550

1310/1550

850/1300

850/1300

850/1300

850/1300

Attenuation

0.8/0.6

0.4/0.3

3.5/1.5

3.5/1.5

2.8/0.7

2.5/0.7

Bandwidth

-

-

200~800/200~1200

160~800/200~1000

≥700/≥500

≥1500/≥700

Colour Of Outer Sheath

Yellow

Yellow

Orange

Orange

Aqua

Violet
