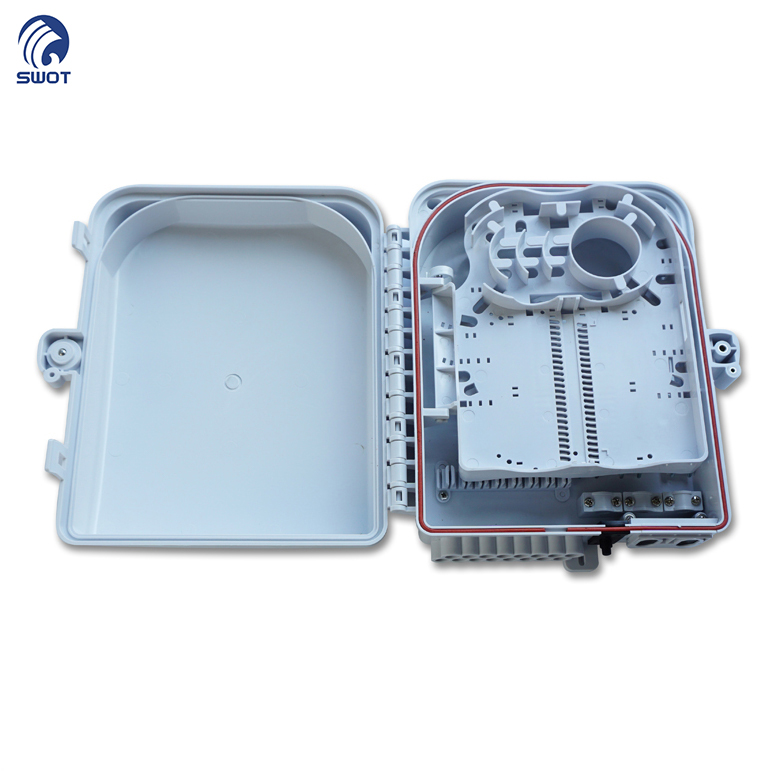

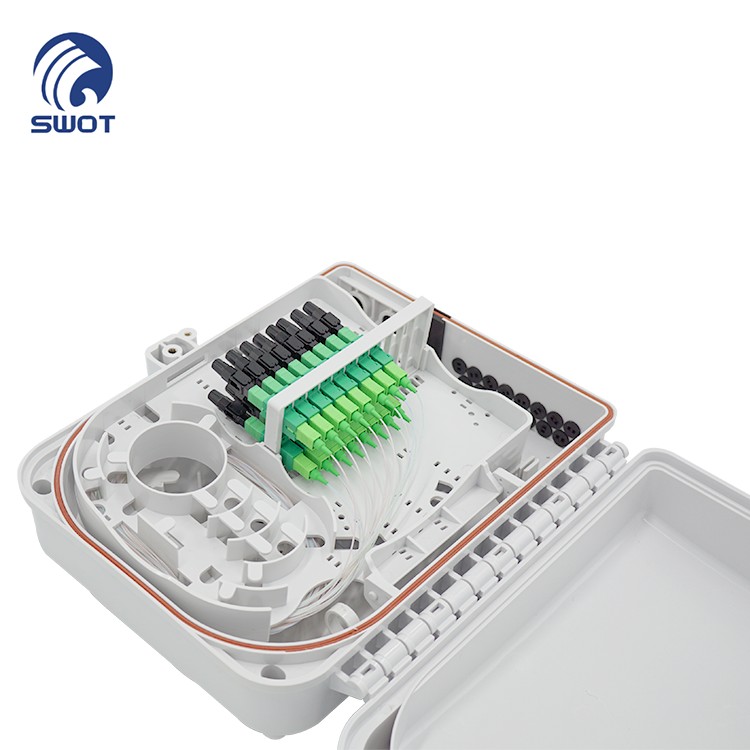

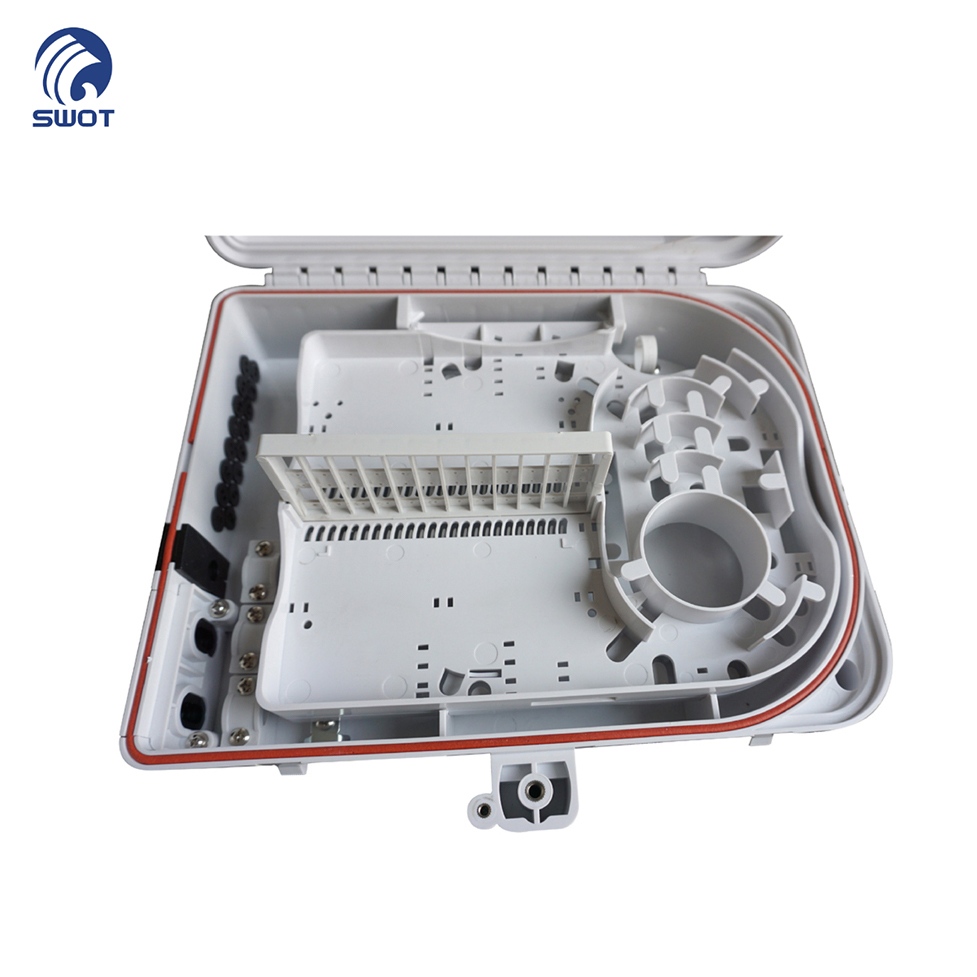

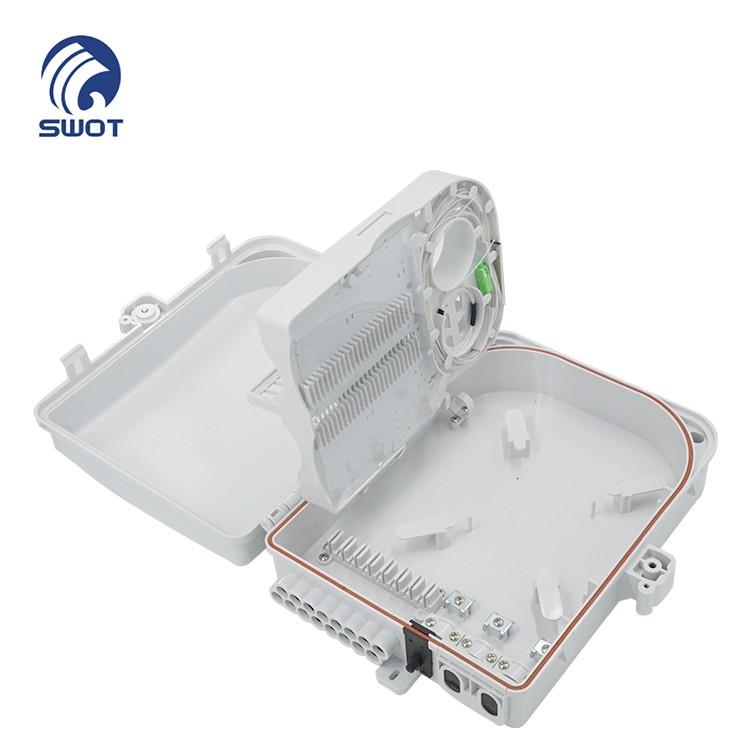

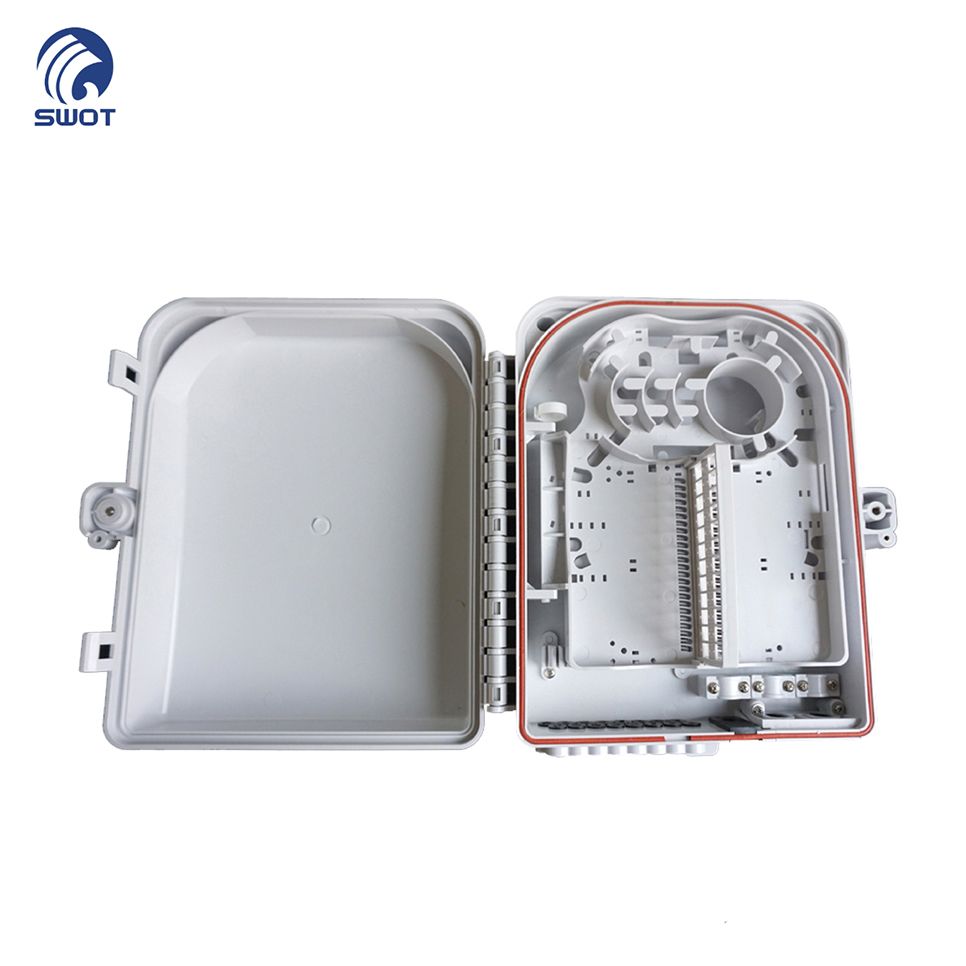

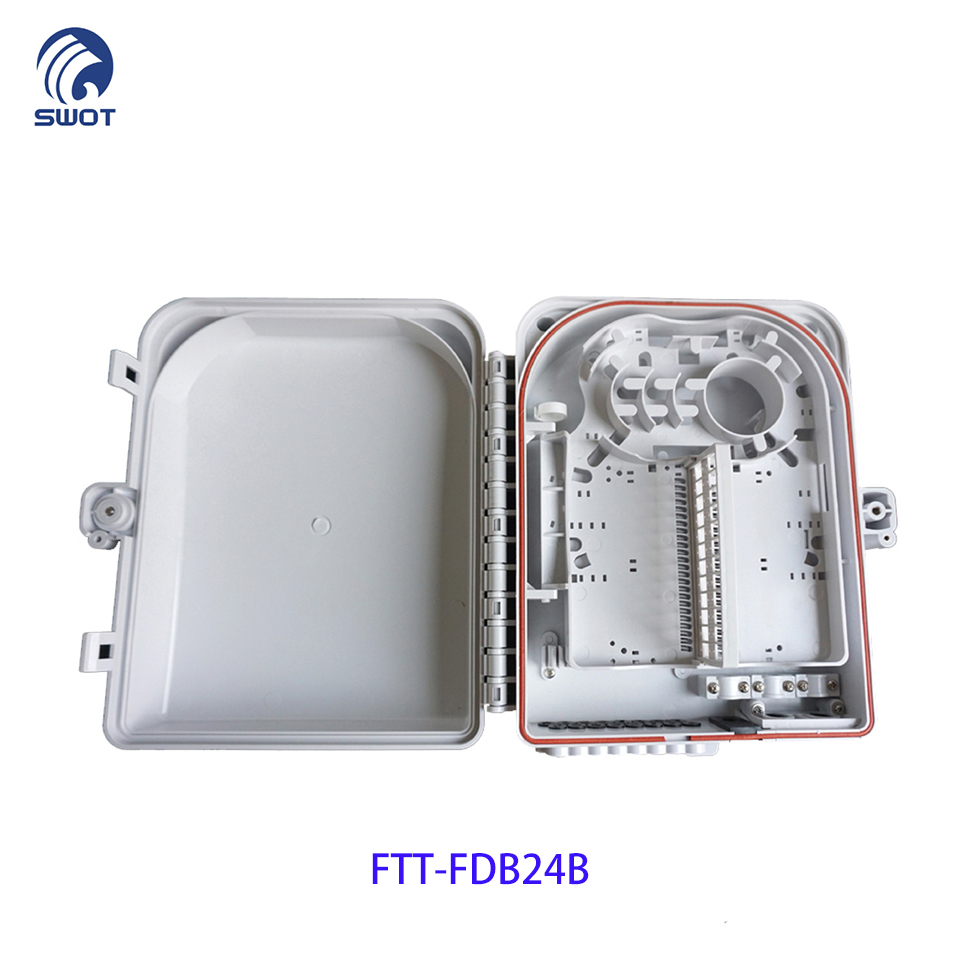

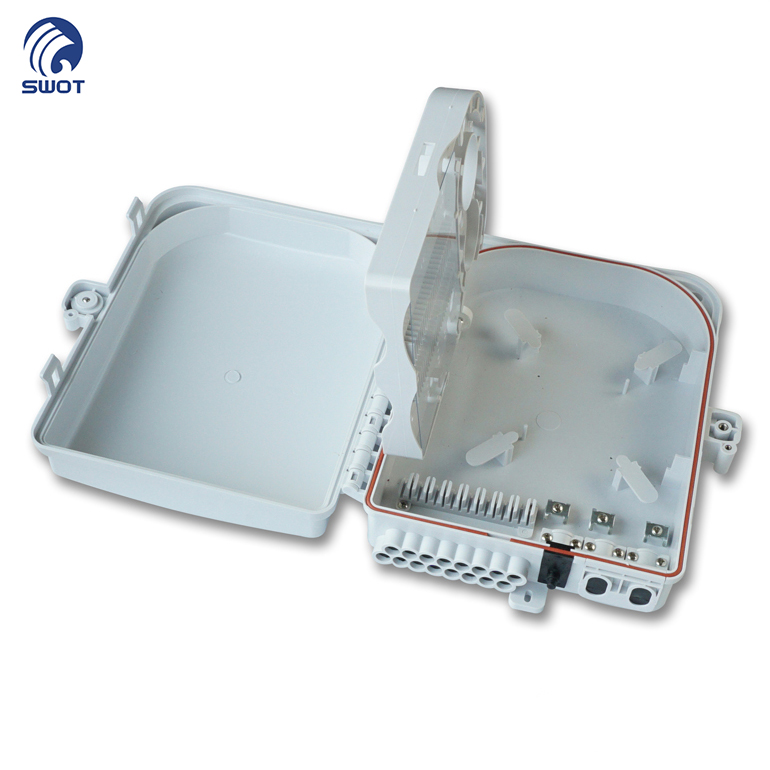

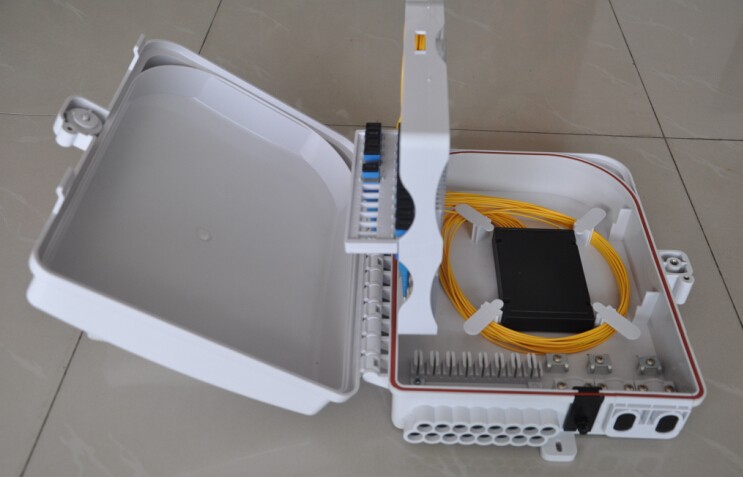

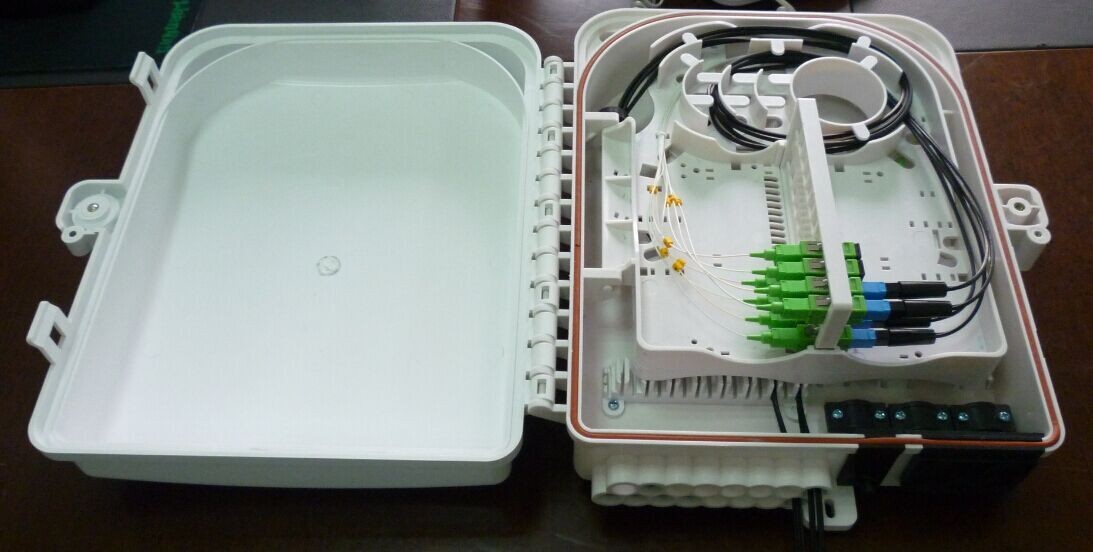

FTT-FDB24-B is made of good quality composite plastic and applied widely in FTTH splitting projects. PLC splitter, box splitter and inserting plate style splitter can be installed into FTT-FDB24-B
Installation style：wall-mounting or pole-mounting（optional）
Capacity：splicing up to 24cores.
 |
 |

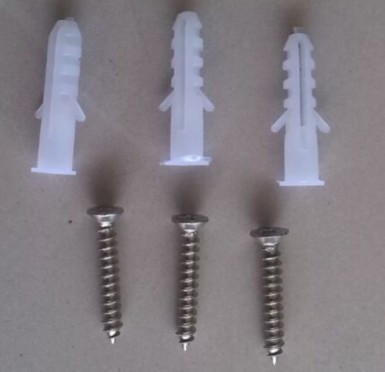

| Expansion screw（wall-mounting accessories） | Stainless steel hoop（pole-mounting accessories） |
|
FDB0324 Accessories |
|||||
|
No. |
Item |
Standard |
Unit |
Quantity |
|
|
1、 |
plastic wrench |
|
pc |
1 |
|
|
2、 |
bare fiber protective tube |
Ø4mm |
m |
0.3 |
|
|
3、 |
insulating tape |
|
pc |
1 |
|
|
4、 |
figure label |
1-24 |
set |
1 |
|
|
5、 |
heat-shrinkable tube |
60mm |
pc |
16 |
|
|
6、 |
nylon ribbon |
60mm |
pc |
4 |
For heat-shrinkable tube |
|
7、 |
nylon ribbon |
100mm |
pc |
4 |
|
|
8、 |
self-tapping screw |
2*8mm |
pc |
52 |
For adaptor installation |
|
9、 |
self-tapping screw |
4*25mm |
pc |
3 |
For wall mounting installation |
|
10、 |
plastic expansion screw |
4mm |
pc |
3 |
|
|
Name |
Item Number |
Size(mm) |
Weight |
Quantity/CTN |
Weight/CTN |
Dimension/CTN |
|
Splitting Box |
FTT-FDB24-B |
295*335*117 |
1.9KGS |
8 |
15.8KGS |
510*380*460mm |
