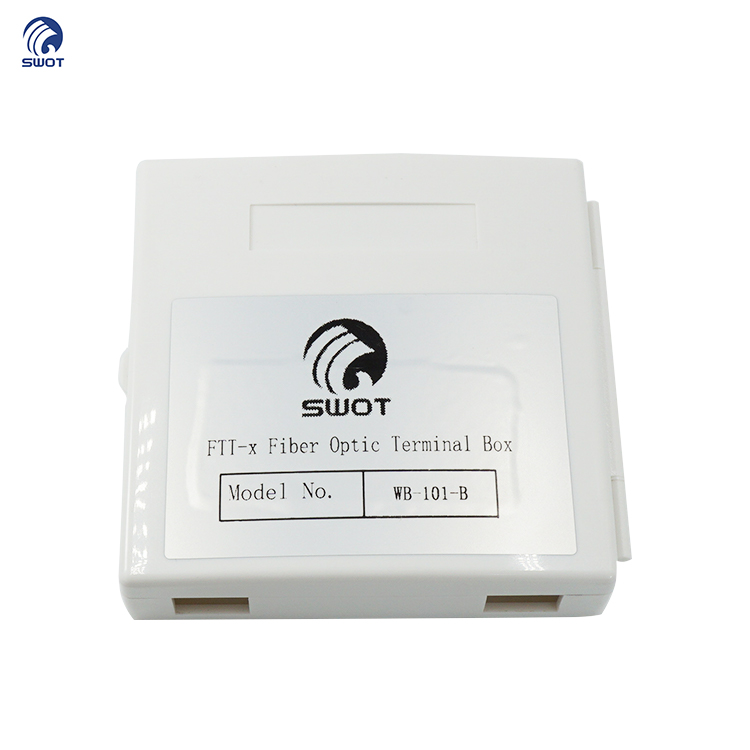

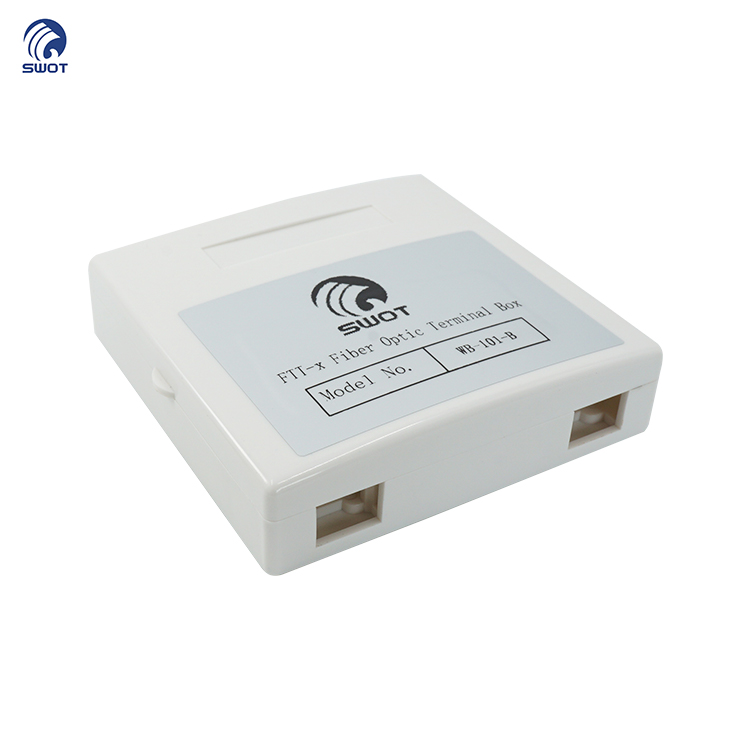

The fiber optic faceplate is a terminal product for FTTH (Fiber to the Home) access, used in homes or work areas to provide users with optical interfaces and data interfaces.

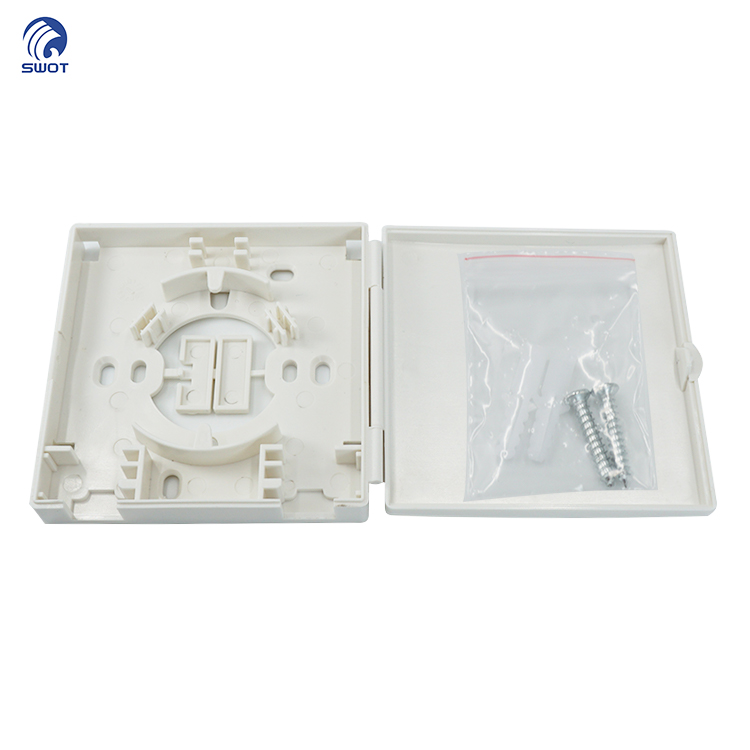

1. Faceplate box main body

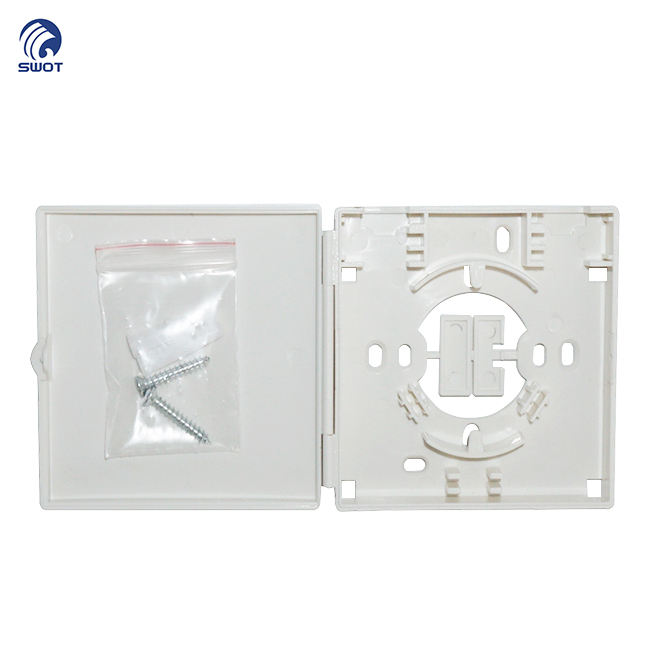

2. Plastic expansion screws
- Material: ABS flame-retardant / ABS non-flame-retardant
- Applicable optical cable diameter: Φ2, Φ3, or 2×3, 2×5 drop cables
- Number of cable ports: 6
- Maximum number of fusion splices: 2 (single core)
- Fiber bending radius: ≥40mm
- Additional loss of fiber storage tray: ≤0.01dB
- Temperature range: -40°C to +70°C
- Lateral pressure resistance: ≥2000N / 10 cm
- Impact resistance: ≥20N·m

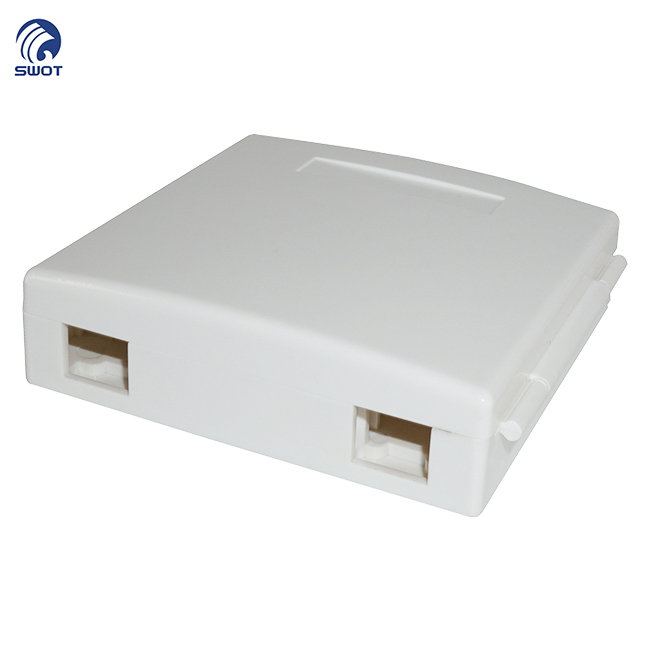

- Provides two SC adapter ports

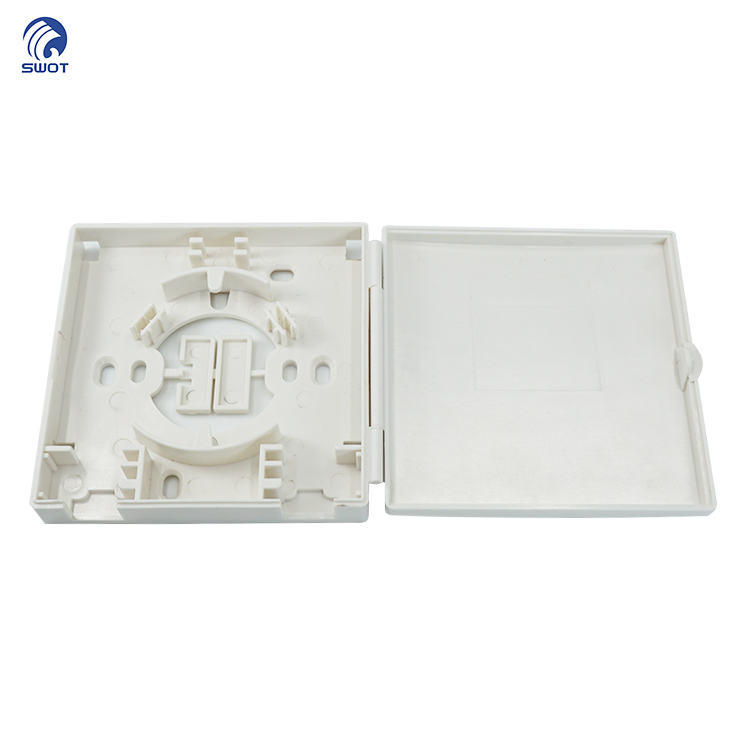

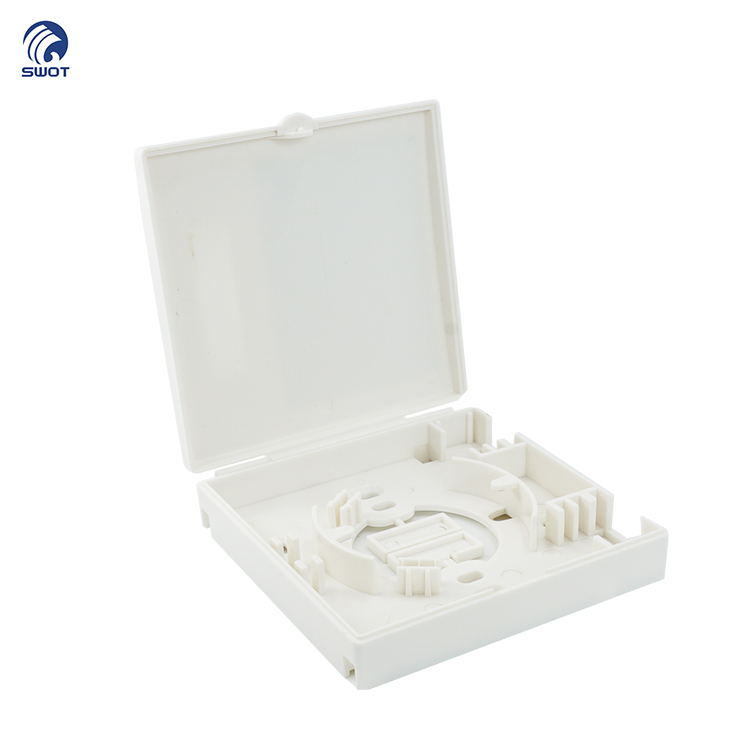

- Internal storage for excess fiber, easy to use and maintain

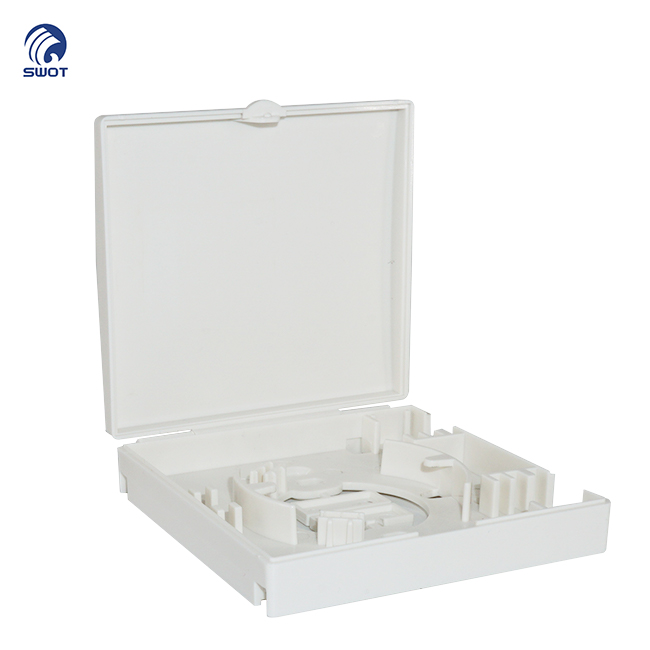

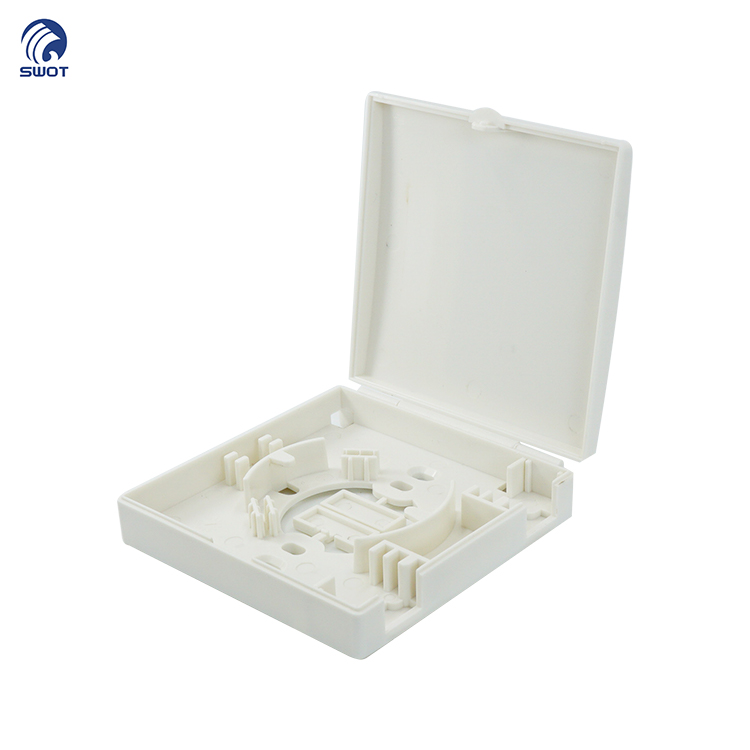

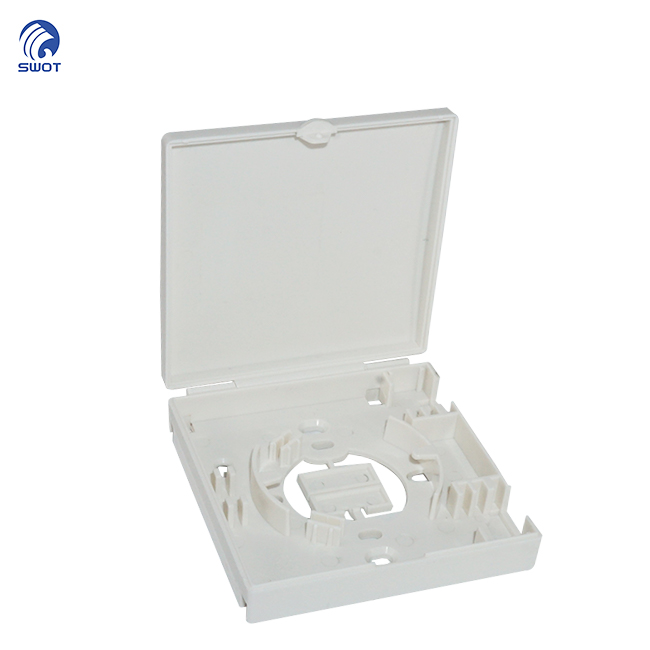

- Hinged cover plate for more convenient installation and maintenance
- Surface-mounted junction box for easy installation
- Wide range of applications, especially suitable for multi-story and high-rise residents
- Fully enclosed faceplate box for better dust protection
|
Product Model |
Product Dimensions (mm) (L×W×H) |
Inner Packing Weight (kg) |
Outer Packing Dimensions (mm) (L×W×H) |
Outer Packing Weight (kg) |
Outer Packing Quantity (pcs) |
|
GPMB-H |
86×86×23 |
0.048 |
500×390×320 |
13.5 |
250 |
 |
 |
 |
| ③ Install the adapter. | ② Introduce the optical cable into the box, lead it into the coil core for reserved coiling, and bring the end to the splicing area of the coil core. | ① Connect the pigtail connector to the adapter, coil the cable around the spool, and lead the end to the fusion splice point at the core of the spool. |
 |
 |
|
| ④ Splice or use a mechanical connector to join the pigtail and the引入 optical cable, close the cover, and the installation is complete. |

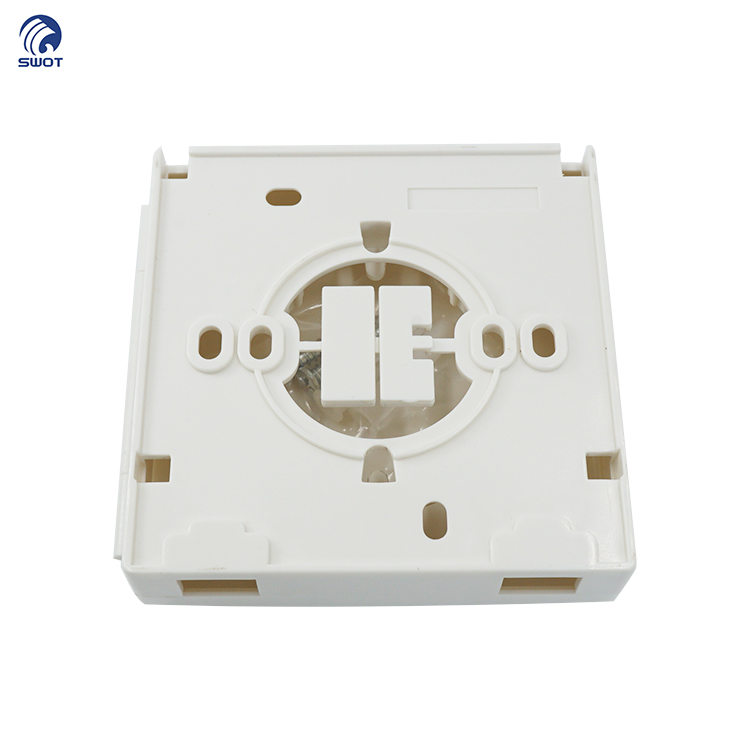

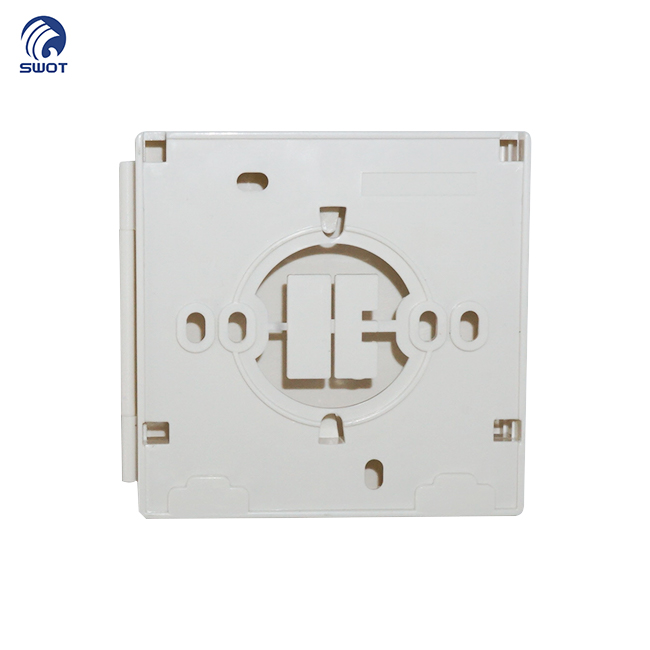

Mounting hole diameter: Φ4 |
