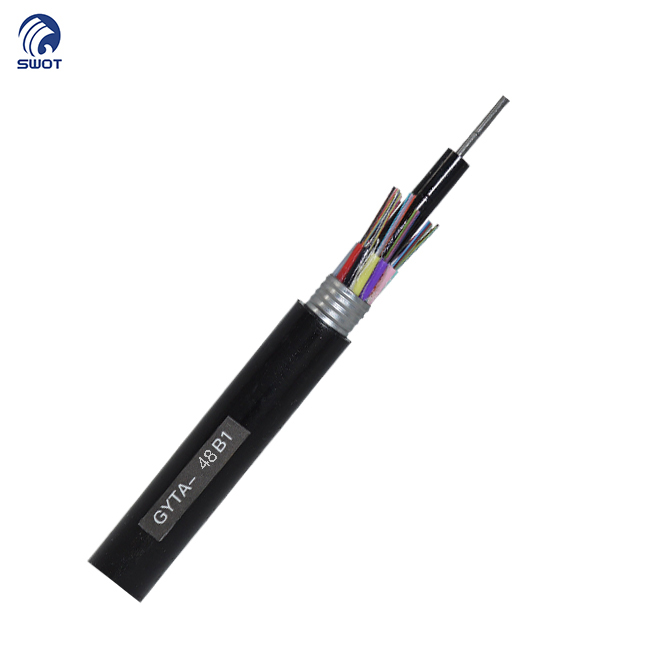

GYTA Aluminum Tape Moisture-Proof Duct Underground Fiber Optic Cable Outdoor Conduit Communication Cable 2-288 Core

Professional Duct Conduit Underground Installation

APL Aluminum Tape Full Moisture-Proof Structure

Stable Long-Distance Transmission Performance

Anti-Aging Outdoor Pipe Network Backbone Cable

Description
Feature
Technical data

Is there a problem? Please contact us to serve you!

+86-13265756131

[email protected]

Description

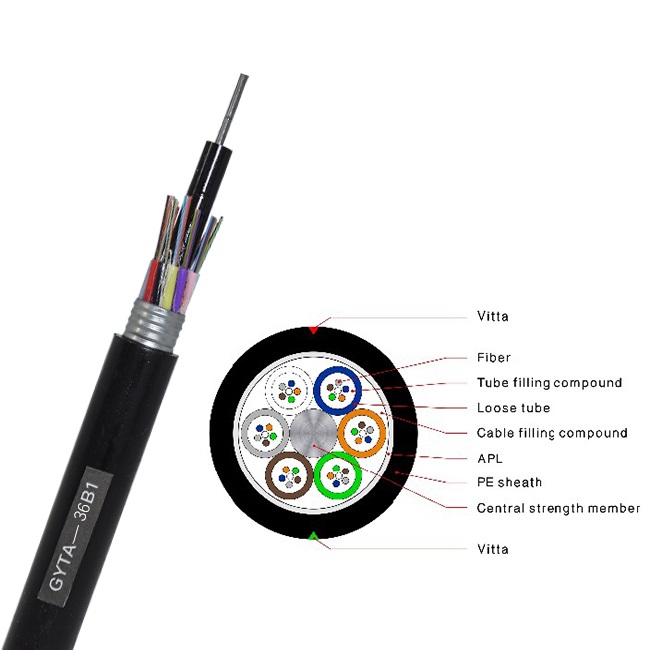

GYTA is a classic duct-type underground fiber optic cable, designed for pipeline penetration and buried protection installation. It adopts layer-stranded loose tube structure and aluminum tape comprehensive moisture-proof layer, with excellent waterproof and signal stability. It is widely used in urban underground pipe network, long-distance communication backbone and conventional outdoor pipeline wiring projects.

Feature

• Aluminum tape longitudinal wrapping moisture-proof layer, comprehensive anti-moisture protection

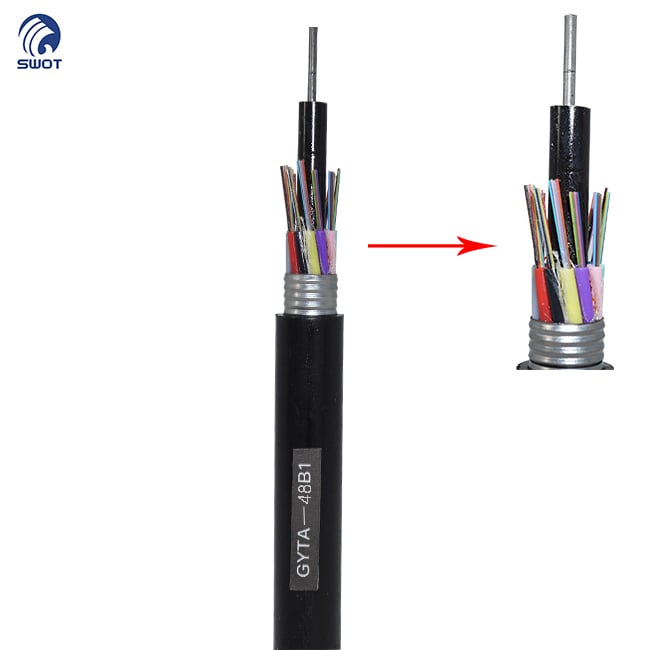

• Loose tube stranded structure to avoid fiber extrusion damage

• Full gel-filled water-blocking system, adapting to humid pipeline environment

• High-density PE sheath, UV and corrosion resistant

• Ultra-low attenuation, stable long-distance signal transmission

• Full core count specifications, suitable for large-scale pipe network engineering

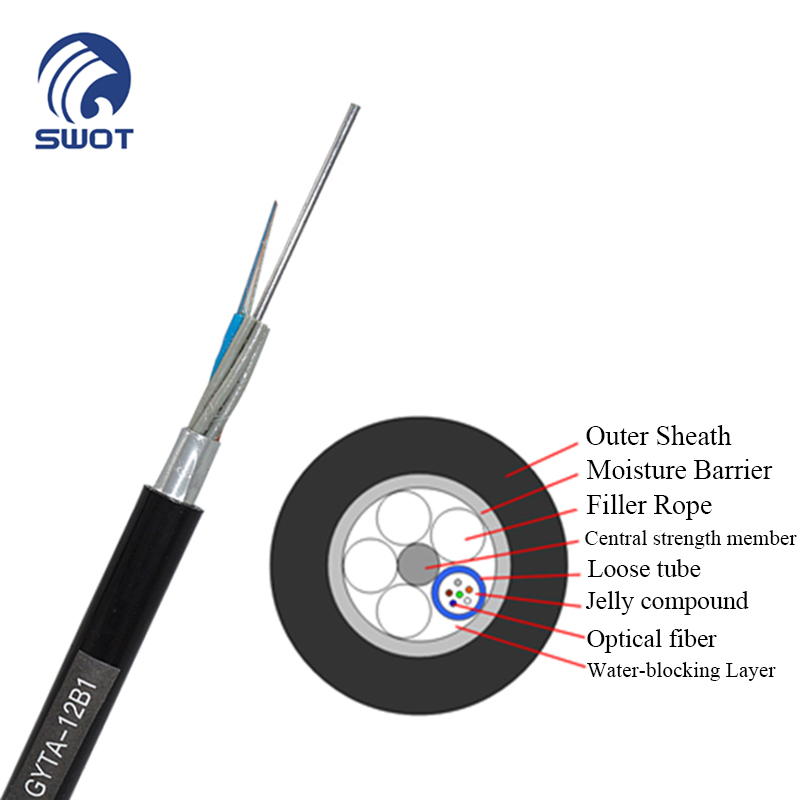

Technical data

No. of cable			8	16			24	48
Fiber Model			G.652D
Design(StrengthMember+Tube&Filler)			1+5
Central Strength Member		Material	Steel Wire
		Diameter（±0.05）mm	1.4
Loose Tube		Material	PBT
		Diameter（±0.1）mm	1.7
		Thickness（±0.05）mm	0.32
		The Max.Core NO./Tube	4	4			6	12
Filler Rope		Material	PP
		Diameter（±0.1）mm	1.7
Water Blocking layer（Material）			Flooding Compound
Armoring		Material	Aluminum tape
		Thickness（±0.05）mm	0.25
Outer Sheath		Material	MDPE
		Thickness（±0.1）mm	1.7
Cable Diameter（±0.2）mm			9.1		9.1	9.1			9.4
Cable Weight（±10）kg			70
Min. bending radius	Without Tension		10.0×Cable-φ
	Under Maximum Tension		20.0×Cable-φ
Temperature range （℃）		Installation	-20~+60
		Transport&Storage	-40~+70
		Operation	-40~+70
