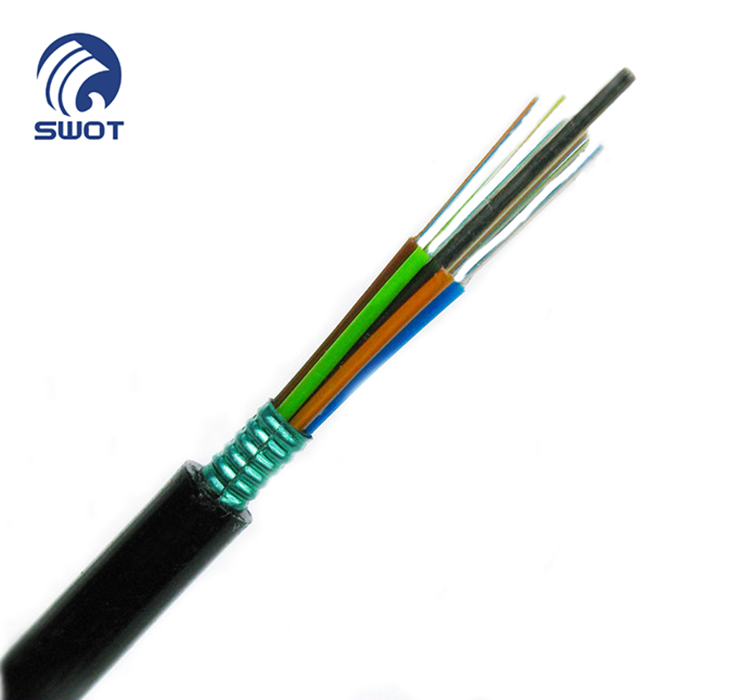

GYTS Steel Tape Armored Duct Underground Fiber Optic Cable Anti-Extrusion Conduit Outdoor Cable 2-288 Core

Steel Tape Armor Enhanced Mechanical Protection

Duct & Aerial Dual-Purpose Installation

Anti-Crush & Anti-Damage Pipe Network Cable

High Stability Outdoor Communication Line

Description
Feature
Technical data

Is there a problem? Please contact us to serve you!

+86-13265756131

[email protected]

Description

GYTS is a steel tape armored duct-type fiber cable with enhanced mechanical performance. On the basis of waterproof and anti-aging structure, steel tape armor is added to effectively resist pipeline extrusion and external impact damage. It supports underground pipeline and aerial dual installation, and is suitable for urban pipe networks with complex laying conditions and high protection requirements.

Feature

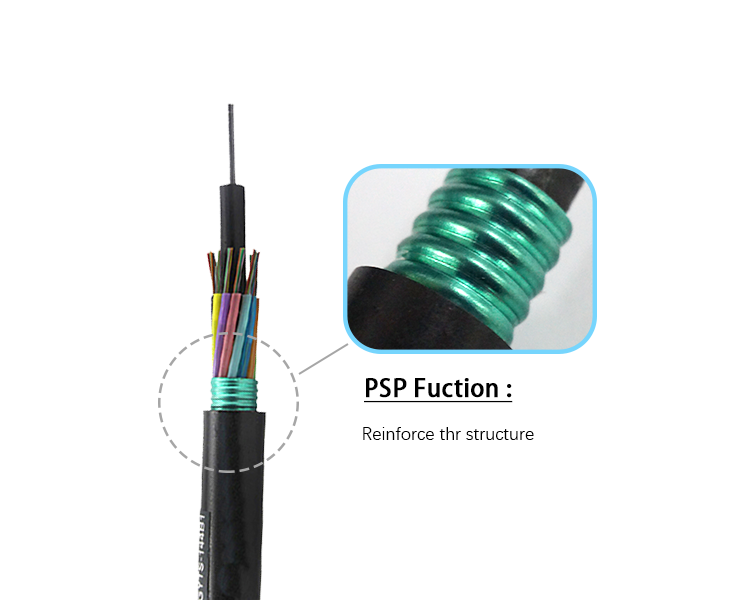

• Corrugated steel tape armor, greatly improved compression and impact resistance

• Compact stranded structure, stable cable body and not easy to deform

• Full gel-filled waterproof, long-term moisture-proof operation in pipelines

• PE anti-aging sheath, adapting to outdoor complex environment

• Dual-purpose for duct and aerial installation, wide application range

• Low transmission loss, reliable for backbone communication engineering

Technical data

No. of cable		4	24	48	96
Fiber Model		G.652D

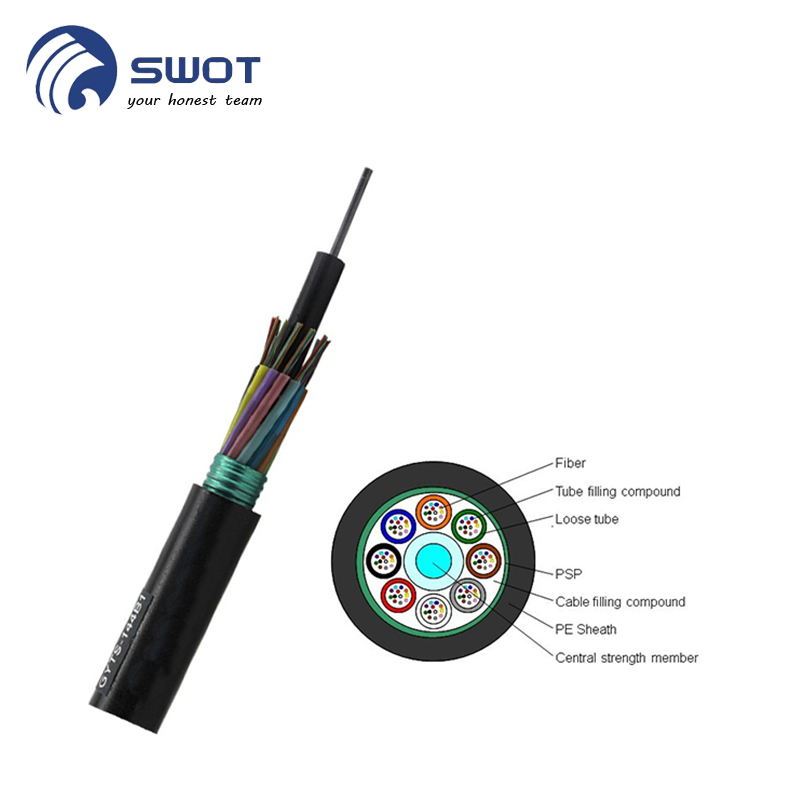

Design(Strength Member+Tube&Filler)		1+5		1+5	1+8
Central Strength Member	Material	Steel wire
	Diameter（±0.05）mm	1.4		1.4	2.0/3.2
Loose Tube	Material	PBT
	Diameter（±0.06）mm	1.7		1.9	1.9
	Thickness（±0.03）mm	0.32		0.35	0.35
	The Core NO./Tube	4	12	12	12
Filler Rope	Material	LDPE
	Color	White or gray
	No.	4	3	1	-
	Diameter（±0.06）mm	1.7	1.9	1.9	-
Water Blocking layer（Material）		Flooding Compound
Armoring	Material	Steel tape
	Thickness（±0.03）mm	0.25
Outer Sheath	Material	MDPE
	Thickness（±0.2）mm	1.8
Cable Diameter（±0.2）mm		9.0	9.0	9.7	11.6
Cable Weight（±10）kg		85	85	95	160
Min. bending radius	Without Tension	10.0×Cable-φ
	Under Maximum Tension	20.0×Cable-φ
Temperature range （℃）	Installation	-20~+60
	Transport&Storage	-40~+70
	Operation	-40~+70
