4-24Core Indoor Fiber Optic Cable 3.0mm | Aramid Reinforced Breakout Distribution Optical Cable for Data Center LAN Structured Cabling
4-24Core Indoor Fiber Optic Cable 3.0mm | Aramid Reinforced Breakout Distribution Optical Cable for Data Center LAN Structured Cabling
4-24Core Indoor Fiber Optic Cable 3.0mm | Aramid Reinforced Breakout Distribution Optical Cable for Data Center LAN Structured Cabling
4-24Core Indoor Fiber Optic Cable 3.0mm | Aramid Reinforced Breakout Distribution Optical Cable for Data Center LAN Structured Cabling
4-24Core Indoor Fiber Optic Cable 3.0mm | Aramid Reinforced Breakout Distribution Optical Cable for Data Center LAN Structured Cabling
4-24Core Indoor Fiber Optic Cable 3.0mm | Aramid Reinforced Breakout Distribution Optical Cable for Data Center LAN Structured Cabling
4-24Core Indoor Fiber Optic Cable 3.0mm | Aramid Reinforced Breakout Distribution Optical Cable for Data Center LAN Structured Cabling
4-24Core Indoor Fiber Optic Cable 3.0mm | Aramid Reinforced Breakout Distribution Optical Cable for Data Center LAN Structured Cabling
4-24Core Indoor Fiber Optic Cable 3.0mm | Aramid Reinforced Breakout Distribution Optical Cable for Data Center LAN Structured Cabling
4-24Core Indoor Fiber Optic Cable 3.0mm | Aramid Reinforced Breakout Distribution Optical Cable for Data Center LAN Structured Cabling

4-24Core Indoor Fiber Optic Cable 3.0mm | Aramid Reinforced Breakout Distribution Optical Cable for Data Center LAN Structured Cabling

12 Core Indoor Multimode Fiber Distribution Cable Aramid Strength Member

Get a Quote Contact Us
  • Description
  • Feature
  • Technical data
  • Performance Parameters Of Optical Fiber
Is there a problem? Please contact us to serve you!

Is there a problem? Please contact us to serve you!

+86-13265756131
[email protected]
Inquiry

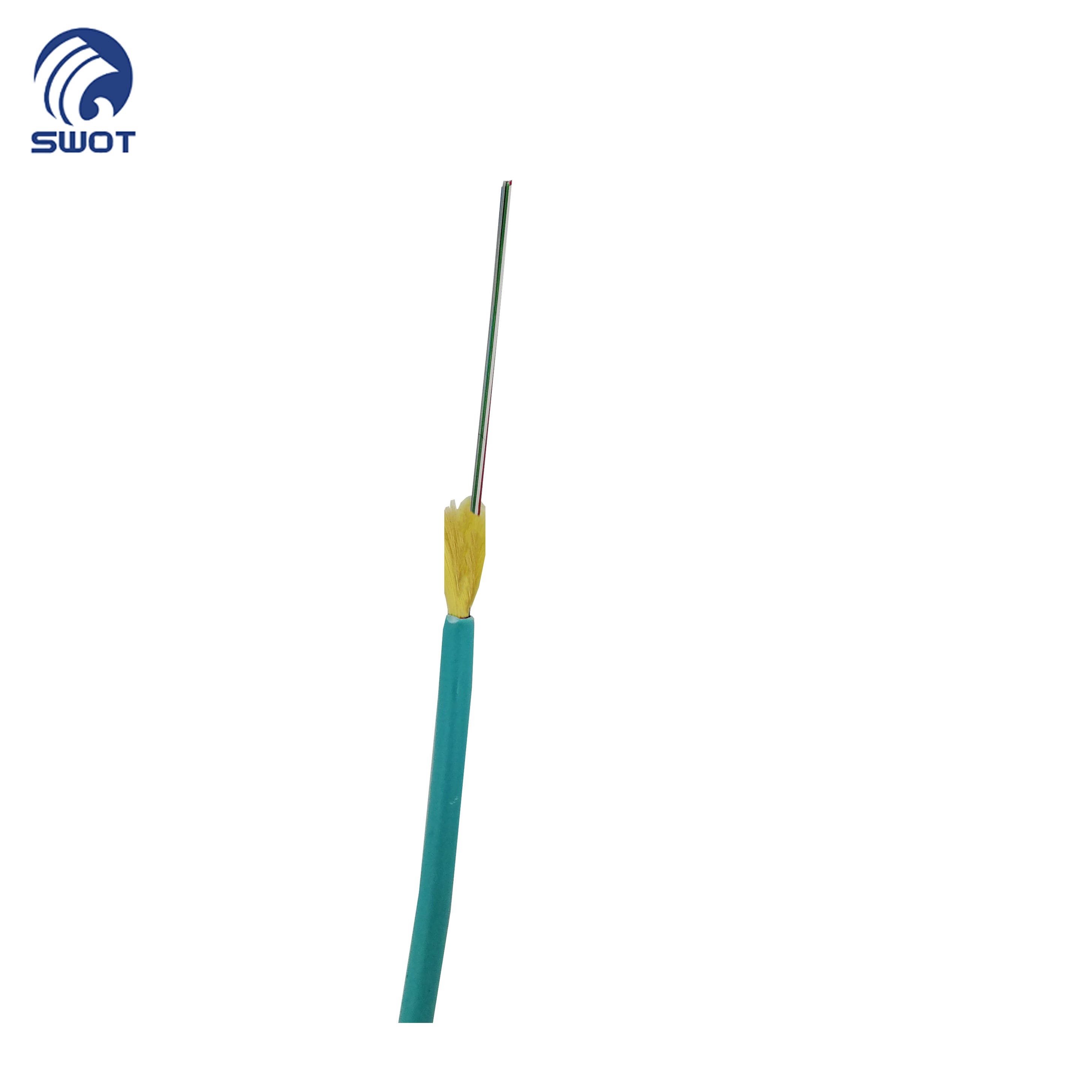

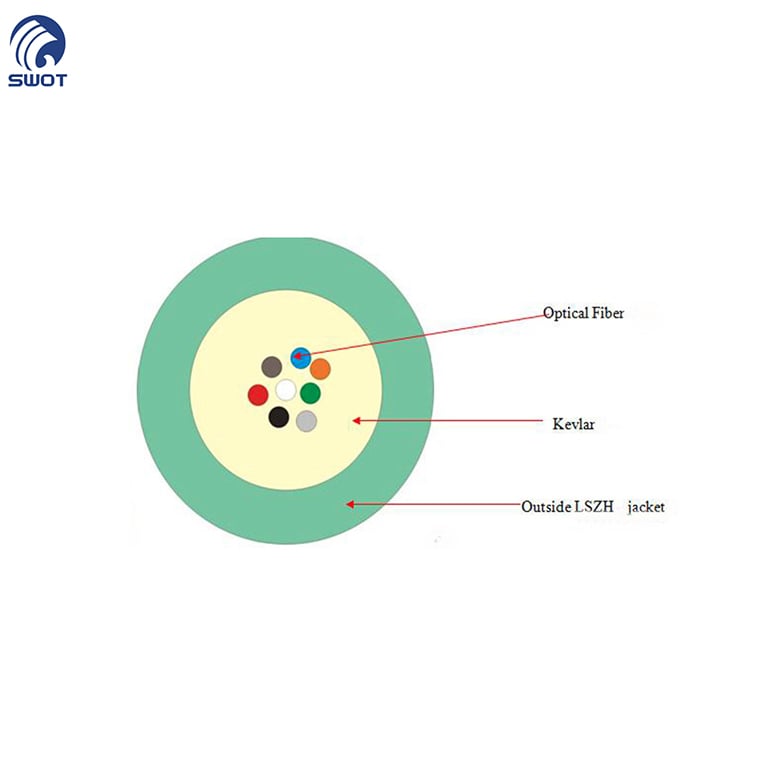

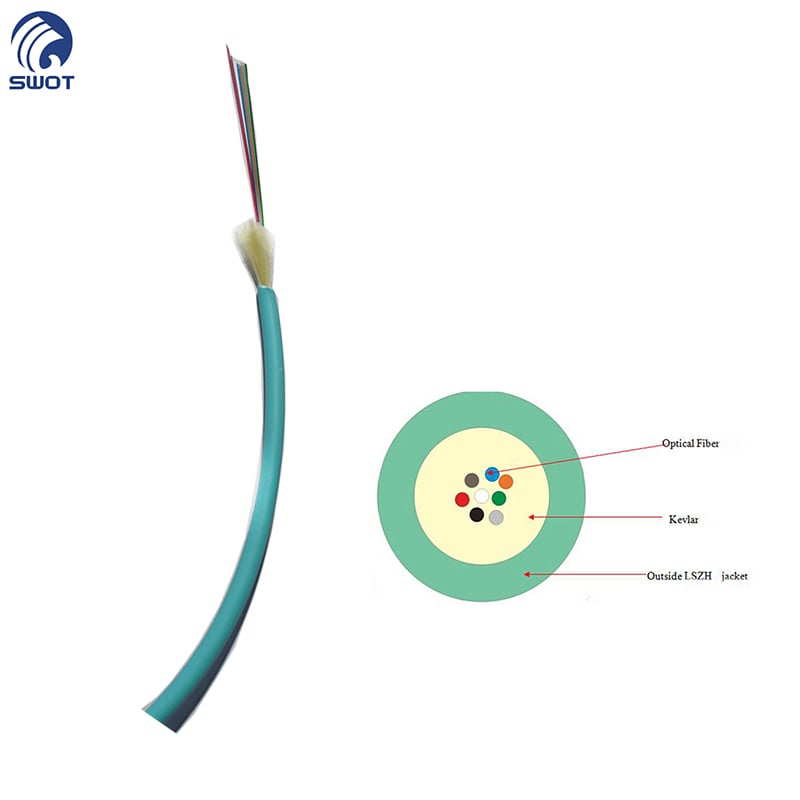

This indoor fiber distribution cable is a compact, high-performance optical wiring solution designed exclusively for indoor network deployment. It features color-coded optical fibers wrapped in high-tensile aramid fiber strength members, protected by a wear-resistant outer sheath (standard aqua color for OM3/OM4 multimode).
The all-dielectric, lightweight structure delivers excellent flexibility and tensile resistance, making it perfect for horizontal building cabling, data center patch runs, equipment interconnection and LAN backbone wiring. Each fiber follows industry-standard color coding for fast, error-free field termination and cable management. We support customizable fiber types (OM3/OM4 multimode, single-mode options) and sheath materials (PVC/LSZH) to match different fire safety and bandwidth requirements.

  • Max 24 color-coded fibers
  • Aramid yarn for superior pull resistance
  • Flexible LSZH or PVC outer jacket
  • Supports 10G+ high-bandwidth transmission
  • EMI-free all-dielectric build
  • For data center & commercial indoor cabling

Number of cores

Cable Diameter（±0.2）mm

Cable Weight（±2）kg/km

Allowable Tensile Strength(N)

Short Term/ Long Term

Allowable Crush Resistance (N/100mm)

Short Term/ Long Term

Min. bending radius

Without Tension/ Under Maximum Tension

Temperature range

（℃）

4

3.0

8.0

440/130

1000/200

10D/20D

-40~+70

6

440/130

1000/200

10D/20D

-40~+70

8

440/130

1000/200

10D/20D

-40~+70

12

440/130

1000/200

10D/20D

-40~+70

16

440/130

1000/200

10D/20D

-40~+70

24

440/130

1000/200

10D/20D

-40~+70

Optical Fiber

G652D

G657A1

A1b(62.5/125um)

OM2(50/125um)

OM3-300(50/125um)

OM4(50/125um)

Wavelength(nm)

1310/1550

1310/1550

850/1300

850/1300

850/1300

850/1300

Attenuation

0.8/0.6

0.4/0.3

3.5/1.5

3.5/1.5

2.8/0.7

2.5/0.7

Bandwidth

-

-

200~800/200~1200

160~800/200~1000

≥700/≥500

≥1500/≥700

Colour Of Outer Sheath

Yellow

Yellow

Orange

Orange

Aqua

Violet
