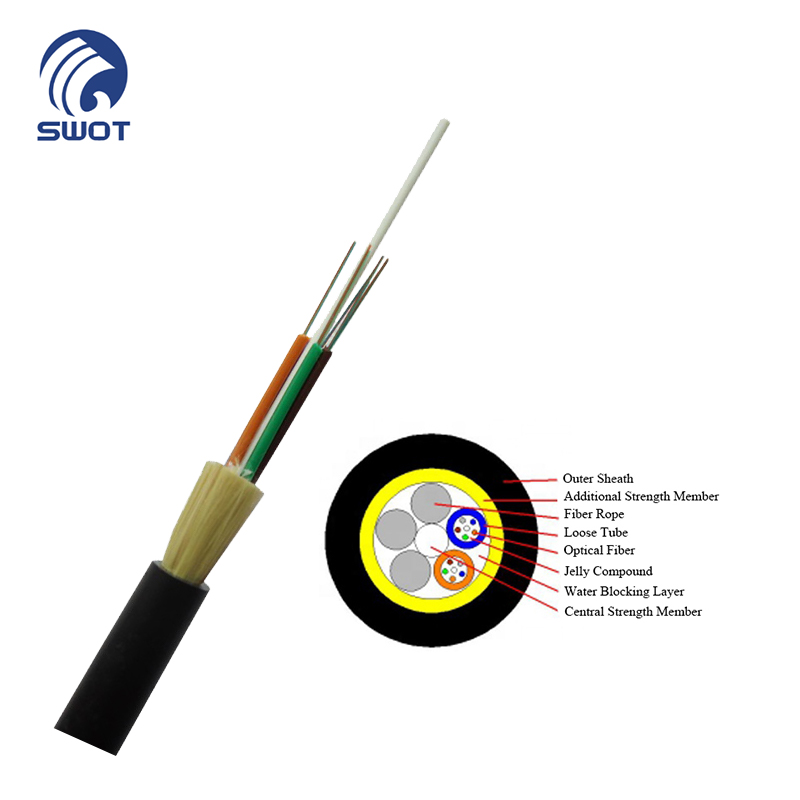

Outdoor Communication ADSS Cable-Single Jacket-100M SPAN

No. of fiber

/

12

24

48

96

Design

/

1+6

1+6

1+6

1+8

Fiber type

/

G.652D

Central Strength Member

Material

mm

FRP

Diameter

2.1±0.05mm

2.1±0.05mm

2.1±0.05mm

3.4±0.05mm

Loose Tube

Material

mm

PBT

Diameter

2.0mm±0.05mm

2.0mm±0.05mm

2.0mm±0.05mm

2.0mm±0.05mm

Thickness

0.32

0.32

0.32

0.32

MAX.NO./per tube

6

6

12

12

Filler

Material

/

PP

PP

PP

/

Filler Count

4

2

2

/

Color

Grey

Grey

Grey

/

Water Blocking Layer

Material

/

Water blocking tape& water blocking yarn

Additional Strength Member

Material

/

Aramid Yarn

Outer Sheath

Material

mm

PE

Thickness

1.7

1.7

1.7

1.7

colour

black.

Cable Diameter

mm

10mm±0.05mm

10mm±0.05mm

10mm±0.05mm

11mm±0.05mm

Cable Weight

kg/km

72

72

72

100

Attenuation coefficient

1310nm

dB/km

≤0.36

1550nm

≤0.22

Working Tension (MAT)

kn

≥1.5

Span

m

100

Crush Resistance

Short Term

N/100mm

≥2200

Long Term

≥1100

Min. bending radius

Without Tension

mm

10.0×Cable-φ

Under Maximum Tension

20.0×Cable-φ

Temperature range

（℃）

Installation

℃

-20~+60

Transport&Storage

-40~+70

Operation

-40~+70

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

Color

Red

Black

No.

1

2

3

4

5

6

Color

Blue

Orange

Green

Brown

Gray

White

No.

7

8

9

10

11

12

Color

Red

Black

Yellow

Violet

Pink

Aqua

Item

Specification

Fiber type

Single mode

Fiber material

Doped silica

Attenuation coefficient

@ 1310 nm

@ 1383 nm

@ 1550 nm

@ 1625 nm

£ 0.36 dB/km

£ 0.32 dB/km

£ 0.22 dB/km

£ 0.30 dB/km

Point discontinuity

£ 0.05 dB

Cable cut-off wavelength

£ 1260 nm

Zero-dispersion wavelength

1300 ~ 1324 nm

Zero-dispersion slope

£ 0.092 ps/(nm2.km)

Chromatic dispersion

@ 1288 ~ 1339 nm

@ 1271 ~ 1360 nm

@ 1550 nm

@ 1625 nm

£3.5 ps/(nm. km)

£5.3 ps/(nm. km)

£18 ps/(nm. km)

£22 ps/(nm. km)

PMDQ (Quadrature average*)

£0.2 ps/km1/2

Mode field diameter @ 1310 nm

9.2±0.4 um

Core / Clad concentricity error

£ 0.5 um

Cladding diameter

125.0 ± 0.7 um

Cladding non-circularity

£1.0%

Primary coating diameter

245 ± 10 um

Proof test level

100 kpsi (=0.69 Gpa), 1%

Temperature dependence

0℃~ +70℃ @ 1310 & 1550nm

£ 0.1 dB/km
