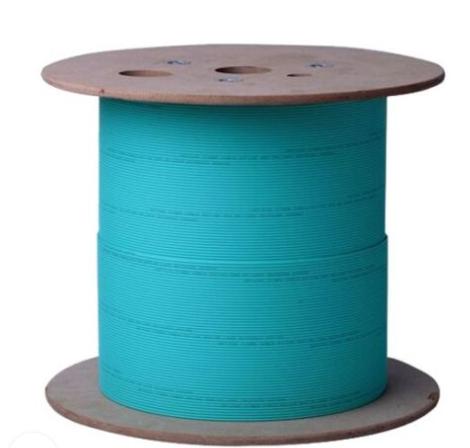

MPO Mini fiber optic cable is designed for migration from duplex-based applications (10/25G Ethernet) to parallel optics-based applications (40/100G Ethernet). It is widely used in high-density cabling applications in data centers, local area networks, equipment rooms, and telecommunication rooms, among others.
• G.657.A1 Bend Insensitive Fiber with 10mm Min. Bend Radius
• 2.0mm Small-diameter Breakout Saves Space for High-density Cabling
• OFNP Fire Safety-Rated for Use in Plenum Air Spaces
• For Longer Distances in Cabinet-to-Cabinet Applications
• Compliant to IEC 61754-7, ANSI/TIA-604-5 and ANSI/TIA-568.3-D
• Fiber Optic Telecommunications;
• LAN (Local Area Network);
• CATV&CCTV System;
• High speed transmission systems;
• Fiber optic sensing;
• Industial, Mechanical and Military.
| No. of cable | 2-12 | |||||
| Fiber Model | OM3(50/125um)/G657A1 | |||||
| Strength Member | Material | Aramid Yarn | ||||
| Outer Sheath | Material | LSZH | ||||
| Thickness（±0.2）mm | 0.45 | |||||
| Color | Aqua | |||||
| Cable Diameter（±0.2）mm | 3 | |||||
| Cable Weight（±1）kg/km | 7.5 | |||||
| Attenuation | 850nm | dB/km | 2.8 | 1310nm ≤0.36 | ||
| 1300nm | 0.7 | 1550nm ≤0.22 | ||||
| Bandwidth | 850nm | MHz.km | ≥700 | -- | ||
| 1300nm | ≥500 | -- | ||||
| Allowable Tensile Strength | Short Term | N | 100 | |||
| Long Term | 60 | |||||
| Allowable Crush Resistance | Short Term | N/100mm | 500 | |||
| Long Term | 100 | |||||
| Min. bending radius | Without Tension | 10.0×Cable-φ | ||||
| Under Maximum Tension | 20.0×Cable-φ | |||||
|
Temperature range （℃） |
Installation | -20~+60 | ||||
| Transport&Storage | -40~+70 | |||||
| Operation | -40~+70 | |||||
