IP68 Waterproof Series

Home >  Products >  IP68 Waterproof Series

All Categories

Fiber Optic Cable
MPO Solutions
Fiber Optic Patch Cord
Active Optical Cables（AOCs）
Direct Attach Twinax Cables （DACs）
IP68 Waterproof Series
CPRI Jumper Cable
PLC Splitter
Fiber Optic Terminal Box
Fiber Optic Splice Closure
GJFJH
GJFJH
GJFJH
GJFJH
GJFJH
GJFJH
GJFJH
GJFJH

GJFJH

Get a Quote Contact Us

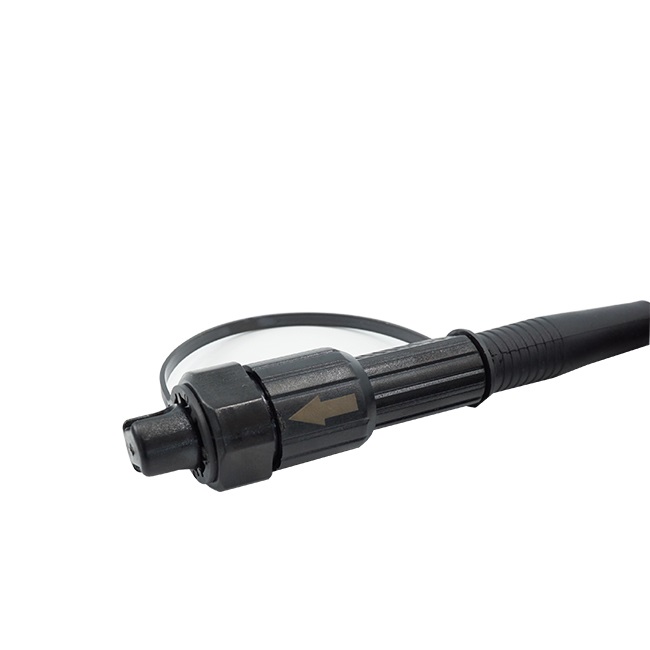

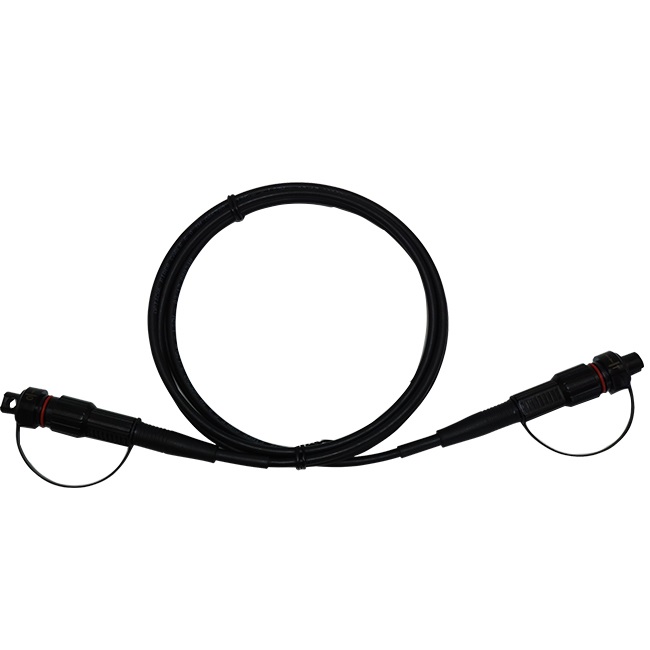

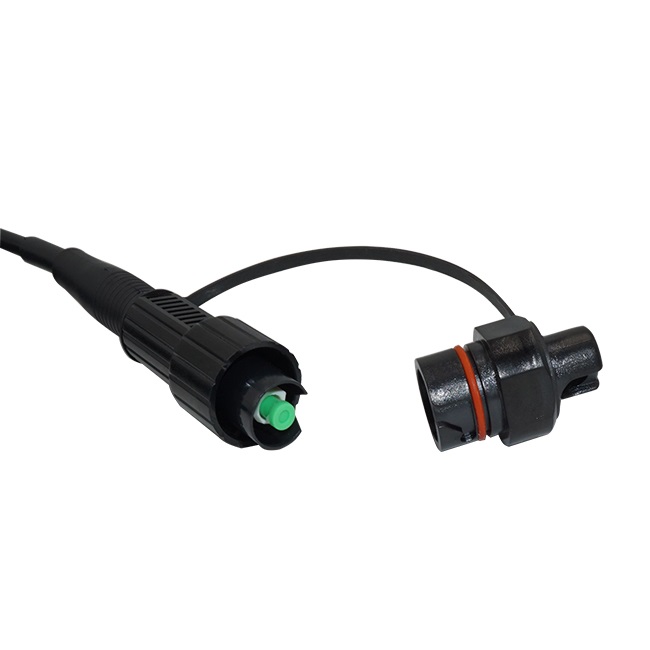

  • Description

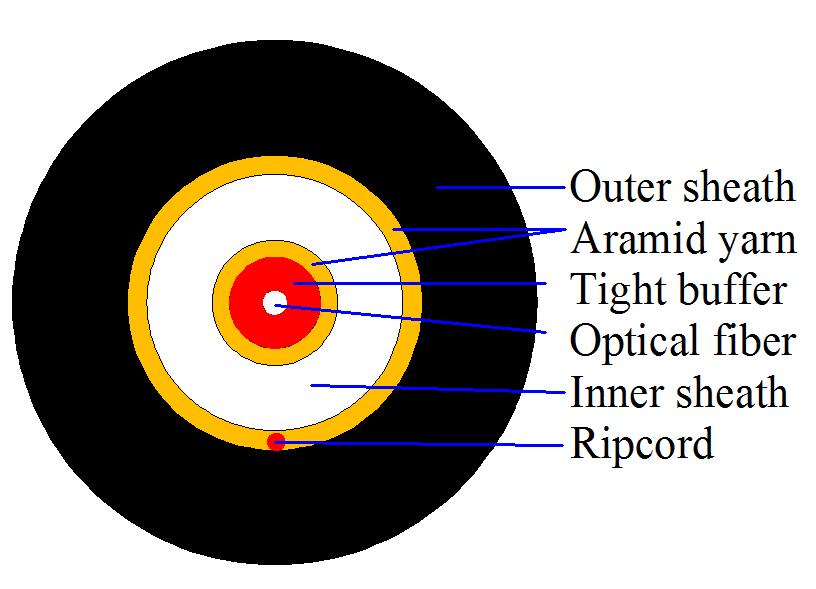

  • Cable Design
  • Technical Data
  • Application
  • The properties of single mode optical fiber (ITU-T Rec. G.65
  • Main mechanical & environmental performance test
  • Sheath marking
Is there a problem? Please contact us to serve you!

Is there a problem? Please contact us to serve you!

+86-13265756131
[email protected]
Inquiry


No. of cable 1
Fiber Model G.657A2
Strength Member Material Aramid yarn(Imported)
Model 1100D
NO. 10
Tight buffer Material LSZH
Color Red
Thickness（±0.05）mm 0.32
Diameter（±0.1）mm 0.9
Inner Sheath Material LSZH
Color white
Thickness（±0.05）mm 0.45
Diameter（±0.1）mm 2.9
Outer Sheath Material LSZH
Color Black
Thickness（±0.1）mm 0.7
Cable Diameter（±0.2）mm 5
Cable Weight（±2）kg/km 21
Span length 25m
Min. bending radius Without Tension 15×Cable-φ
Under Maximum Tension 30×Cable-φ
Temperature range
（℃） 		Installation -20~+60
Transport&Storage -30~+70
Operation -20~+60
NO. Item Requirement
1 Allowable Tensile Strength Short Term 1000N
Long Term 400 N
2 Allowable Crush Resistance Short Term 1000(/100mm)
Long Term 300 (/100mm)
Characteristic condition data unit
Optical properties
Attenuation 1310nm
1383nm(After hydrogen aging)
1490nm
1550nm
1625nm 		≤0.35
≤0.35
≤0.23
≤0.22
≤0.23 		dB/km
dB/km
dB/km
dB/km
dB/km
Relative wavelength attenuation
@1310nm
@1550nm 		1285～1330nm
1525～1575nm 		≤0.05
≤0.05 		dB/km
dB/km
Dispersion in the wavelength range of 1285～1340nm
1550nm 		≤3.5
≤18 		ps/(nm.km)
ps/(nm.km)
Zero dispersion wavelength 1300～1324 nm
A zero-dispersion slope ≤0.092 ps/(nm2.km)
Polarization Mode Dispersion Coefficient PMD
Single fiber maximum
Fiber link value (M=20, Q=0.01%)
Typical value 		≤0.2
≤0.1
0.04 		ps/
ps/
ps/
Cable cut-off wavelength（λcc） ≤1260 nm
Mode field diameter （MFD） 1310nm
1550nm 		8.8±0.4
9.8±0.5 		μm
μm
Attenuation discontinuities 1310nm ≤0.05 dB
1550nm ≤0.05 dB
Geometric characteristics
Core diameter 125±0.7 μm
Cladding roundness ≤0.7 %
Coating diameter 245±5 μm
Coating / package concentricity error ≤12.0 μm
Core / package concentricity error ≤0.5 μm
The warpage (radius) ≥4 m
Environmental characteristics（1310nm、1550nm、1625nm）
Temperature additional attenuation -60℃ ～+85℃ ≤0.05 dB/km
Temperature-humidity cycle additional attenuation -10℃ ～+85℃，98% Relative humidity ≤0.05 dB/km
Flooding additional attenuation 23℃，30 days ≤0.05 dB/km
Hot and humid additional attenuation 85℃，85% Relative humidity，30 days ≤0.05 dB/km
Dry heat aging 85℃ ≤0.05 dB/km
Mechanical properties
Screening tension ≥9.0 N
The macro bend Additional attenuation
10 CircleФ30mm
10 CircleФ30mm
1 CircleФ20mm
1 CircleФ20mm
1 CircleФ15mm
1 CircleФ15mm 		1550nm
1625nm
1550nm
1625nm
1550nm
1625nm 		≤0.03
≤0.1
≤0.1
≤0.2
≤0.5
≤1.0 		dB
dB
dB
dB
dB
dB
Coating peeling force Typical average 1.5 N
Dynamic fatigue parameters ≥20
Item Test Method Acceptance Condition
Tensile Strength
IEC 794-1-2-E1 		- Load: Short term tension
- Length of cable: about 50m 		- Fiber strain £ 0.36%
- Loss change £ 0.1 dB @1550 nm
- No fiber break and no sheath damage.
Crush Test
IEC 60794-1-2-E3 		- Load: Short term crush
- Load time: 1min 		- Loss change £ 0.05dB@1550nm
- No fiber break and no sheath damage.
Impact Test
IEC 60794-1-2-E4 		- Points of impact: 3
- Times of per point: 1
- Impact energy: 5J 		- Loss change £ 0.1dB@1550nm
- No fiber break and no sheath damage.
Temperature Cycling Test
YD/T901-2001-4.4.4.1 		- Temperature step:
+20oC→-40oC→+70oC →+20oC
- Time per each step: 12 hrs
- Number of cycle: 2 		- Loss change £ 0.05 dB/km@1550 nm
- No fiber break and no sheath damage.

The cable sheath marking shall be as follows:
Color: white
Interval: 1 m
