Cable Length : 35m,50m,60m,75m,80m,90m,100m,120m,150m

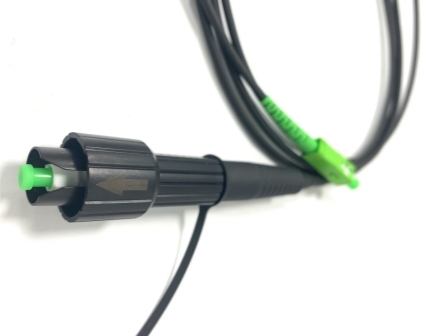

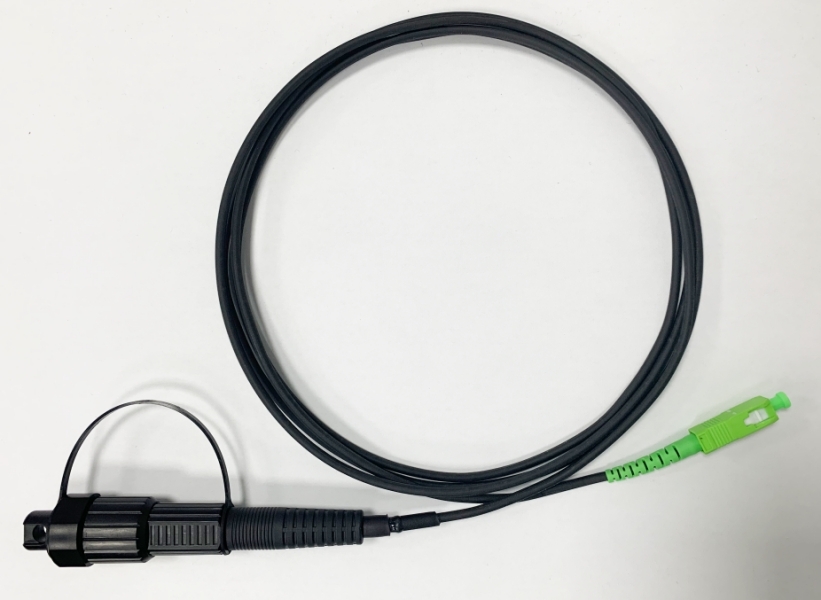

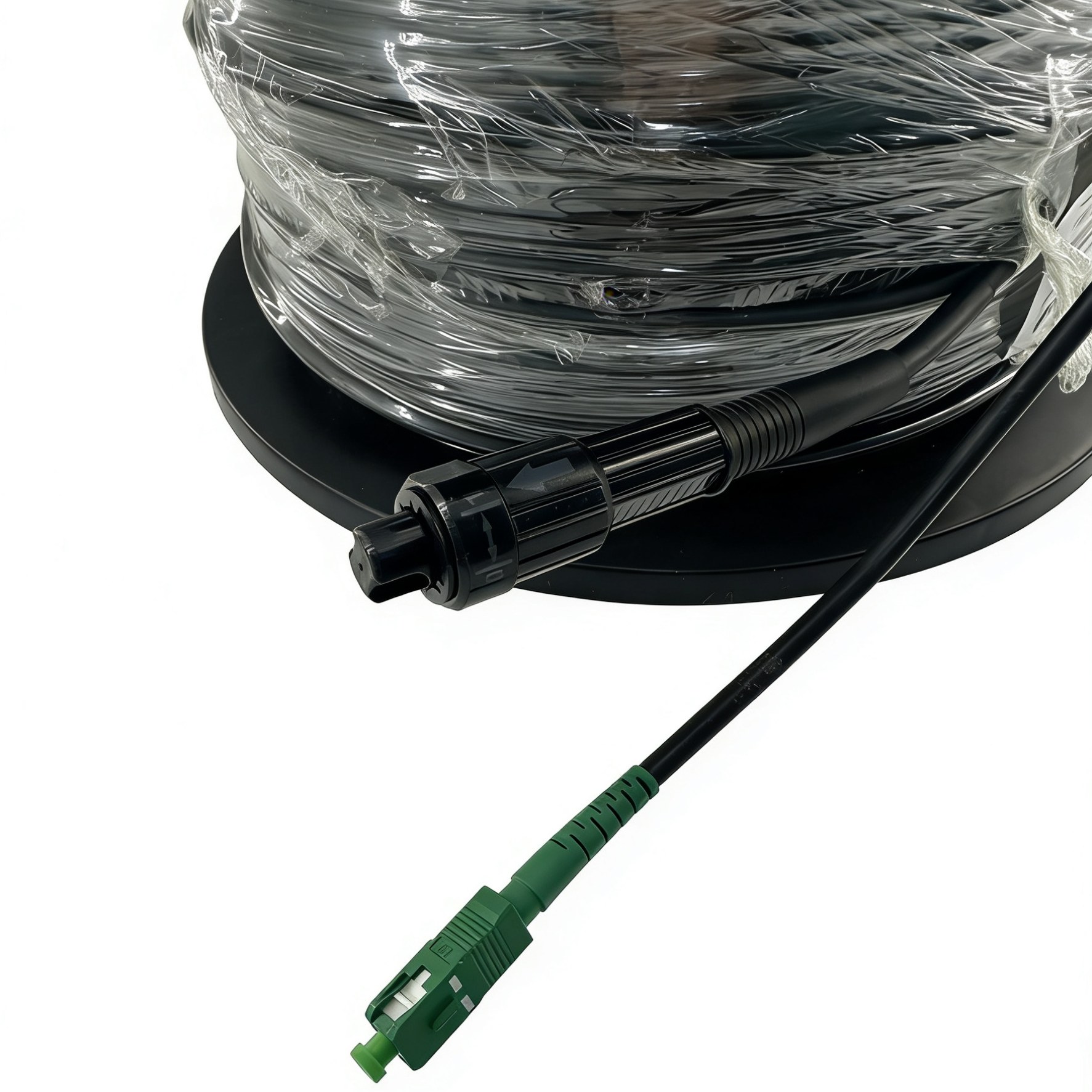

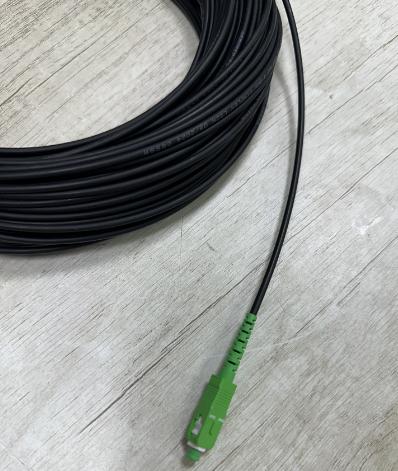

Waterproof fiber optic patch cord MINI SC/APC- SC/APC, can be used for outdoor, and we can make the length from 1m to 1000 meters.

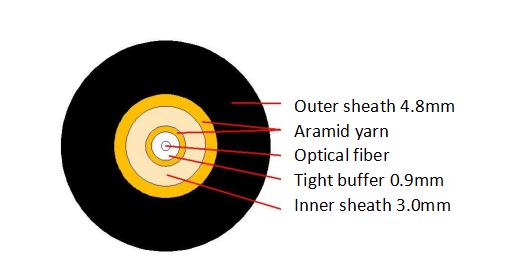

| Fibre Cable Model No.: | GJFJH63 |
| Fiber | 1 Fiber,G657A1 |
| Cable Diameter | 4.8mm |
| Outer sheath | LSZH , Black |
| Cable Marks | Total Care & Support – TCS Fibre Optic Cable GJFJH63 1F G657A1 2025 LSZH ***M |
| No. of cable | 1 | |
| Fiber Model | G657A1 | |
| Strength Member | Material | Aramid yarn(Imported) |
| Model | 1100D | |
| NO. | 10 | |
| Tight buffer | Material | PVC |
| Color | Red/white | |
| Thickness（±0.05）mm | 0.32 | |
| Diameter（±0.1）mm | 0.9 | |
| Inner Sheath | Material | LSZH |
| Color | white | |
| Thickness（±0.05）mm | 0.45 | |
| Diameter（±0.1）mm | 2.9 | |
| Outer Sheath | Material | LSZH |
| Color | Black | |
| Thickness（±0.1）mm | 0.7 | |
| Cable Diameter（±0.2）mm | 4.8mm | |
| Cable Weight（±2）kg/km | 21 | |
| Span length | 25m | |
| Min. bending radius | Without Tension | 15×Cable-φ |
| Under Maximum Tension | 30×Cable-φ | |
|
Temperature range （℃） |
Installation | -20~+60 |
| Transport&Storage | -30~+70 | |
| Operation | -20~+60 | |
| NO. | Item | Requirement | |
| 1 | Allowable Tensile Strength | Short Term | 1000N |
| Long Term | 400 N | ||
| 2 | Allowable Crush Resistance | Short Term | 1000(/100mm) |
| Long Term | 300 (/100mm) | ||
|
 |
| Connector Type | MINI SC/APC - SC/APC |
| Length | 35m,50m,60m,75m,80m,90m,100m,120m,150m,200m |
| Fiber type | 9/125 G657A1 |
| Mode | Single mode |
| Simplex/duplex | Simplex |
| Cable diameter | 4.8mm |
| Operating wavelength | 1260-1650 |
| Operating Temperature | -40℃~85℃ |
| Tensile strength | 200N |
| Connector type | SC/APC | |||
| Mode | Single mode | Multi mode | ||
| Polishing grade | PC | UPC | APC | PC |
| Inserton loss (DB) | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.3 |
| Return loss (DB) | ≥45 | ≥50 | ≥60 | ≥35 |
| SKU NO. | Picture | Description |
| 9075-000-00002 |
Packed in without reel
|
1 core Black cable - HW Connector to SC/APC - 35m packed in without reel |
| 9075-000-00003 |

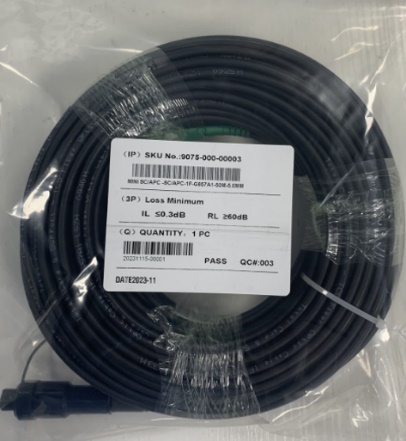

1 core Black cable - HW Connector to SC/APC - 50m packed in without reel |
|
| 9075-000-00004 |

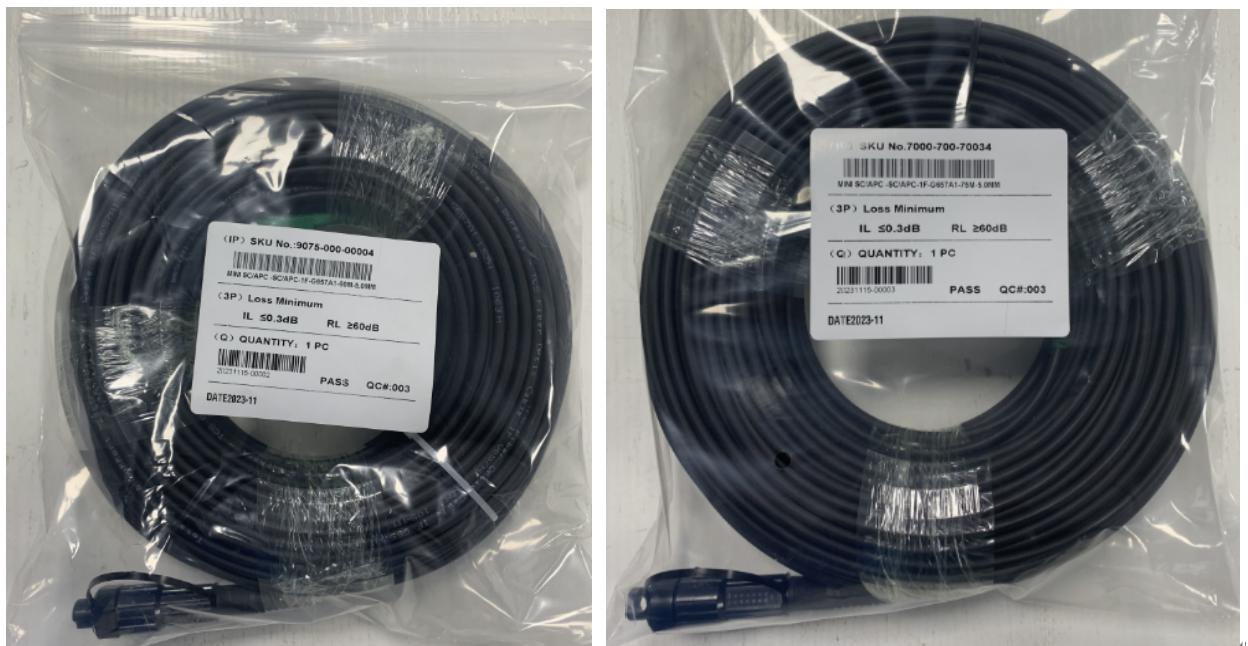

1 core Black cable - HW Connector to SC/APC - 60m packed in without reel |
|
| 7000-700-70034 |
1 core Black cable - HW Connector to SC/APC - 75m packed in without reel |
|
| 9075-000-00005 |

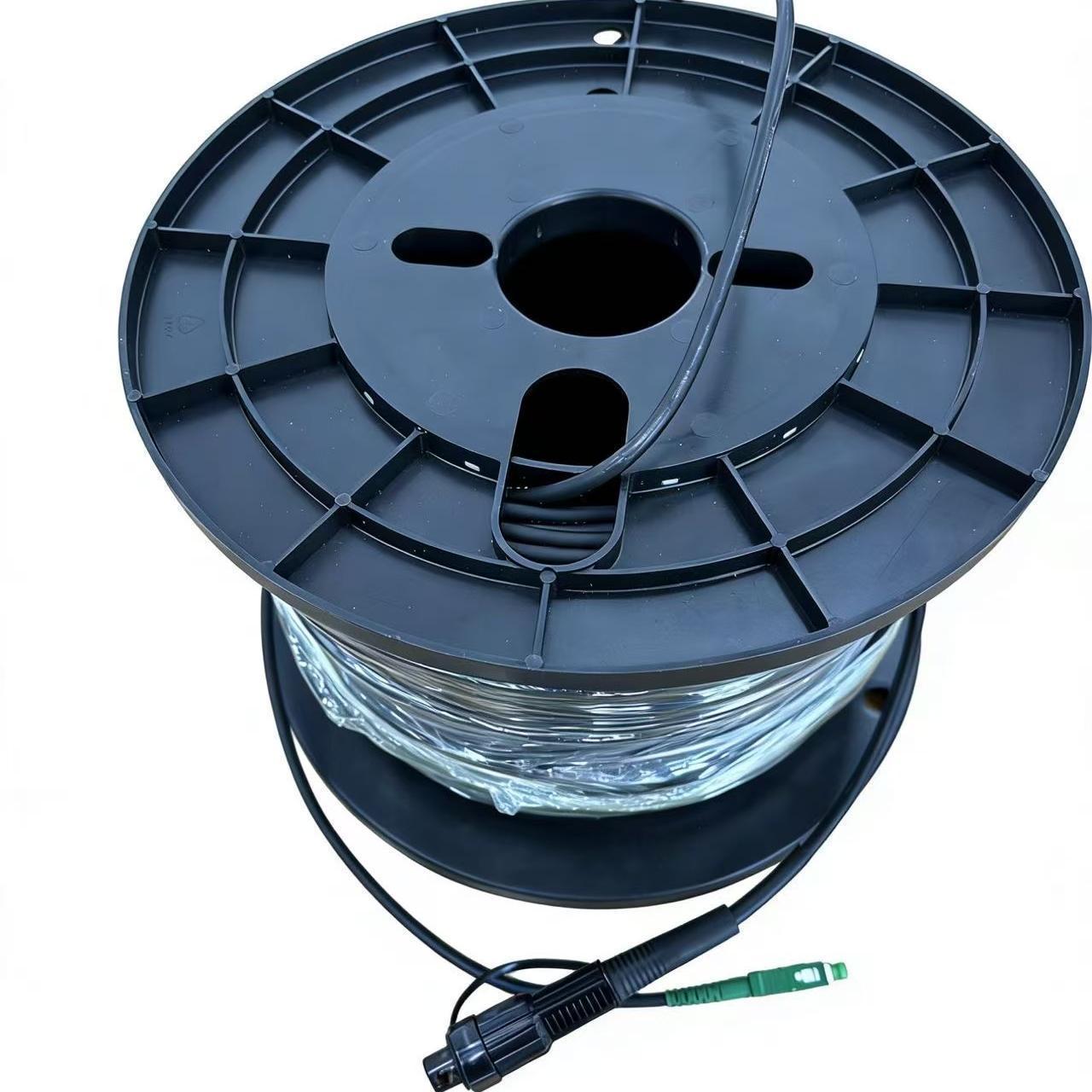

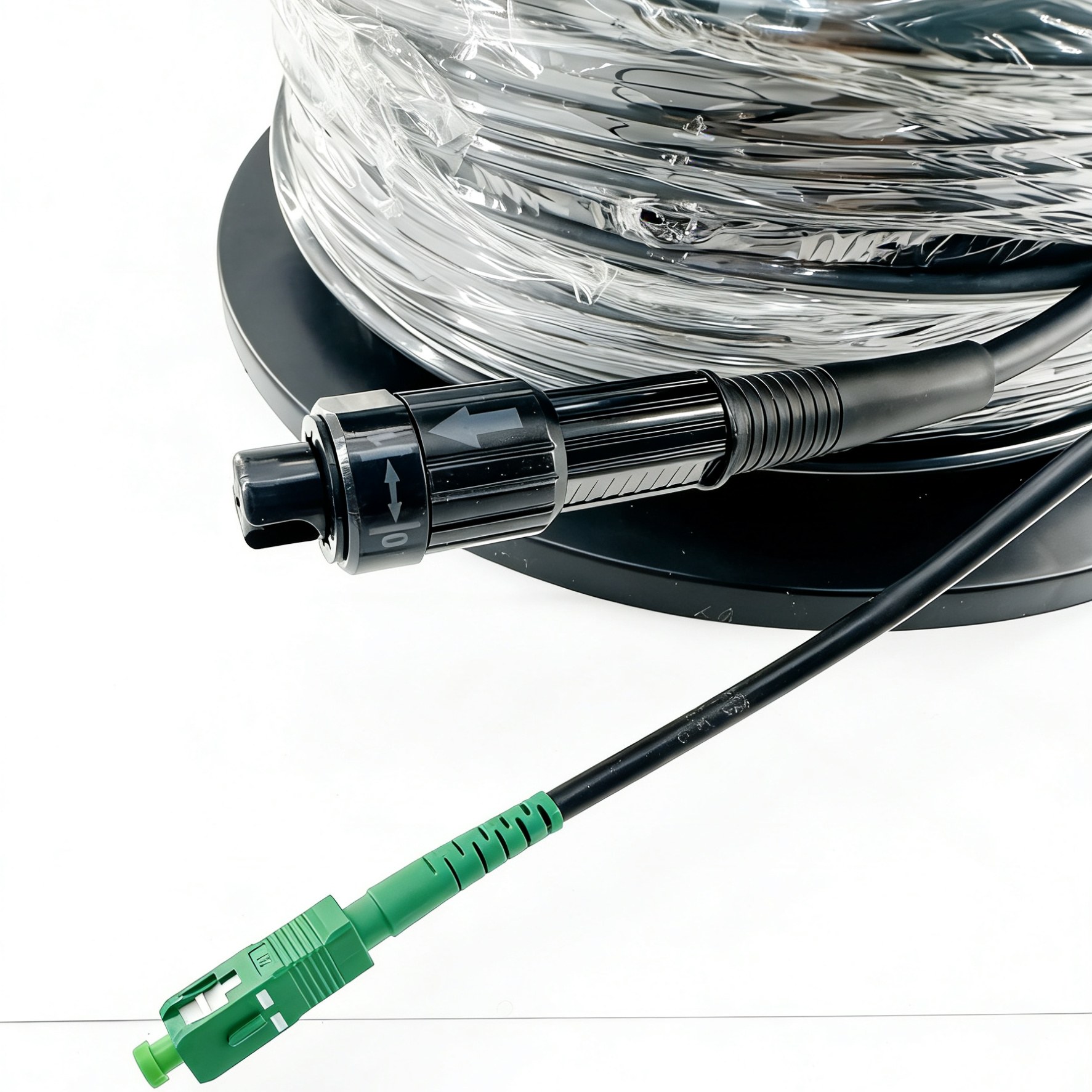

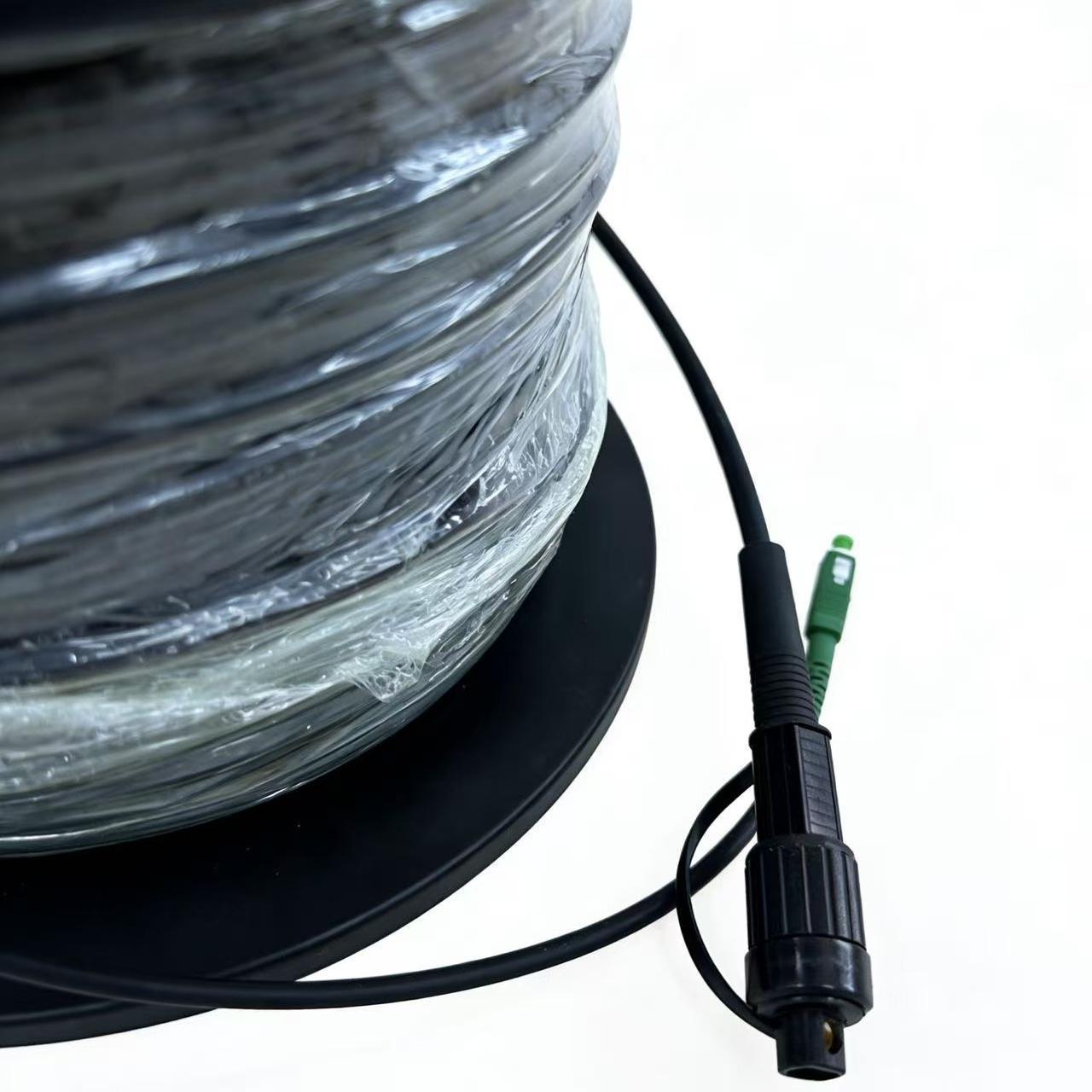

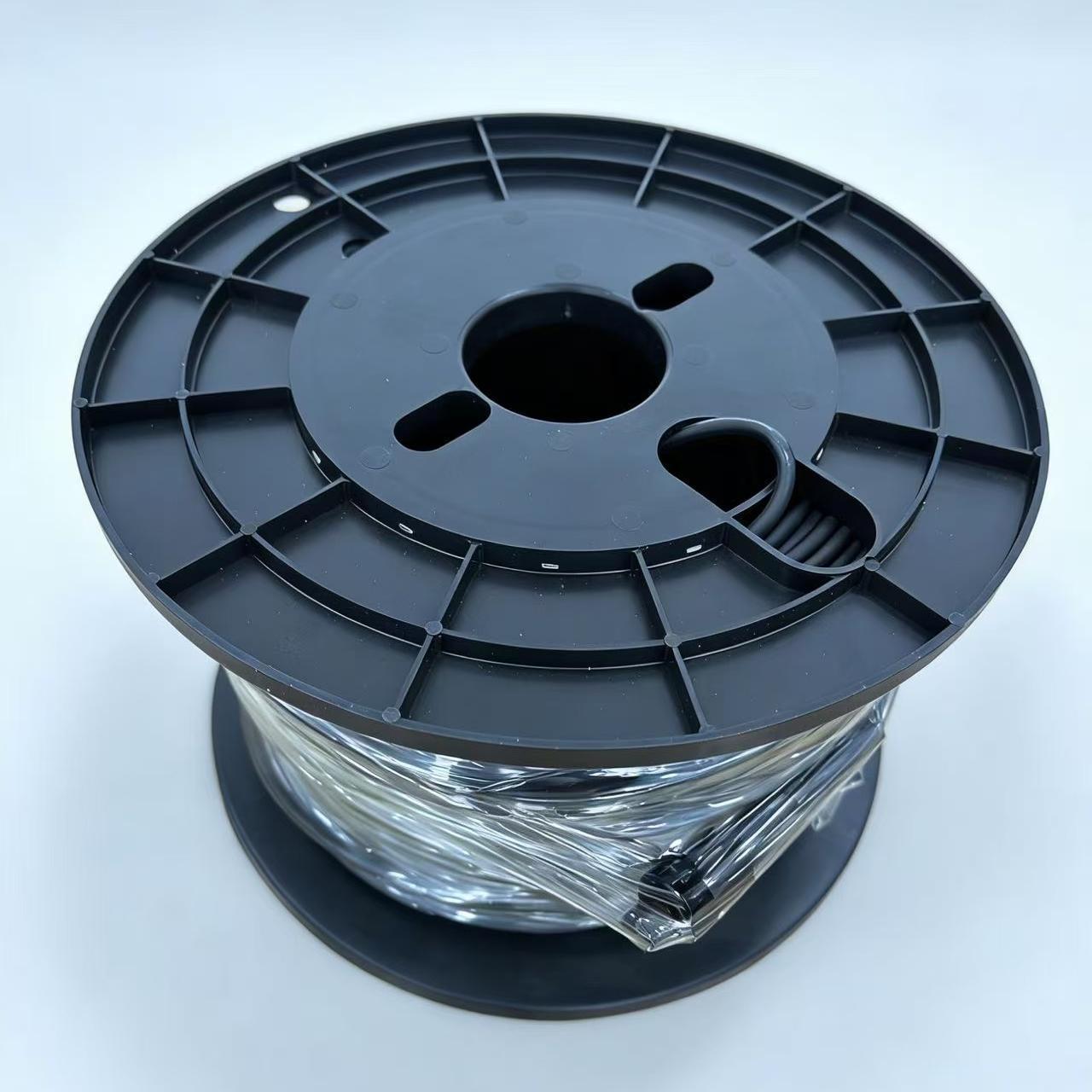

Packed in a reels
|
1 core Black cable - HW Connector to SC/APC - 90m packed in a reel |
| 9075-000-00006 |

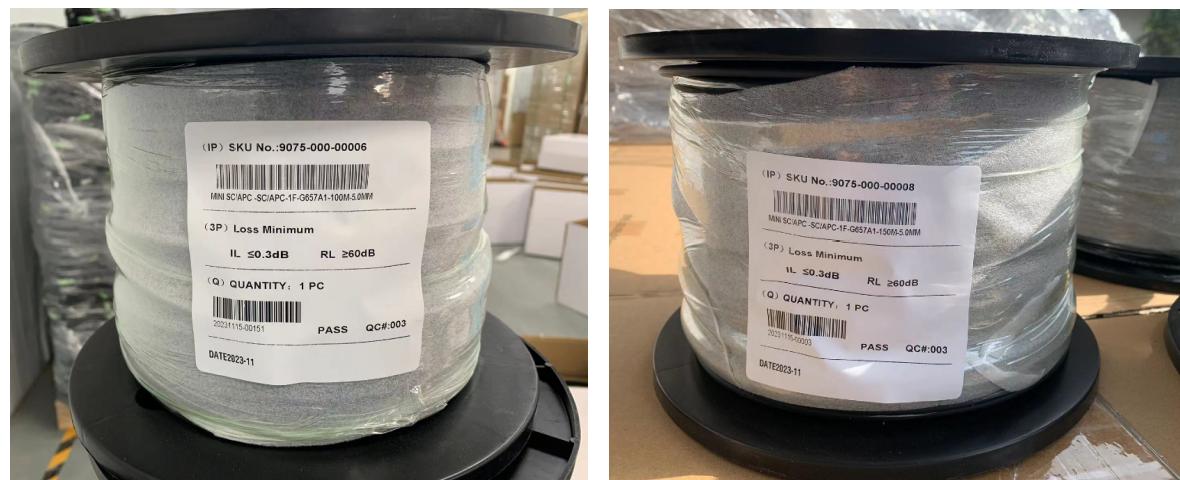

1 core Black cable - HW Connector to SC/APC - 100m packed in a reel |
|
| 9075-000-00007 |
1 core Black cable - HW Connector to SC/APC - 120m packed in a reel |
|
| 9075-000-00008 |
1 core Black cable - HW Connector to SC/APC - 150m packed in a reel |
|
