This fiber patch cable is specially designed for harsh outdoor fiber applications. It fully meets the FTTA (Fiber to the Antenna) requirements and is widely used for 3G/4G/5G base station connections between BBU and RRU. It contains 2 G657A fibers, reinforced with aramid yarn strength members for excellent durability and crush resistance.

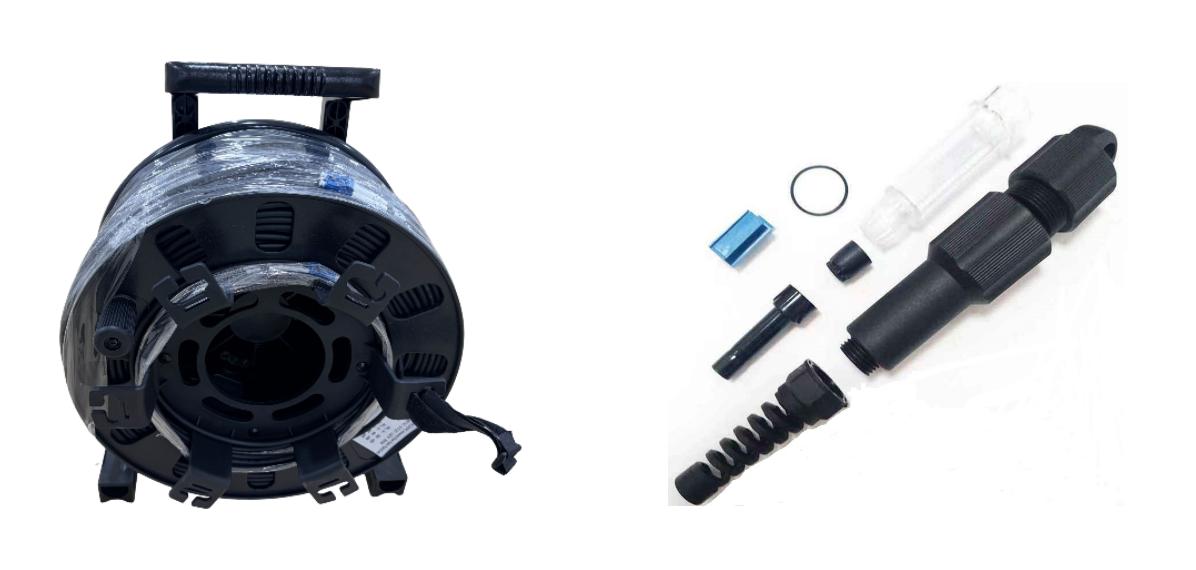

Pre-terminated with LC-LC connectors, it ensures stable and reliable outdoor transmission. The cable is ideal for communication, mobile broadcast, emergency response, temporary networking and other harsh outdoor cabling scenarios.
• Cost effective solution for in house termination.
• Easily add/install jumper cables for a future expansion
• Factory-assembled cables for a fast on-site installation
• Flexibility with small bending radius and excellent cable routing properties
• Equipped with customer specific power and fiber optic connectors
• Telecommunication networks
• Multi-purpose Outdoor
• For connection between BBU and RRU
• Deployment in Remote Radio Head cell tower applications

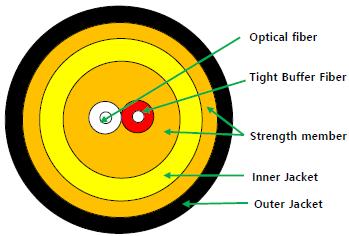

| No. of cable | 2 | |||
| Fiber Model | G.657A1 | |||
| Tight lines | Material | PVC | ||
| Thickness（±0.03）mm | 0.32 | |||
| Diameter（±0.06）mm | 0.9 | |||
| color | Blue Orange | |||
| Strength Member | Material | Aramid yarn | ||
| Inner Sheath | Material | LSZH | ||
| Cable Diameter（±0.2）mm | 3.4 | |||
| Thickness（±0.1）mm | 0.7 | |||
| Colour | Black | |||
| Outer Sheath | Material | FR-PUR | ||
| Thickness（±0.1）mm | 0.75 | |||
| Colour | Black | |||
| Cable Diameter（±0.2）mm | 5 | |||
| Cable Weight（±2）kg/km | 26 | |||
| Attenuation | 1310nm | dB/km | 0.36 | |
| 1550nm | 0.22 | |||
| Allowable Tensile Strength | Short Term | N | 1000 | |
| Long Term | 400 | |||
| Allowable Crush Resistance | Short Term | N/100mm | 1000 | |
| Long Term | 300 | |||
| Min. bending radius | Without Tension | 10.0×Cable-φ | ||
| Under Maximum Tension | 20.0×Cable-φ | |||
|
Temperature range （℃） |
Installation | -20~+60 | ||
| Transport&Storage | -40~+70 | |||
| Operation | -40~+70 | |||
| Connector Types | PDLC-PDLC; PDLC-DLC |
| Connector Insertion Loss | max≤0.30dB; (Typical≤0.15dB) |
| Connector Return Loss | SMF: UPC≥50 dB |
