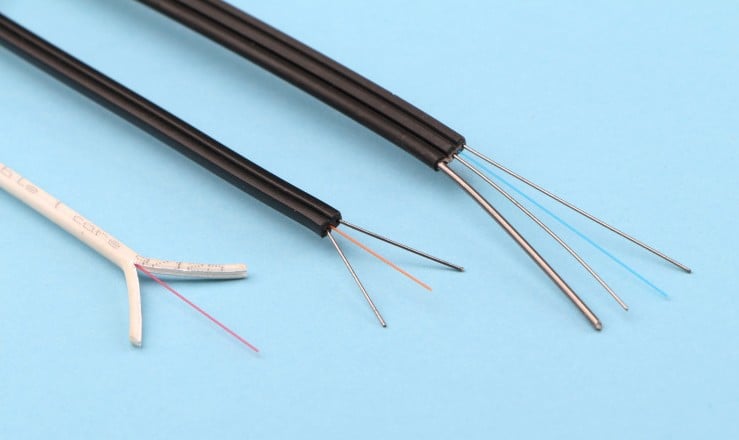

FTTH Drop Cable is used in high speed and broadband telecommunication applications. It is suitable for both indoor and outdoor applications.

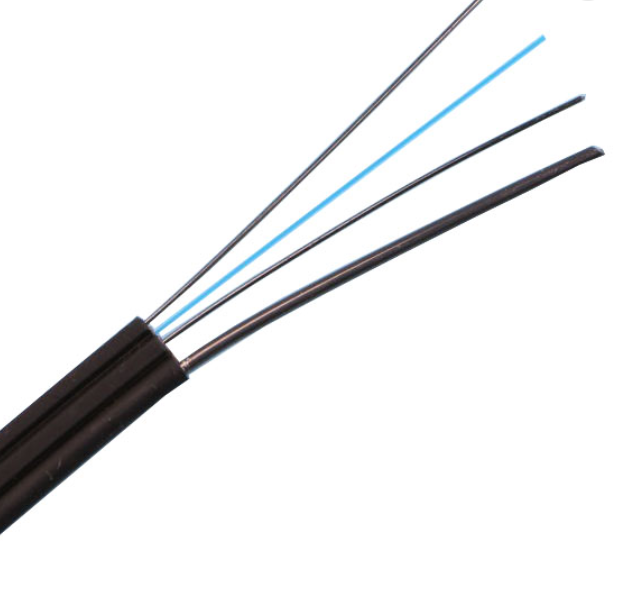

The indoor fiber construction comprises of 2 cores optical fibers, 2 parallel steel wire, strength member and LSZH Jacket. Outdoor FTTH cable
construction is similar to the indoor cable, except the cable has a supporting wire for aerial installation.
Fiber used in these cables are bend insensitive and can be used for applications where multiple bends are present. These light weight cables
are suitable for direct installation in Villas, Multi dwelling units and have excellent crush and impact resistance properties.
Internal Drop cable LSZH with low fume content, in compliance with IEC 61034 and flame retardant, IEC 60332-3, GR-409, IEC 60794-2-10/11, EN50525
Compliant with EU requirements, CPR-Bca, Dca, Eca, Fca.
|
Product Model |
GJYXCH |
|||||
|
Product Name |
Self- supporting metallic strength member optical fiber drop cable |
|||||
|
size |
5.2×2.2MM(±0.2mm) |
|||||
|
Outer sheath |
LSZH, Black color |
|||||
|
Attenuation index
|
wavelength |
B1.1 B1.3 (G.652) (DB/KM) |
B6a(G.657A) (DB/KM) |
B6b(G.657b) (DB/KM) |
||
|
1310 |
≤0.45 |
≤0.45 |
≤0.60 |
|||
|
1550 |
≤0.30 |
≤0.30 |
≤0.50 |
|||
|
Technical parameter
|
Model
|
Fiber count
|
Fiber model
|
Max.tensile (N) Long-time/ short-time |
Max.squashed force (N) Long-term/ short time |
Max.Bending radius Long-time/ Short-time |
|
GJYXCH |
1/2 |
B1.1 B1.3 |
400/1000 |
1000/2200 |
30/60 |
|
|
B6a |
400/1000 |
1000/2200 |
15/30 |
|||
|
B6b |
400/1000 |
1000/2200 |
10/25 |
|||
|
Cable weight |
22KG/KM(±2kg) |
|||||
|
Length type |
500M 1000M 2000M per reel or as your request |
|||||
