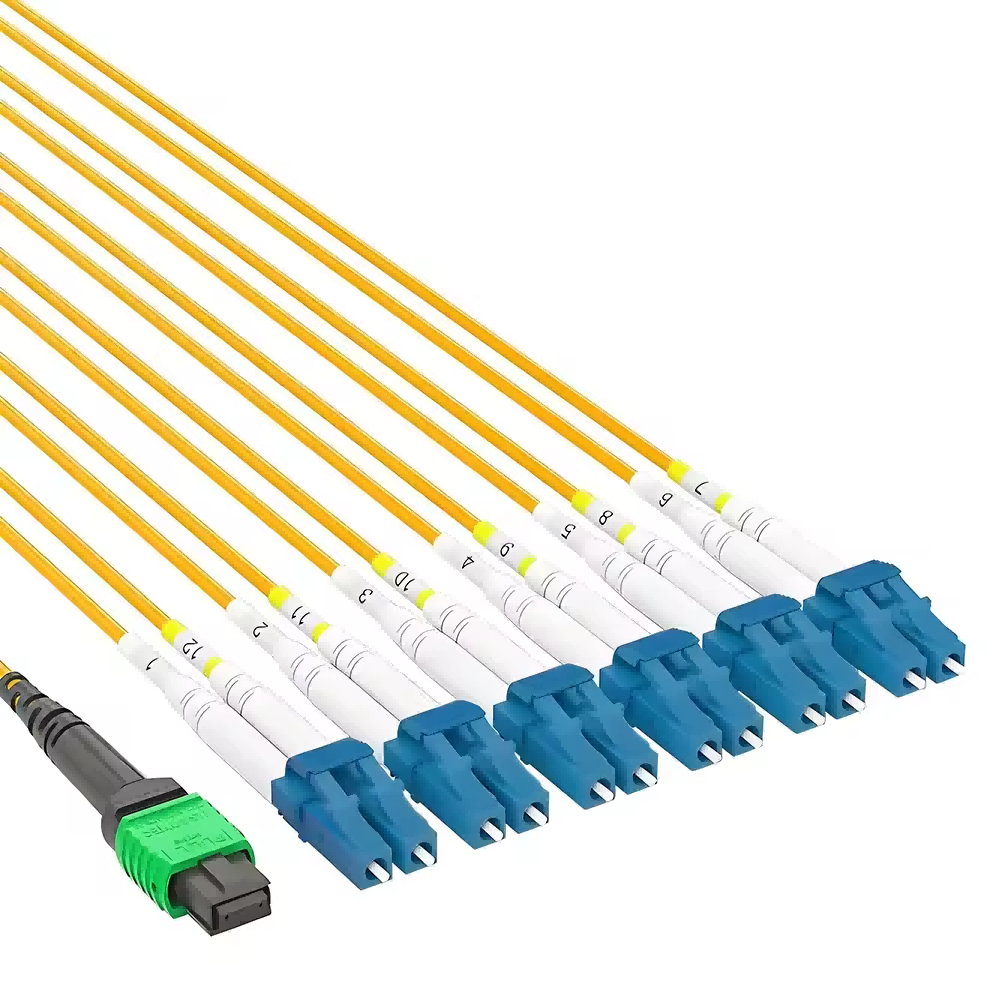

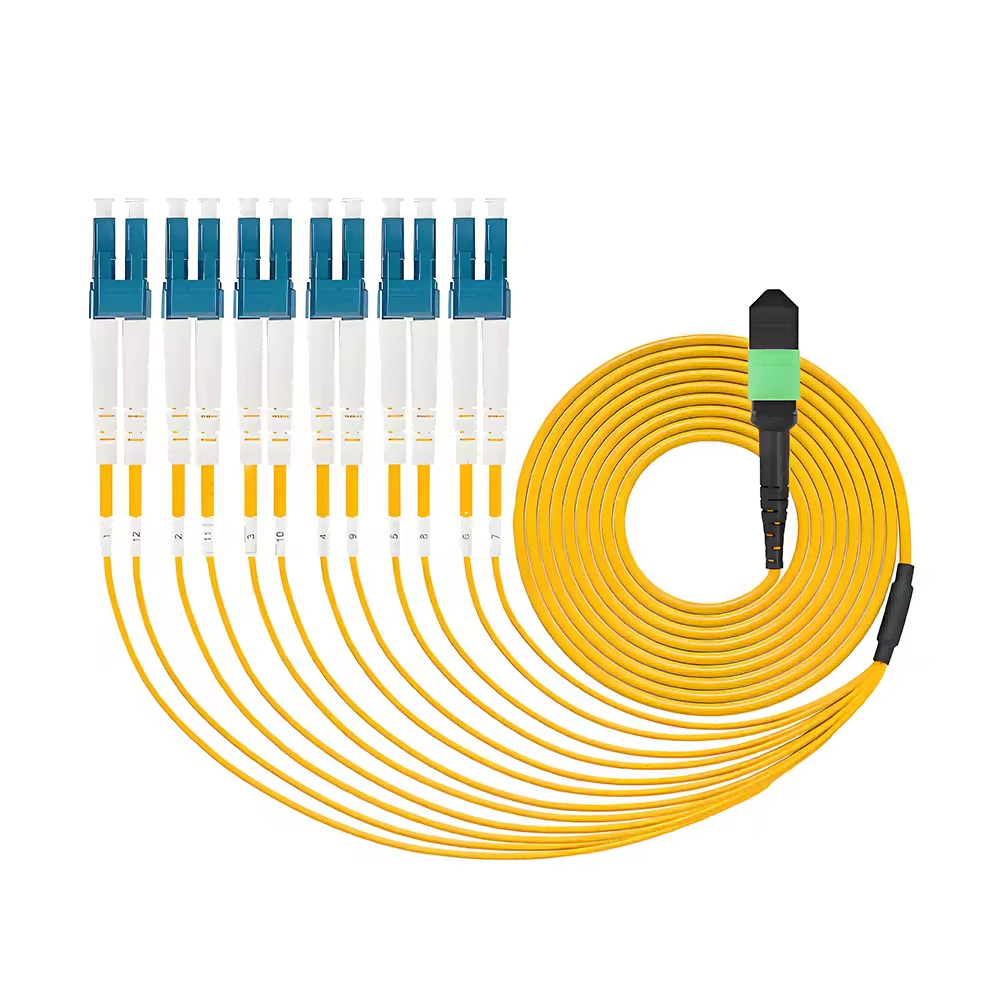

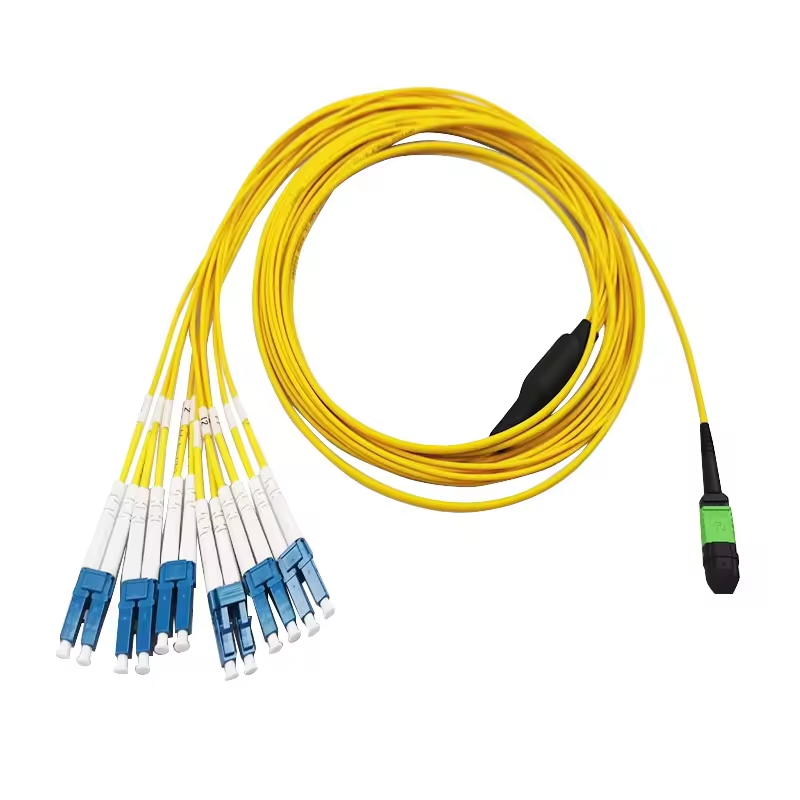

MPO/MTP breakout assemblies are used in parallel optics and duplex transmission cross connect systems to increase cable density between switch and server cabinets. Designed for high- density fiber patching in data centers, they ensure peak performance throughout your local area network. Allow for rapid deployment of high-density, multi-port patch field connectivity for Storage Area Network.
• Pre-terminated and tested in factory to ensure transfer performance
• Rapid configuration and networking, reduce installation time
• Supports 40G and 100G network applications
• Cable Jacket material: LSZH, OFNR, OFNP available
• Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available

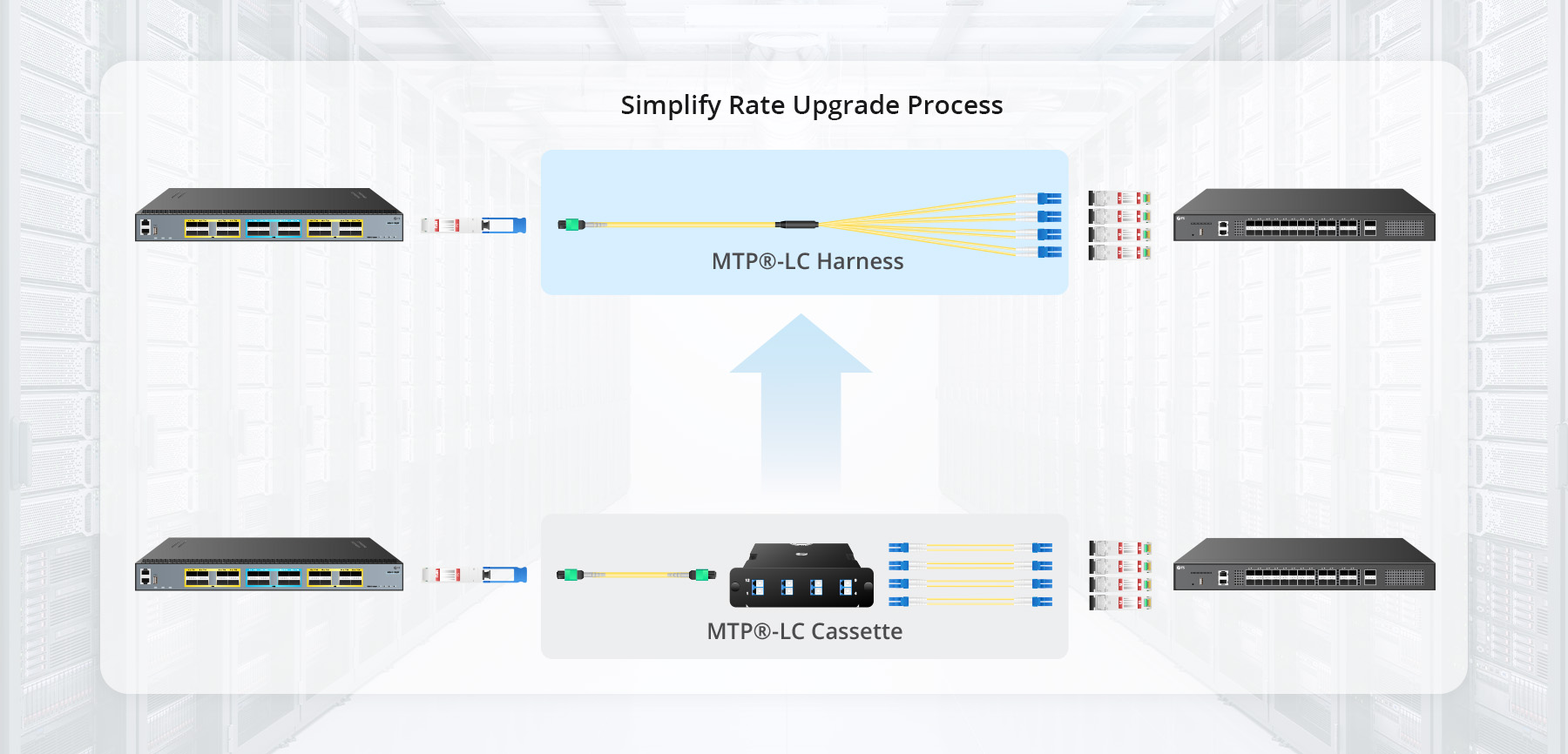

• Data communication network
• Optical System Access network
• Storage area networking fiber channel
• High density architectures
| Connector Type | MPO/MTP-SC/LC/FC/ST |

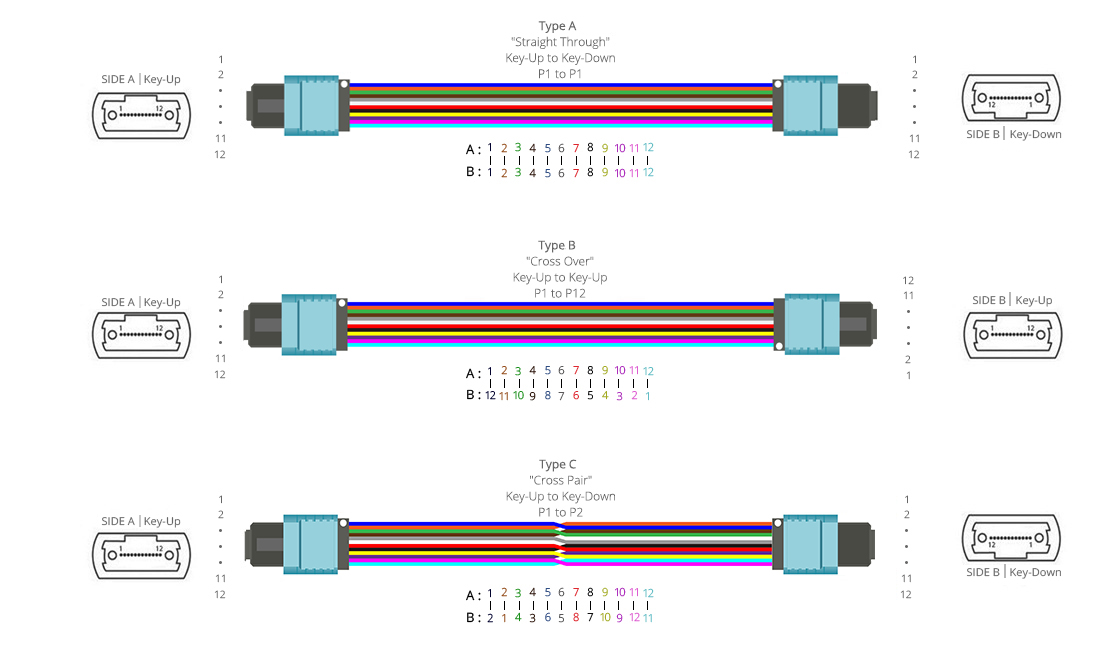

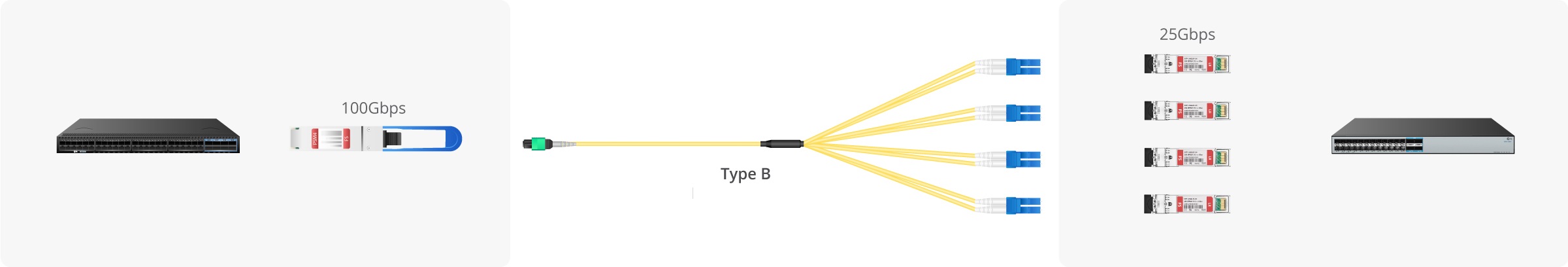

| Polarity | Type A, Type B, Type C |
| Fiber type | OS2(G675a)/OM1/OM2/OM3/OM4 |
| Cores | 8-144 cores |
| Cable Jacket | Plenum (OFNP) |
| Low Smoke Zero Halogen (LSZH) | |
| Riser (PVC) |
| Bundle Count | MPO/MTP-12 | MPO/MTP-24 | Trunk Diameter |
| 2 Bundles | 24 Fibers | 48 Fibers | 7.2mm |
| 3 Bundles | 36 Fibers | 72 Fibers | 9.3mm |
| 4 Bundles | 48 Fibers | 96 Fibers | 9.5mm |
| 6 Bundles | 72 Fibers | 144 Fibers | 11.7mm |
| 8 Bundles | 96 Fibers | / | 12.0mm |
| 12 Bundles | 144 Fibers | / | 17.3mm |
MPO/MTP-12 cables, 2 bundles mean 24 Fibers(2x 12F) ; MPO/MTP-24 cables, 2 bundles mean 48 Fibers(2x 24F)

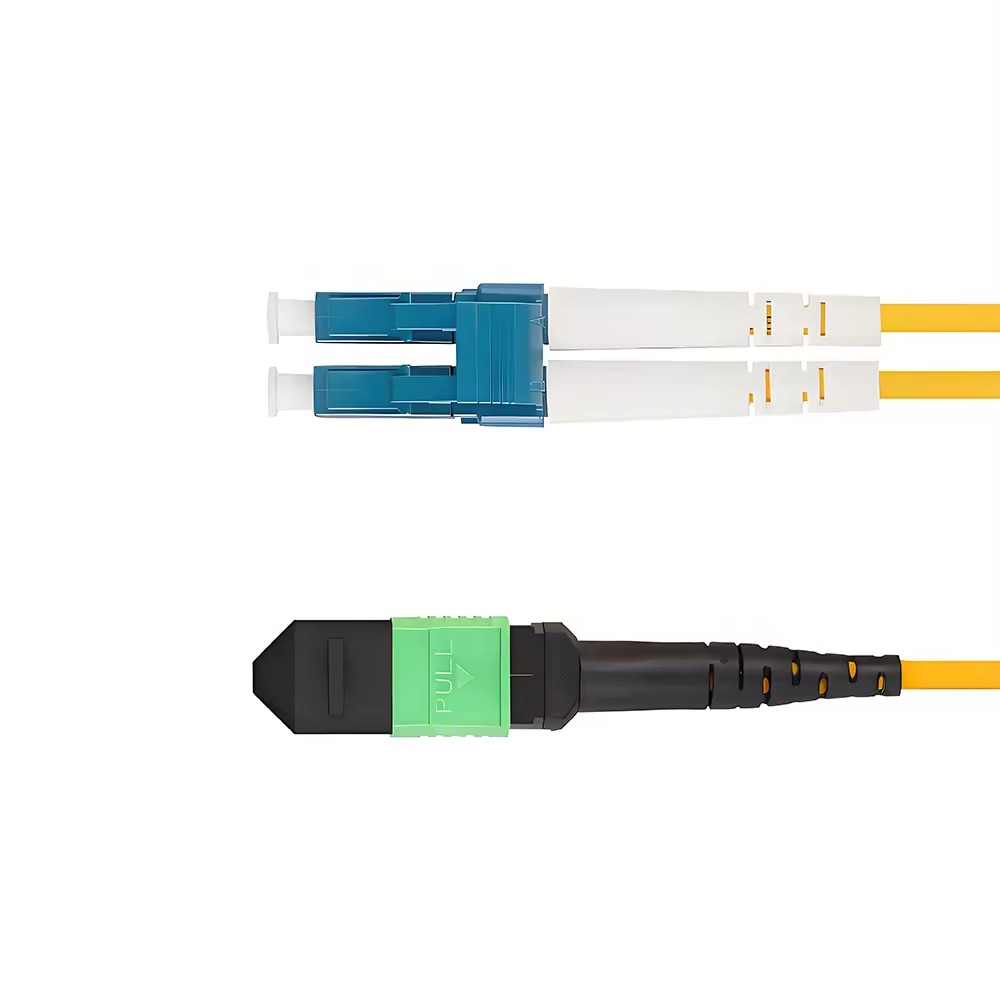

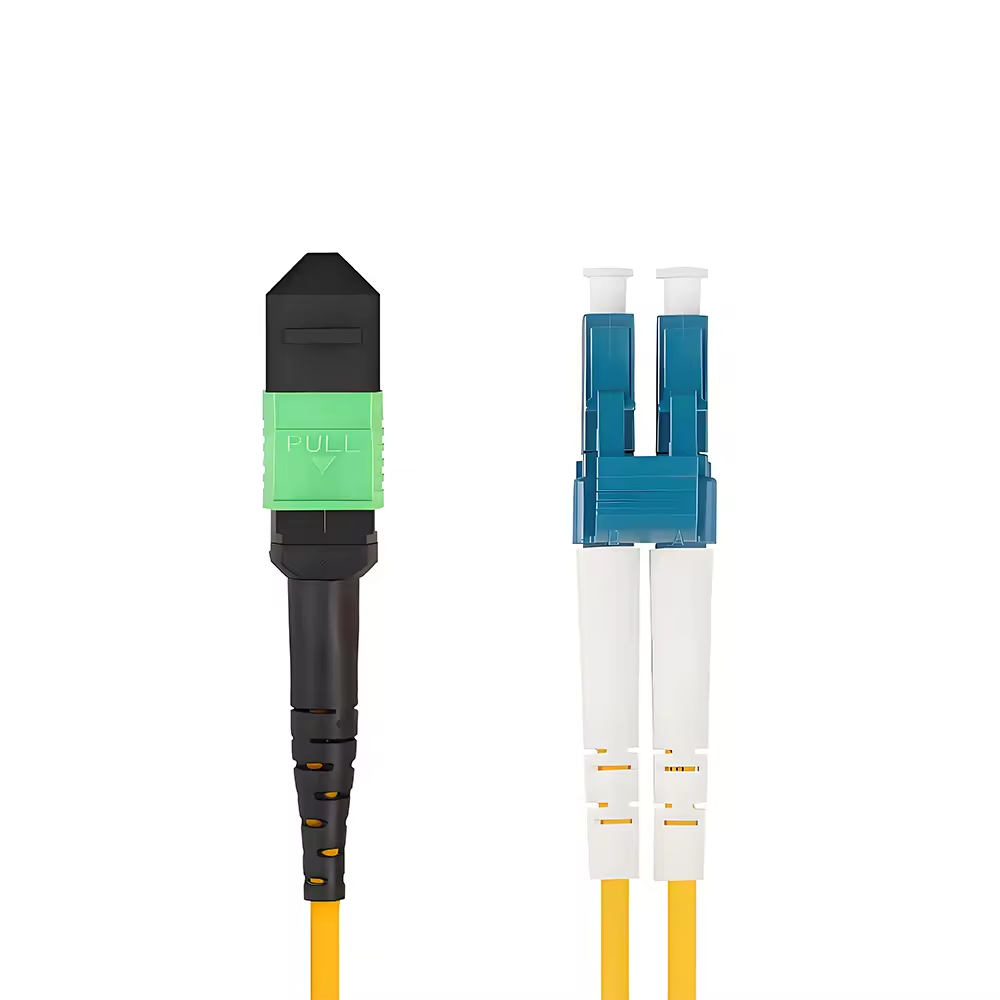

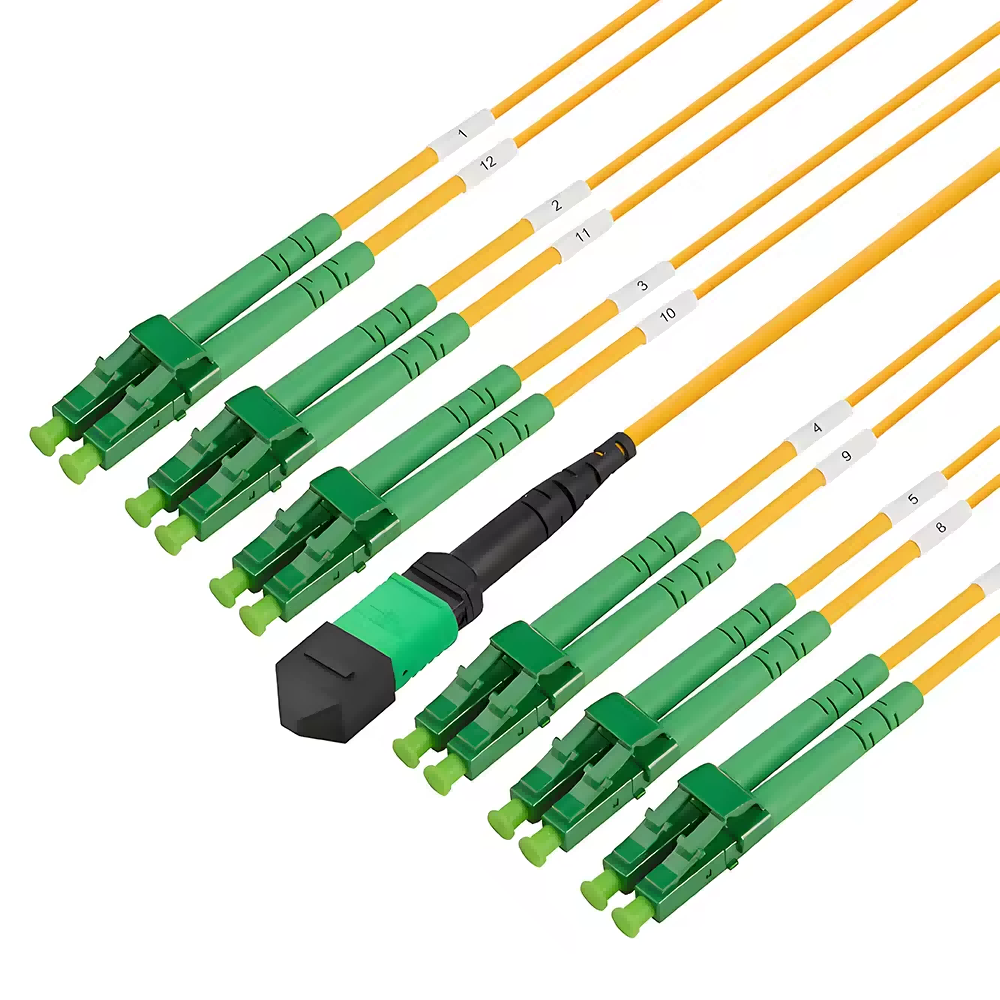

| Cable Jackets | OS2: Yellow ;OM4: violet ;OM3: Aqua;OM1/OM2:orange |
| Connectors | MPO:OS2: Green; Multimode: Aqua |
| LC: OS2: UPC Blue, APC Green; Multimode: Beige | |
| Boots | MPO:Black; |
| LC: Single Mode: UPC Blue, APC Green Multimode: Beige |
|
Insertion Loss |
Standard：max≤0.75dB; (Typical≤0.35dB) Elite：max≤0.35dB; (Typical≤0.15dB) |
|
Return Loss |
SMF: UPC≥50dB; APC≥60dB; MMF: ≥30dB |
|
Attenuation at 1310 nm |
0.36 dB/km |
|
Attenuation at 1550 nm |
0.22 dB/km |
|
Attenuation at 850 nm |
3.0 dB/km |
|
Attenuation at 1300 nm |
1.0 dB/km |
|
Packing material |
ZIP Bag |
|
Carton Dimension (HxWxD) |
460x240x550mm |
