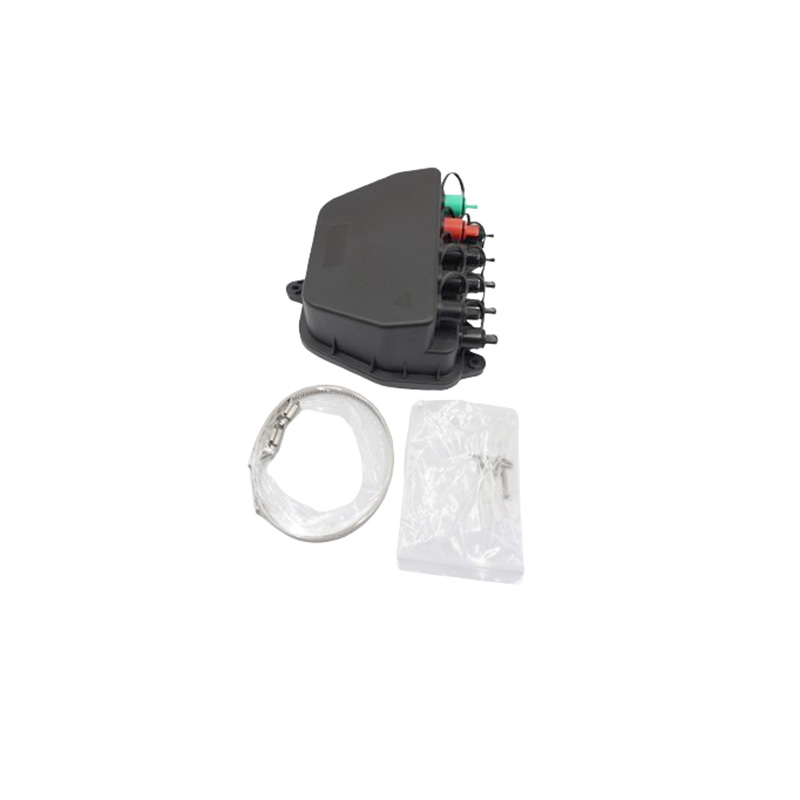

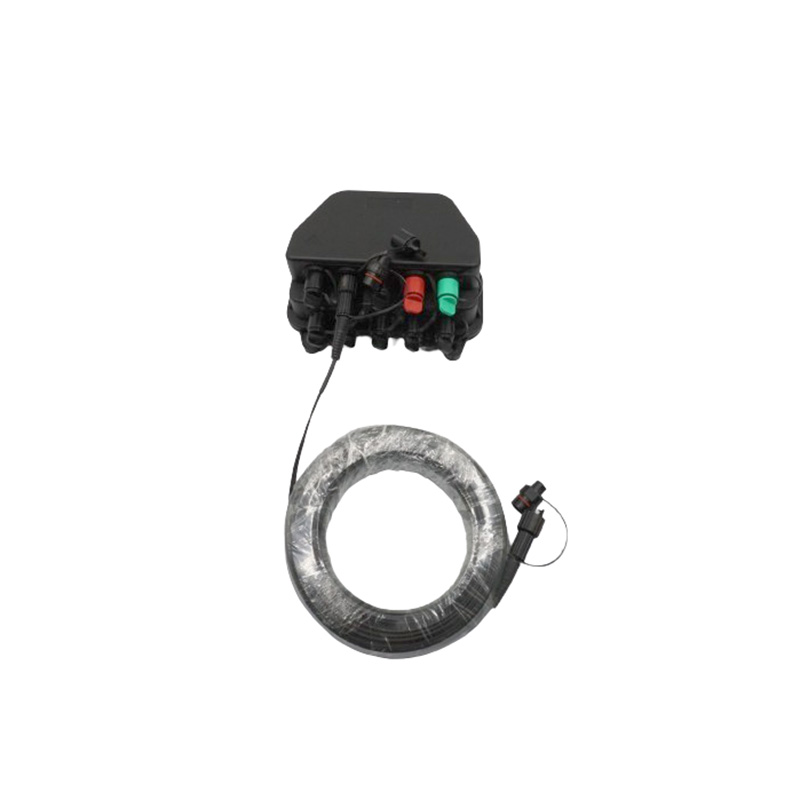

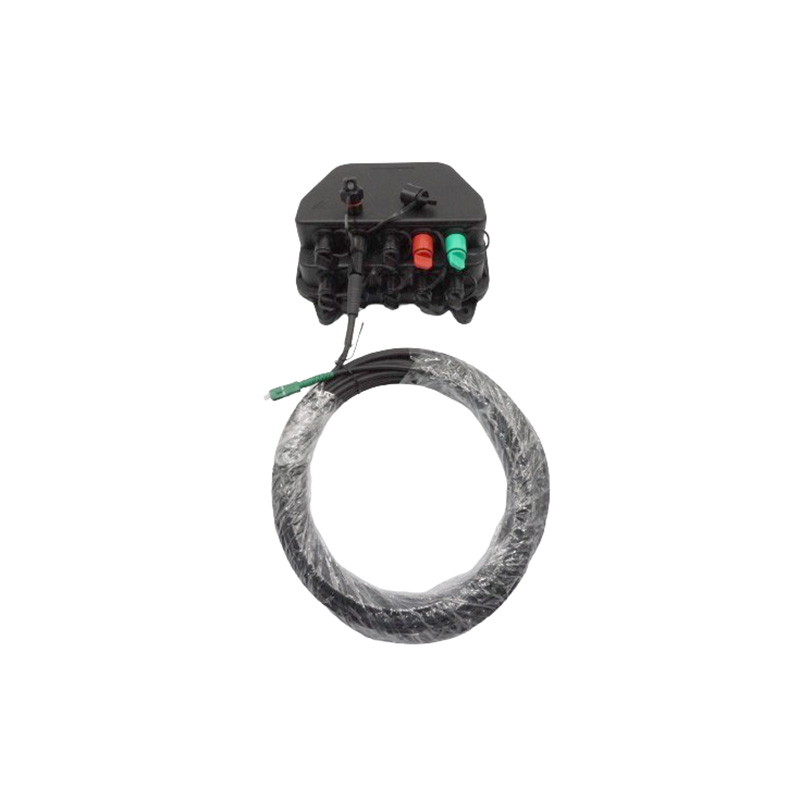

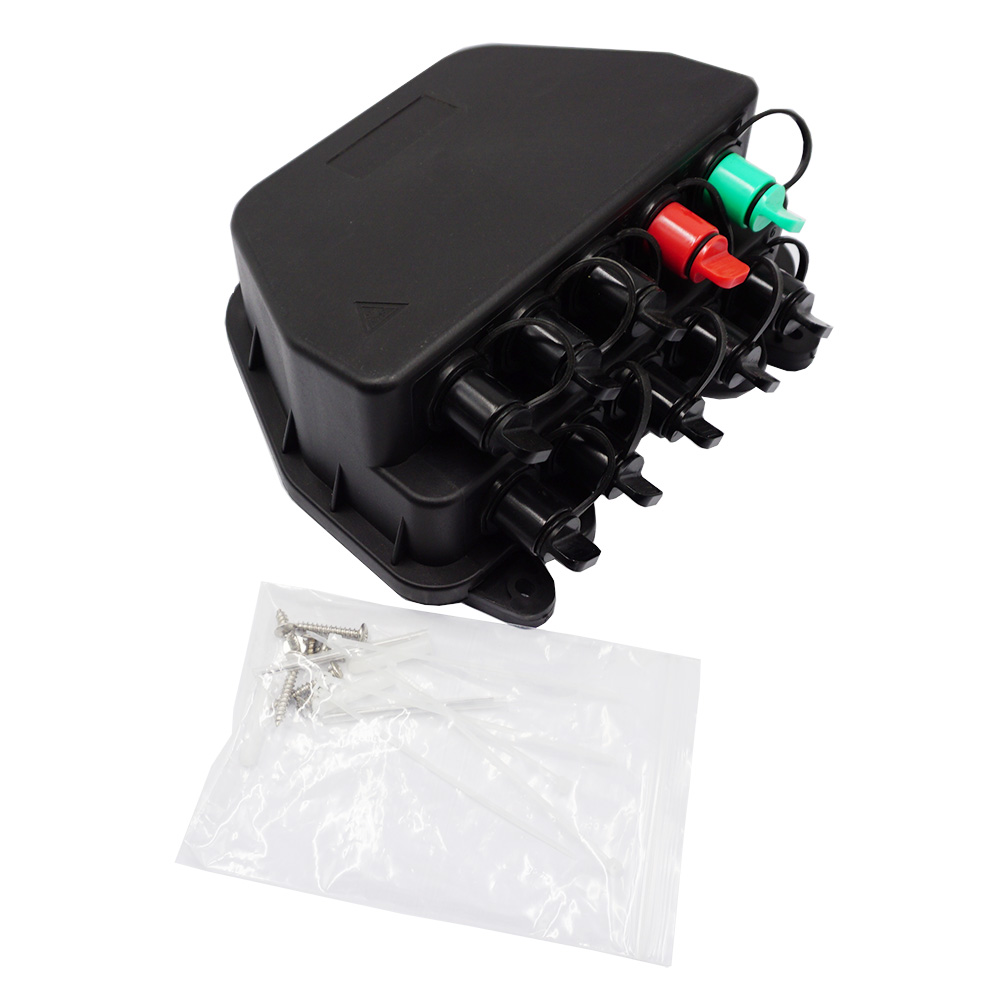

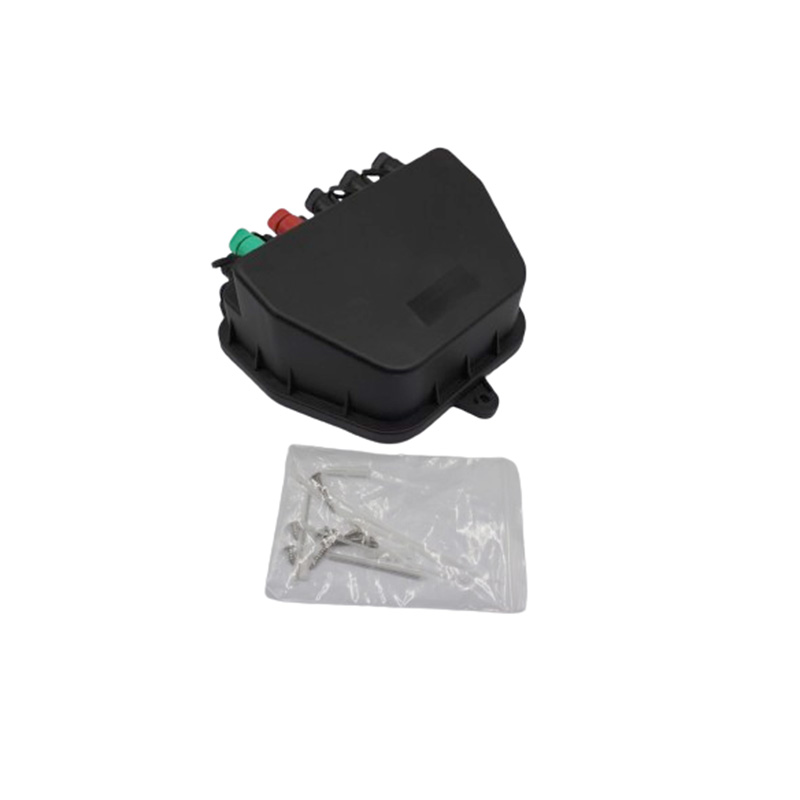

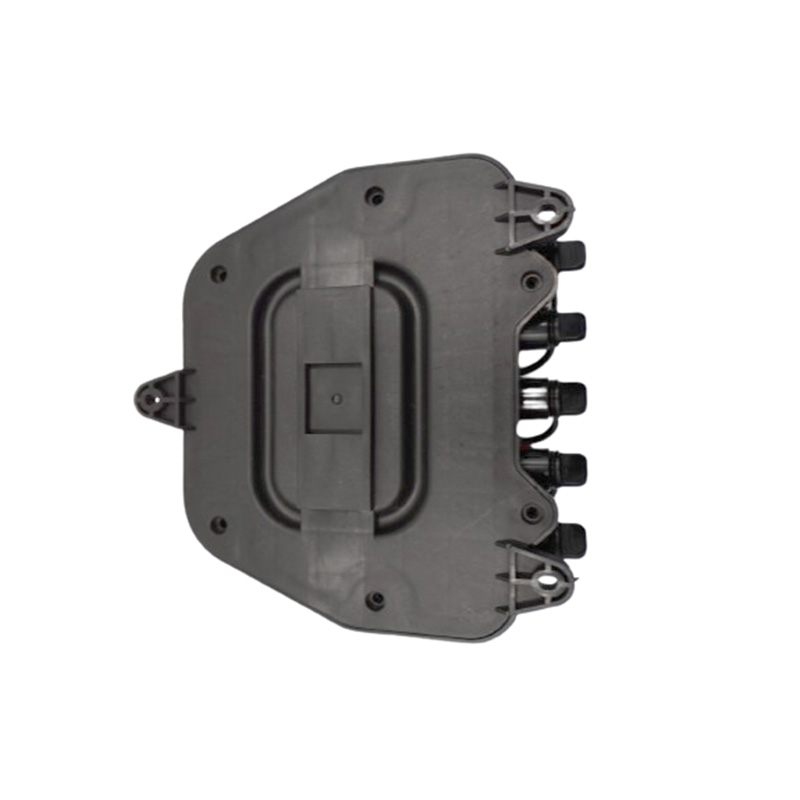

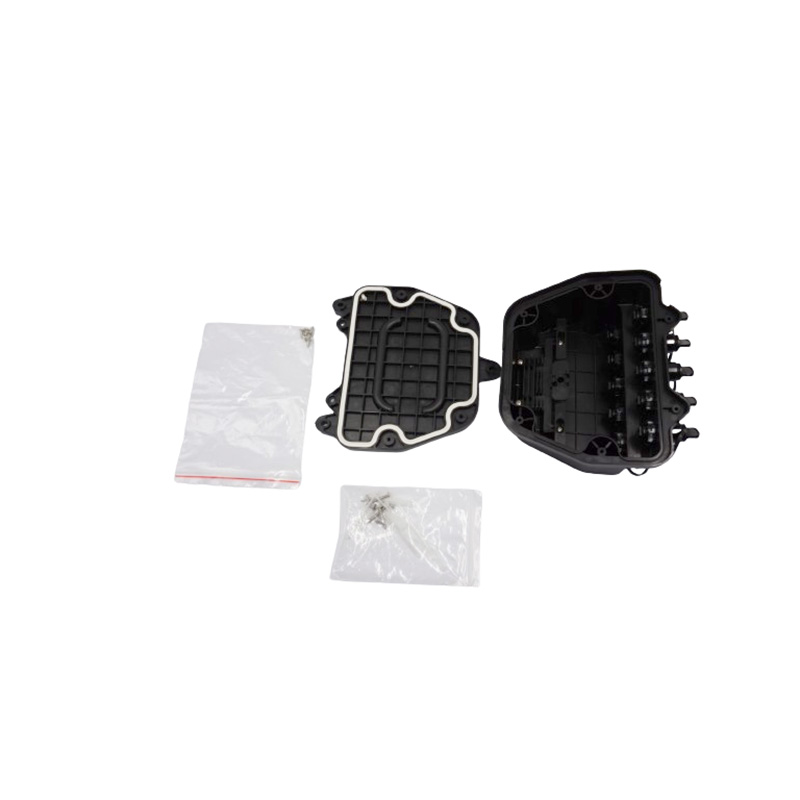

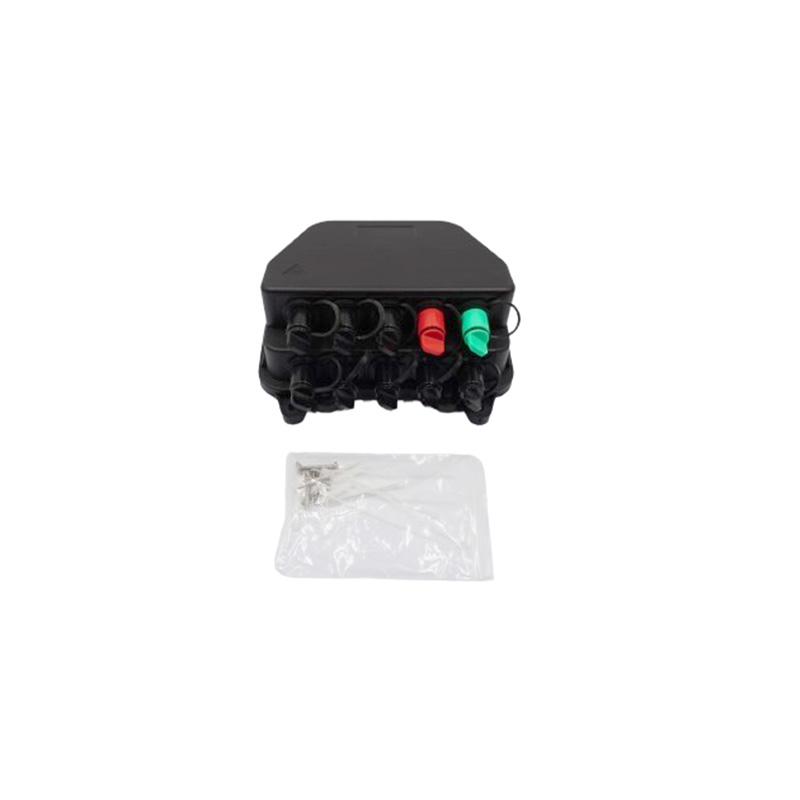

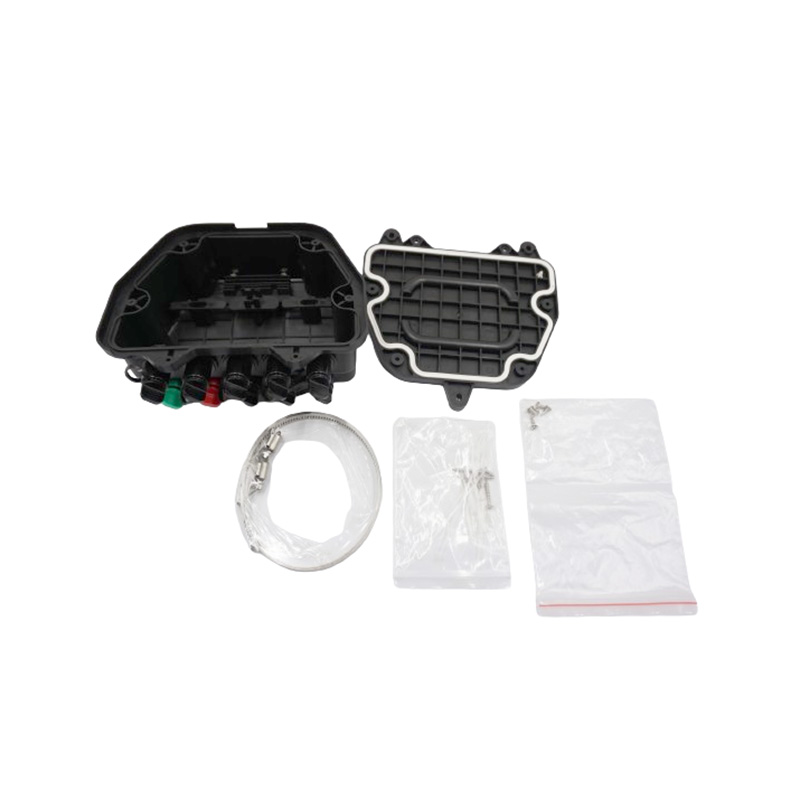

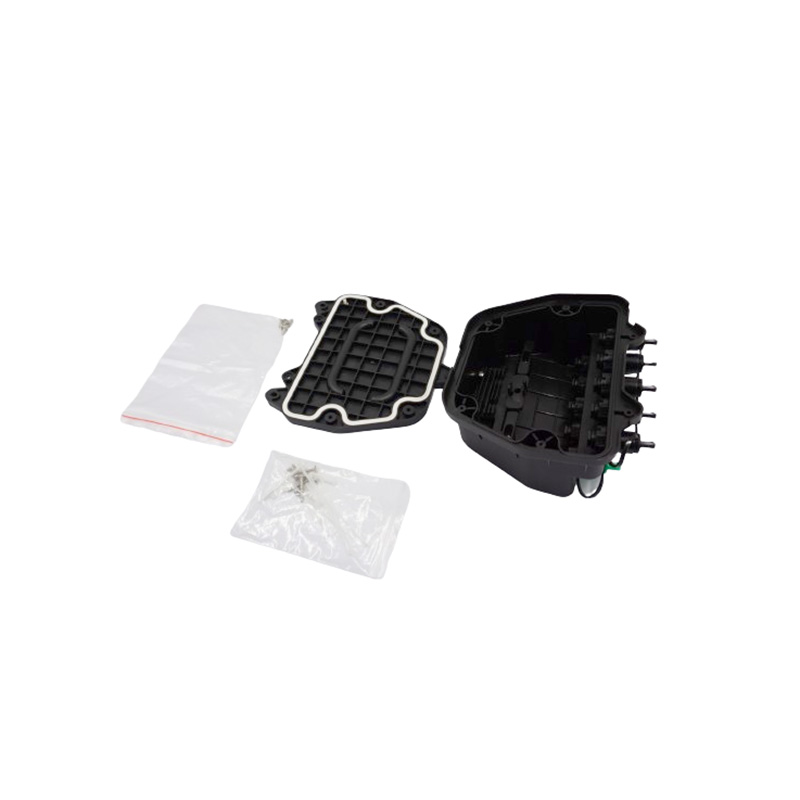

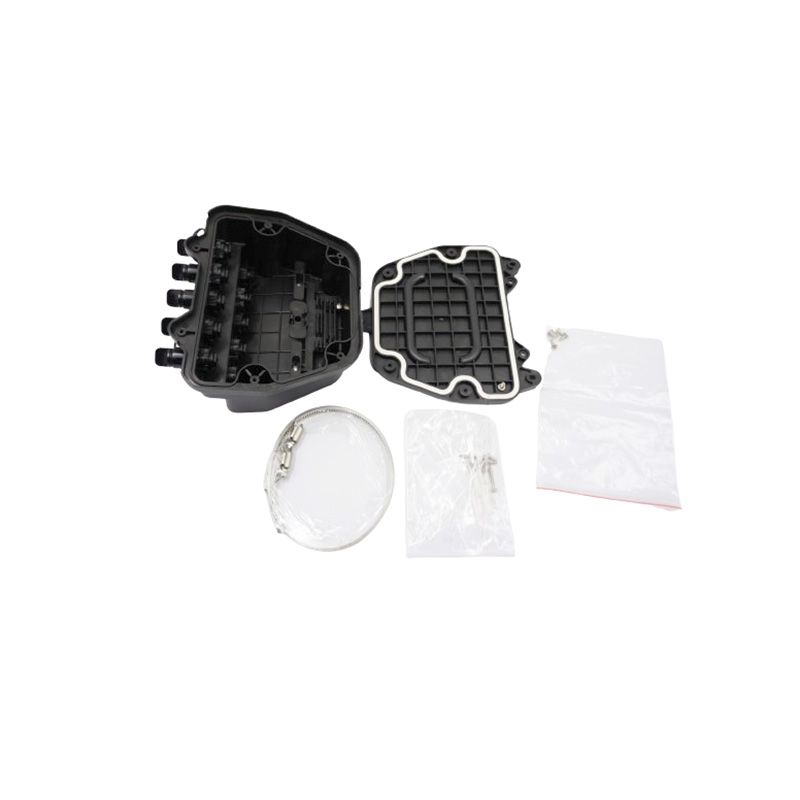

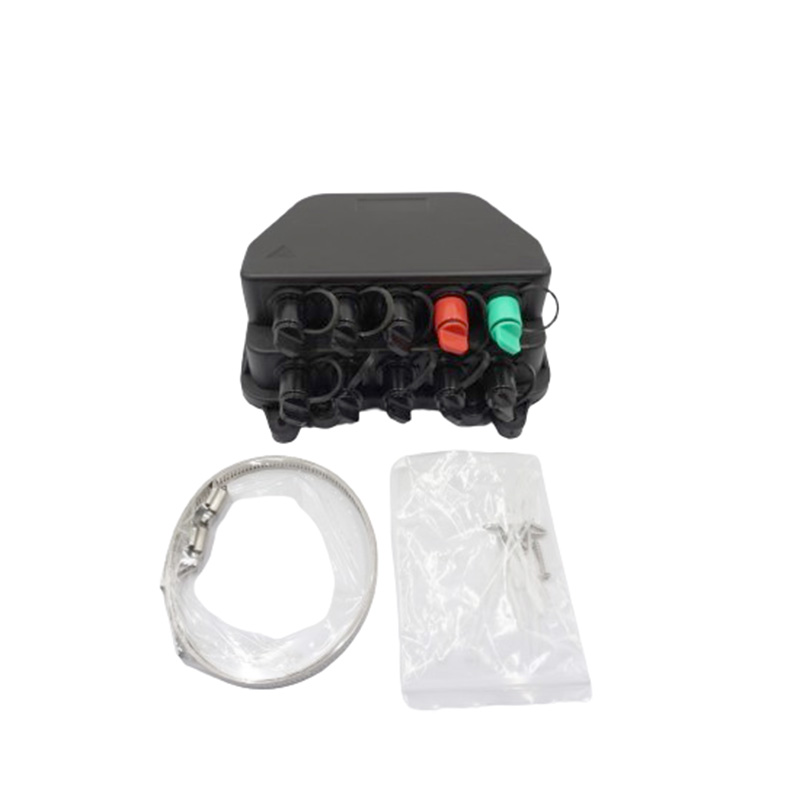

Mini SC Connector 10 Core FTTH Junction Box

CNT-10C is used as a terminal point for feeder and branch cable connection in FTTx communication network system. Fiber optic fusion, splitting and distribution can be done in this box, while providing solid protection and management for FTTx network construction. Suitable for indoor and outdoor wall-mounted installation.

1. Optical performance
Connector attenuation (insertion, interchangeability, repetition) ≤ 0.3dB.
Return loss: APC ≥ 60dB, UPC ≥ 50dB, PC ≥ 40dB.
Main mechanical performance parameters
Connector plugging durability life > 1000 times

2. Operating temperature: -40℃～＋60℃;
Storage temperature: -25℃～＋55℃
Relative humidity: ≤ 95% (+30℃)
Atmospheric pressure: 62 ~ 101kPa

• Made of high quality engineering plastic, with beautiful appearance and good quality workmanship.

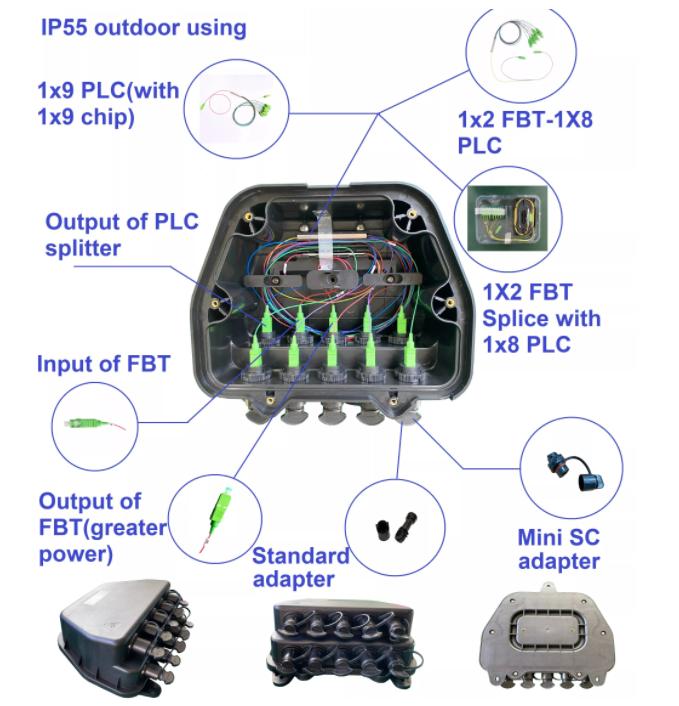

• CNT-10B-1 can be equipped with 10pcs Mini SC adapters; CNT-10B-2 can be equipped with 10pcs Tyco adapters, CNT-10B-3 can be equipped with 8pcs Tyco adapters and 2pcs Mini SC adapters;

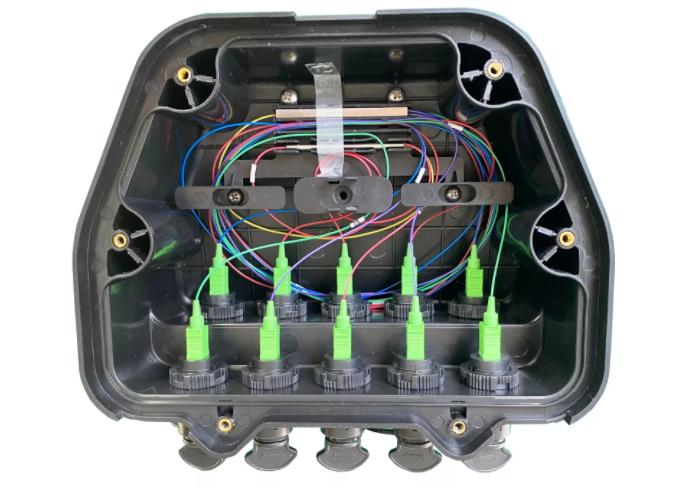

• Can install 1pcs mini type 1*8 PLC splitter or 2pcs mini type 1*4 PLC splitter or 1pcs 1*2 FBT-1*8 PLC splitter

• Full radius of curvature control to ensure that the radius of curvature of the fiber at any position is greater than 30mm

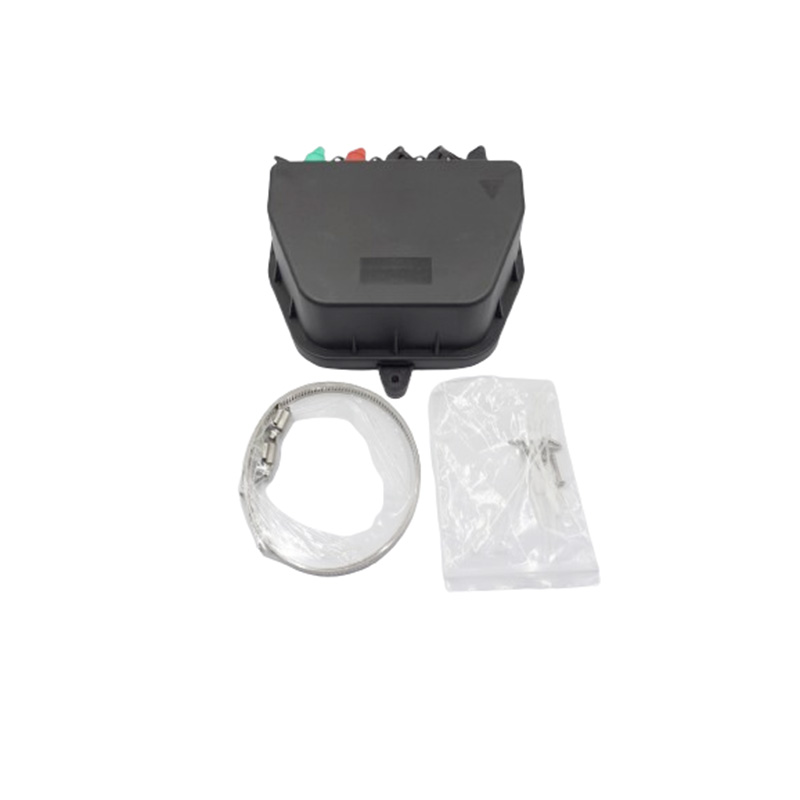

• Support wall-mounted or pole-mounted installation

• Protection level: IP55
