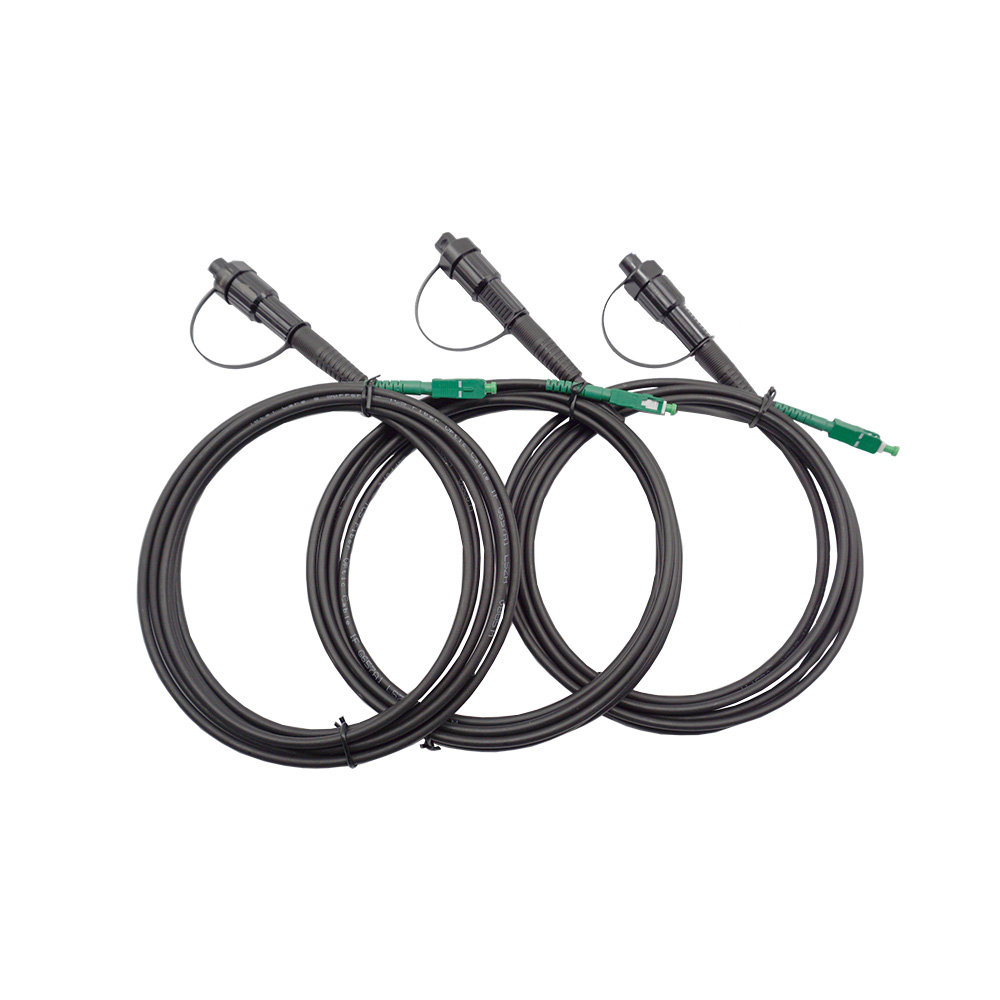

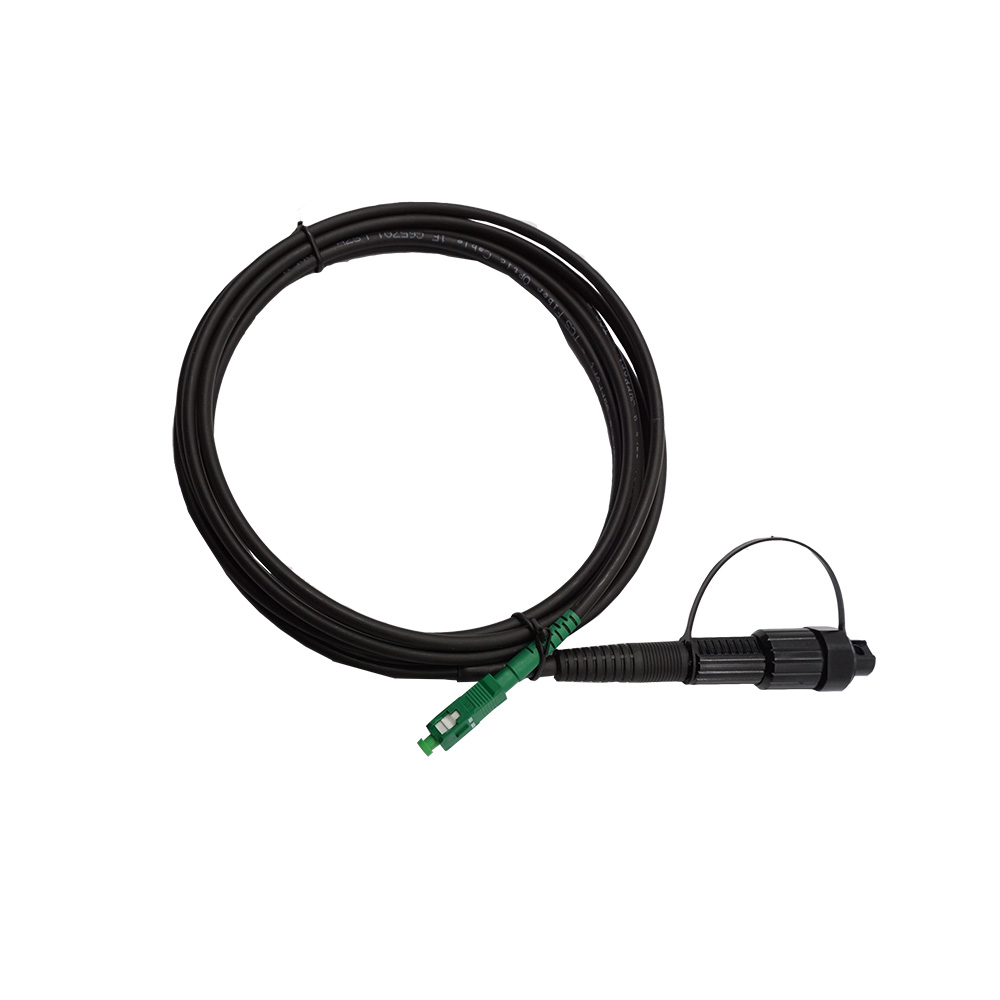

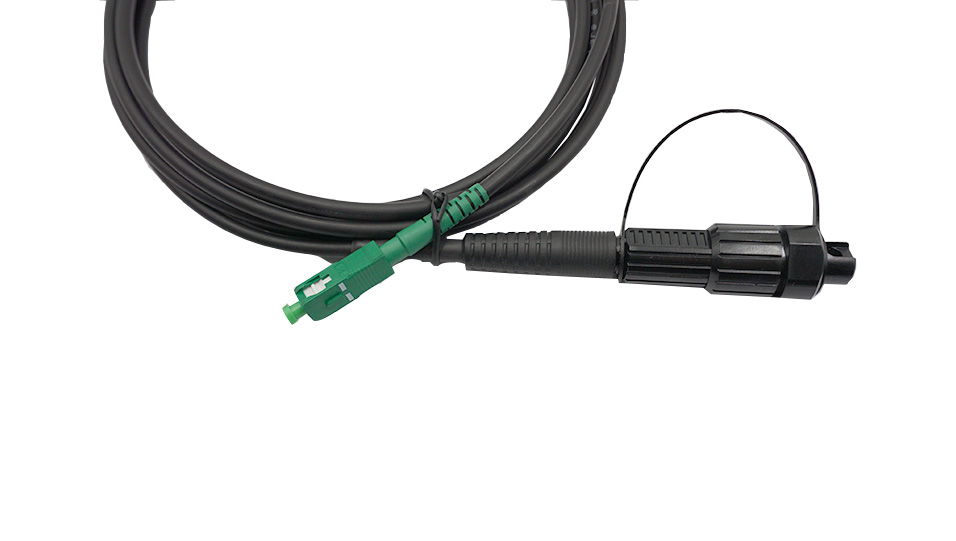

Waterproof fiber optic patch cord mini SC/APC- regular SC/APC , can be used for outdoor , and we can make the length from 1m to 1000meters .
Cable Model No.:GJFJH63
1 Fiber,G657A1
Cable dimeter: 5.0mm
LSZH ,Black outer sheath

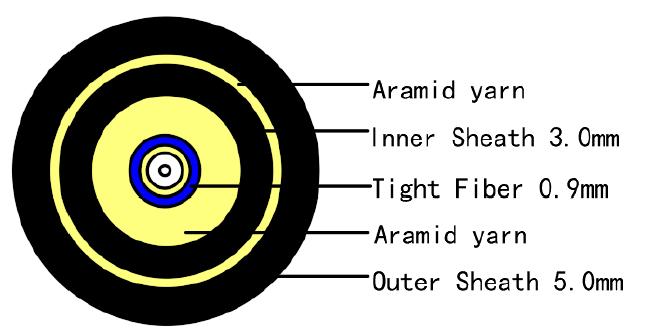

| No. of cable | 1 | |
| Fiber Model | G657A1/G.657A2 | |
| Strength Member | Material | Aramid yarn(Imported) |
| Model | 1100D | |
| NO. | 10 | |
| Tight buffer | Material | LSZH |
| Color | Red | |
| Thickness（±0.05）mm | 0.32 | |
| Diameter（±0.1）mm | 0.9 | |
|
Inner Sheath |
Material | LSZH |
| Color | white | |
| Thickness（±0.05）mm | 0.45 | |
| Diameter（±0.1）mm | 2.9 | |
| Outer Sheath | Material | LSZH |
| Color | Black | |
| Thickness（±0.1）mm | 0.7 | |
| Cable Diameter（±0.2）mm | 4.8mm | |
| Cable Weight（±2）kg/km | 21 | |
| Span length | 25m | |
| Min. bending radius | Without Tension | 15×Cable-φ |
| Under Maximum Tension | 30×Cable-φ | |
|
Temperature range （℃） |
Installation | -20~+60 |
| Transport&Storage | -30~+70 | |
| Operation | -20~+60 | |
| NO. | Item | Requirement | |
| 1 | Allowable Tensile Strength | Short Term | 1000N |
| Long Term | 400 N | ||
| 2 | Allowable Crush Resistance | Short Term | 1000(/100mm) |
| Long Term | 300 (/100mm) | ||
Cable Marks： Fibre Optic Cable GJFJH63 1F G657A1 LSZH ***M

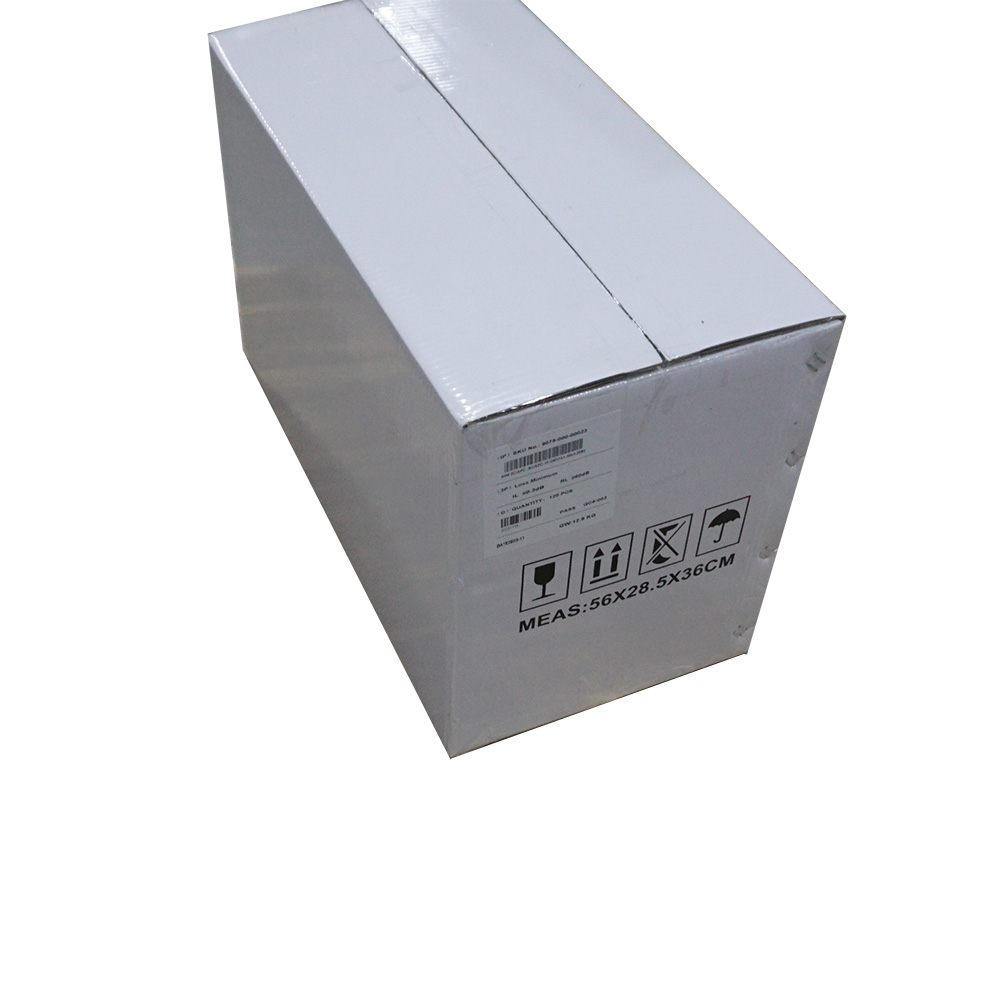

| QTY : | 120 pcs/ caton box |
| Carton box size : | 57*29*37cm |
| GW: | 12.9KG |
