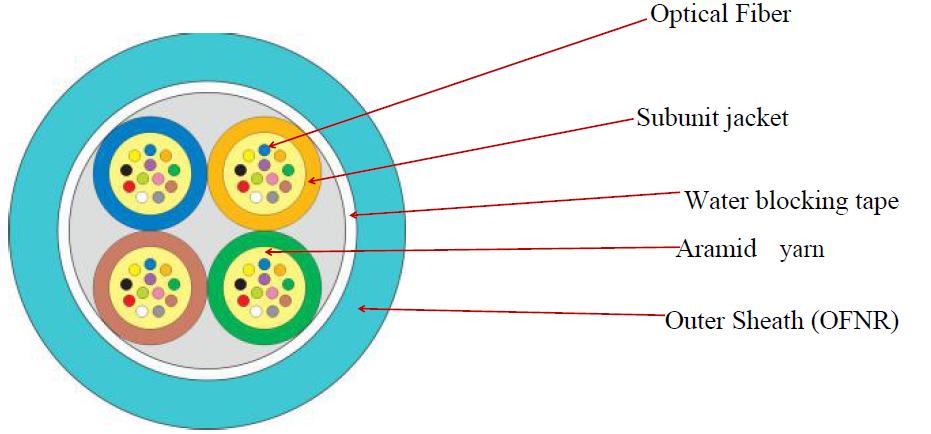

Optical cable totally dielectric, composed of optical units of the type Micromodules, within which the optical fibers of the Single-mode type. The optical fibers have a primary acrylate coating.On the set of micromodules are placed tensile elements of wires Dielectrics. On the whole an outer layer is applied in material.
Non-flame-propagating thermoplastic.
| Single mode fiber | 9/125 (G.652D or G.657A1) |
| Fibre used in the cable manufacturing fully comply to ITU-T-Rec G.652D or G.657A1 | |
| Attenuation | at 1310 nm ≤0,38 dB/km |
| at 1550 nm ≤0,25 dB/km | |

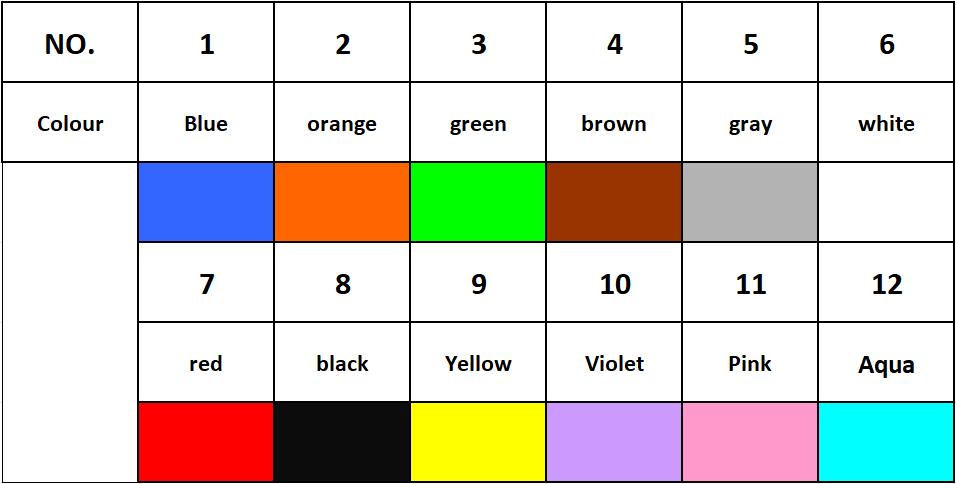

Color of fibers in a tube: blue, orange, green, brown, gray, white, red, black, yellow, violet, Pink & aqua

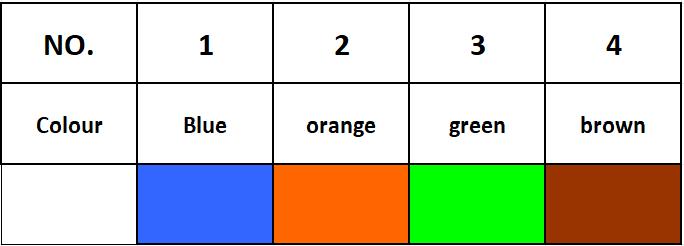

Colour of loose tube: Blue, Orange, Green, Brown
Other fiber color sequences available on request.
| No. of cable | / | 48 | ||
| Design(Fiber×Tube) | / | 4*12 | ||
| Strength Member | Material | / | Aramid Yarn | |
| Inner Sheath | Material | mm | PVC | |
|
Diameter/Thickness (±0.03mm) |
2.0/0.25 | |||
| Outer Sheath | Material | mm | PVC | |
|
Thickness (±0.2mm) |
1 | |||
| colour | aqua | |||
| Cable Diameter(±0.2mm) | mm | 8.5 | ||
| Cable Wetght(±10.0kg/km) | kg/km | 58 | ||
| Min. bending radius | During installation | mm | 30.0×Cable-φ | |
| After installation | 15.0×Cable-φ | |||
|
Temperature range （℃） |
Installation | ℃ | +0~+40 | |
| Transport&Storage | -10~+70 | |||
| Operation | -40~+60 | |||
| Print colour | White |
| Print method | INK-Jet |
| Print legend | manfacturer's name,job number,type of cable,length marking@ 1m intervals |
| other print legends available on request | |
| Order example | Fiber ◆Optic◆Cable◆48F◆SM◆9/125◆G.652D◆09/2017◆1000m |
| (◆ Represents a space .Bigger meter number in outside end ) |
| NO. | Item | Requirement | |
| 1 | Max. working strength(N) | LONG-TIME | SHOTE-TIME |
| 500 | 2000 | ||
| 2 | Max. Crush Resistance strength(N/CM) | 200 | 500 |
| No. | Item | Index |
| 1 | Length and packaging | 1000m-3000m/wooden drums (plywood) |
| 2 | drum size | 530×200×290mm (plywood reel ) |
| 800×600×600mm (wooden drums) | ||
| 3 | Net weight | 58.00kg/km |
| 4 | Gross weight | 80 kg/Plywood Reel/1KM |
