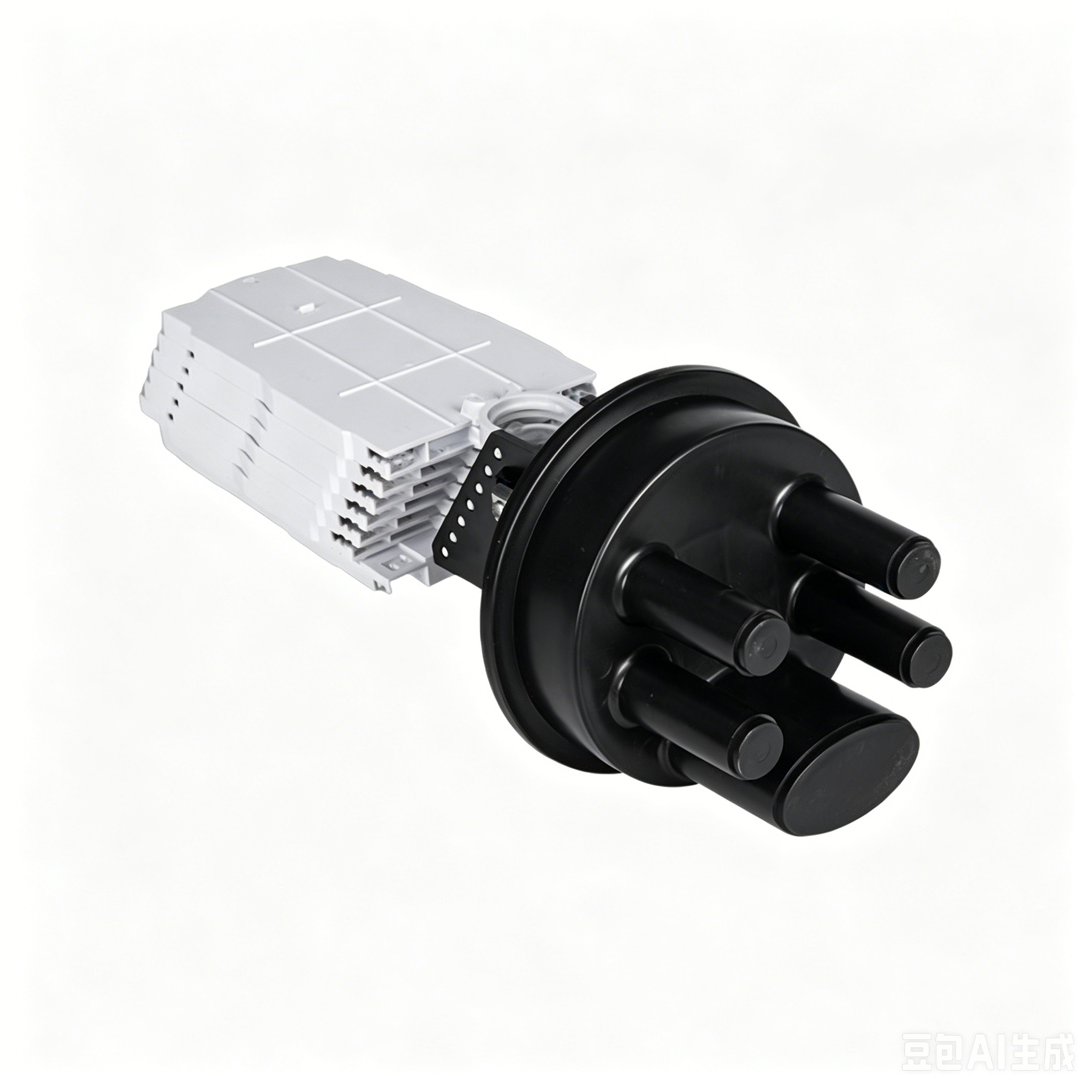

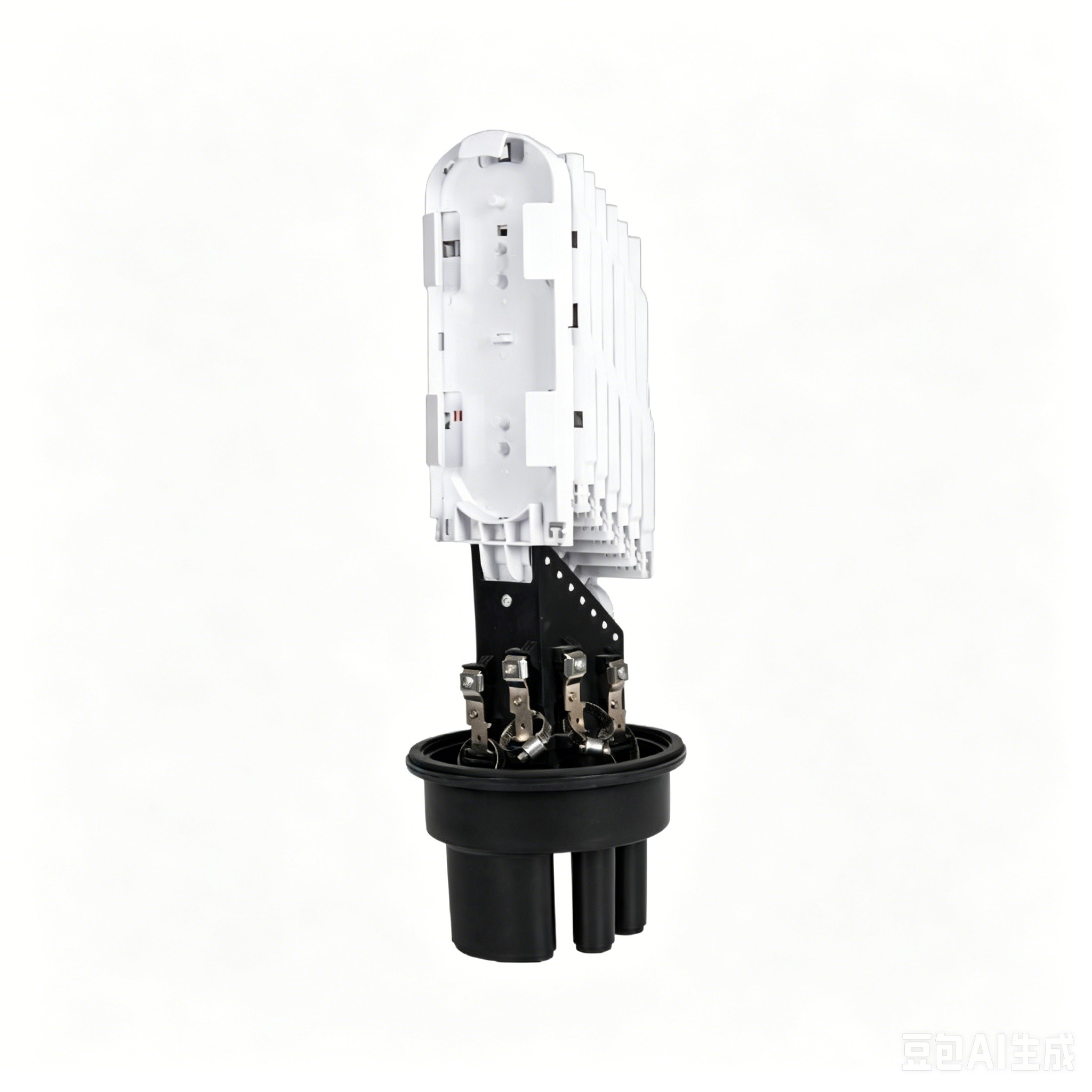

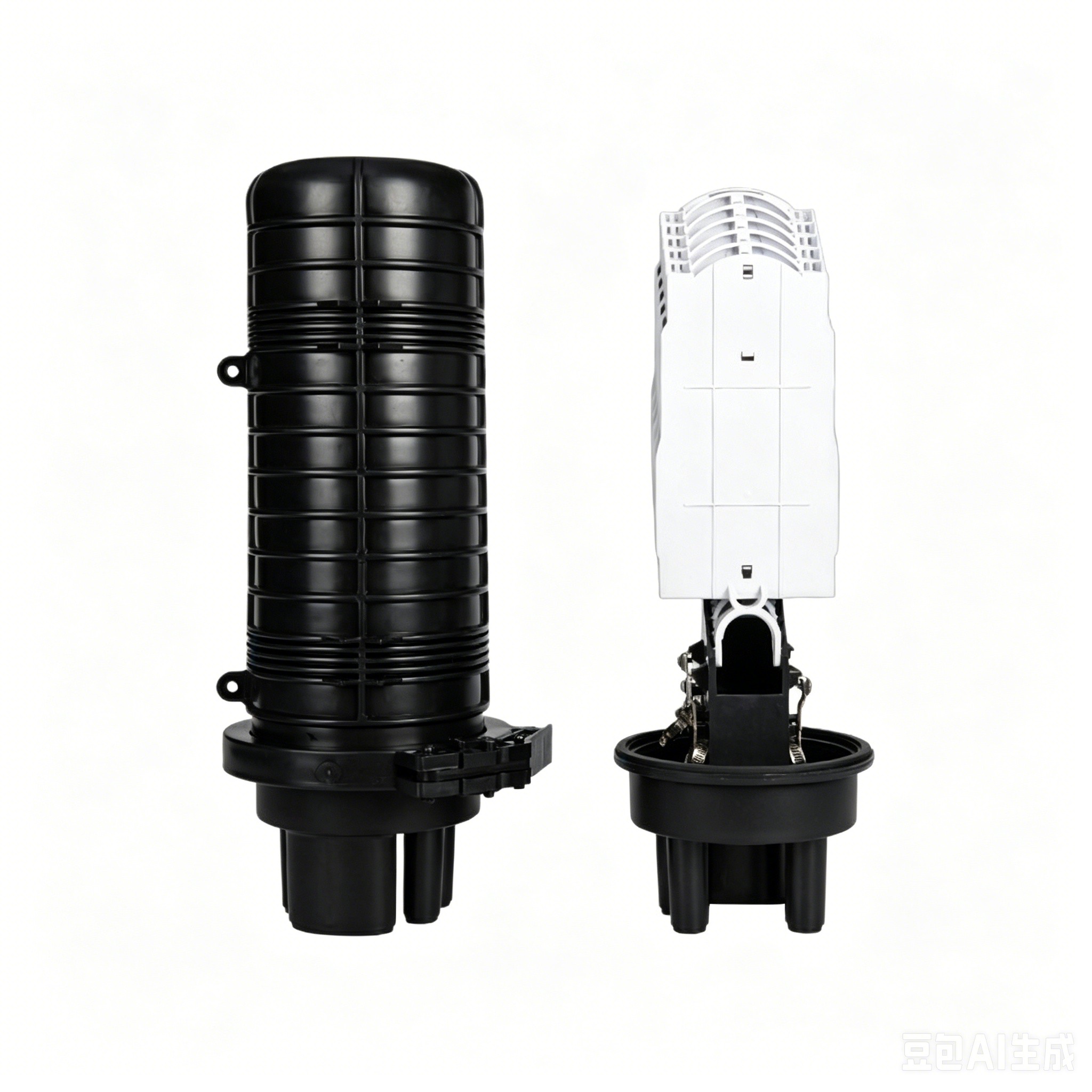

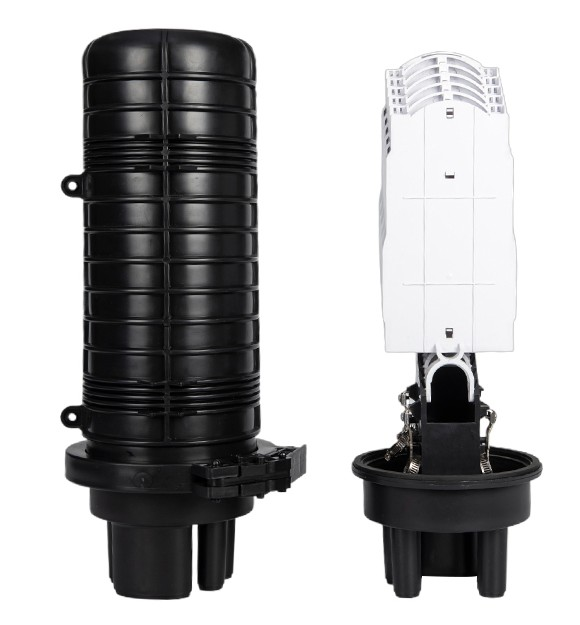

96/144 Core Fiber Optic Cable Closure

optical splice closures are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. They are applicable to situations such as overhead, man- well of pipeline, embedded situation etc. Comparing with terminal box, the closure requires much stricter requirement of seal. Sealing ring and air valve are required for closure, but that are not necessary for terminal box.

Tag paper:1pcs

Sand paper :1pcs

Silver paper :1pcs Insulating tape：1pcs

Cleaning tissue：1pcs

Cable tie:3mm*10mm 12pcs Fiber protective tube：6pcs Heat shrink tubing:1 bag

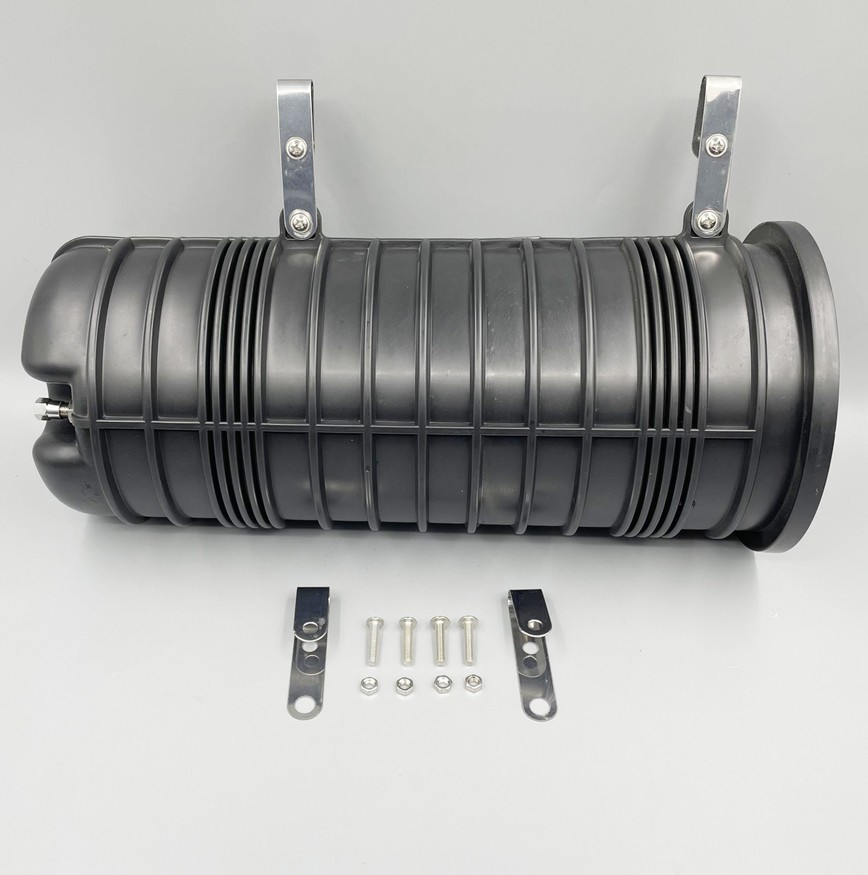

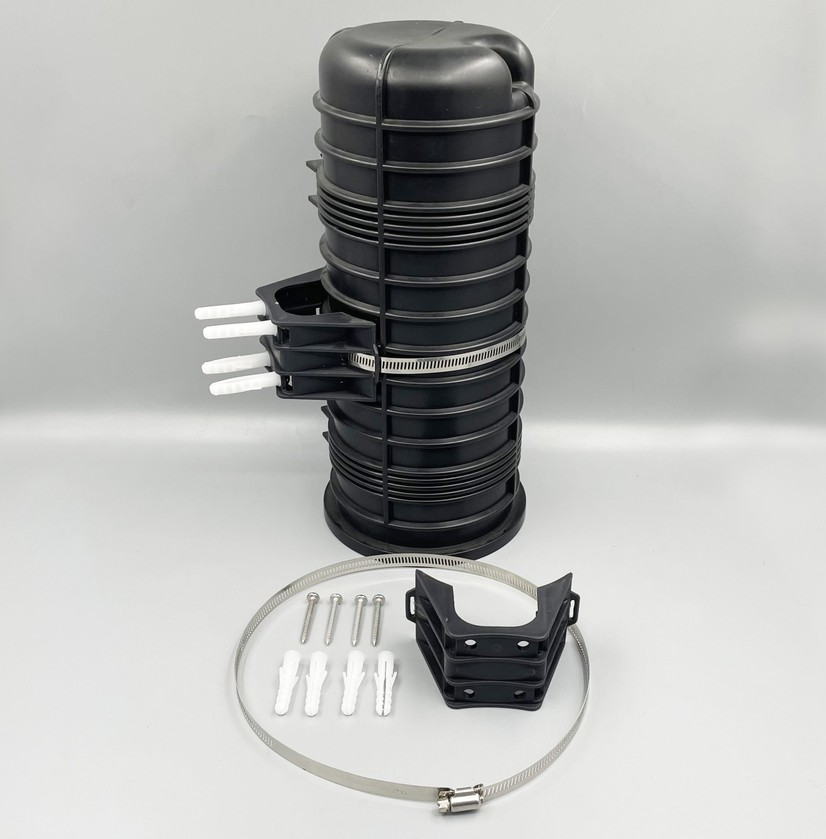

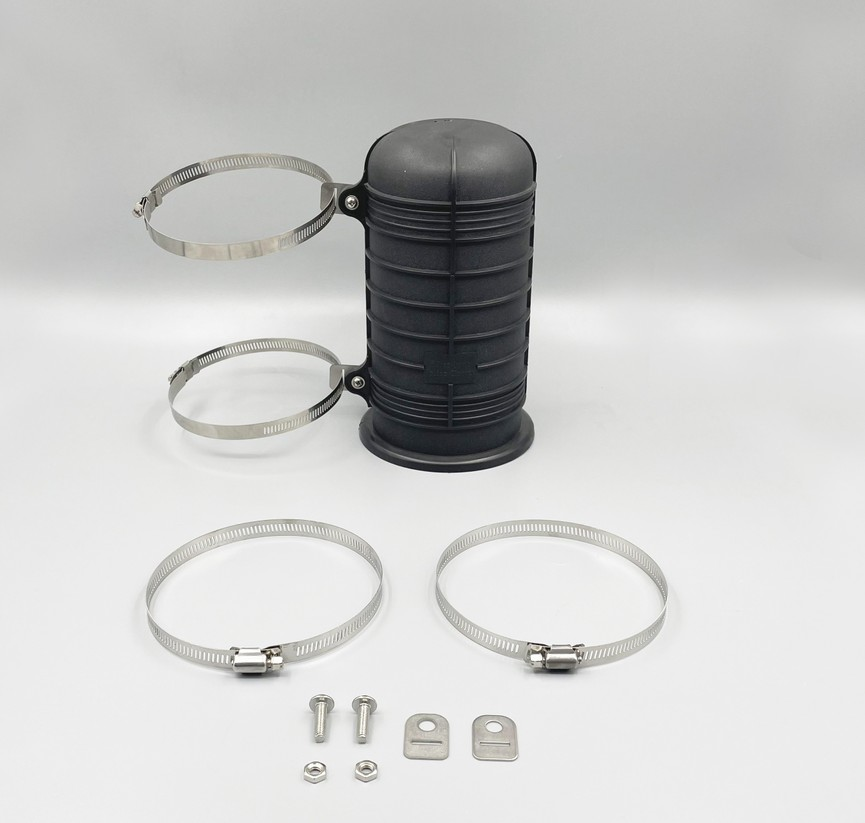

Heat-shrink sleeve:1.0mm*3mm*60mm 96 144 pcs Pole accessories:1 pcs（Optional Accessories ） Aerial accessories:1 pcs（Optional Accessories ） Pressure testing valve：1pcs （Optional Accessories ）

• Seal performance: after the box is sealed, inflate to 100kPa inwards (inflation only apply to the models with the air hole), and then soak it in the water of normal temperature, after 15 minutes of steady observation, there is no bubble to overflow.
• Insulation resistance: the insulation resistance between the metal work piece and the earth is greater than 20kMΩ.
• Pressurization: there is no breakdown or flashover under 15kVdc/1min between the metal work piece and the earth.

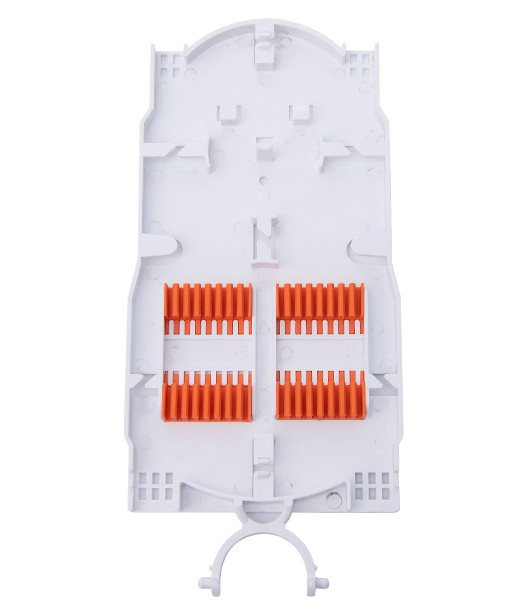

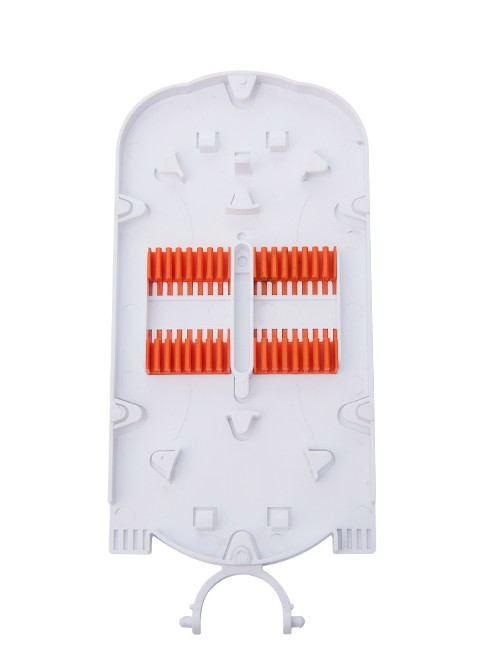

• The curvature radius of the fiber 40mm, without extra loss inside the splice tray.
• It can bear the axial tensile strength no less than 1000N.
• Lifetime: 25 years.
• Other performances are all in accordance with the requirement of standard YD/T814-1998.
