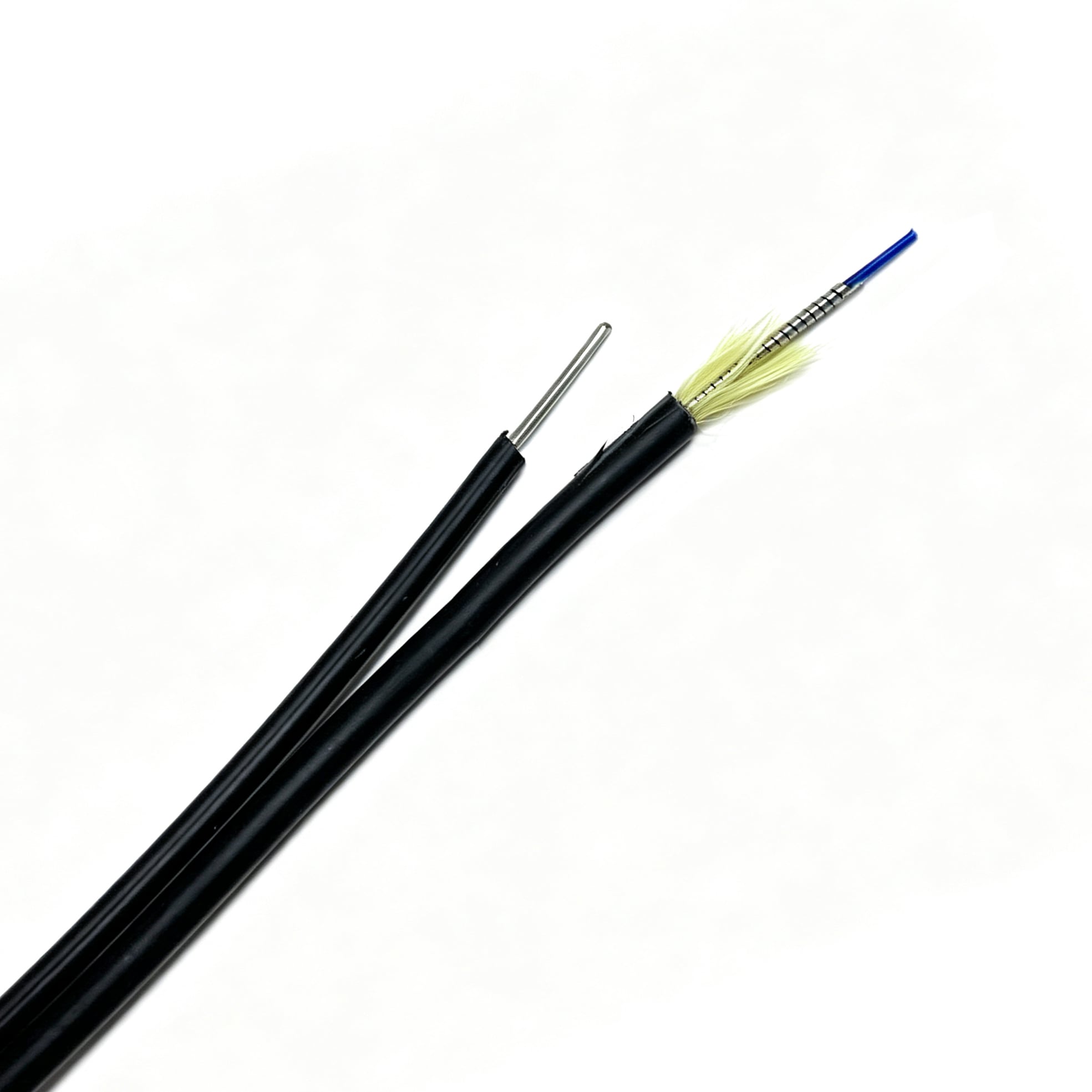

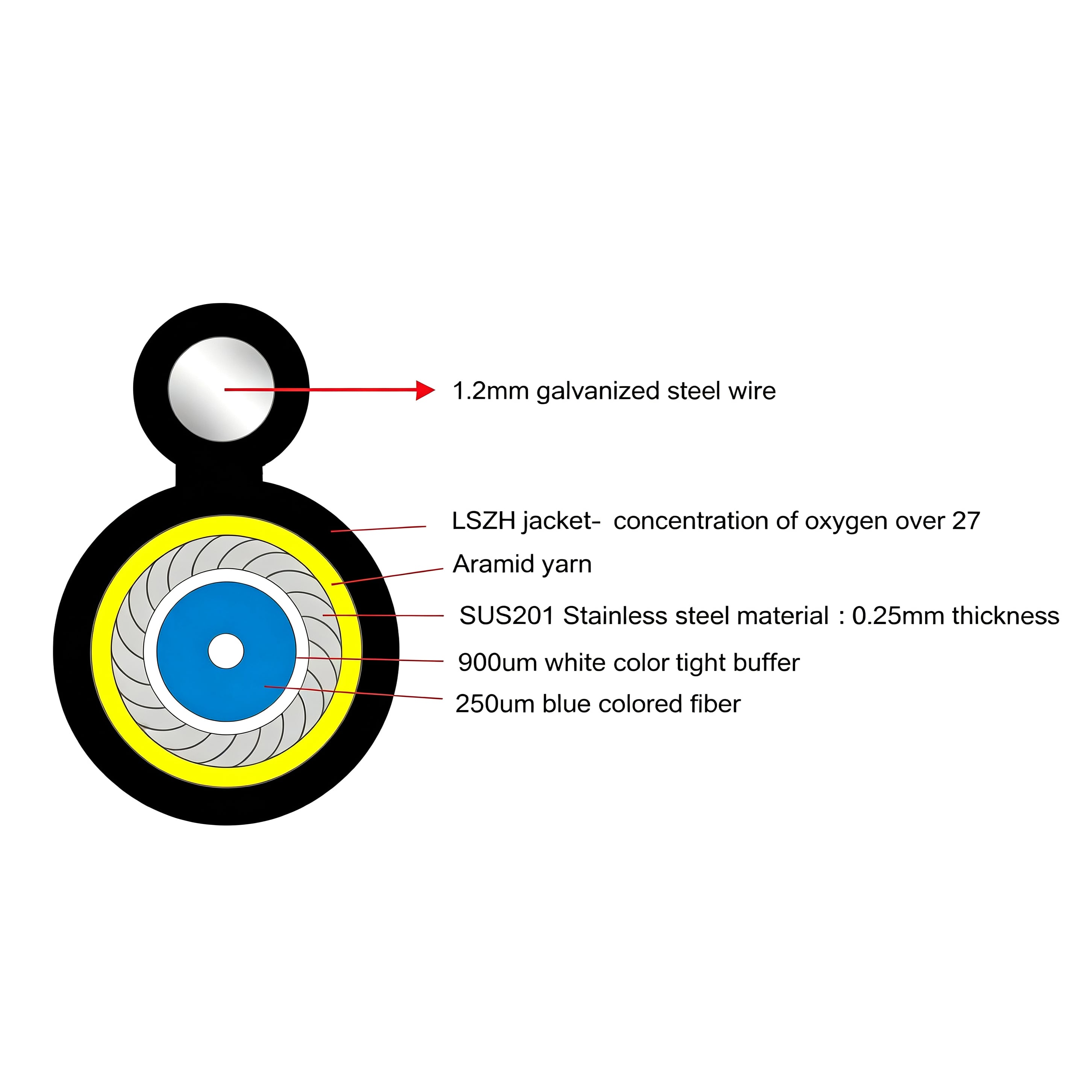

Anti Rodent Aerial Drop Application LSZH Jacket Indoor/Outdoor Armored Optic Fiber Cable Fig 8 Self Supporting

• Fiber Count: 1 core
• Fiber Type: G.657A1 SINGLE MODE
• Spiral Steel Armored
• Outer Sheath: LSZH (Black)

Mode Field Diameter
• @1310nm 8.6±0.4μm
• @1550nm 9.8±0.5μm
• Fiber Attenuation coefficient in Cable
• dB/km(1310nm) ≤0.35dB/km
• dB/km(1550nm) ≤0.21dB/km

• Withstand up to 1000N crush resistance
• Anti-Rodent / Anti-Termite Protection
• Optical performance and macro bending loss
• G.657 Class A1 single mode fiber

• Low Smoke Zero Halogen Outer Jacket
• Withstand up to 800N tension pulling strength
