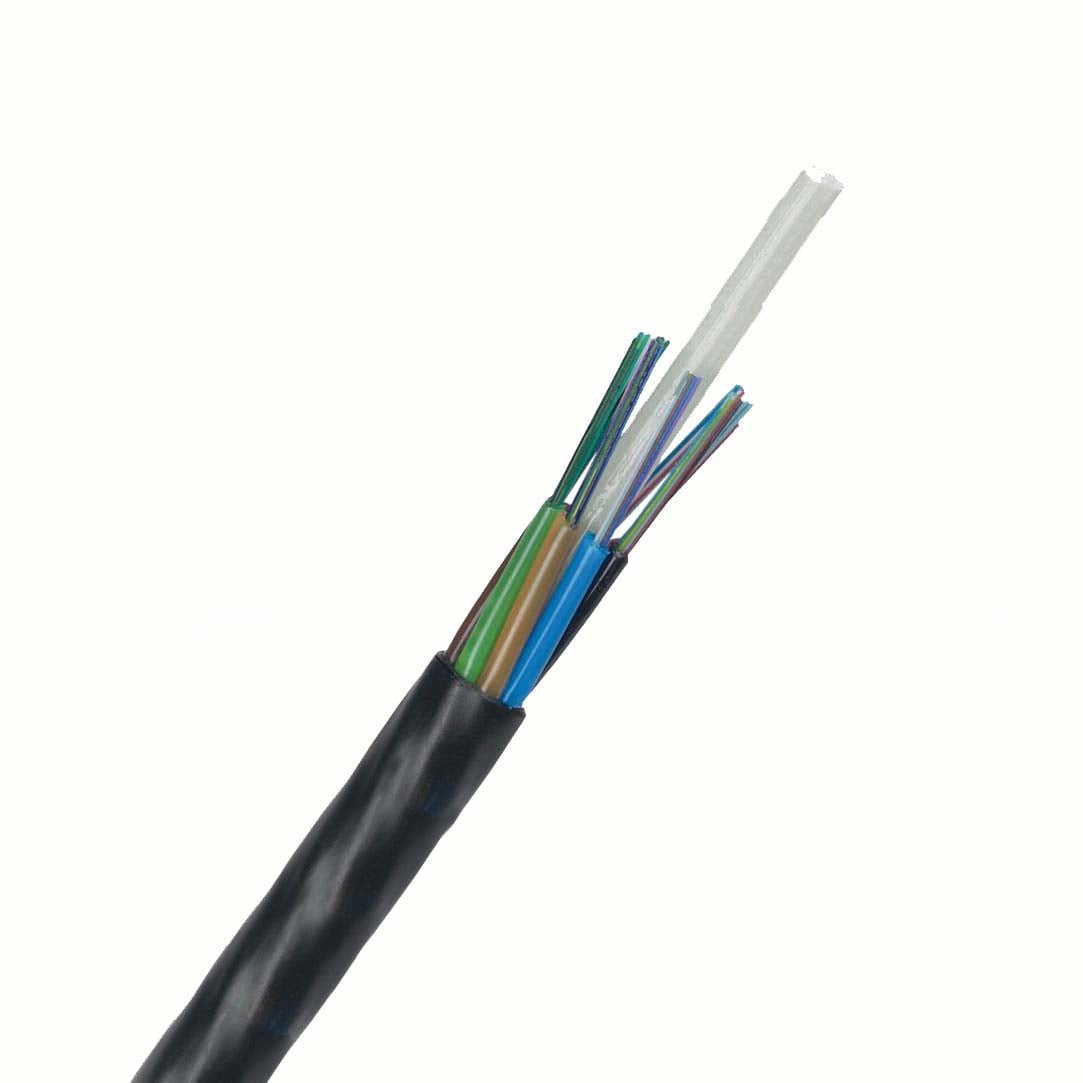

Microduct Micro Mini air Blown Fiber Cable
Single mode fiber G657A1
Multi loose tube

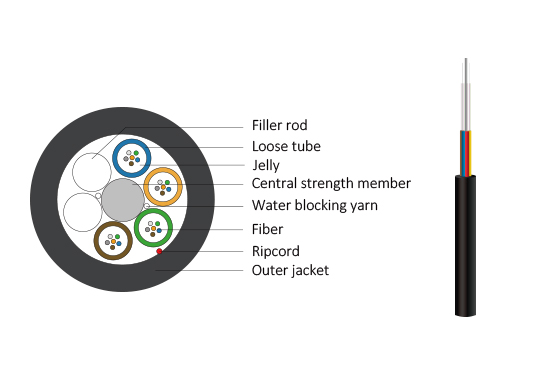

The fibers, 250μm, are position in a loose tube made of high modulus plastics(PBT), The tubes are filled with water resistant gel. Loose tubes and PP filler rope are stranded around the Non-metallic FRP central strength member(with PE sheath covering when needed). Cable core is filled with water blocking yarn. Outer sheath is made of UV resistance black HDPE jacket.
|
No. of cable |
24 |
72 |
144 |
|
|
Fiber Model |
G.652D |
|||
|
Design(Strength Member +Tube &Filler) |
1+6 |
1+12 |
||
|
Central Strength Member |
Material |
FRP |
FRP+PE sheath |
|
|
Diameter（±0.06）mm |
1.5 |
2.1 |
||
|
Loose Tube |
Material |
PBT |
||
|
Diameter（±0.06）mm |
1.5 |
|||
|
Thickness（±0.03）mm |
0.32 |
|||
|
The Max.Core NO./Tube |
12 |
12 |
12 |
|
|
Filler rope |
Material |
PP |
||
|
Diameter（±0.06）mm |
1.5 |
|||
|
NO. |
3 |
2 |
0 |
|
|
Additional sheath |
Material |
PE |
||
|
Diameter（±0.1）mm |
0 |
0 |
4.3 |
|
|
Outer Sheath |
Material |
MDPE |
||
|
Thickness（±0.1）mm |
0.5 |
|||
|
Cable Diameter（±0.2）mm |
5.5 |
5.5 |
8.5 |
|
|
Cable Weight（±5）kg/km |
23 |
23 |
55 |
|
|
Min. bending radius |
Without Tension |
10.0×Cable-φ |
||
|
Under Maximum Tension |
20.0×Cable-φ |
|||
|
Temperature range （℃） |
Installation |
-20~+60 |
||
|
Transport&Storage |
-40~+70 |
|||
|
Operation |
-40~+70 |
|||
