Fiber Counts: 2 cores -288 cores

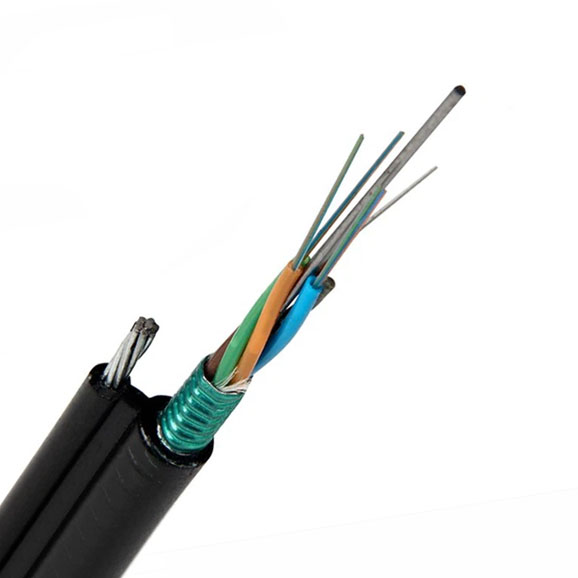

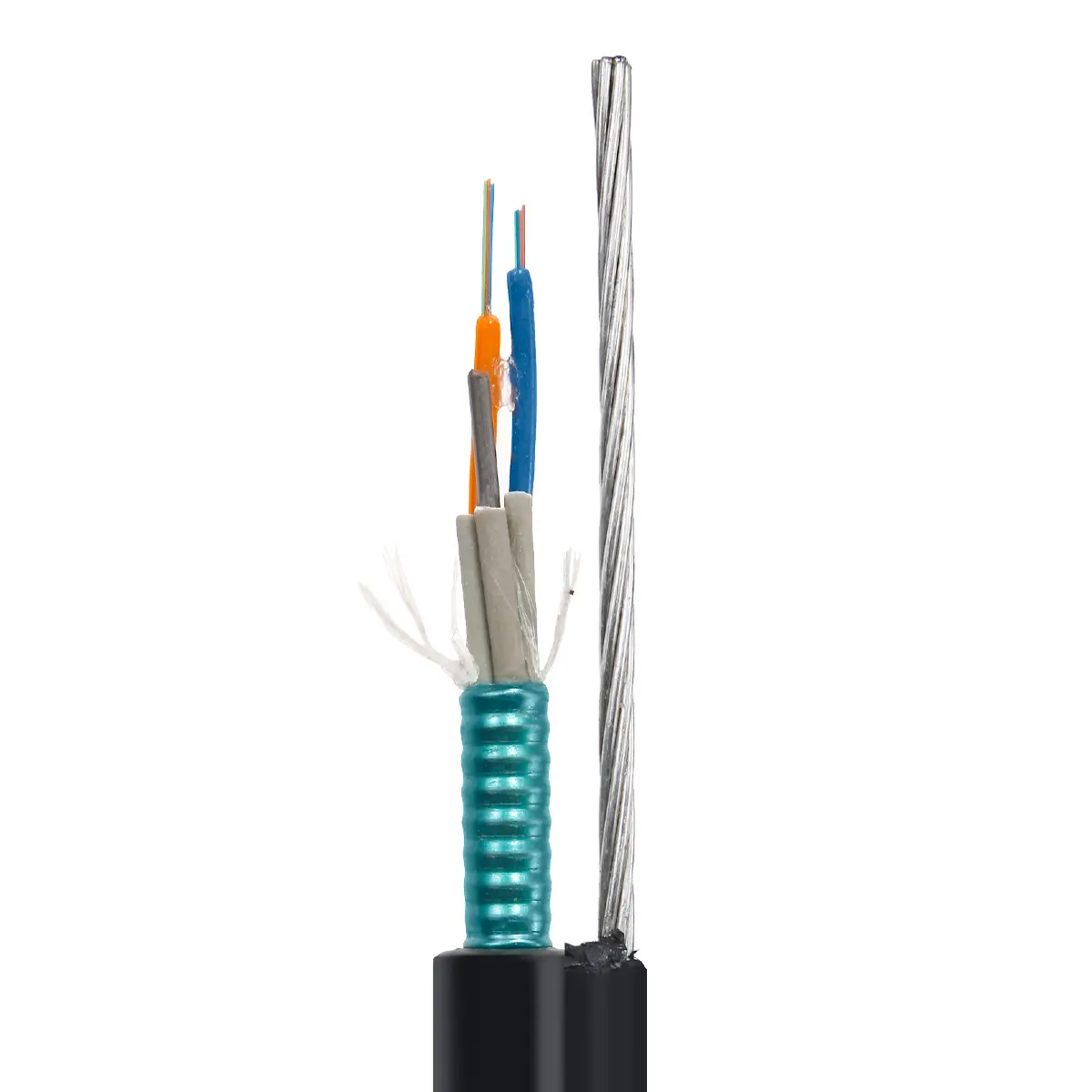

Structure: Figure 8 design, loose tube
CSM(Central Strength Member): Steel wire (or FRP)
Span customized: 80/100/120/150/200m etc.
Light-armored: Corrugated Steel Tape (aluminium tape optional)
SJSA: Single Jacket Single Armor
Messenger: stranded steel wires 7*1.0mm
Drum Length: 2km,3km,4km as request
|
No. of cable |
24 |
||
|
Fiber Model |
G652D |
||
|
Design (Strength Member + Tube & Filler) |
1+5 |
||
|
Central Strength Member |
Material |
Steel Wire |
|
|
Loose Tube |
Material |
PBT |
|
|
Filler Rope |
Material |
PP |
|
|
Water Blocking Layer( Material) |
Flooding Compound |
||
|
Outer Sheath① |
Material |
PE |
|
|
Outer Sheath② |
Material |
PE |
|
|
Web |
Material |
PE |
|
|
Size（±0.1）mm |
1.5*2.0 |
||
|
Messenger Wire |
Material |
Steel stranded |
|
|
Size（±0.1）mm |
2.4mm（0.8mm×7） |
||
|
Cable Diameter（±0.5）mm（W×H） |
8.7x15.5 |
||
|
Cable Weight（±10）kg/km |
112 |
||
|
Min. bending radius |
Without Tension |
10×Cable-φ |
|
|
Under Maximum Tension |
20×Cable-φ |
||
|
Temperature range |
Installation |
-20~+60 |
|
|
Transport&Storage |
-40~+70 |
||
|
Operation |
-40~+70 |
||
|
NO. |
Item |
Requirement |
|
|
1 |
Allowable Tensile Strength |
Short Term |
2000N |
|
Long Term |
600 N |
||
|
2 |
Allowable Crush Resistance |
Short Term |
1000 (/100mm) |
|
Long Term |
300 (/100mm) |
||
|
3 |
Application |
Aerial |
|
The color of marking is white, but if the remarking is necessary, the white color marking shall be printed newly on a different position.
An occasional unclear of length marking is permitted if both of the neighboring markings are clear.
The both cable ends are sealed with heat shrinkable end caps to prevent water ingress.
