Fiber Counts: 2 cores -24 cores
Structure: Figure 8 design, central loose tube
CSM(Central Strength Member): Steel wire (or FRP)
Span customized: 80/100/120/150M
Messenger: stranded steel wires 7*1.0mm
Drum Length: 2km,3km,4km as request

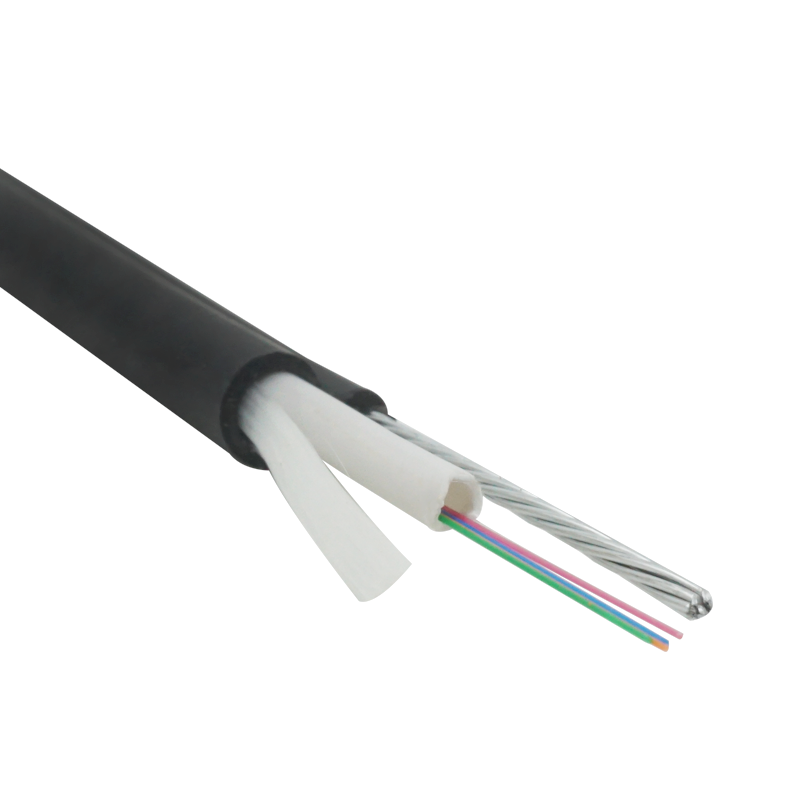

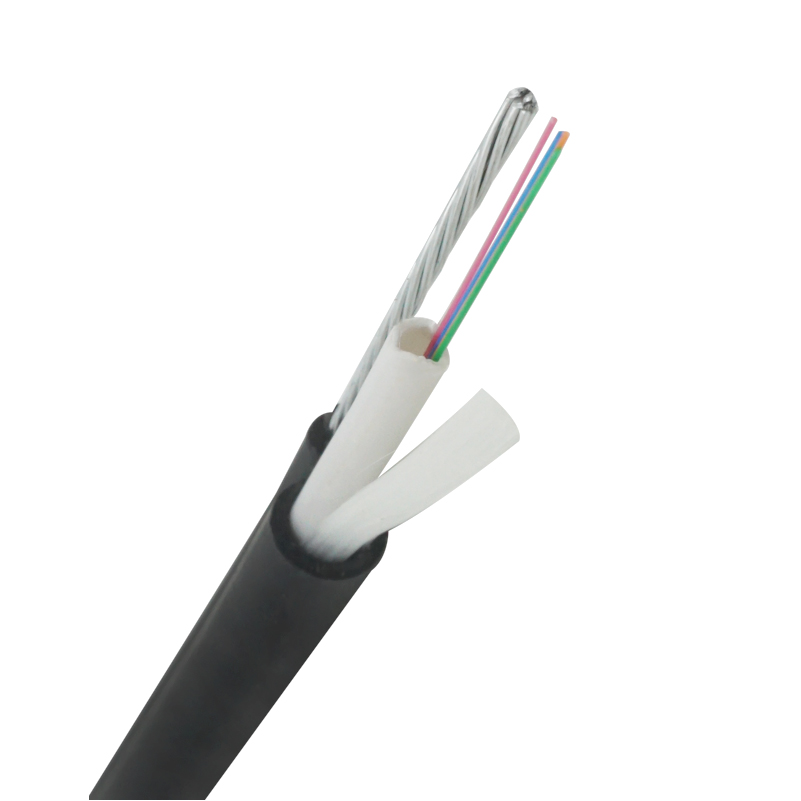

The aerial fiber optic cable GYXTC8Y figure 8 optical cable is a self-supporting metal reinforcement mini aerial cable. It is a armored figure 8 cable and a central PBT tube and is available in 2~24 cores. The fiber optical cable core has compact structure, light weight, small size, easy construction and maintenance, low manufacturing cost, and reduce investment costs for users.
|

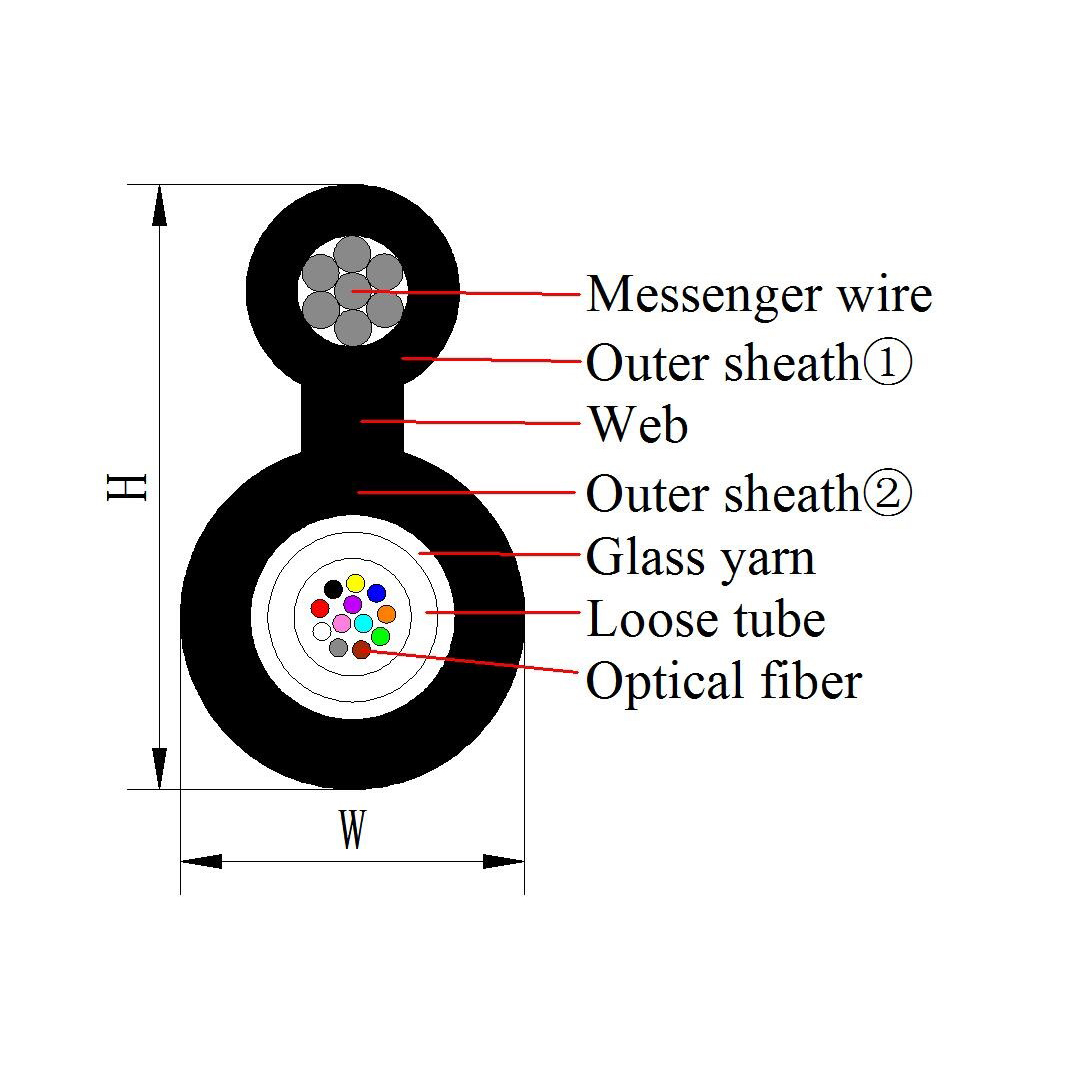

No. of cable |
12 |
||
|
Fiber Model |
G.652D |
||
|
Loose Tube |
Material(color) |
LSZH(white) |
|
|
Diameter（±0.06）mm |
2.6 |
||
|
Outer Sheath① |
Material |
LSZH |
|
|
Web |
Material |
LSZH |
|
|
Size（±0.1）mm |
1.0*1.0 |
||
|
Messenger Wire |
Material |
FRP |
|
|
Size（±0.1）mm |
1.2(0.4mm*7) |
||
|
Outer Sheath② |
Material |
LSZH |
|
|
Cable Diameter（±0.2）mm(W×H) |
5.0*8.0 |
||
|
Cable Weight（±5）kg/km |
37 |
||
|
Attenuation |
1310 nm |
£0.40 |
|
|
1550 nm |
£0.30 |
||
|
Min. bending radius |
Without Tension |
10×Cable-φ |
|
|
Under Maximum Tension |
15×Cable-φ |
||
|
Temperature range （℃） |
Installation |
-10~+60 |
|
|
Transport&Storage |
-20~+70 |
||
|
Operation |
-20~+70 |
||
|
NO. |
Item |
Requirement |
|
|
1 |
Allowable Tensile Strength |
Short Term |
800N |
|
Long Term |
200N |
||
|
2 |
Allowable Crush Resistance |
Short Term |
700 (/100mm) |
|
Long Term |
200 (/100mm) |
||
The color of marking is white, but if the remarking is necessary, the white color marking shall be printed newly on a different position.
An occasional unclear of length marking is permitted if both of the neighboring markings are clear.
The both cable ends are sealed with heat shrinkable end caps to prevent water ingress.
