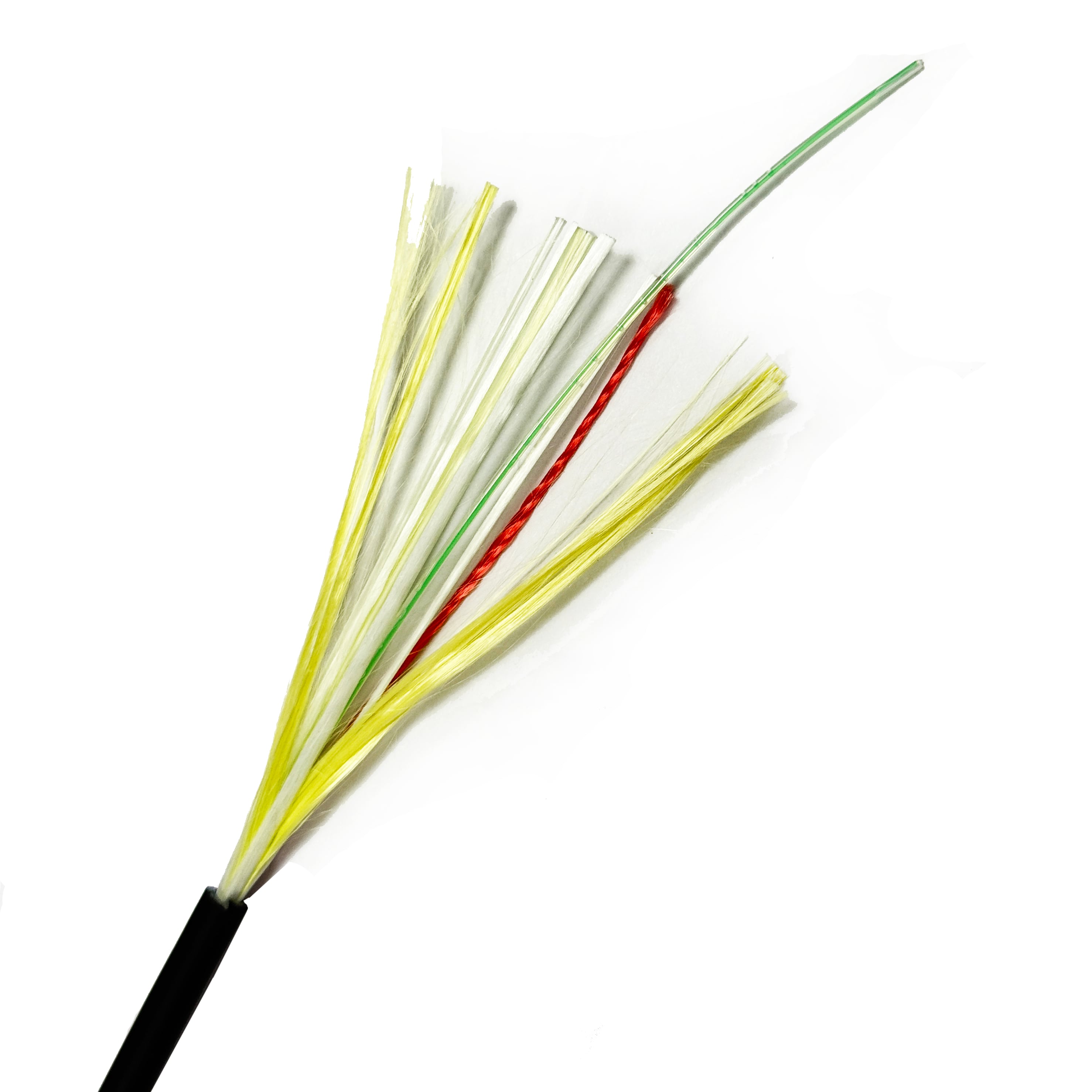

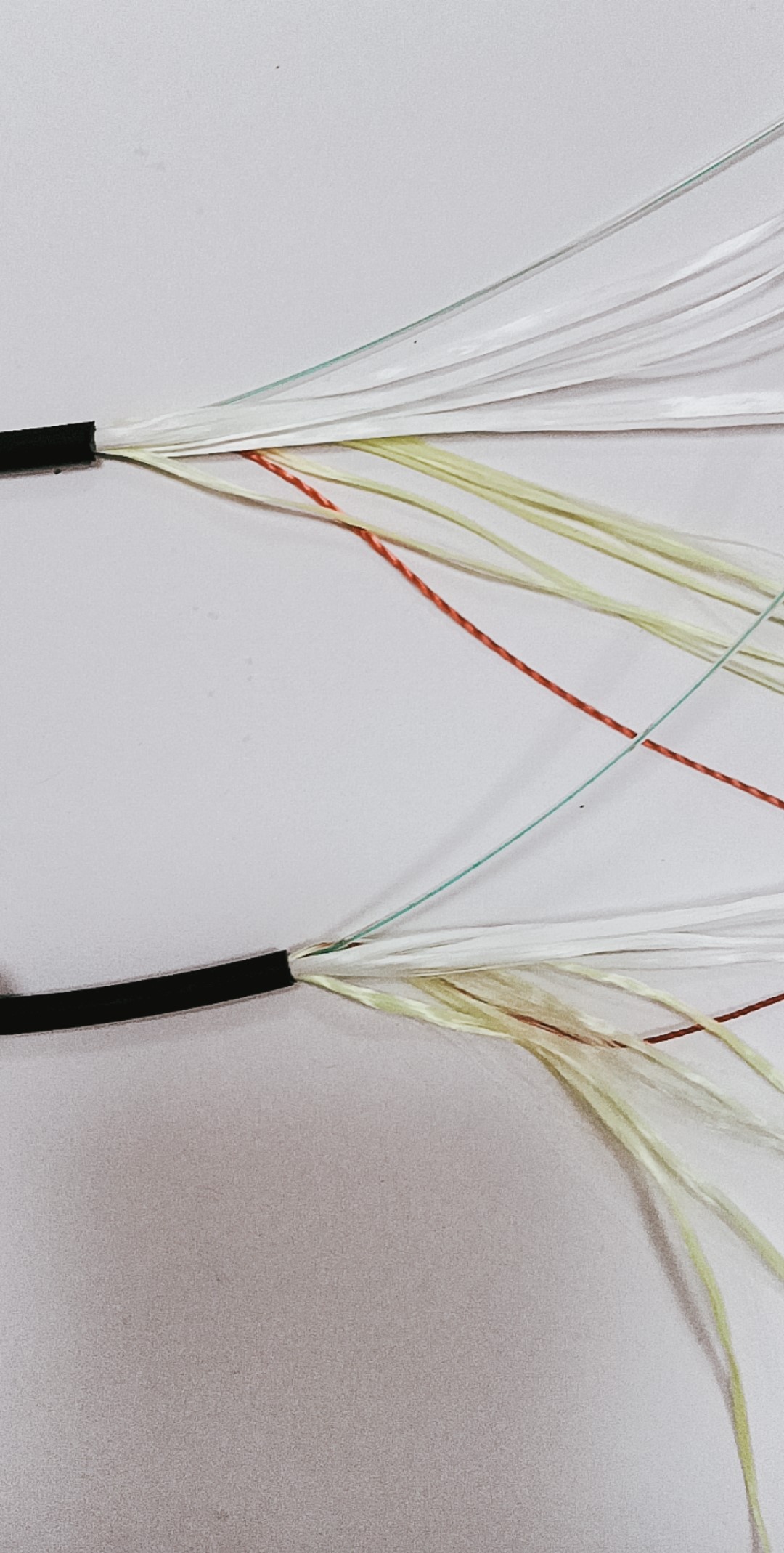

Indoor/outdoor 4.1 mm round drop cable is a robust and flexible cable that provides durability and reliability in the drop segment of the network. The cable is designed for short-span, self-supporting aerial installations as well as to be installed on facades, poles, and ducts in FTTH deployments. The outer jacket is LSZH which enable the cable to be installed outdoors and indoors. The inner jacket is comprised of a protective buffer made of the flame-retardant blend of high strength and crush resistant materials
|
Standards |
|
|
Reaction to Fire |
Dca, s1a, d1, a1 |
|
RoHS |
Free of hazardous substances according to RoHS 2011/65/EU |
|
Waterblocking |
IEC 60794-1-22 Method F5B |
|
Flame propagation test |
Flame retardant according to IEC 60332-1-2 (single cable) and IEC 60332-3-24 (bunch of cables) |
|
Reaction to Fire Requirements |
Reaction to fire according to EN 50575 and EN 13501-6 |
|
Smoke density |
Low Smoke to IEC 61034 |
|
Halogen content test |
Zero Halogen according to IEC 60754-1 |
|
Level of corrosion |
Non-corrosive according to IEC 60754-2 |
|
General Specifications |
|
|
Cable type |
Central Tube |
|
Environment |
Indoor/Outdoor |
|
Product type |
Dielectric |
|
Fibre category |
G657A1 |
|
Flame rating |
LSZH |
|
Application |
Aerial, General purpose, Horizontal, Duct, Drop |
|
Cable geometry |
Round |
|
Mechanical Specifications |
|
|
Crush resistance |
800 N/10 cm |
|
Max. tensile strength for installation |
800 N |
|
Min. bend radius installation |
30 mm |
|
Min. bend radius operation |
43 mm |
|
Nominal outer diameter |
4.1 mm |
