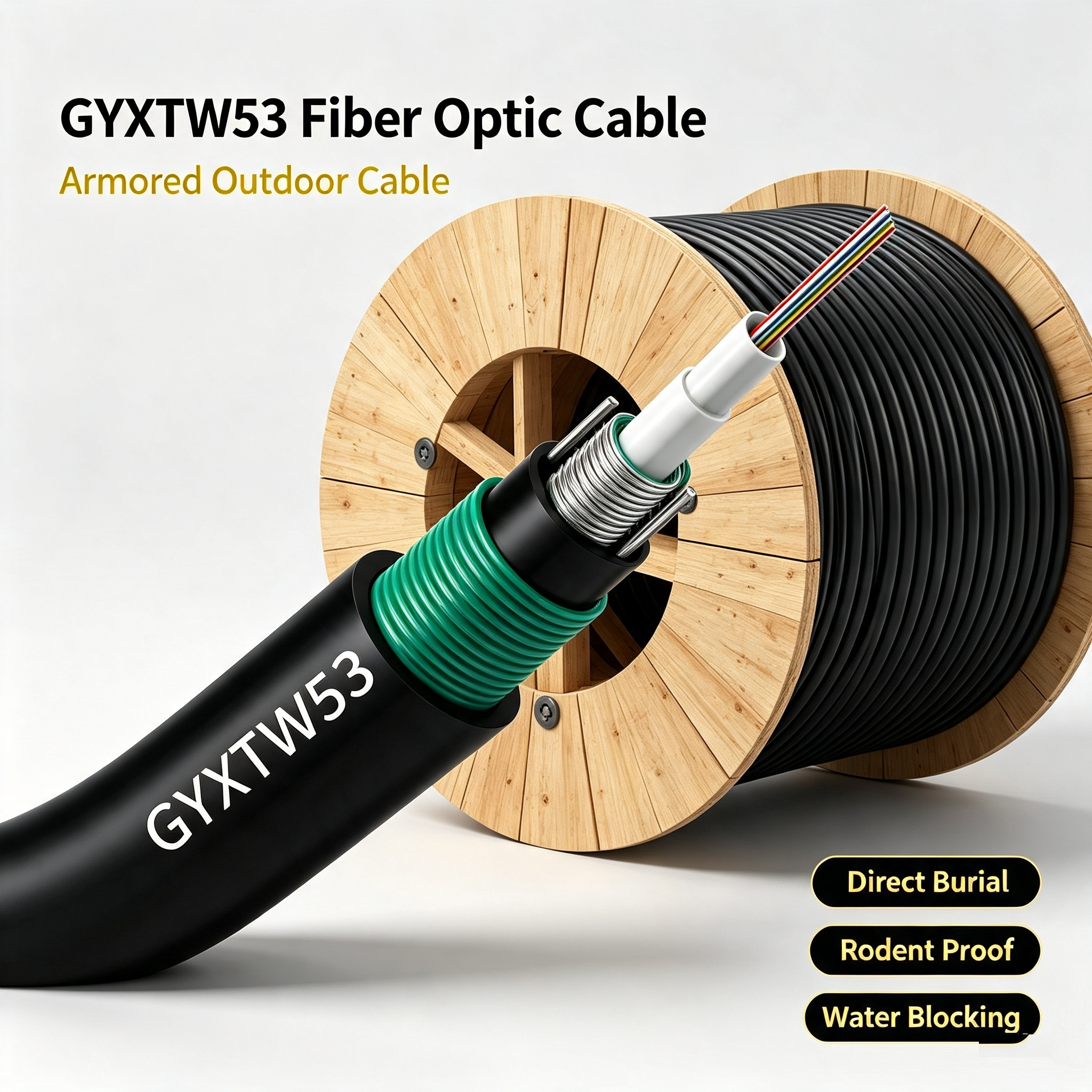

GYXTW53 Center‑Tube Steel Tape Armored Direct Buried Underground Fiber Optic Cable 4‑24 Cores Double PE Sheath

Compact Light‑Weight Center‑Tube Design

Steel Tape Armor Anti‑Crush & Anti‑Rodent

Double PE Sheath For Direct Soil Burial

Cost‑Effective Small‑Core Underground Branch Cable

Description
Feature
Technical data

Is there a problem? Please contact us to serve you!

+86-13265756131

[email protected]

Description

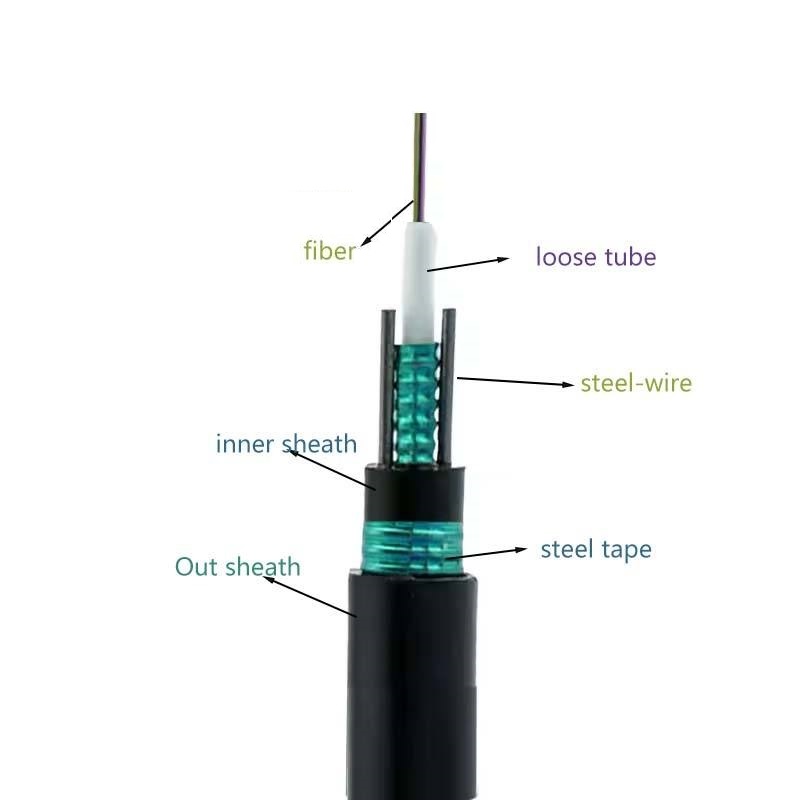

Central tube structure with optical fibers housed in loose tubes

Loose tubes filled with grease
Dual parallel steel wire reinforcement for high tensile strength
Corrugated steel tape armor for superior crush and bite resistance
Double-jacketed armored optical fiber cable
Exceptional waterproof barrier and moisture protection
Suitable for outdoor direct burial installation
Stable performance in harsh environments

Feature

• Compact integrated center‑tube structure, lightweight and easy for field handling

• Corrugated steel tape armor provides anti‑crush and anti‑rodent performance

• Double‑layer PE sheath resists soil corrosion, UV and underground aging

• Gel‑filled water‑blocking system prevents moisture ingress for buried application

• Flexible cable body, convenient for short‑distance routing and laying

• Available from 4 to 24 cores, perfect for access network and branch underground wiring

Technical data

Model Number	GYXTW53
Fiber count	2-24 Cores
Fiber Type	G652D or as your need
Structure	Central loose Tube
Jacket material	PE
Armored	corrugated steel tape/Aluminium tape
strength member	Two parallel steels
Certification	CE/ROHS/ISO9001
Strength member	Steel Wire
Application	Buried
1310nm	≤0.34dB
1550nm	≤0.21dB
Package	Wooden Reel
Operating environment:	- 40 ~ 60 ℃
